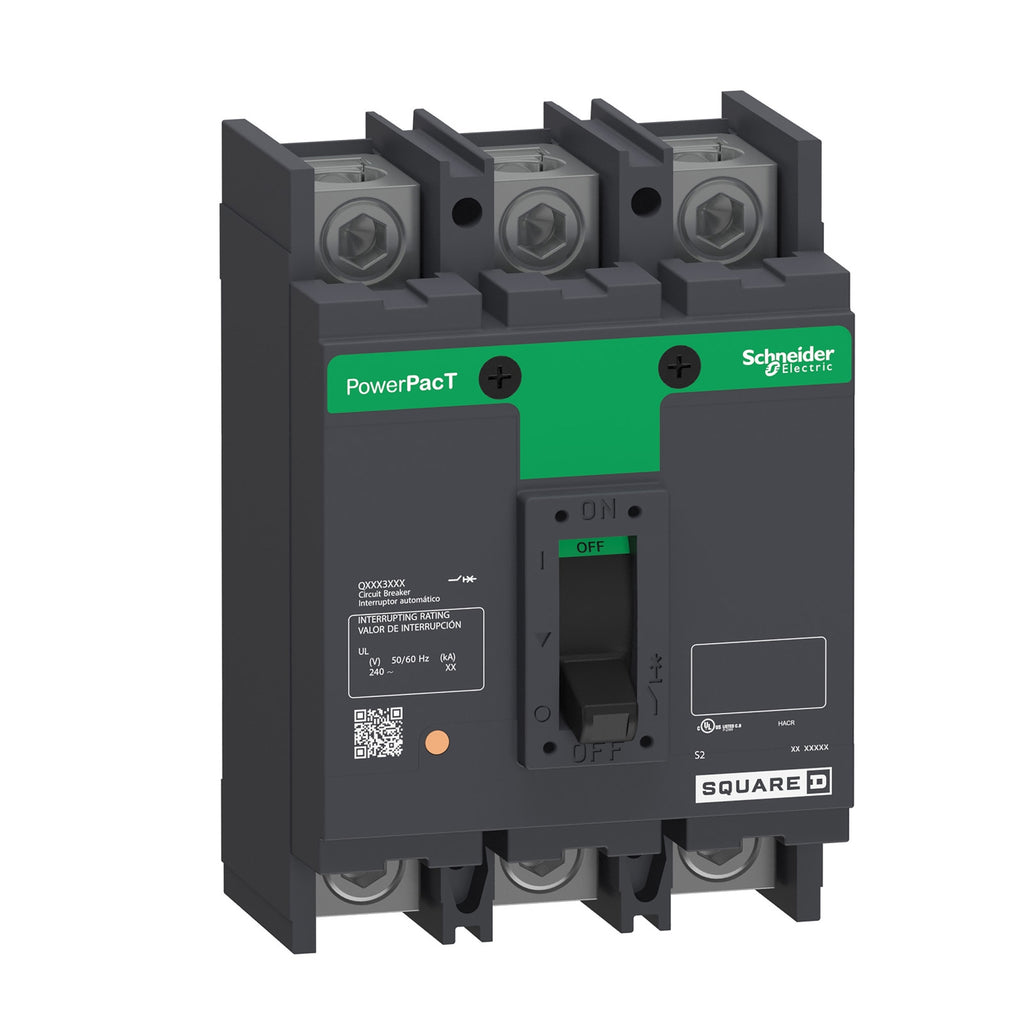

QBM32100TN - Square D 100A 208Y/120V 3 Pole Thermal Magnetic Circuit Breaker QBM Frame

QBM32100TN

QBM32100TN is a Square D 3 pole thermal magnetic molded case circuit breaker rated for 100 amps and 208Y/120 volts. It features a unit mounting type and bolt-on connection for reliable installation.This circuit breaker belongs to the QBM series/frame and provides overcurrent protection with a 10kA interrupting rating at 240V. It includes long time and instantaneous trip functions and is UL, CSA, and IEC certified. The breaker uses line side lug terminal connections and complies with RoHS standards.

• Manufacturer: Square D
• Series/Frame: QBM
• Amperage: 100A
• Voltage: 208Y/120V
• Poles: 3
• Mounting Type: Unit Mount
• Interrupting Rating: 10kA @ 240V
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous functions
• Connection Type: Bolt-On
• Terminal Connection: Line Side Lug
• Certifications: UL, CSA, IEC
• Compliance: RoHS

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBM32100TN
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBM
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long Time and Instantaneous
• Terminal Connection : Lug, Terminal Nut
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901415428
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.46
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
