Description
QBL32225

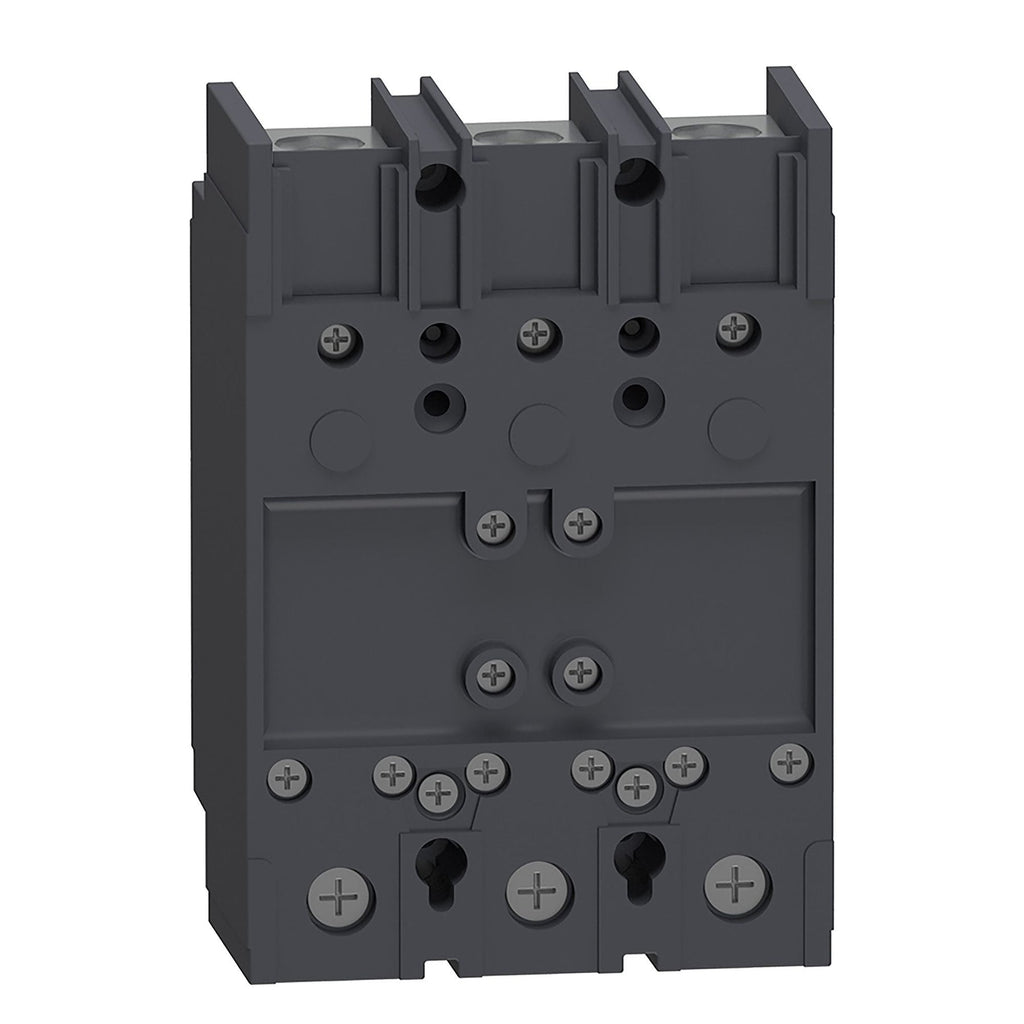

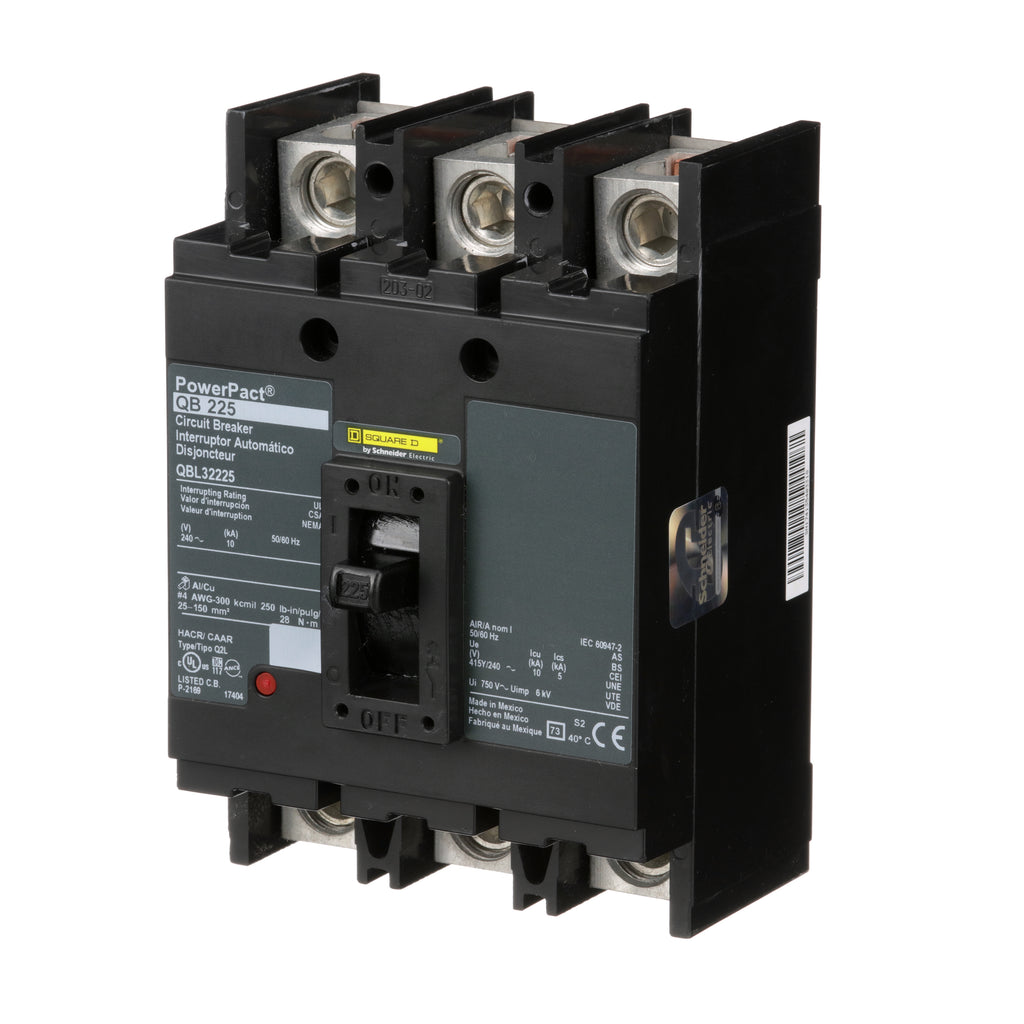

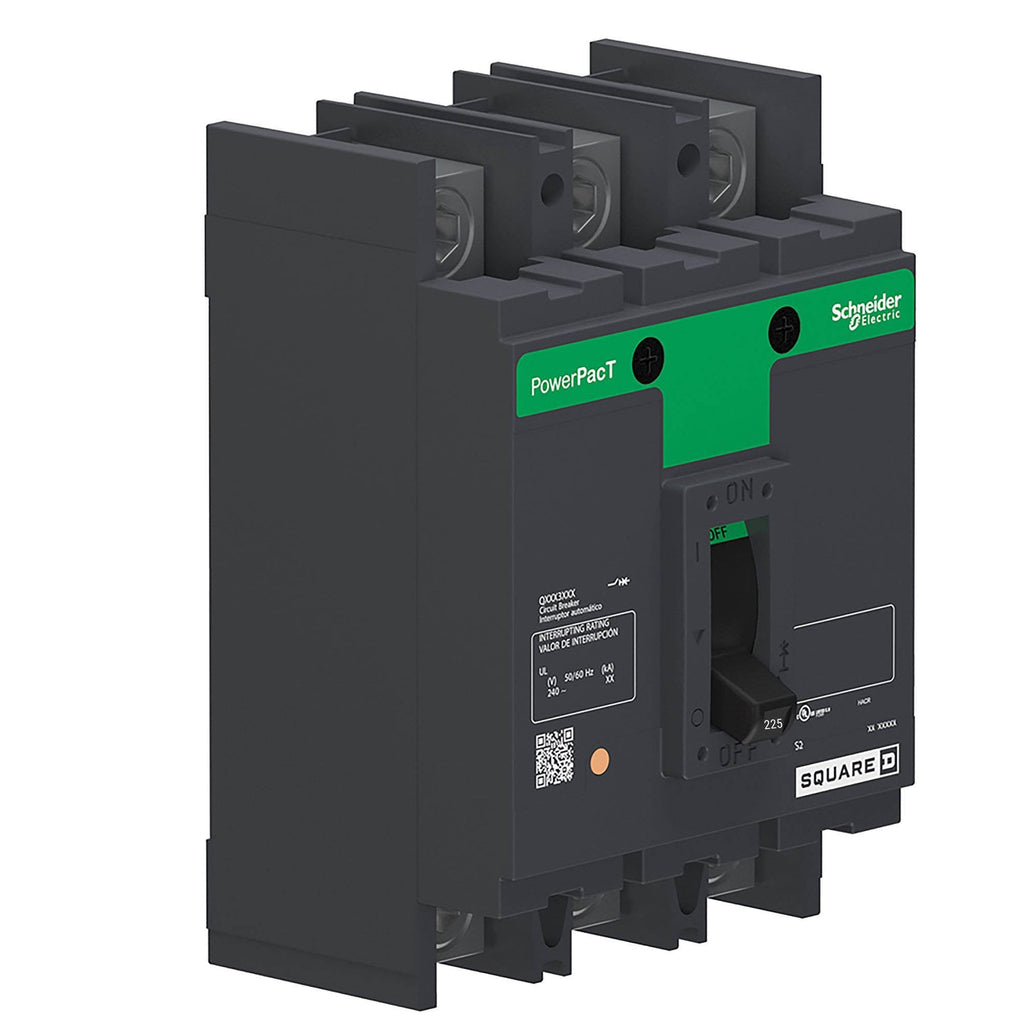

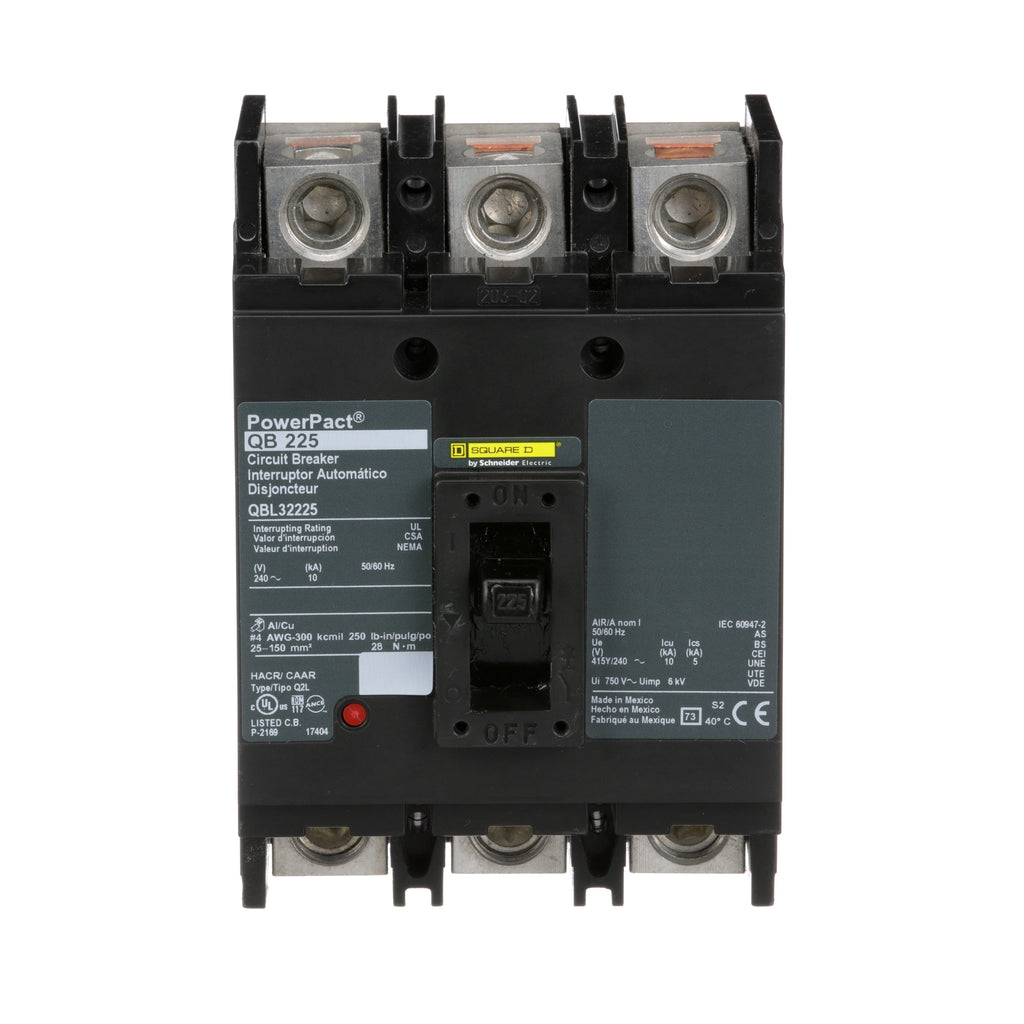

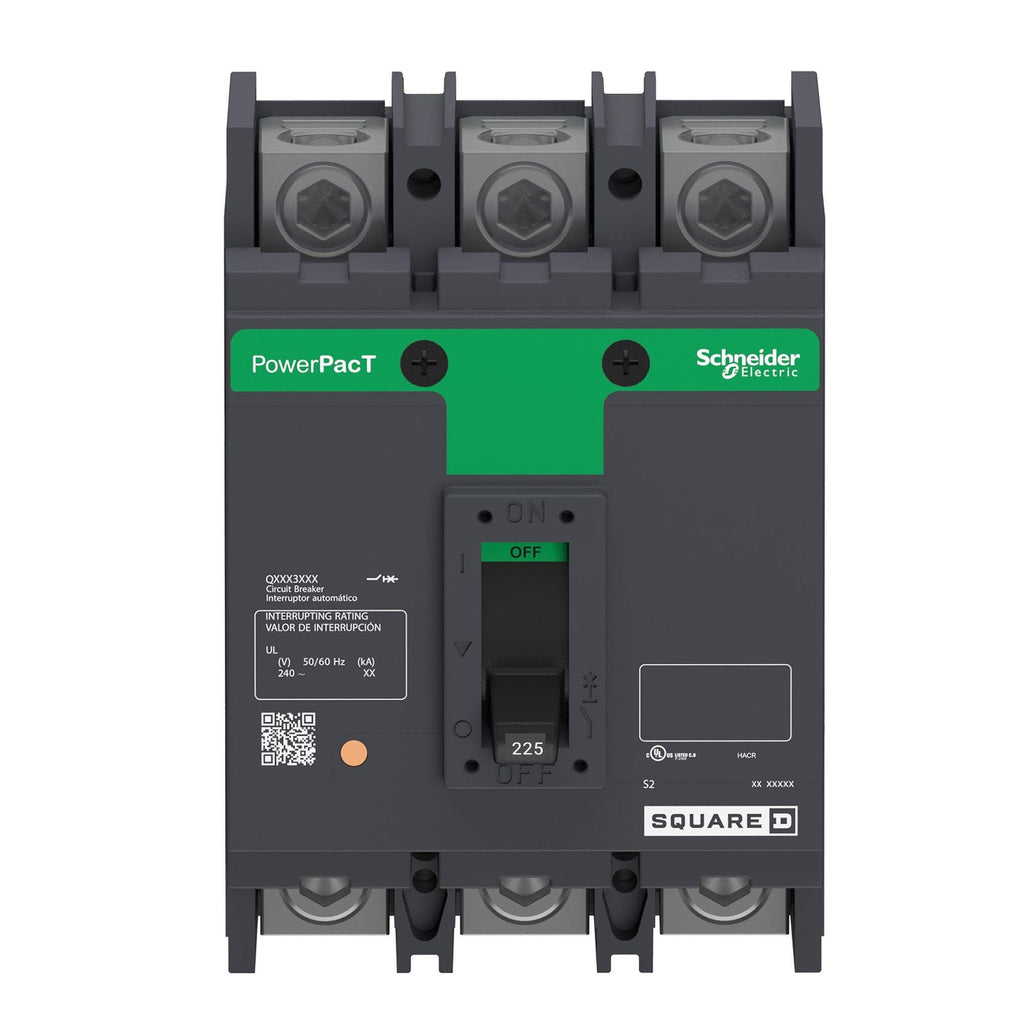

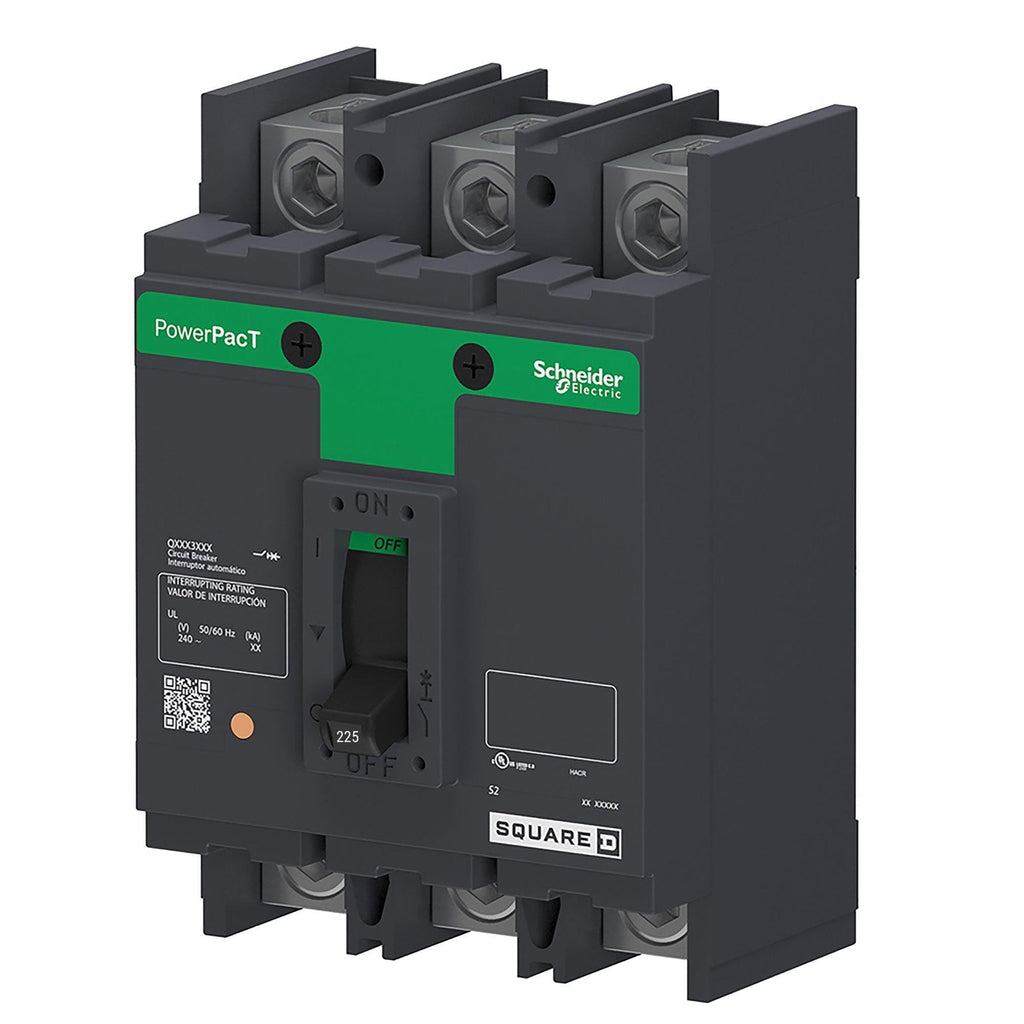

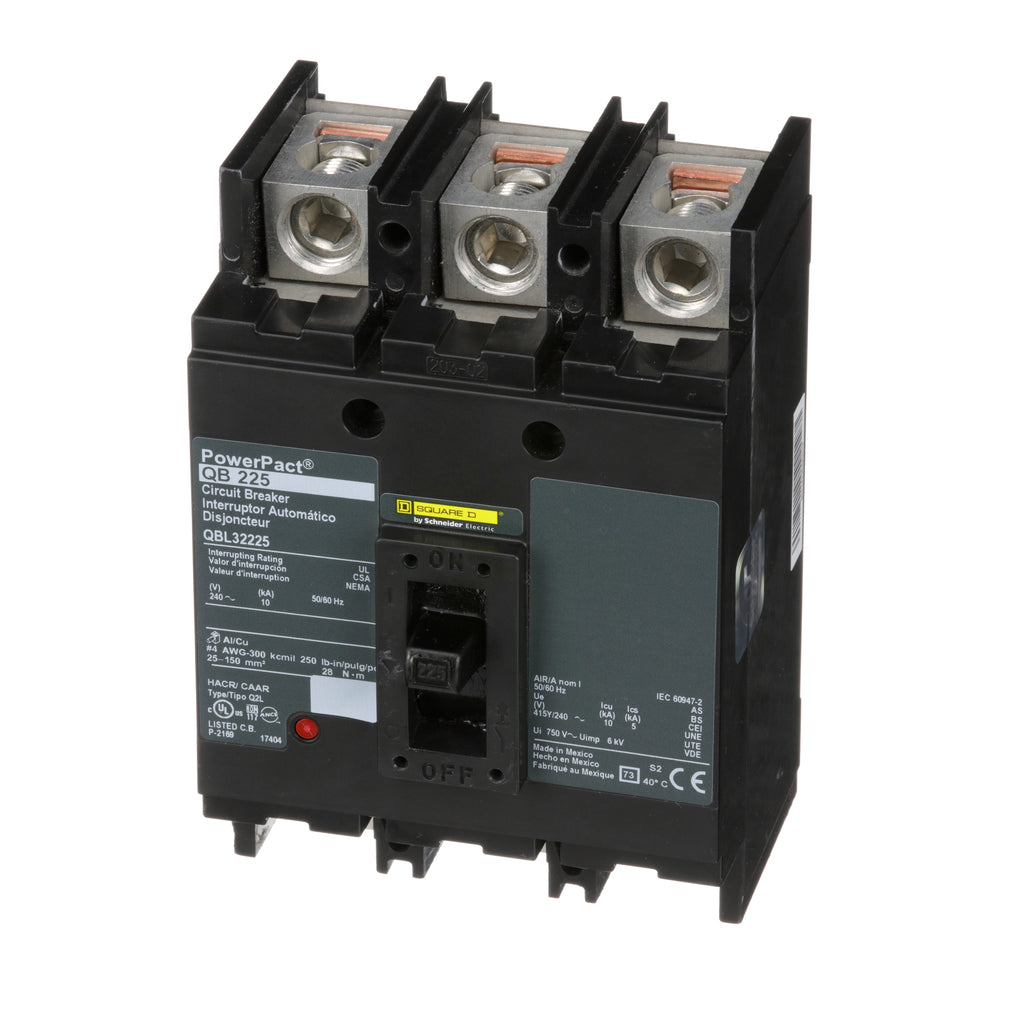

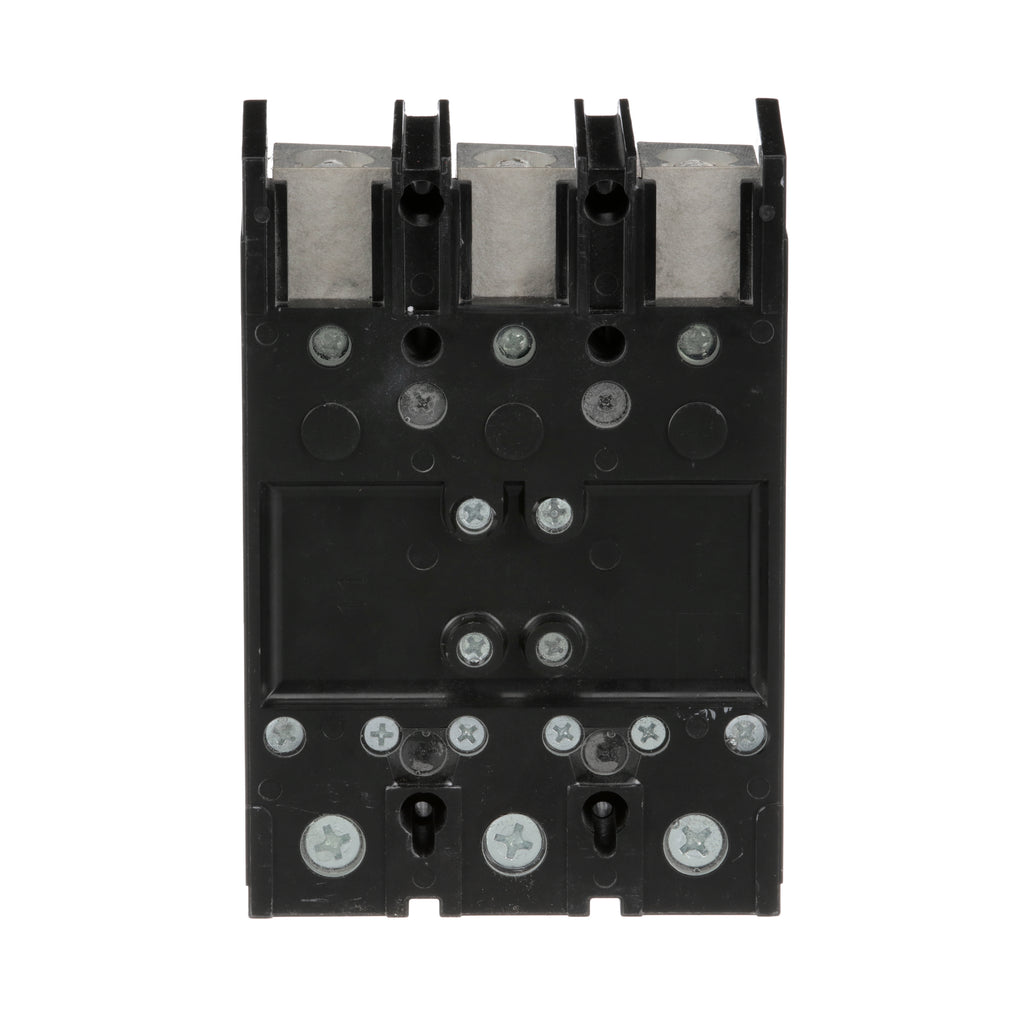

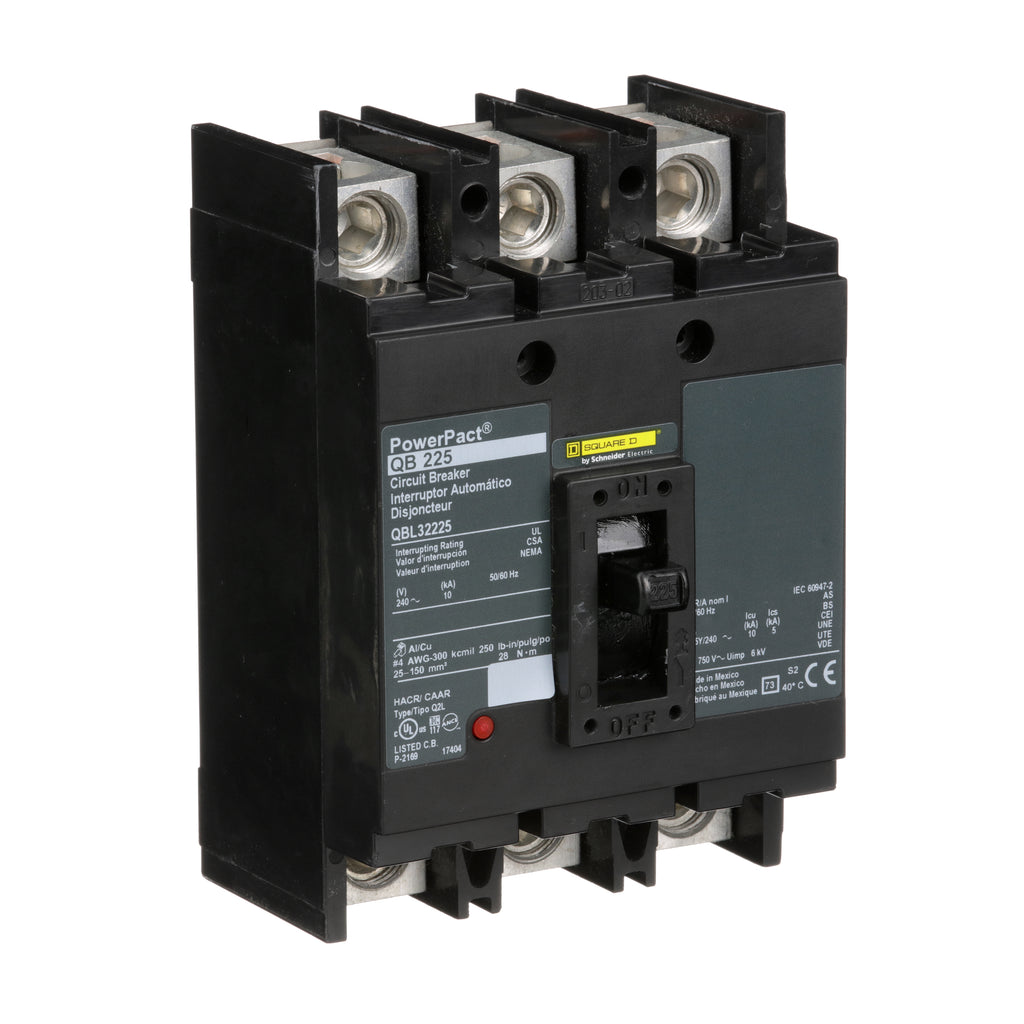

QBL32225 is a Square D 3 pole, 225 amp, 240VAC thermal magnetic circuit breaker designed for reliable overcurrent protection.This molded case circuit breaker features a QBL frame, 10kA interrupting rating, and line/load lug terminals. It is UL 489 listed and CSA certified, suitable for distribution applications requiring robust switching and protection.
- Key Specifications
- Manufacturer: Square D
- Part Number: QBL32225
- Amperage: 225A
- Voltage: 240VAC
- Poles: 3
- Frame Type: QBL
- Interrupt Rating: 10kA
- Trip Unit: Thermal Magnetic
- Terminal Type: Line and Load Lugs
- Certifications: UL 489, CSA
Specifications
- Part Number: QBL32225
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBL
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Line/Load Lug
- Frame Size : 250A/QB
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : ABC
Product Data
- UPC : 785901417880
- GTIN : 00785901417880
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 4.5 in (114.3 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 4.7
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
