Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Molded Case
Description
QBL22225

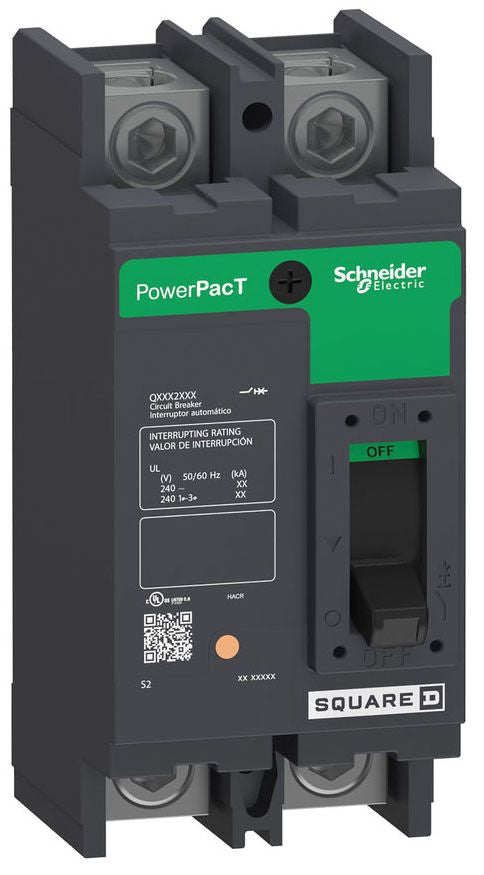

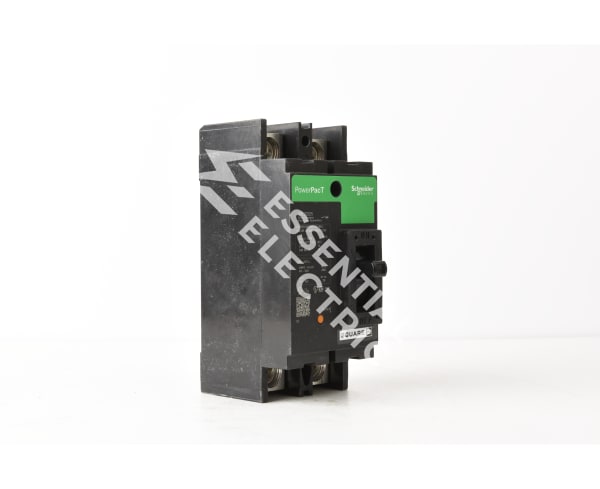

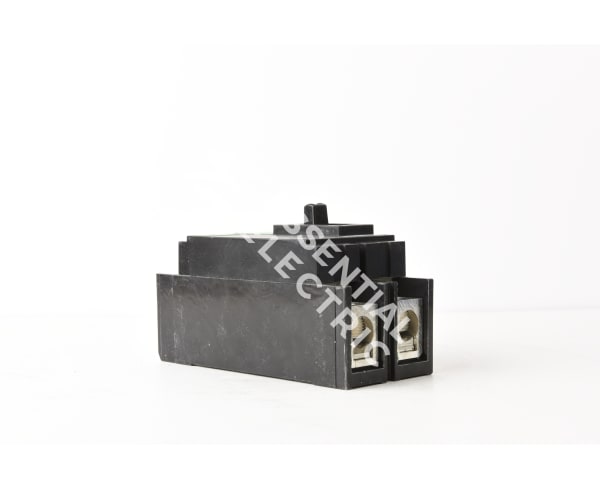

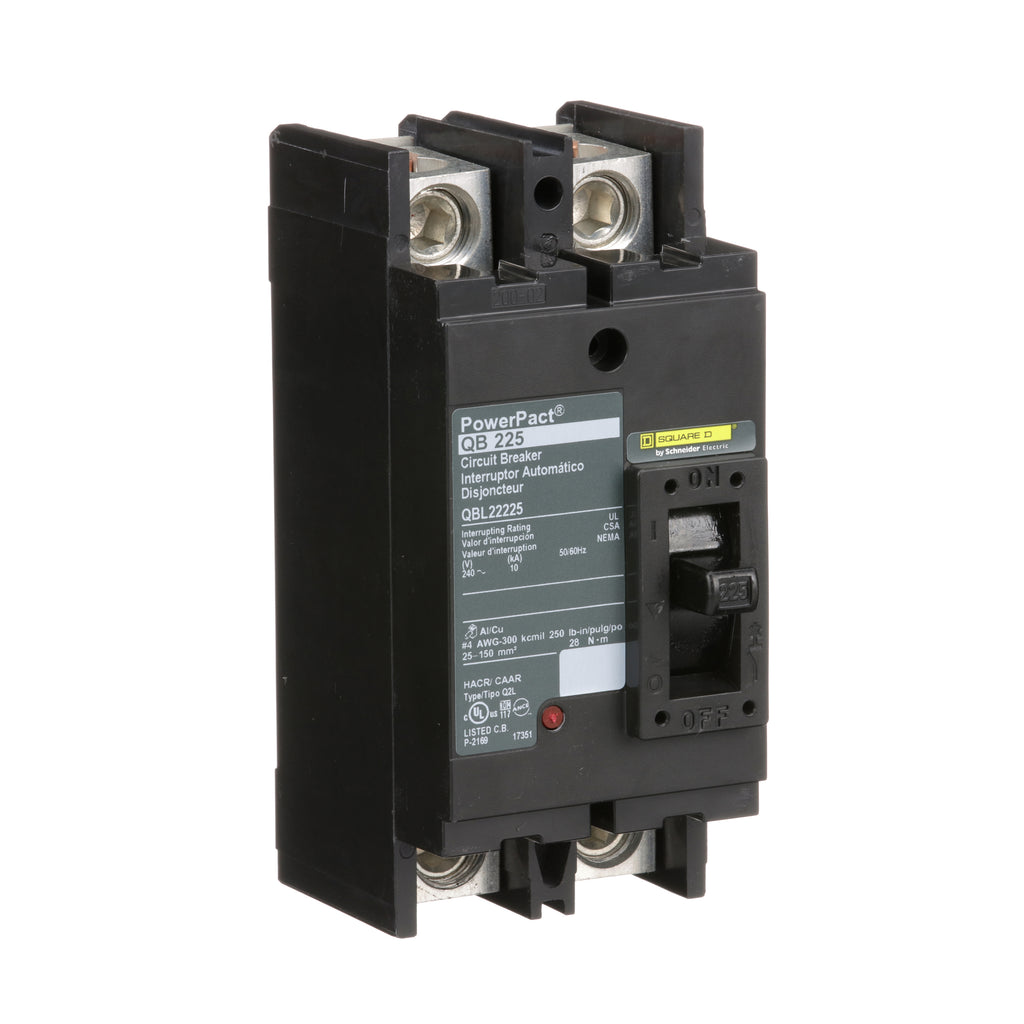

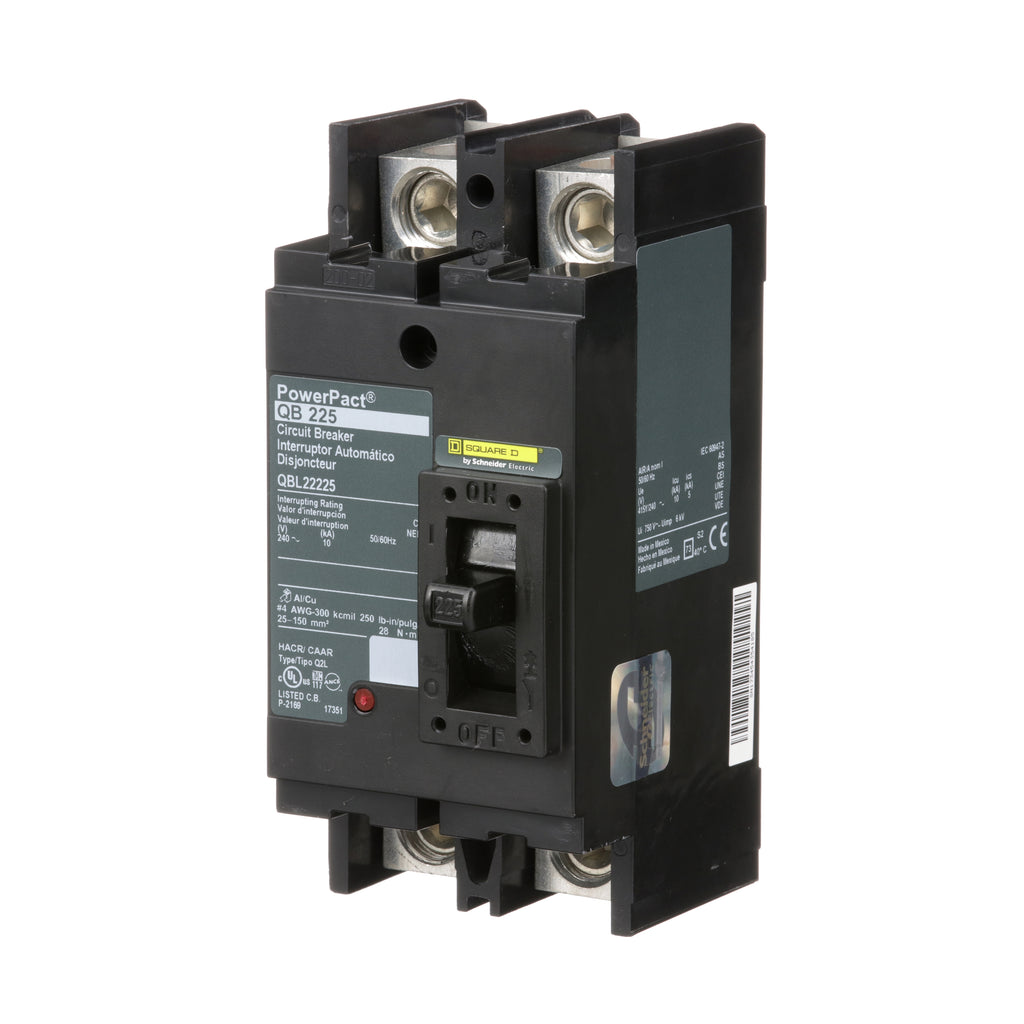

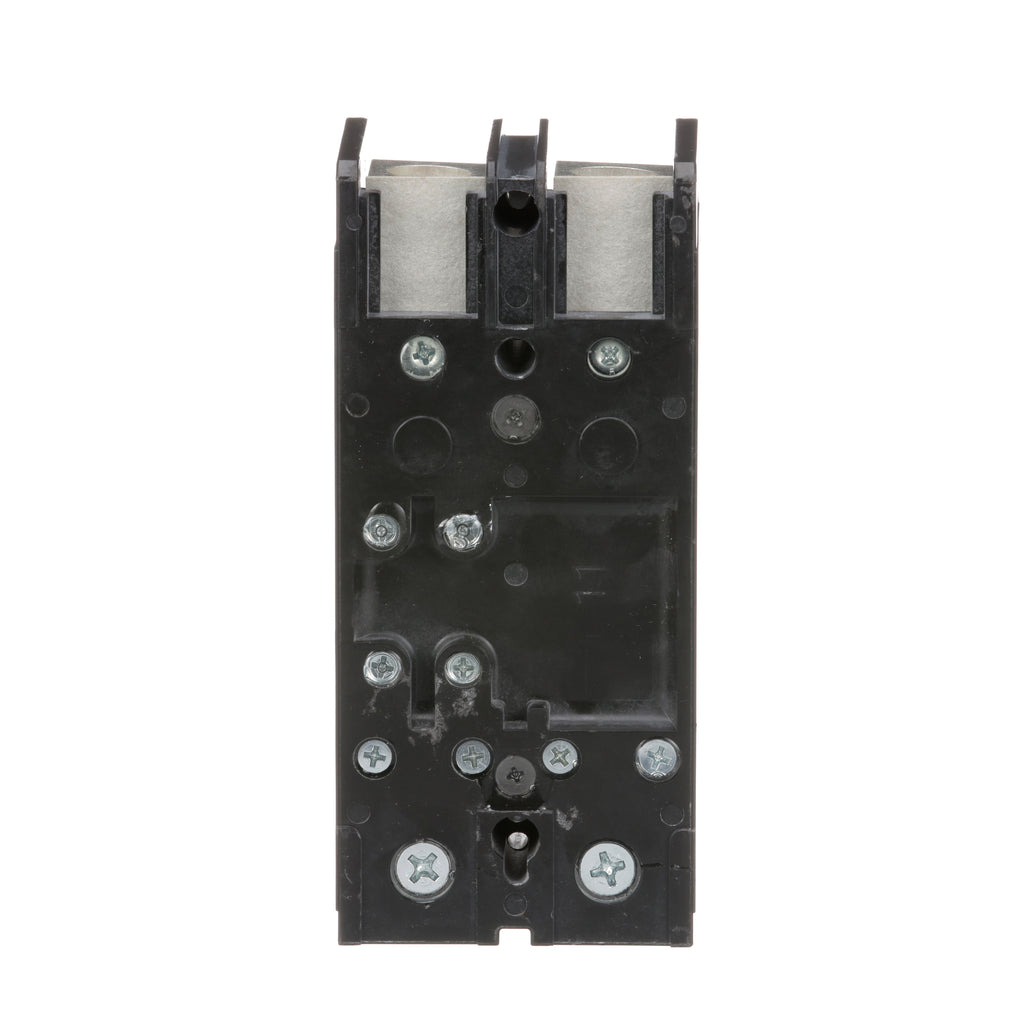

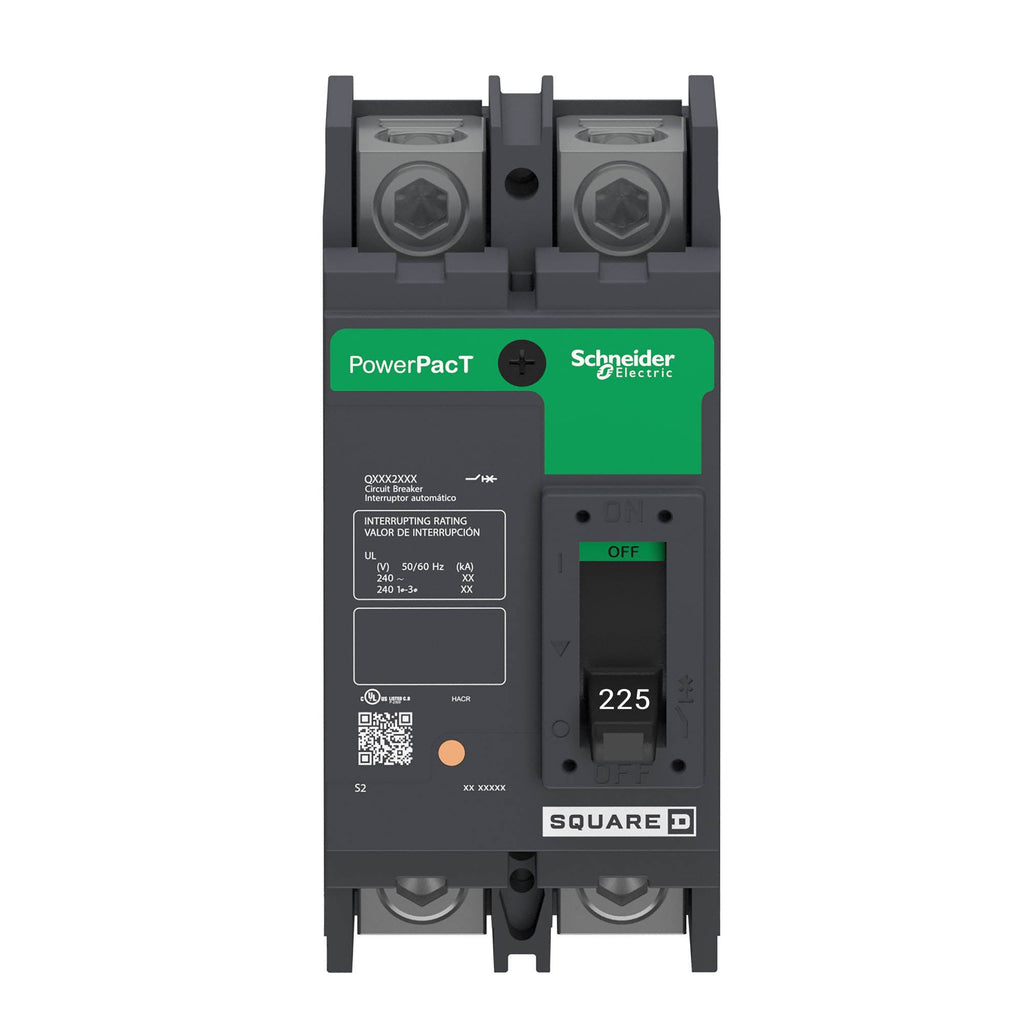

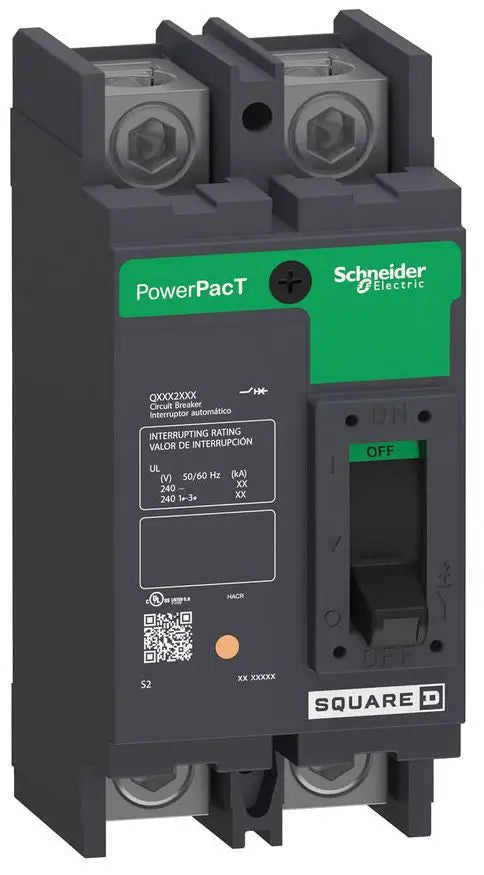

QBL22225 is a Square D Powerpact QBL series molded case circuit breaker rated for 225 amps and 240 volts with 2 poles.This thermal-magnetic circuit breaker features a unit mount lug connection type with feed-thru terminals, providing reliable overcurrent protection with long-time and instantaneous trip functions. It has a 10kA interrupting rating at 240V, B breaking capacity code, and is UL listed with CSA and IEC certifications. The breaker measures 6.47" H x 3" W x 3.93" D and includes an operating handle for control.
- Key Specifications
- Manufacturer: Square D
- Series/Frame: Powerpact QBL
- Amperage: 225A
- Voltage: 240V AC
- Poles: 2
- Mounting Type: Unit Mount Lug
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
- Connection Type: Feed-Thru Lugs (Line and Load Side)
- Certifications: UL Listed, CSA, IEC
- Dimensions (HxWxD): 6.47" x 3" x 3.93"
- Breaking Capacity Code: B
- Part Number: QBL22225
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Powerpact
- Type : QBL
- Voltage : 240
- Amperage : 225
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Line/Load Lug
- Frame Size : 250A/QB
- Temp Rating : -13–158 °F (-25–70 °C)
- MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
- Breaker Type : Standard
- Protection : Thermal Magnetic
- Phase Connection : Not Applicable
- UPC : 785901412663
- GTIN : 00785901412663
- Country of Origin : Mexico
- Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
- Weight : 3.37
- Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
- Certification : UL, CSA, NOM
