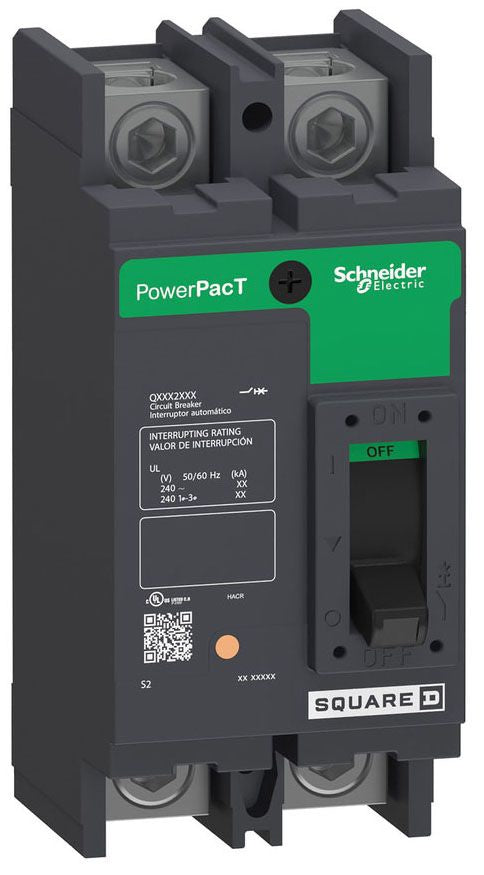

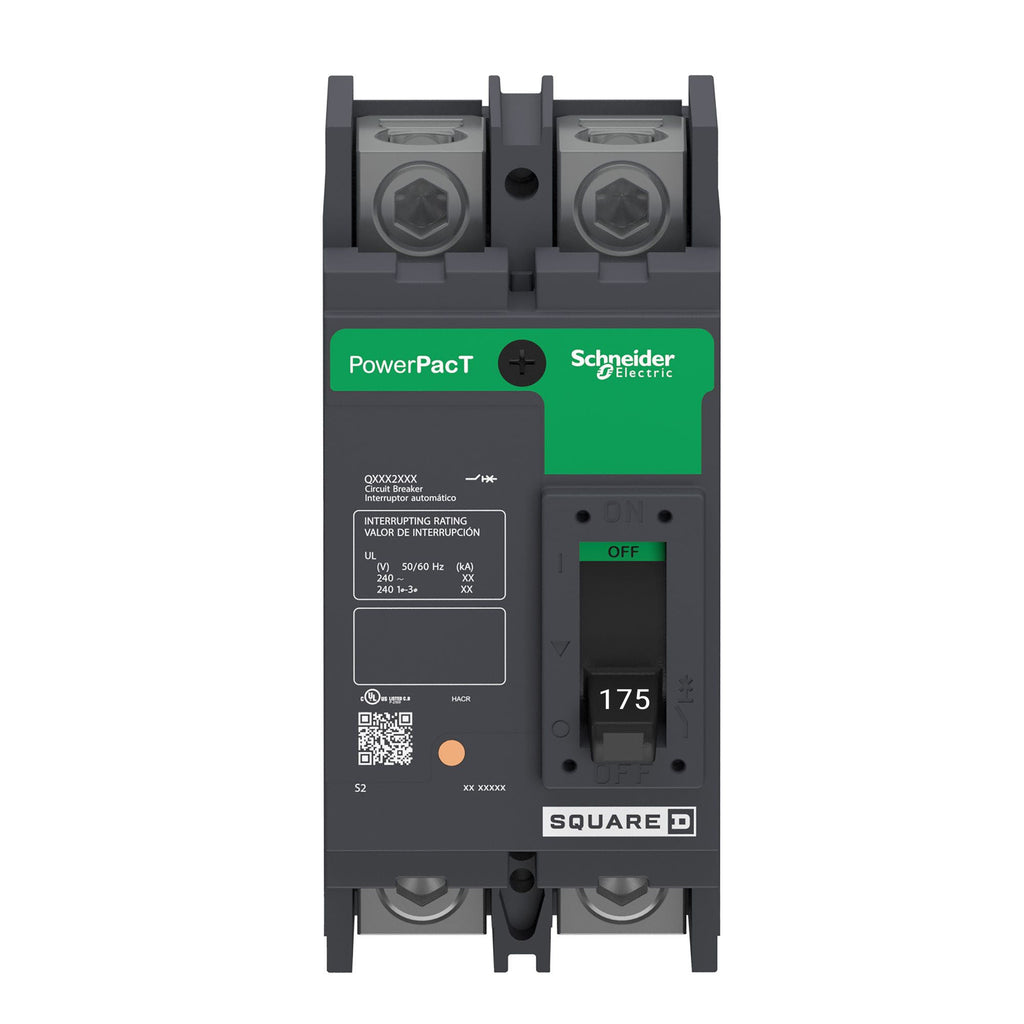

QBL22175 - Square D 175 Amp 240VAC 2 Pole PowerPact Q Molded Case Circuit Breaker

QBL22175

QBL22175 is a Square D 2 Pole PowerPact Q molded case circuit breaker rated for 175 Amps and 240VAC. It features thermal magnetic trip technology for reliable protection.QBL22175 provides a 10kA interrupting rating at 240VAC and includes long-time and instantaneous trip functions. It is unit mounted with feed-thru connections and line/load side lugs. UL, CSA, NOM, and NEMA certifications ensure compliance with industry standards.

Key Specifications
• Amperage: 175 A
• Voltage: 240 VAC
• Poles: 2
• Series/Frame: PowerPact Q, QBL Frame
• Interrupting Rating: 10 kA at 240 VAC
• Trip Unit: Thermal Magnetic with LI (Long-Time and Instantaneous) functions
• Mounting Type: Unit Mount
• Connection Type: Feed-Thru with line and load side lugs
• Approvals: UL, CSA, NOM, NEMA
• Dimensions: 3 in W x 3.93 in D x 6.47 in H
• Temperature Rating: 40 to 70 °C
• Actuator Type: Operating Handle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBL22175
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/QB
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable

Product Data

• UPC : 785901672449
• GTIN : 00785901672449
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.4
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
