QBL22125 - Square D 125A 240V 2-Pole PowerPact Q Molded Case Circuit Breaker Thermal Magnetic Trip

QBL22125

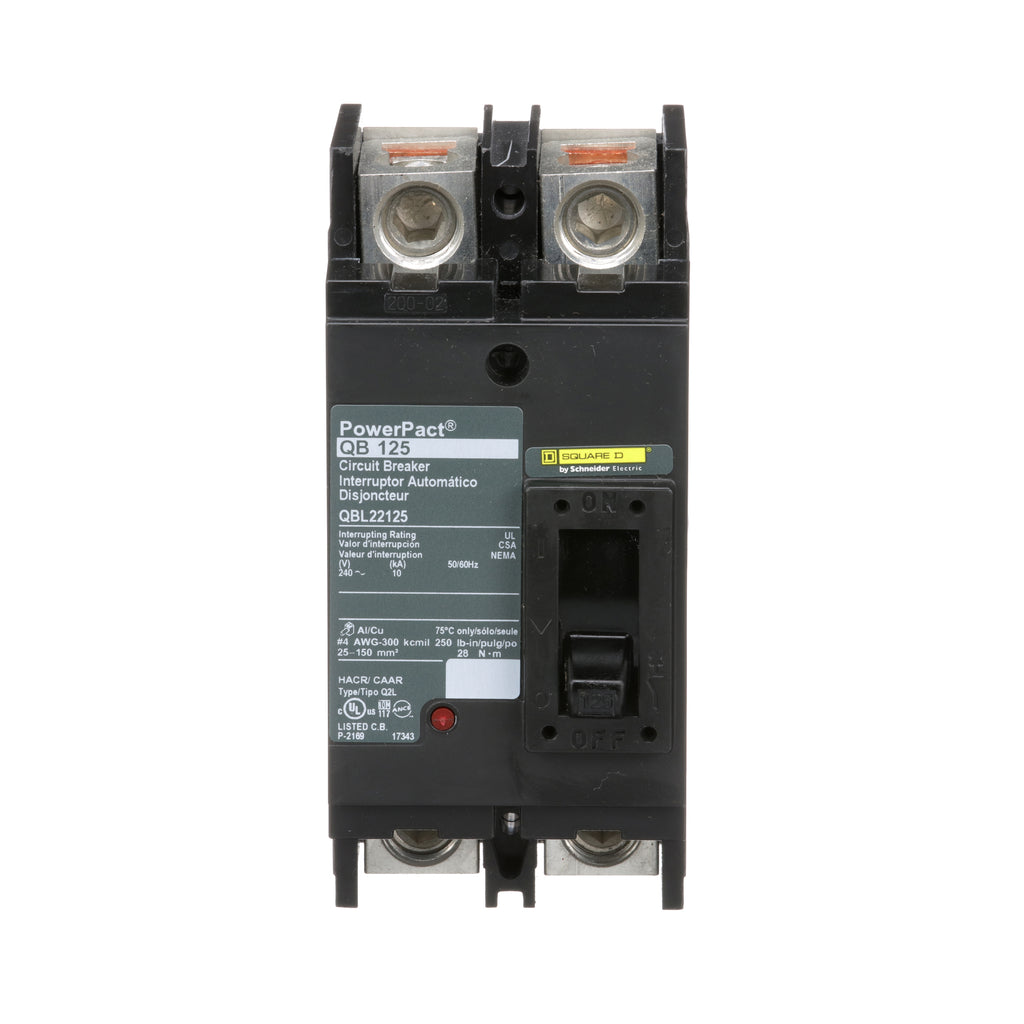

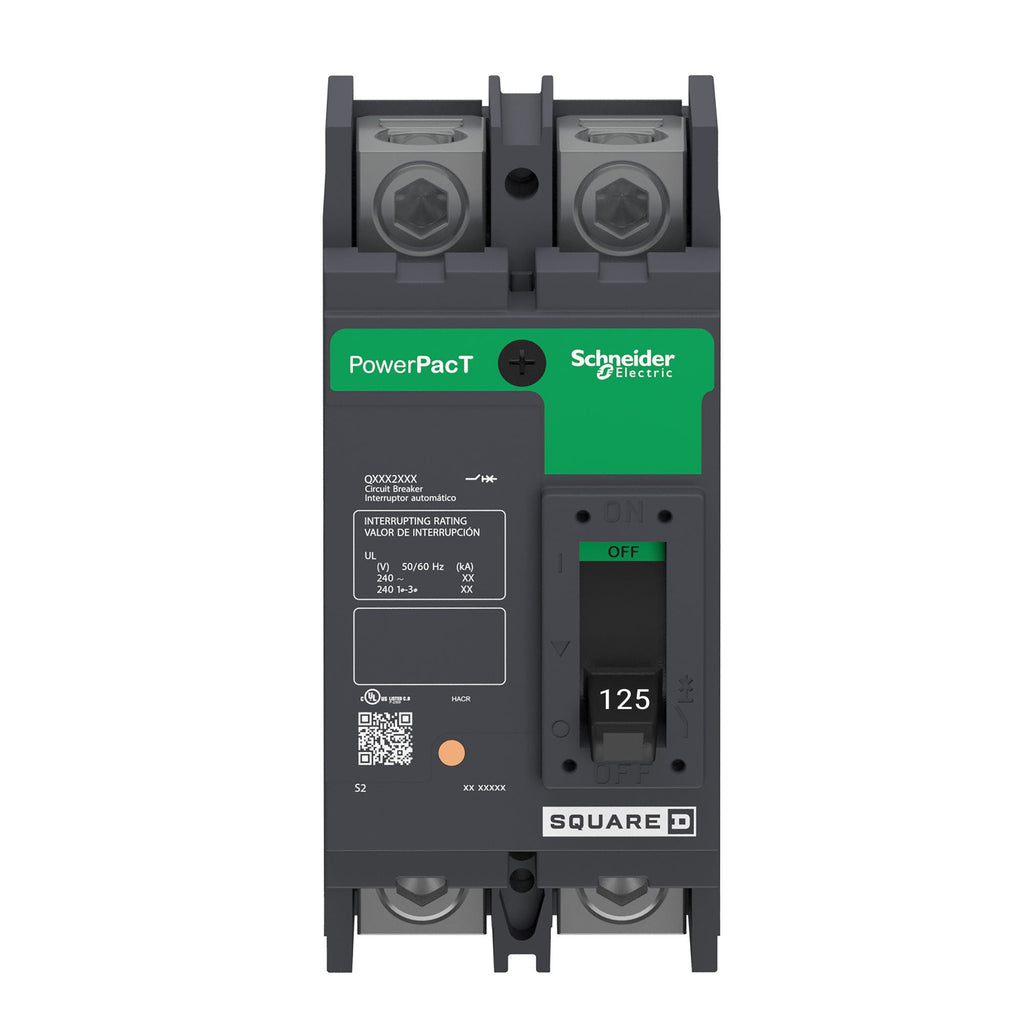

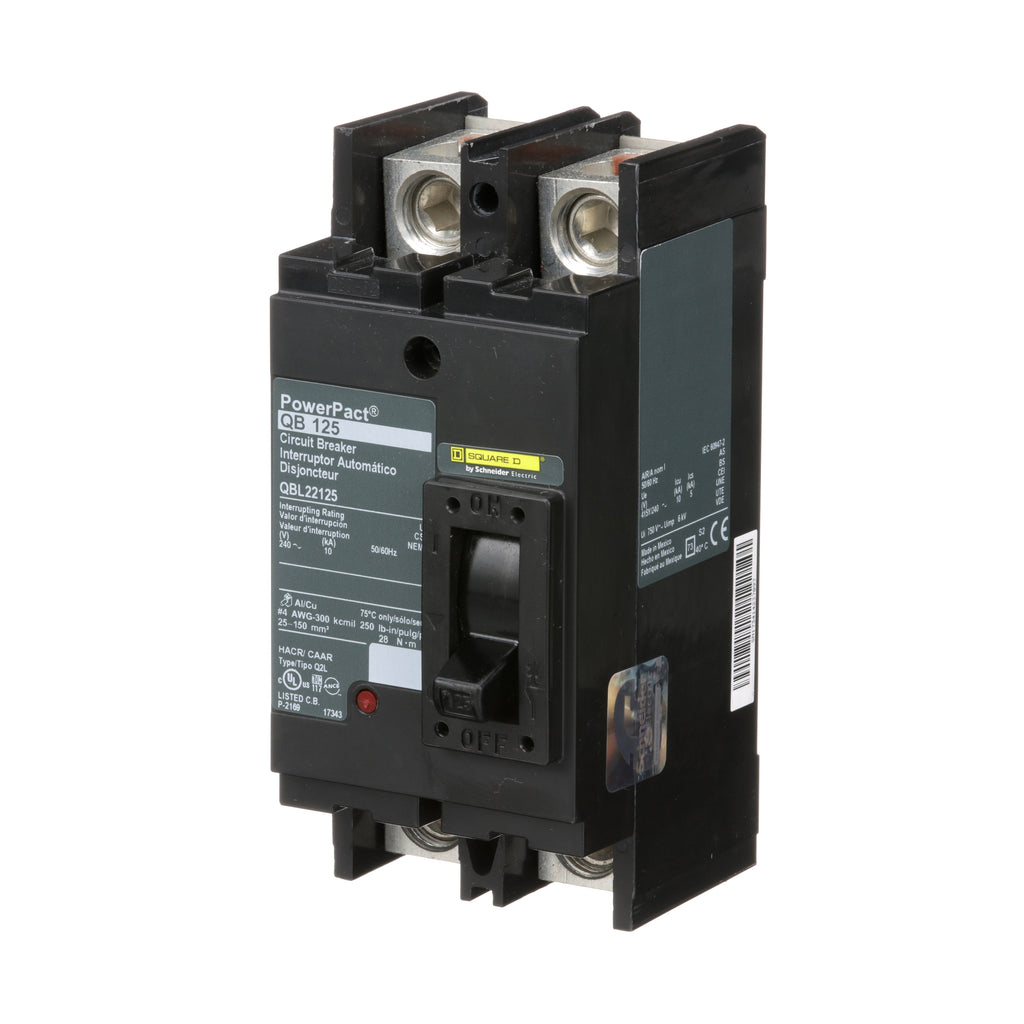

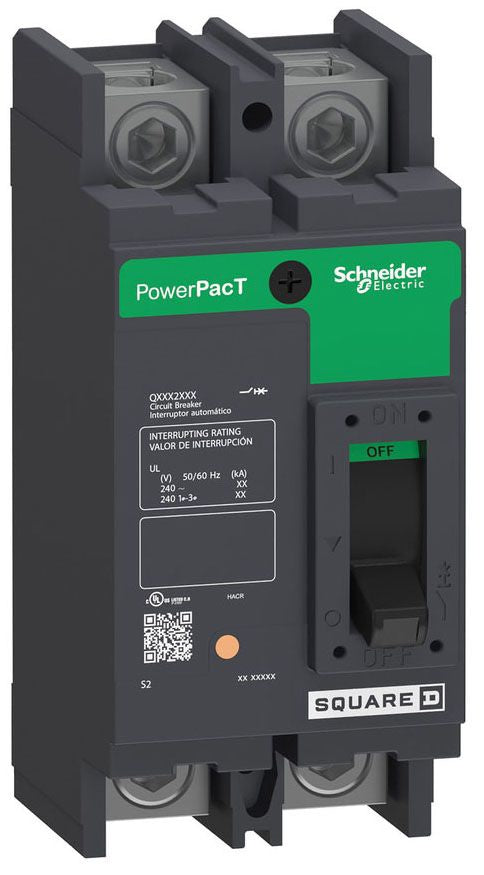

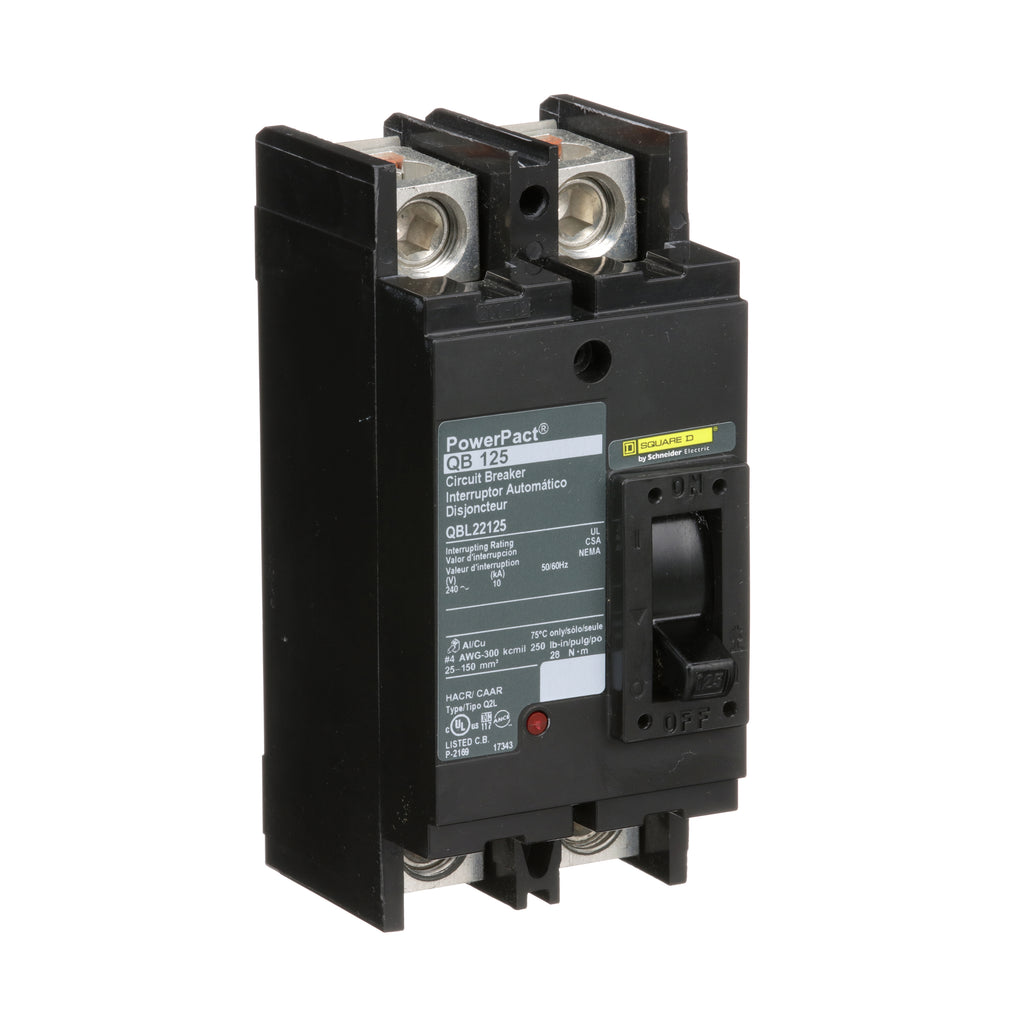

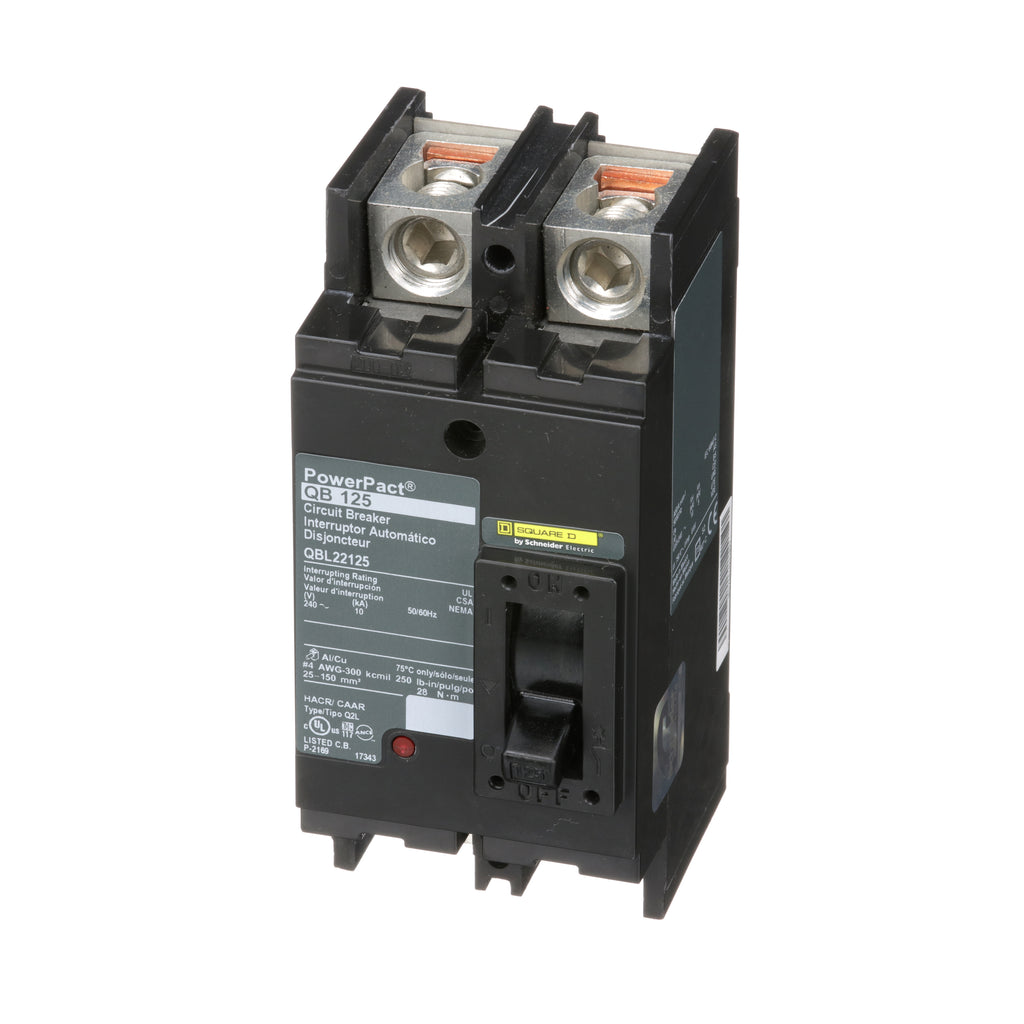

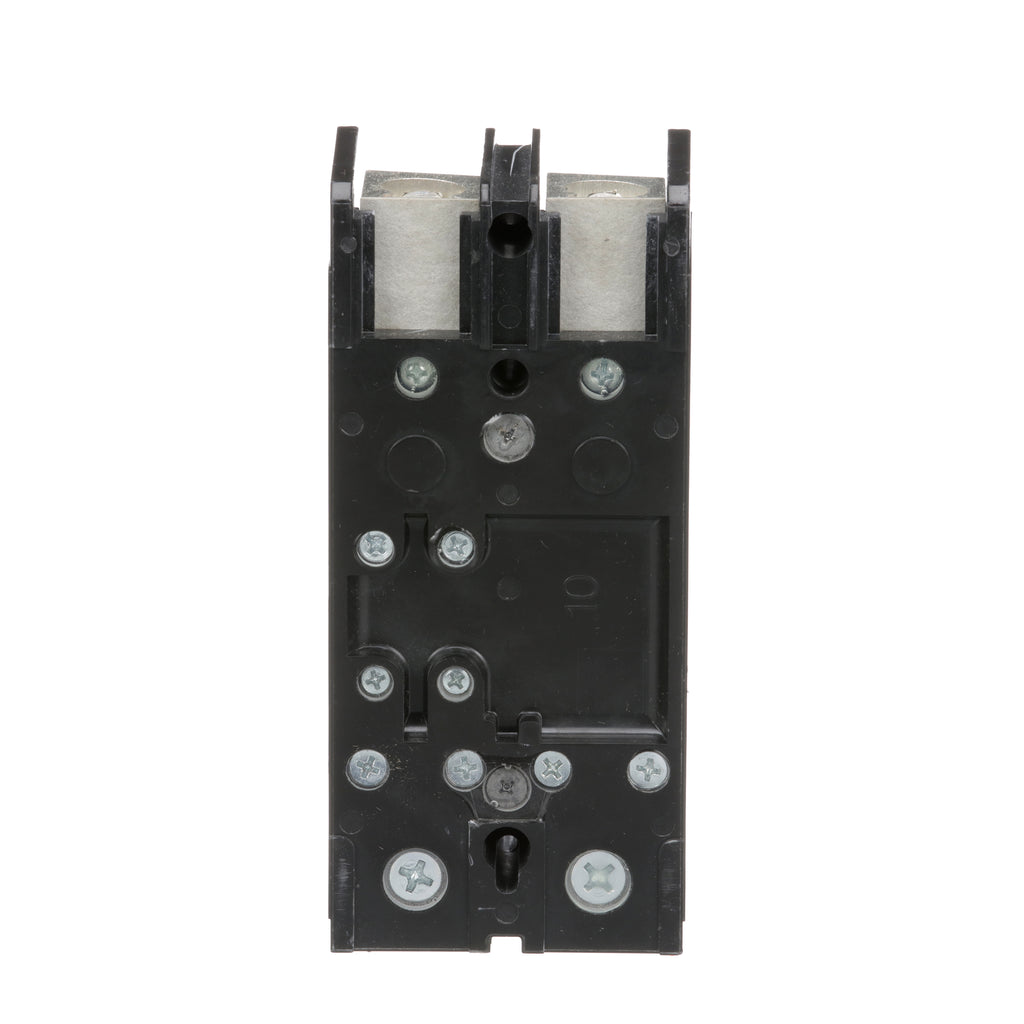

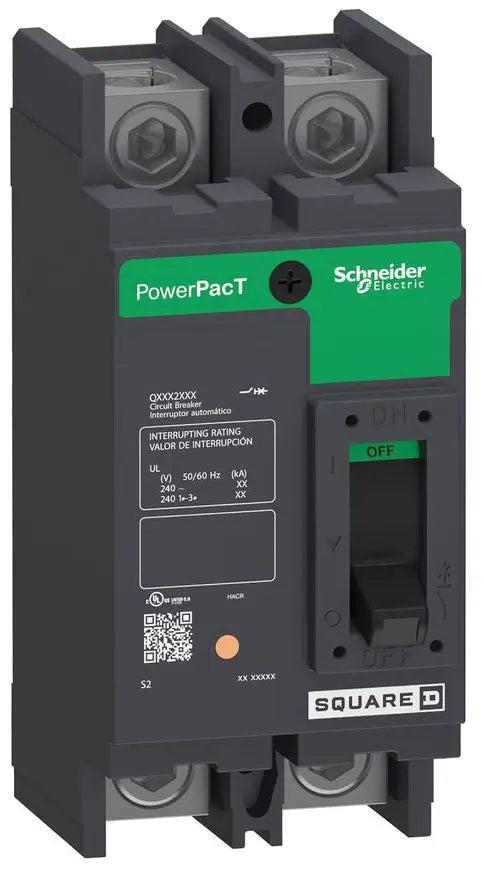

QBL22125 is a Square D PowerPact Q Molded Case Circuit Breaker designed for 125 amp, 240 volt AC applications with 2 poles and thermal magnetic trip.This circuit breaker features a Q frame with a 10 kA interrupt rating and supports 50/60 Hz frequency. It has a thermal magnetic trip unit with a trip range of 1200 to 2400 amps, suitable for 1-phase systems. The breaker uses line/load lug connections and accommodates wire sizes from 4 AWG to 300 kcmil aluminum or copper. It is rated for operation in temperatures from -13 to 158 degrees Fahrenheit and comes in a NEMA AB1 enclosure.

Key Specifications
• Amperage: 125 A
• Voltage Rating: 240 V AC
• Number of Poles: 2
• Frame: Q
• Interrupt Rating: 10 kA
• Trip Type: Thermal Magnetic
• Frequency: 50/60 Hz
• Wire Size Range: 4 AWG to 300 kcmil Al/Cu
• Connection Type: Line/Load Lug
• Phase: 1
• Enclosure Type: NEMA AB1
• Operating Temperature: -13 to 158 °F
• Country of Origin: Mexico
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QBL22125
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Powerpact
• Type : QBL
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Line/Load Lug
• Frame Size : 250A/QB
• Temp Rating : -13–158 °F (-25–70 °C)
• MCM Size : Min. Wire Size 4 AWG Max. Wire Size 300 MCM
• Breaker Type : Standard
• Protection : Thermal Magnetic
• Phase Connection : Not Applicable



Product Data

• UPC : 785901412557
• GTIN : 00785901412557
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 3.4
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
