Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
QBHW3080H

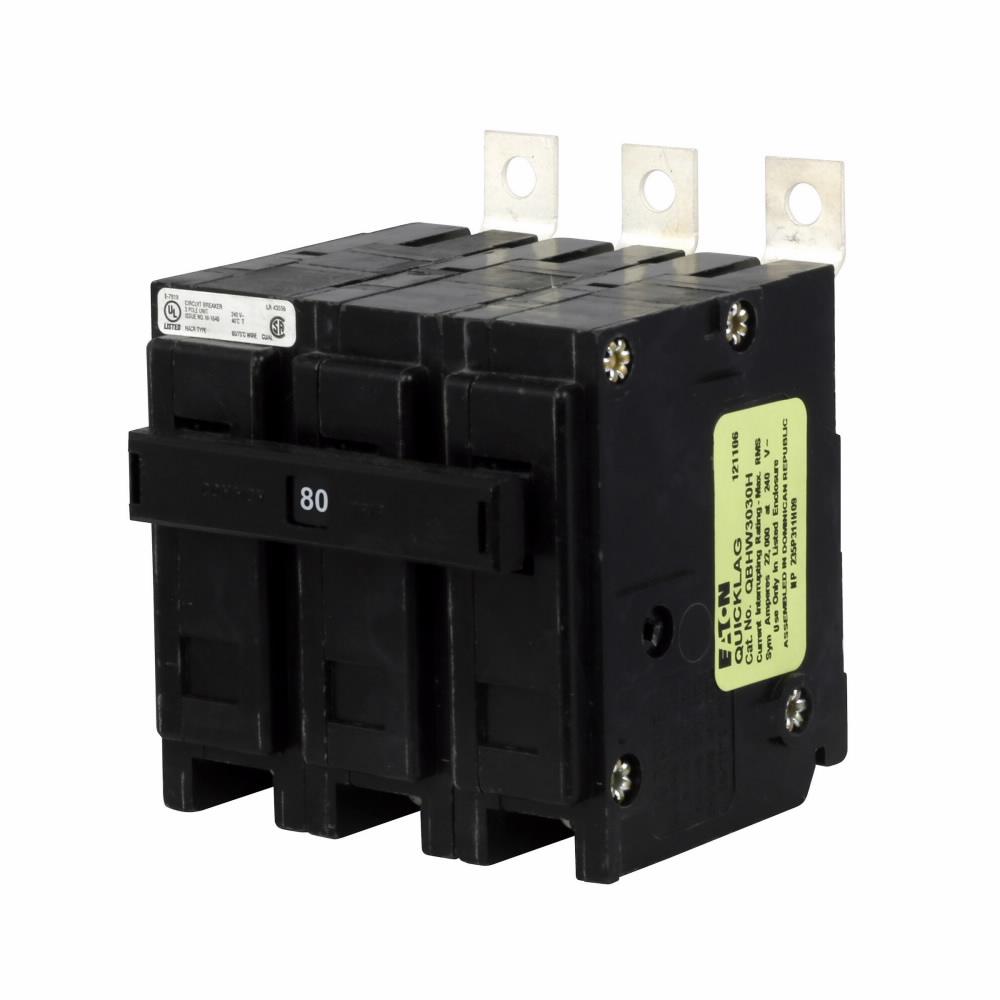

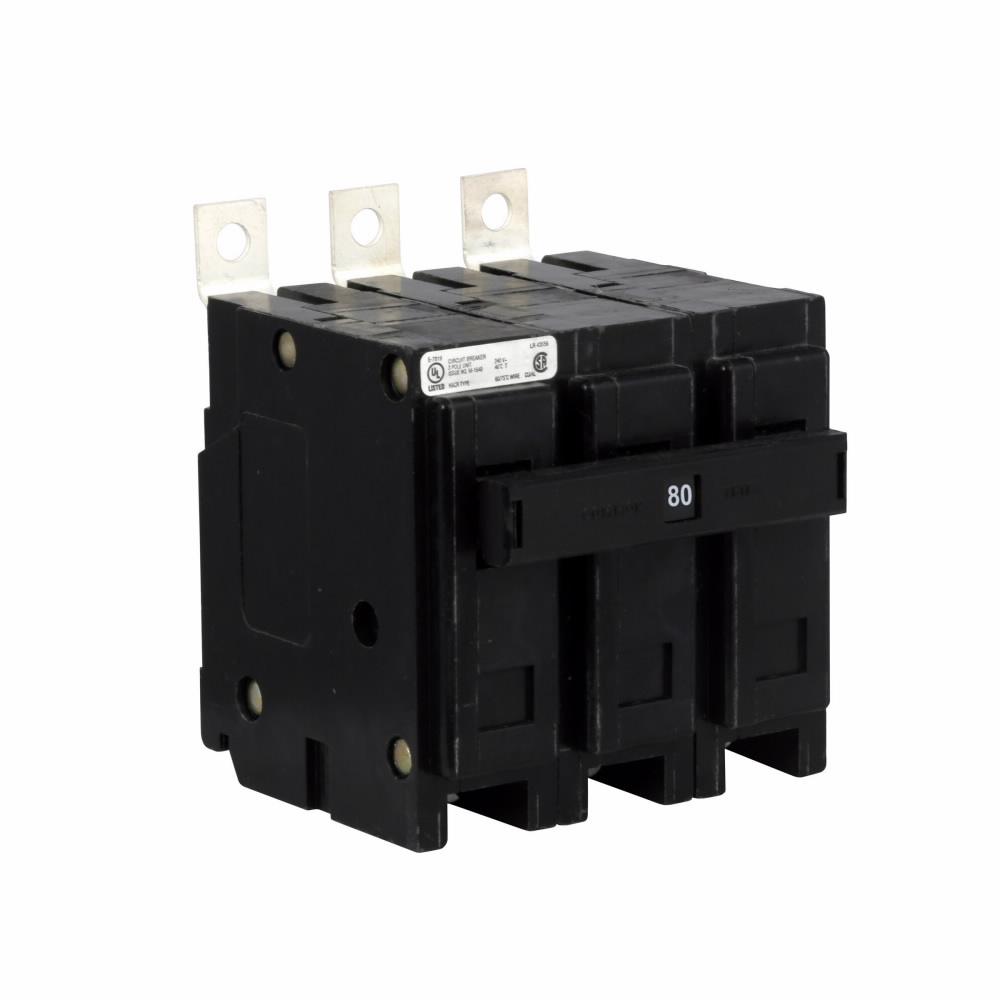

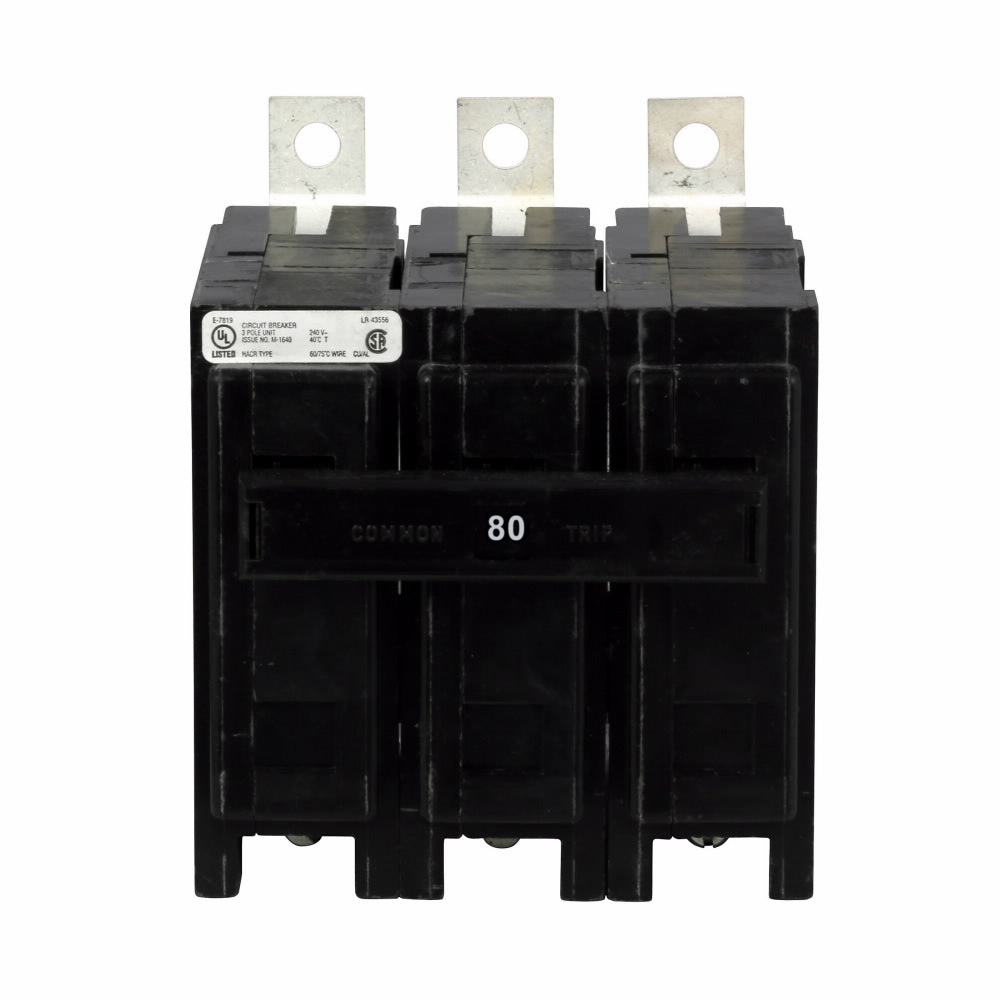

QBHW3080H is a Cutler Hammer 3-pole thermal magnetic circuit breaker rated for 80 amps and 240 volts AC with bolt-on mounting.
This Eaton QuickLag type QBHW circuit breaker features a non-interchangeable trip unit and a 22 kA interrupt rating, designed for industrial and commercial applications. It is UL Listed, CSA Certified, and HACR rated for reliable protection against overloads and short circuits.
- Key Specifications
- Amperage: 80 A
- Voltage Rating: 240 V AC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kAIC
- Trip Type: Non-Interchangeable Thermal Magnetic
- Series/Frame: QBHW QuickLag
- Certifications: UL Listed, CSA Certified
- HACR Rated
- Dimensions (H x W x L): 4.9 x 3.2 x 3.8 inches
- Weight: 1.2 lbs
- Part Number: QBHW3080H
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : QBHW
- Voltage : 240
- Amperage : 80
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 786679393574
- GTIN : 00786679393574
- Country of Origin : Dominican Republic
- Dimensions : 3.8 in x 4.9 in x 3.2 in (Length/Depth x Height x Width)
- Weight : 1.2
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
