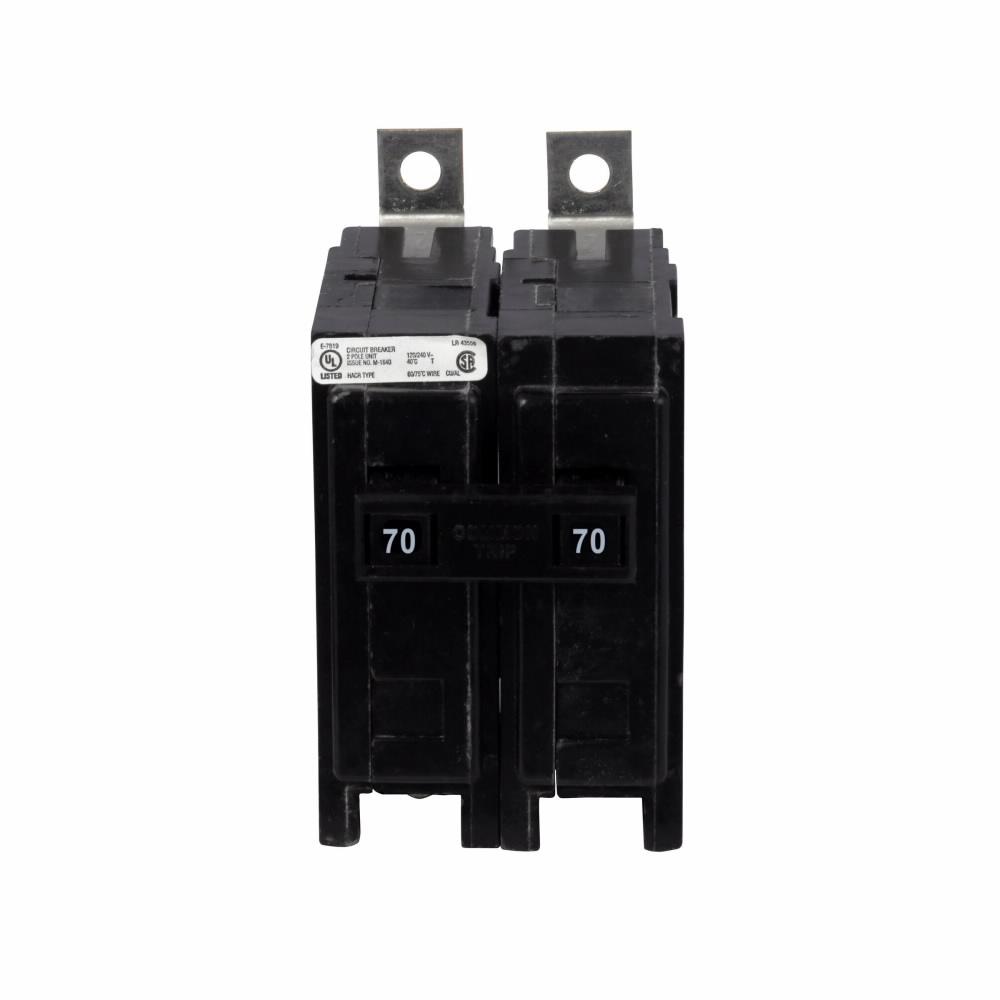

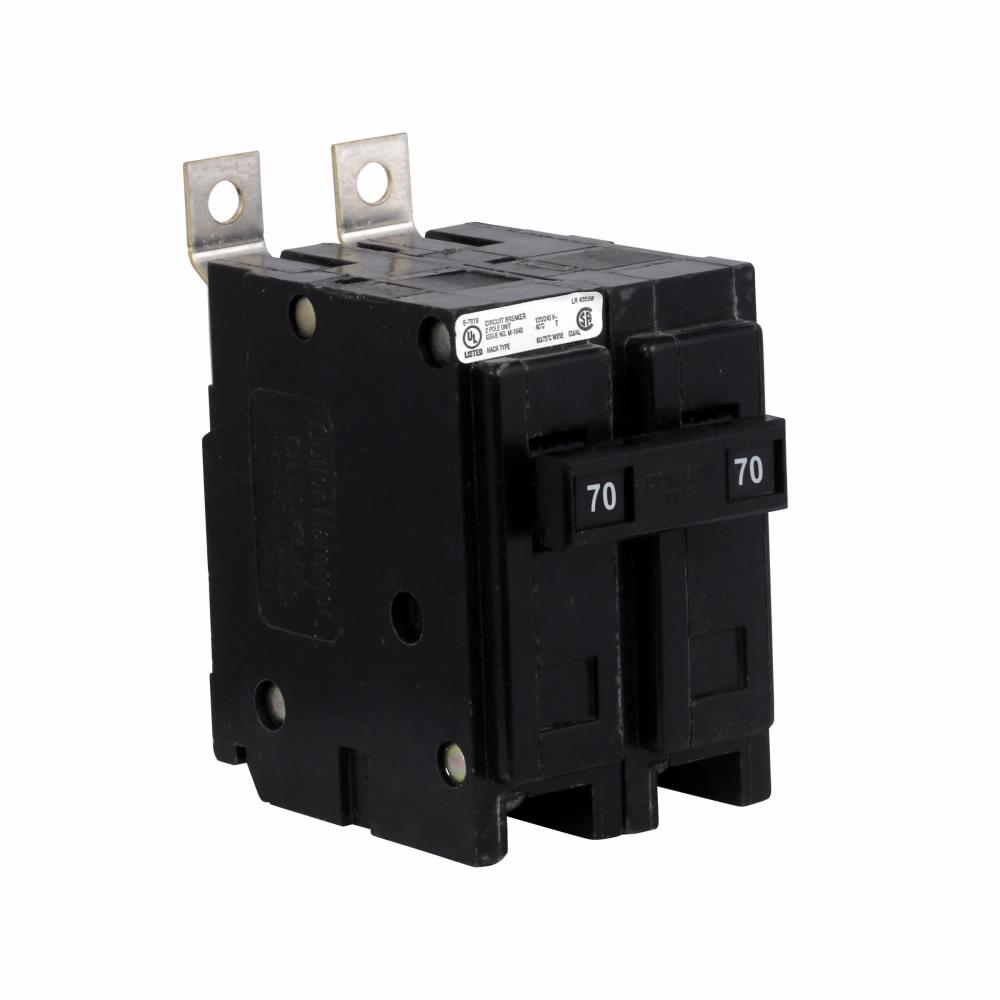

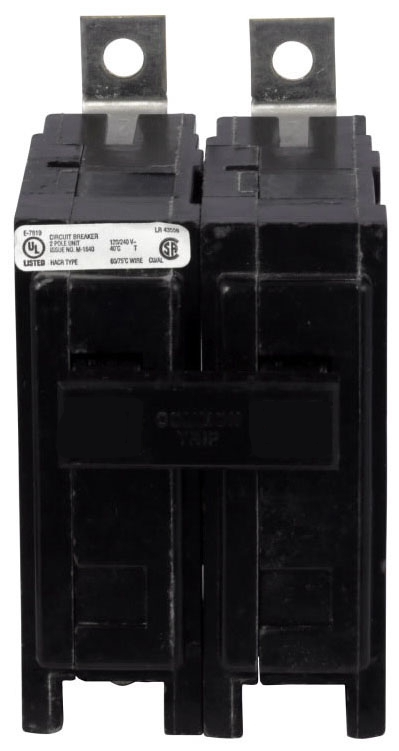

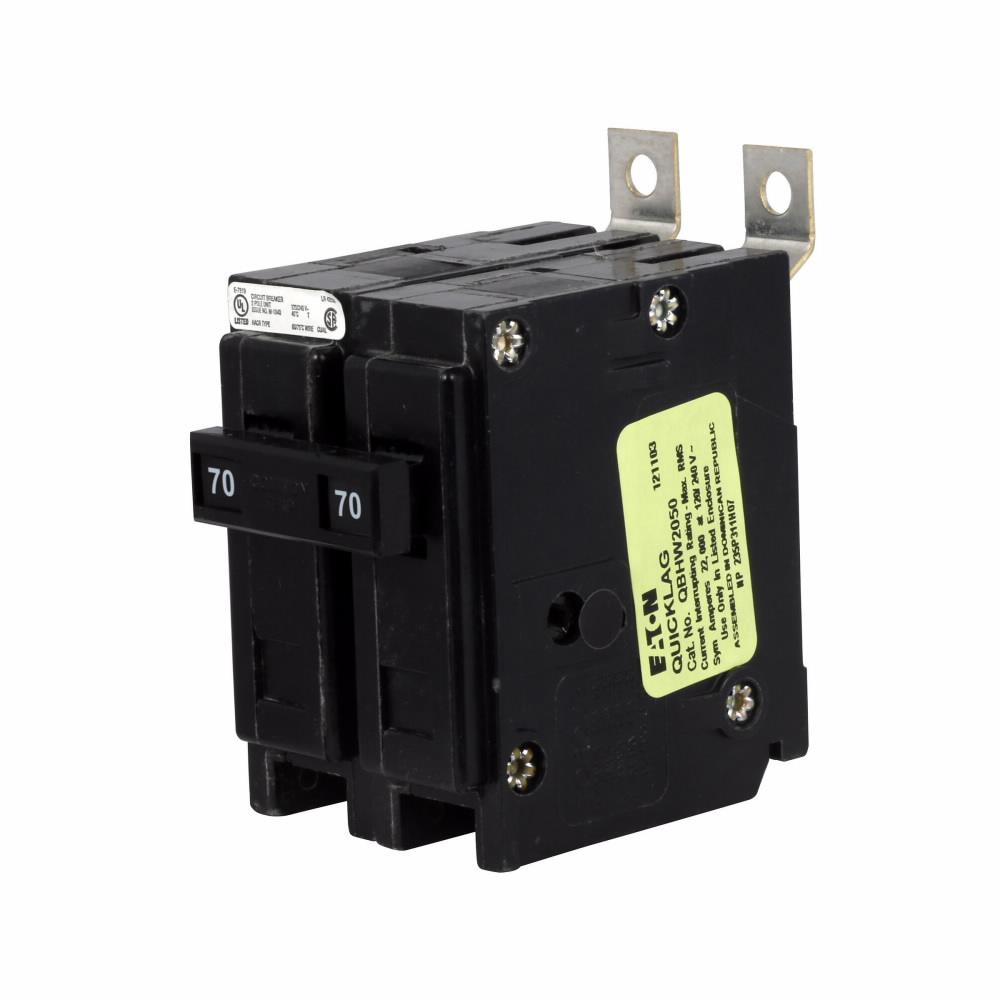

QBHW2070 - Cutler Hammer 70 Amp 2 Pole 120/240V Bolt-On Thermal Magnetic Circuit Breaker, 22kA Interrupt, Quicklag Series, UL/CSA

QBHW2070

QBHW2070 is a Cutler Hammer 2-pole thermal magnetic circuit breaker designed for reliable protection in residential and light commercial applications.

This Quicklag series breaker features a bolt-on mounting style, non-interchangeable trip unit, and is rated for 70A at 120/240VAC with a 22kA interrupting capacity. It is UL and CSA listed, ensuring compliance with industry standards for safety and performance.

Key Specifications
• Amperage: 70A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 120/240VAC
• Series/Frame: Quicklag (QBHW)
• Trip Unit: Thermal Magnetic, Non-Interchangeable
• Certifications: UL, CSA
• Temperature Rating: 40¡C
• Connection: Extended tang line terminal, box lug load terminal
• Wire Size: 8 to 1/0 AWG (Aluminum/Copper)
• Dimensions: 3.9 x 2.2 x 4.8 in

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right(more...)

Specifications

• Part Number: QBHW2070
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679393000
• GTIN : 00786679393000
• Country of Origin : Dominican Republic
• Dimensions : 3.9 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.75
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
