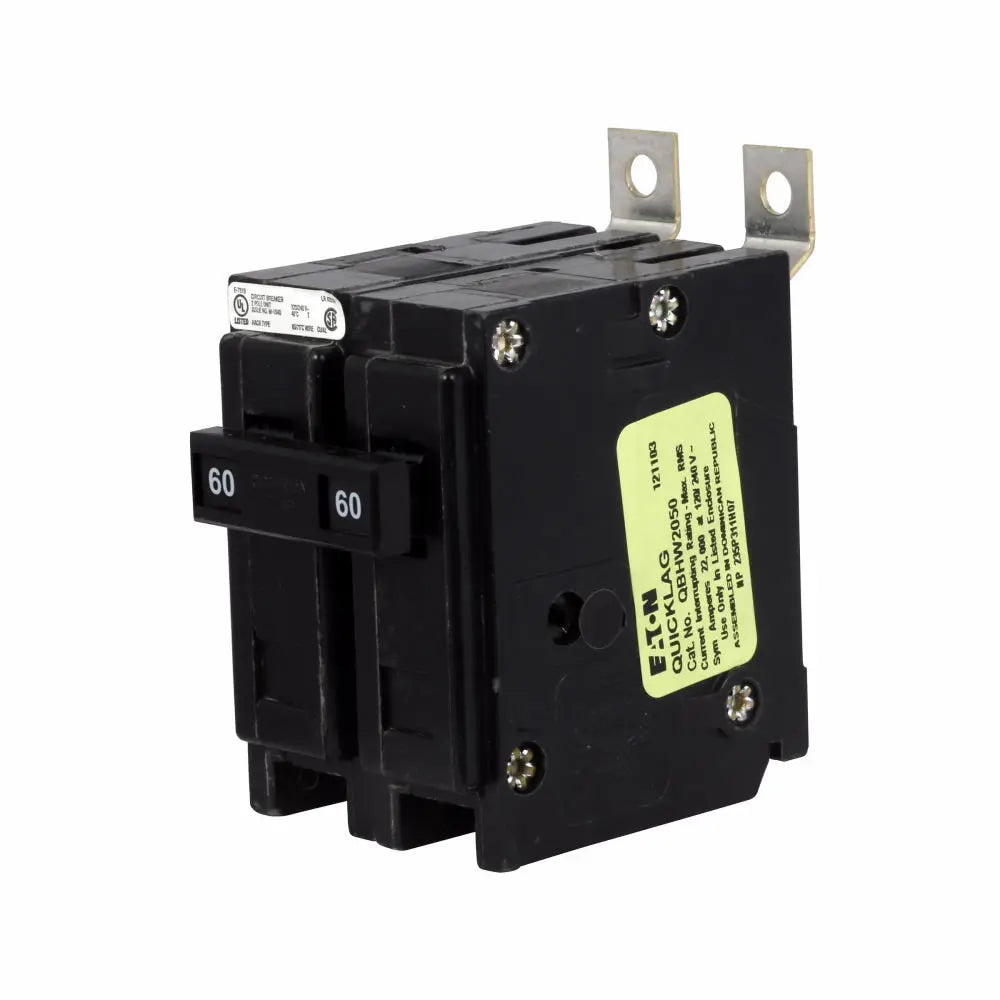

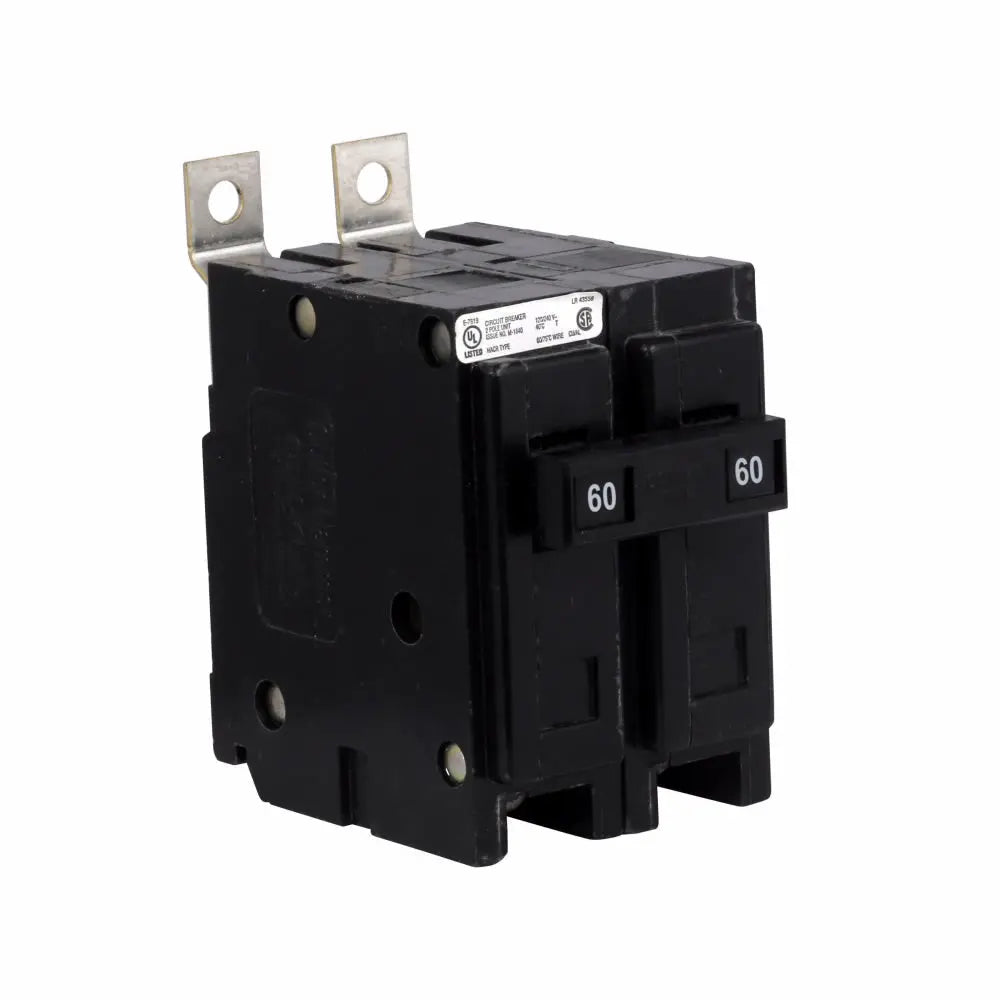

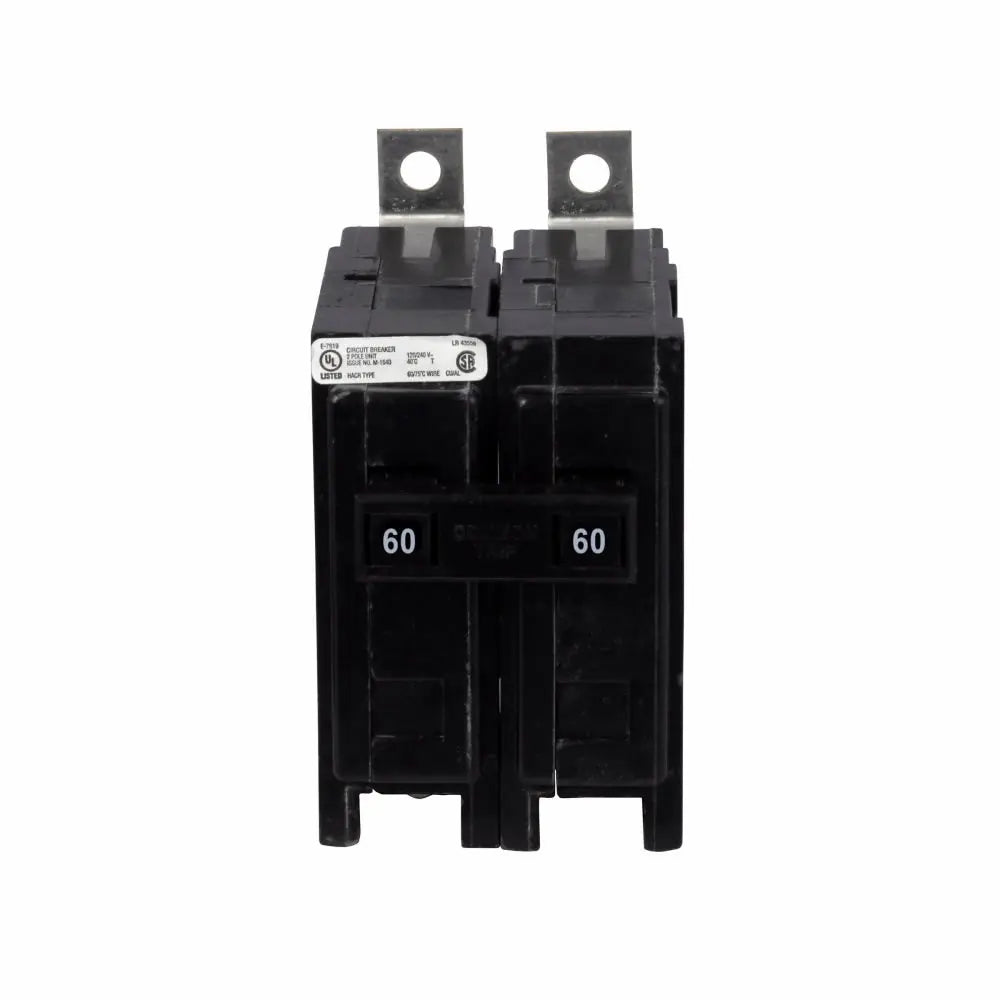

QBHW2060S - Cutler Hammer 60A 240V 2-Pole Bolt-On Circuit Breaker Quicklag Frame

QBHW2060S

QBHW2060S is a Cutler Hammer 60 Amp, 240 Volt, 2-pole bolt-on circuit breaker from the Quicklag series designed for industrial applications.QBHW2060S features a thermal-magnetic trip unit with long-time and instantaneous protection, suitable for 1-phase systems. It has a 22 kA interrupting rating at 240V and supports shunt trip operation for enhanced control. The breaker is UL listed and CSA certified, ensuring compliance with safety standards.

Key Specifications
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 60A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kAIC @ 240V
• Series/Frame: Quicklag (QBHW)
• Trip Unit: Thermal-Magnetic with shunt trip
• Phase: Single-phase
• Certifications: UL Listed, CSA Certified
• Dimensions: Approx. 3.6" x 2.2" x 4.8"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBHW2060S
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679742761
• GTIN : 00786679742761
• Country of Origin : Dominican Republic
• Dimensions : 3.6 in x 4.8 in x 2.2 in (Length/Depth x Height x Width)
• Weight : 0.8
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
