QBHW2060 - Cutler Hammer 60A 120/240V 2-Pole Quicklag Thermal Magnetic Circuit Breaker Bolt-On

QBHW2060

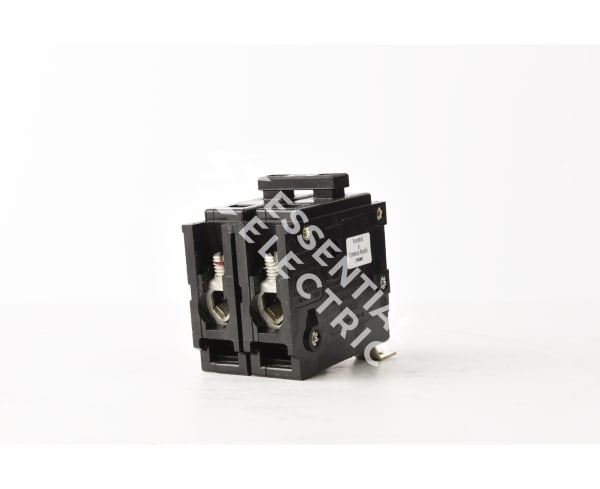

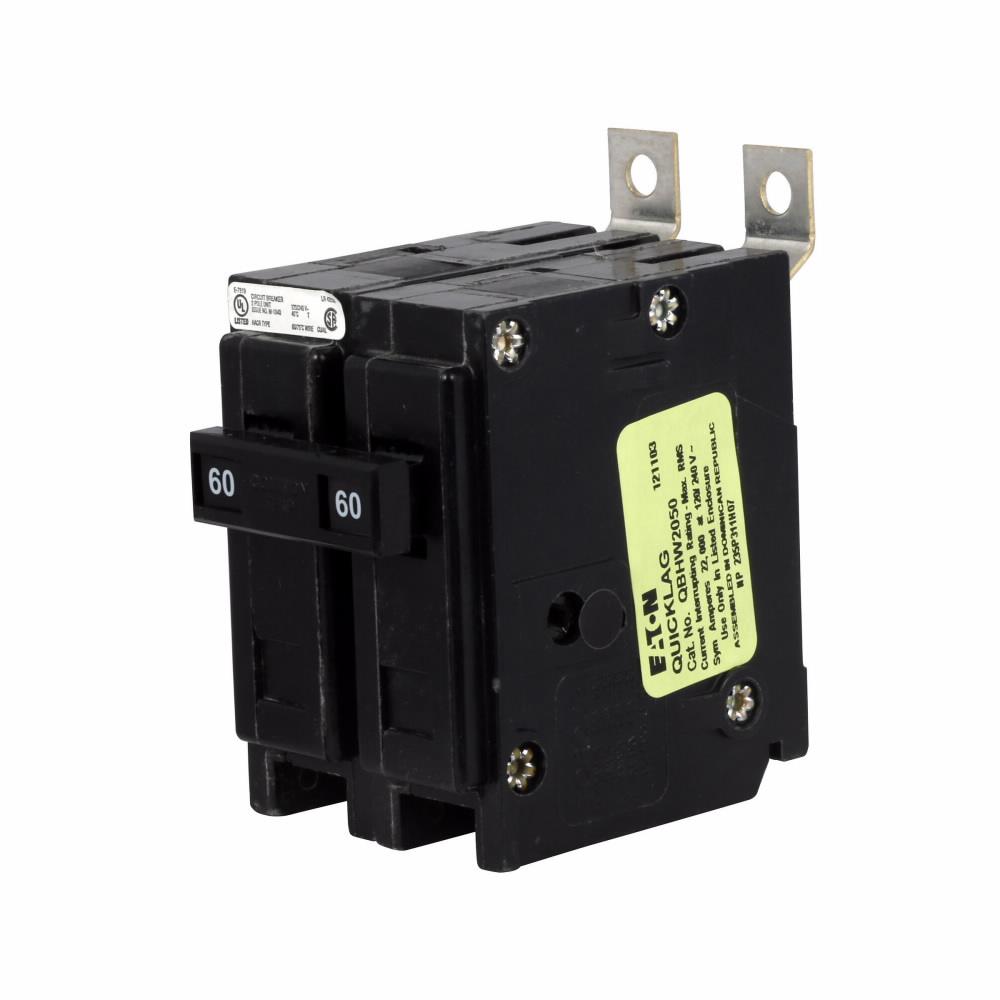

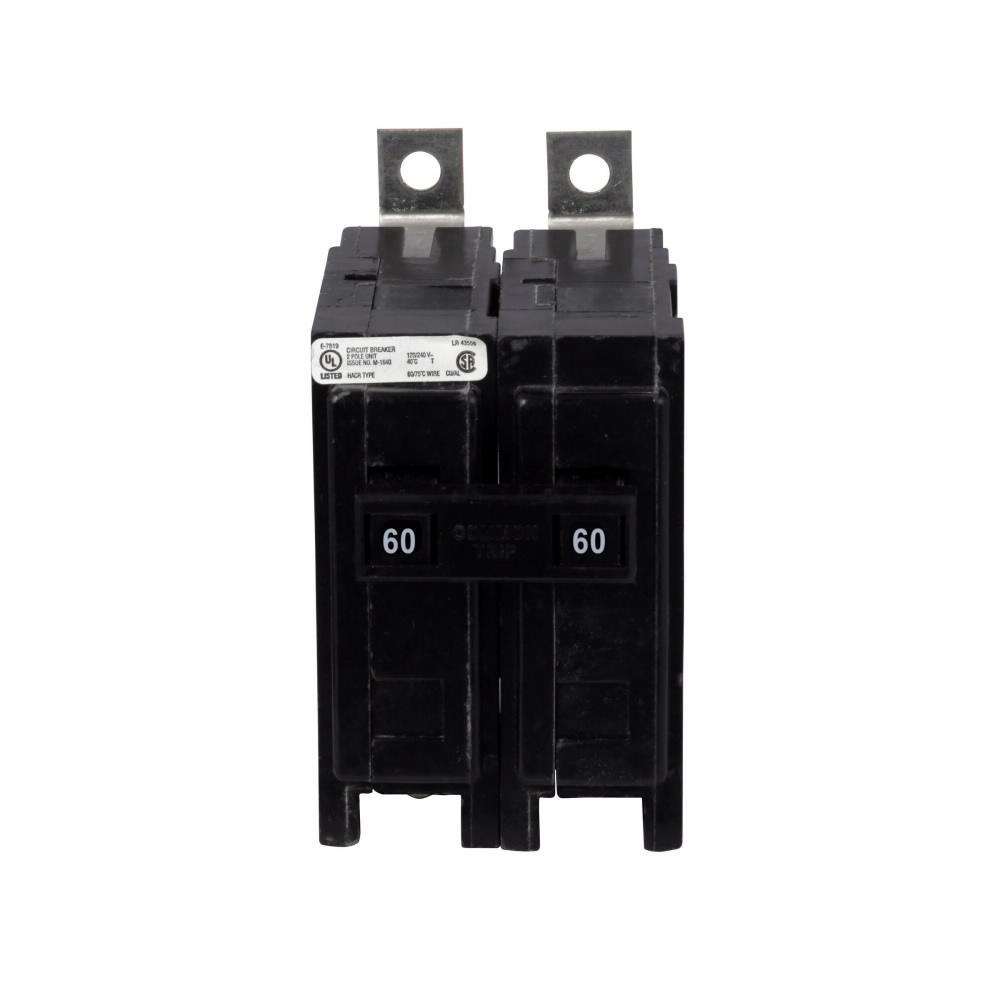

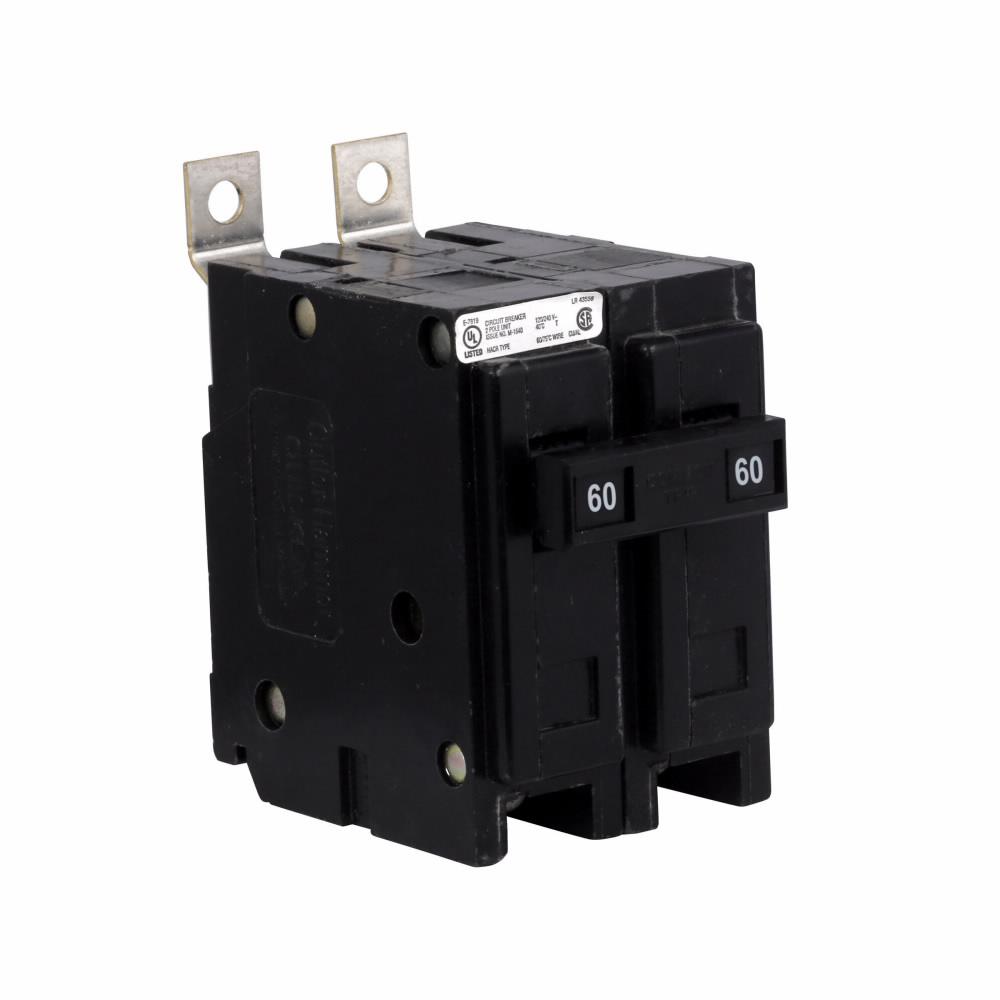

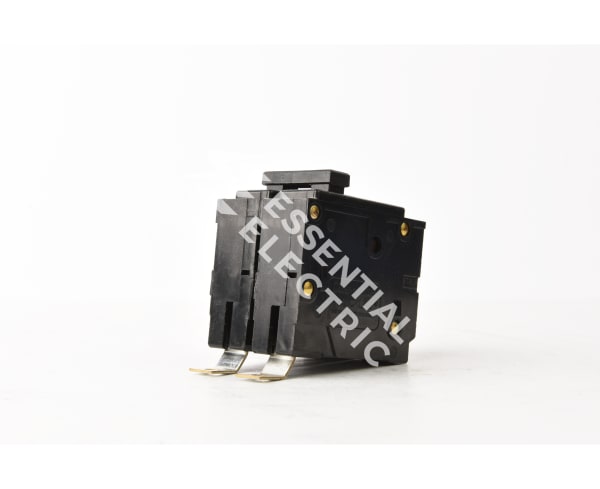

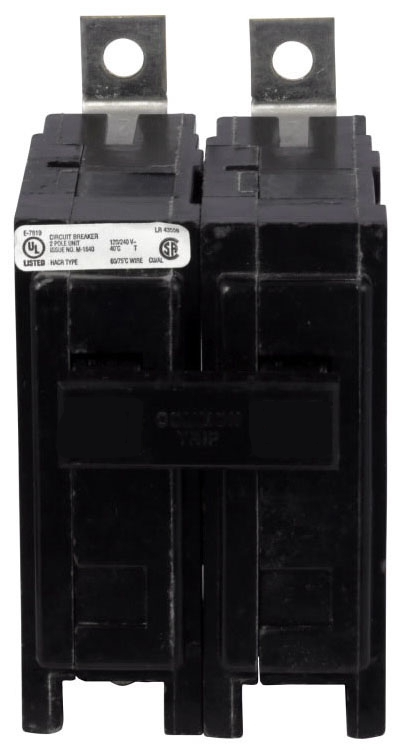

QBHW2060 is a Cutler Hammer Quicklag series 2-pole thermal magnetic circuit breaker rated for 60 amps and 120/240 volts AC with bolt-on mounting.This QBHW2060 circuit breaker features a 22 kA interrupting rating at 240V, non-interchangeable trip type, and is HACR rated for HVAC applications. It is UL Listed and CSA Certified, designed with a BAB frame and thermal magnetic protection for reliable circuit interruption. The breaker measures 4.8 inches high, 2.3 inches wide, and 3.9 inches deep, weighing 0.7 pounds.

Key Specifications
• Amperage: 60 A
• Voltage: 120/240 V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kAIC at 240 V
• Series/Frame: Quicklag BAB
• Trip Unit: Non-Interchangeable Thermal Magnetic
• Certifications: UL Listed, CSA Certified
• HACR Rated
• Dimensions (H x W x D): 4.8 x 2.3 x 3.9 inches
• Weight: 0.7 lb
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: QBHW2060
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 786679392904
• GTIN : 00786679392904
• Country of Origin : Dominican Republic
• Dimensions : 3.9 in x 4.8 in x 2.3 in (Length/Depth x Height x Width)
• Weight : 0.7
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
