Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
QBHW2045

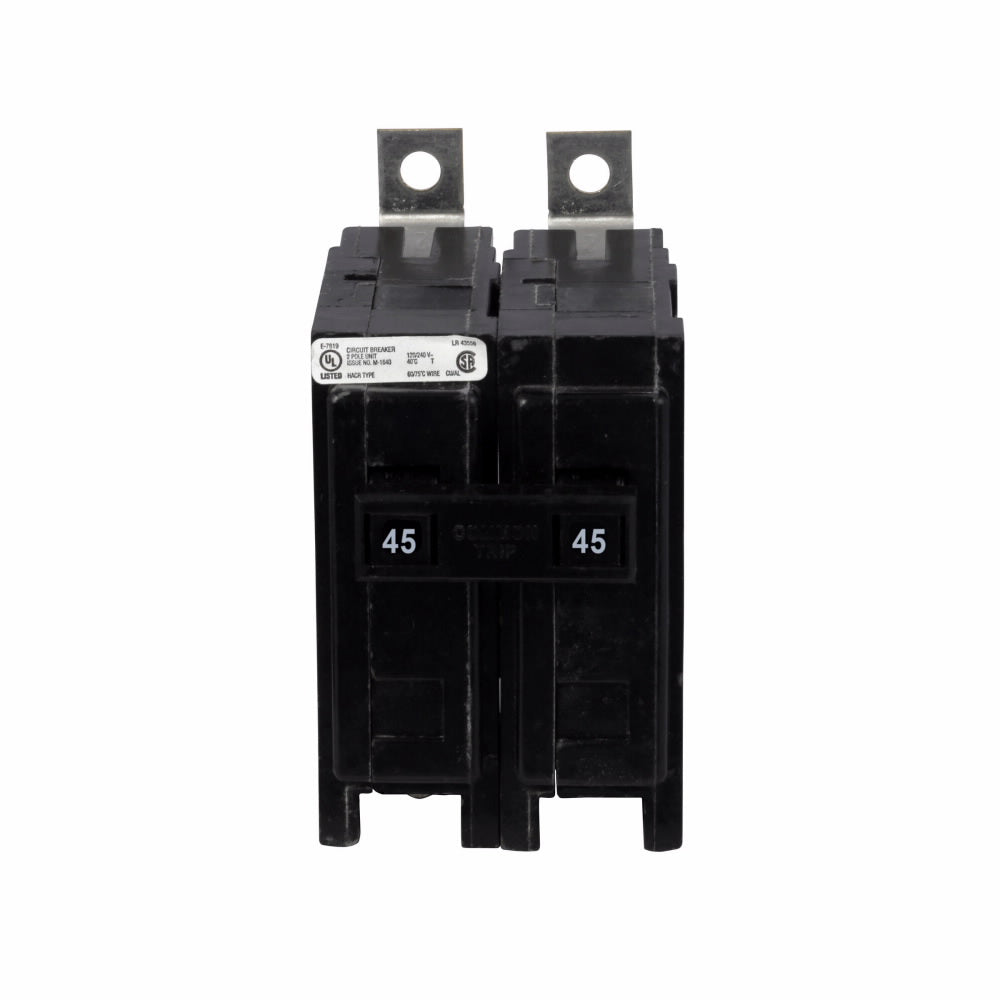

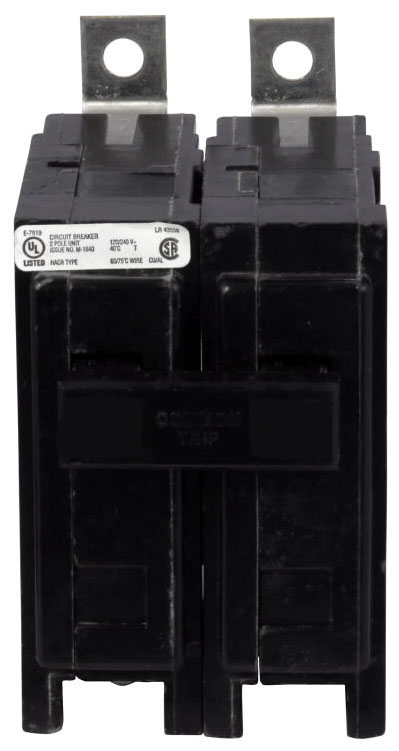

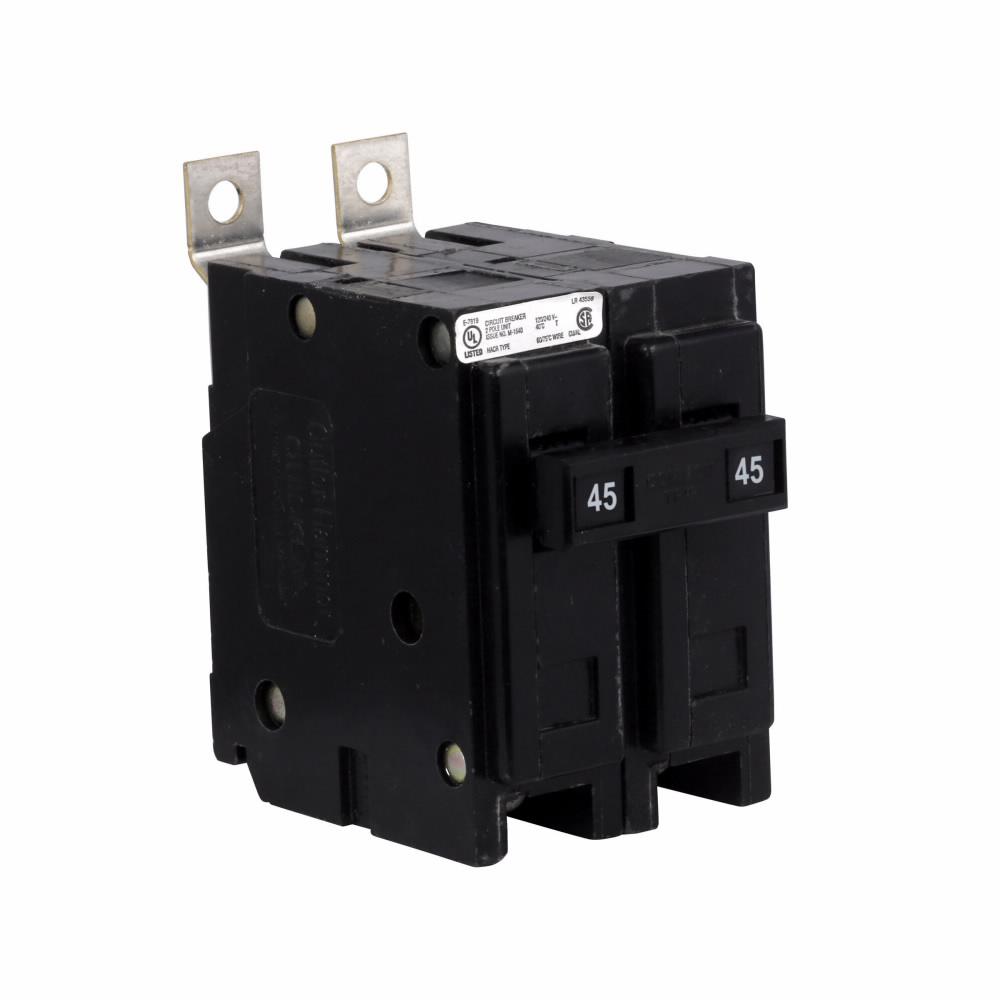

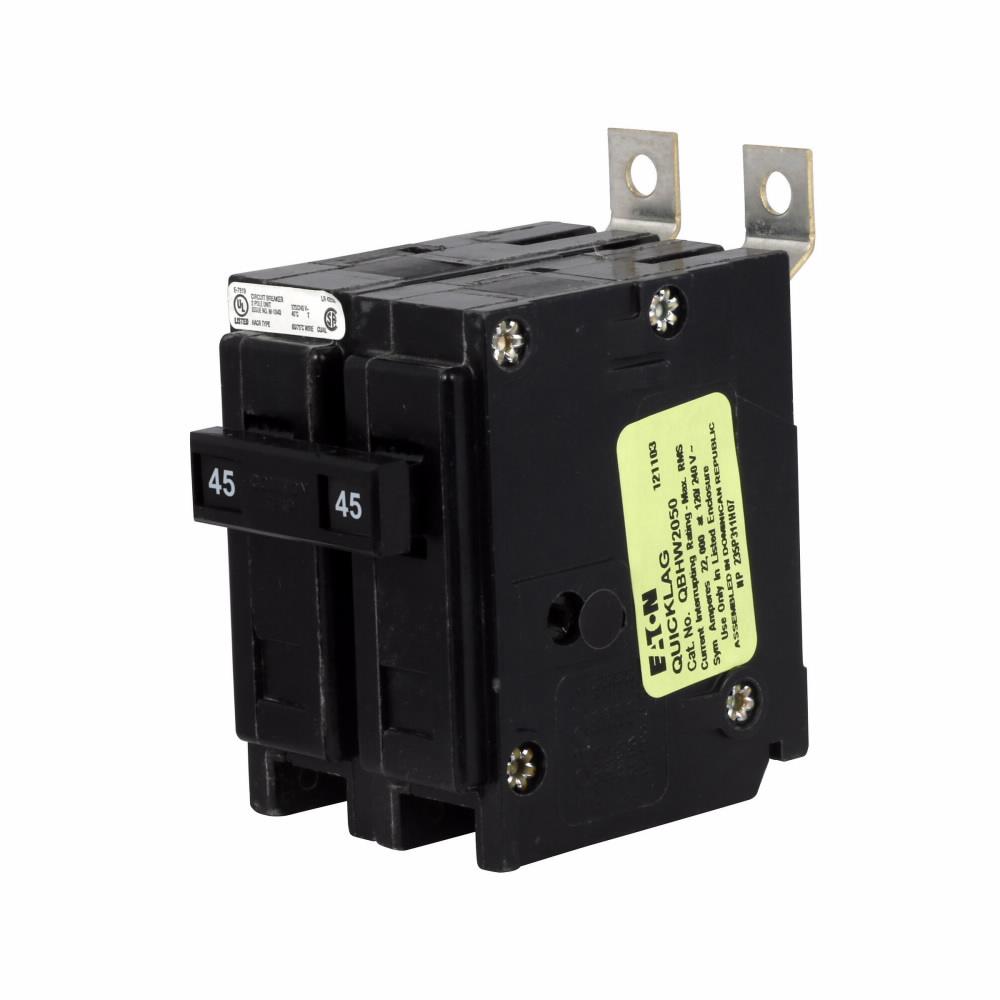

QBHW2045 is a Cutler Hammer Quicklag industrial thermal-magnetic circuit breaker rated for 45 amps and 240 volts with a two-pole configuration.This bolt-on type circuit breaker features a 22 kA interrupt rating, non-interchangeable trip unit, and Q7 frame series, designed for reliable industrial power distribution protection.
- Key Specifications
- Amperage: 45 A
- Voltage: 240 V
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kAIC
- Series/Frame: Q7, QBHW
- Trip Unit: Thermal-Magnetic, Non-Interchangeable
- Dimensions: 3.8 in L x 3.1 in W x 0.9 in H
- Frequency Rating: 60 Hz
- Temperature Rating: 40¡C
- Manufacturer: Cutler Hammer (Eaton)
- Part Number: QBHW2045
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : QBHW
- Voltage : 240
- Amperage : 45
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 786679152478
- GTIN : 00786679152478
- Country of Origin : Dominican Republic
- Dimensions : 3.1 in x 0.9 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.3
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
