Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
QBHW2040

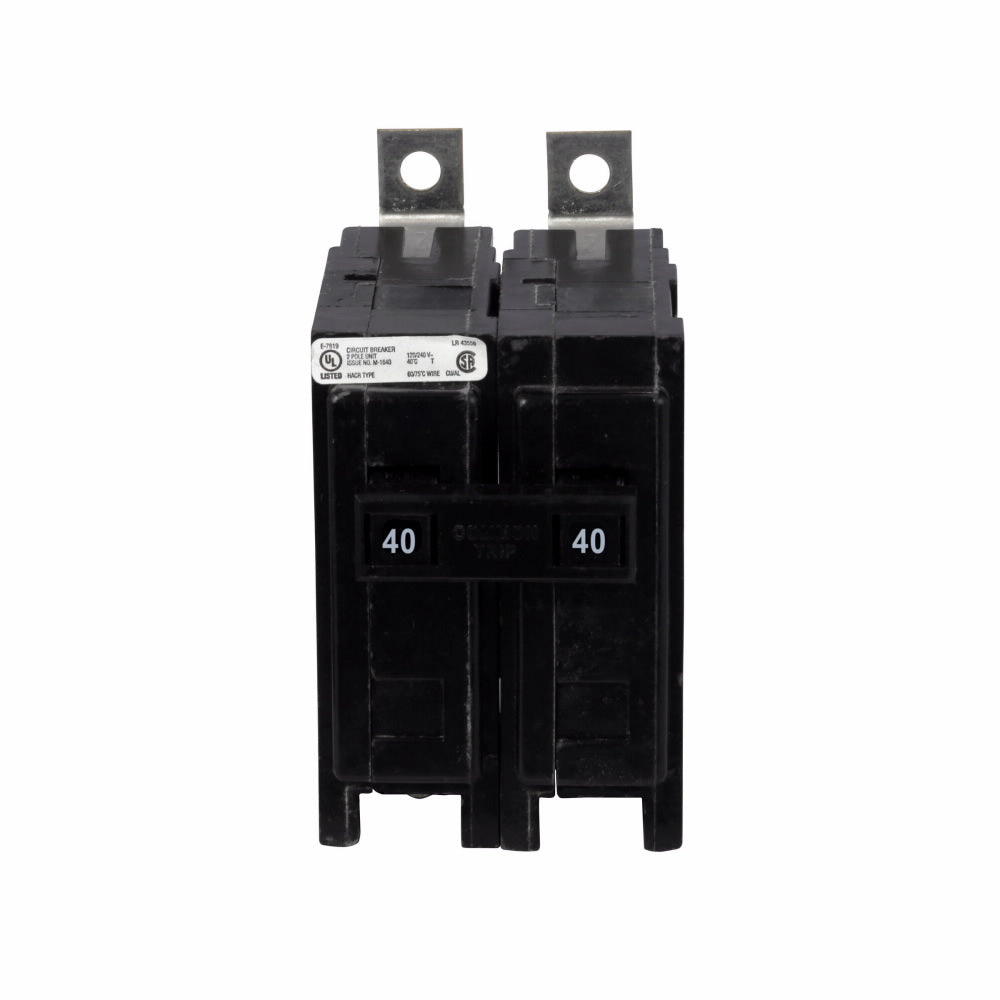

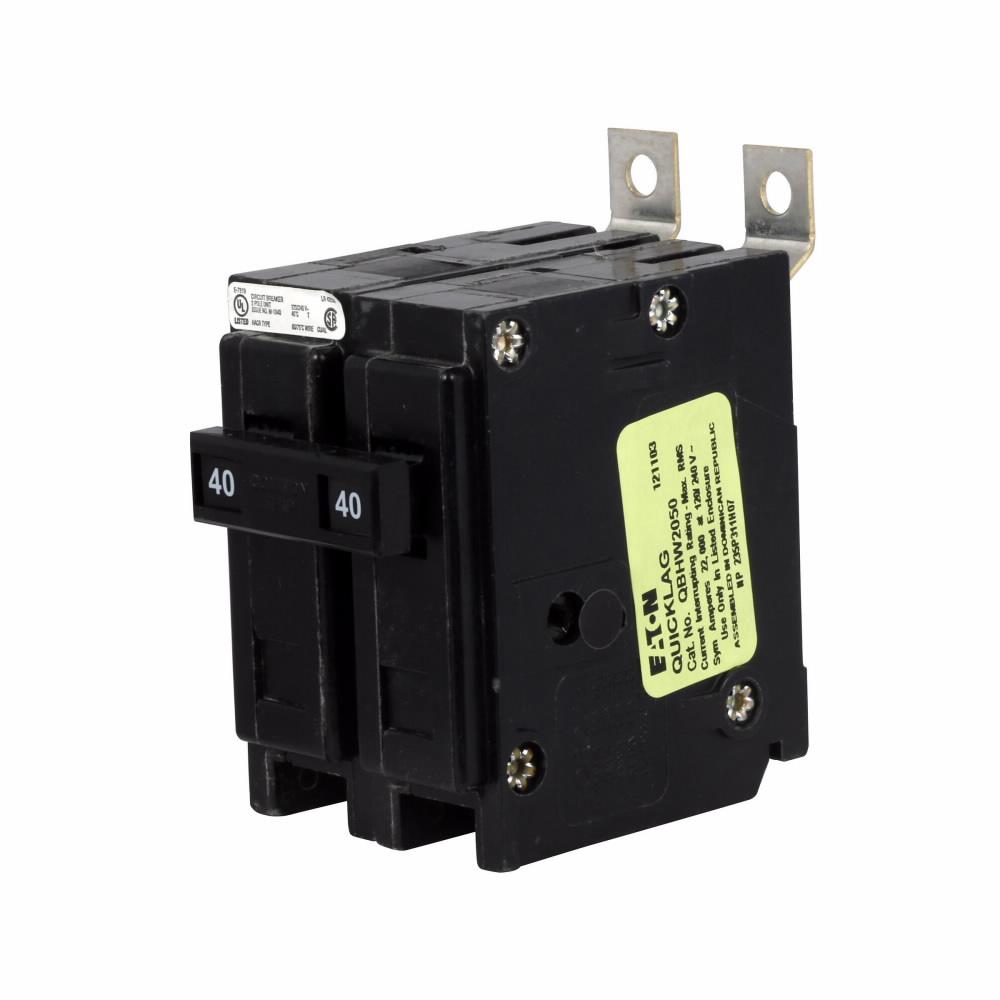

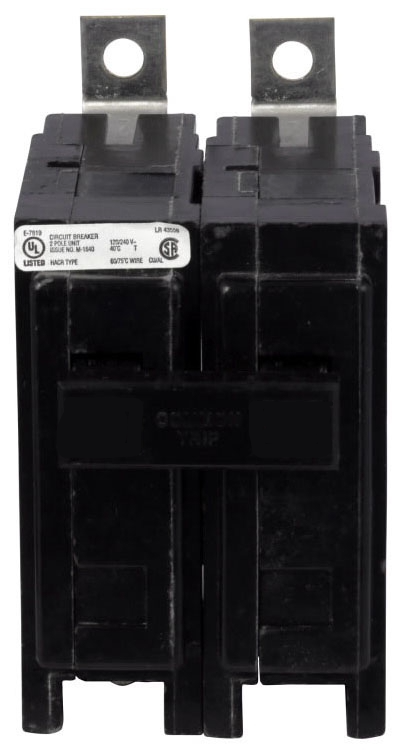

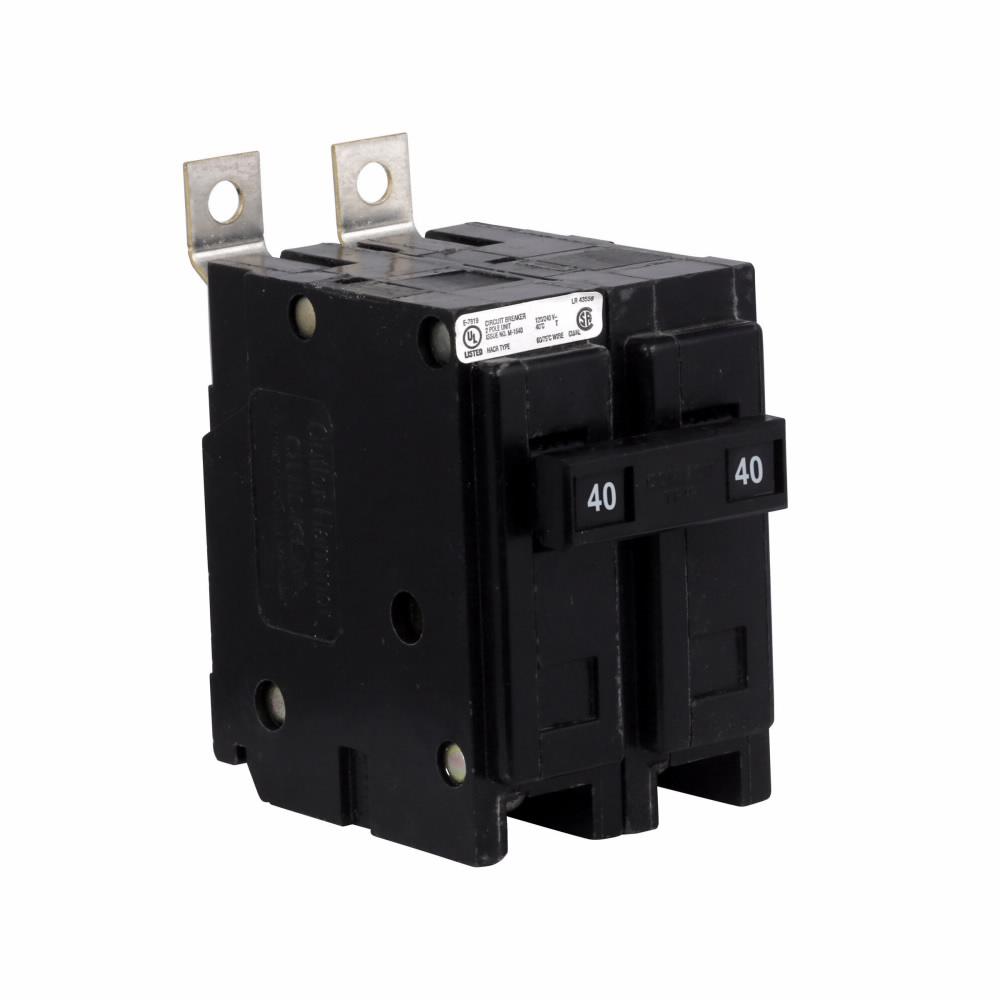

QBHW2040 is a Cutler Hammer Quicklag industrial thermal-magnetic circuit breaker with a 40 amp rating and 2 poles designed for bolt-on mounting.This Eaton Cutler Hammer QBHW2040 circuit breaker features a 40 amp amperage rating, 120/240 volt rating, and a 22 kA interrupt rating. It is a two-pole, non-interchangeable trip type breaker with a bolt-on mounting method. The breaker is UL Listed, CSA Certified, and HACR rated, making it suitable for a variety of industrial and commercial applications.
- Amperage: 40 A
- Voltage Rating: 120/240 V
- Poles: 2
- Mounting Type: Bolt-on
- Interrupt Rating: 22 kAIC
- Trip Type: Non-Interchangeable
- Series/Frame: QBHW Quicklag
- Certifications: UL Listed, CSA Certified, HACR rated
- Dimensions: Approx. 4.8" H x 2.2" W x 3.9" L
- Weight: Approx. 0.7 lb
Specifications
- Part Number: QBHW2040
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : QBHW
- Voltage : 240
- Amperage : 40
- Phase : 1
- Poles : 2
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679392751
- GTIN : 00786679392751
- Country of Origin : Dominican Republic
- Dimensions : 2.9 in x 2.9 in x 2 in (Length/Depth x Height x Width)
- Weight : 0.65
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
