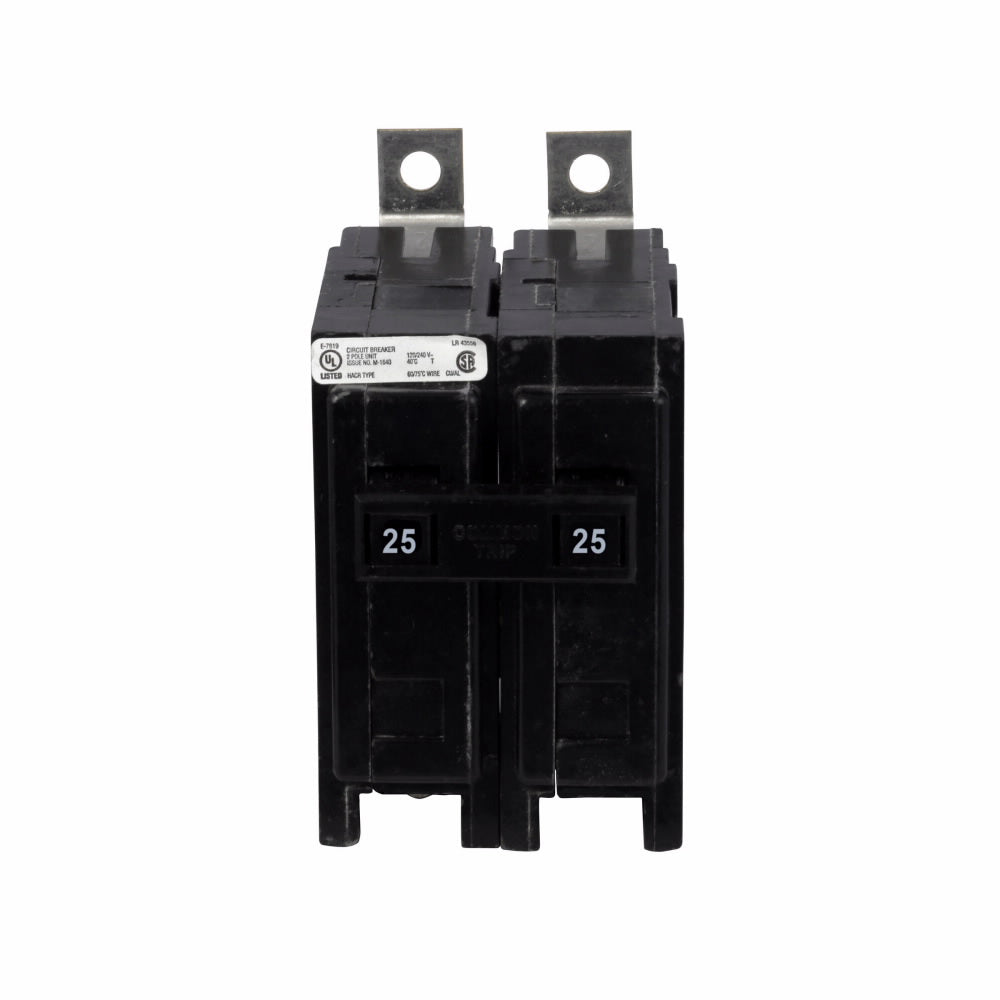

QBHW2025 - Cutler Hammer 25A 2-Pole 120/240V 22kAIC QBHW Series Bolt-On Thermal Magnetic Circuit Breaker, Non-Interchangeable Trip, UL Listed, CSA Certified

QBHW2025

QBHW2025 is a Cutler Hammer (Eaton) industrial thermal-magnetic circuit breaker designed for reliable protection in demanding applications.

This two-pole, bolt-on miniature circuit breaker features a 25A amperage rating, 120/240V voltage rating, and a high 22kAIC interrupting capacity. It is part of the QBHW series with a non-interchangeable trip unit, ensuring precise and secure operation. The breaker is UL Listed and CSA Certified for safety and compliance.

Key Specifications
• Part Number: QBHW2025
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 25A
• Voltage: 120/240V
• Poles: 2
• Mounting Type: Bolt-on
• Interrupt Rating: 22kAIC
• Series/Frame: QBHW
• Trip Unit: Non-Interchangeable
• Type: Thermal-Magnetic
• Certifications: UL Listed, CSA Certified
• HACR Rated: Yes
• Warranty: 1 Year

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product ev(more...)

Specifications

• Part Number: QBHW2025
• Manufacturer : Eaton
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Quicklag
• Type : QBHW
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 786679392607
• GTIN : 00786679392607
• Country of Origin : Dominican Republic
• Dimensions : 3.8 in x 4.7 in x 2.3 in (Length/Depth x Height x Width)
• Weight : 0.7
• Standards : HACR rated
• Certification : UL Listed,CSA Certified
• Wire Size : 14 to 4 AWG
