Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
QBHW1020

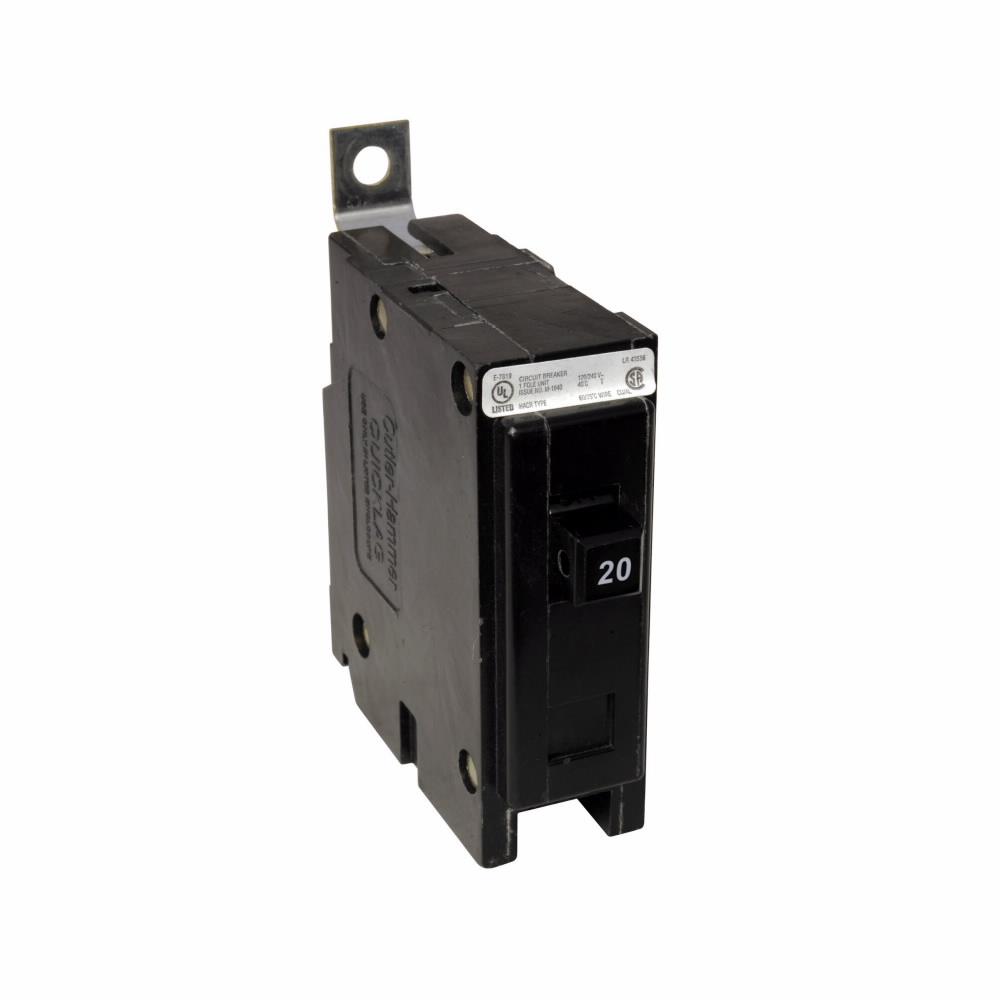

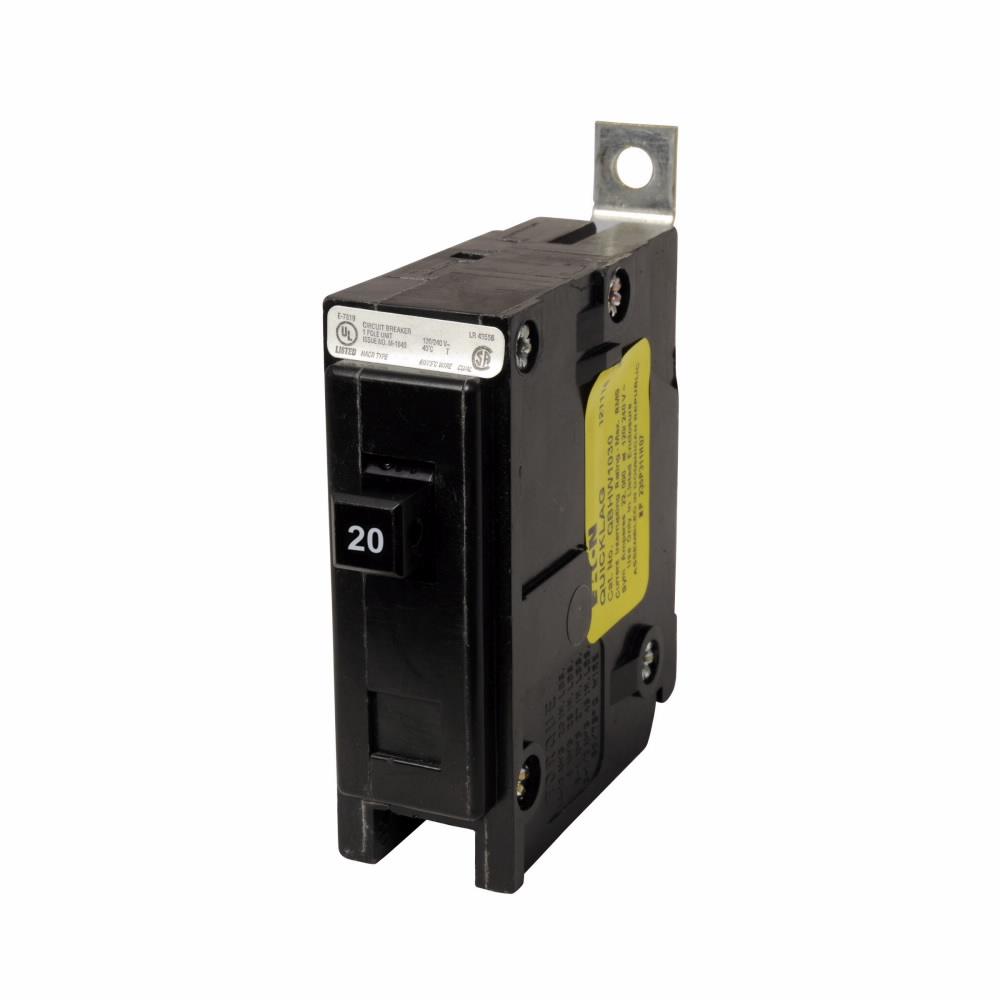

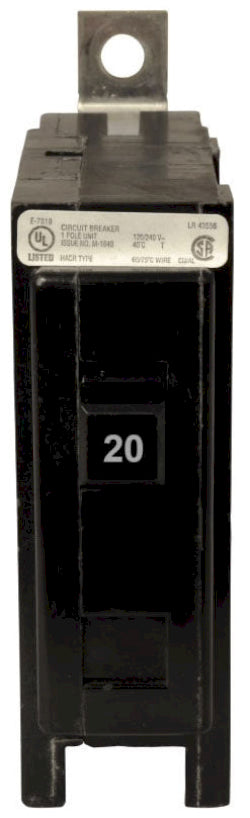

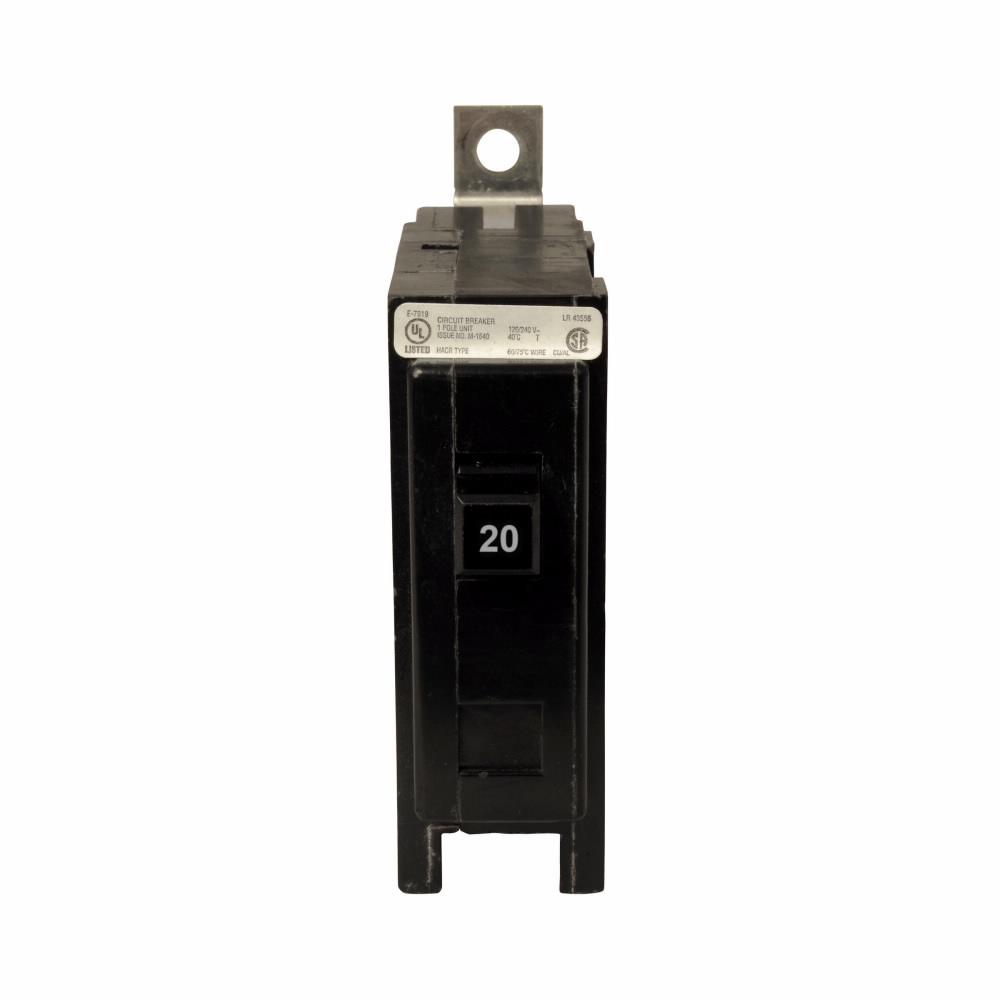

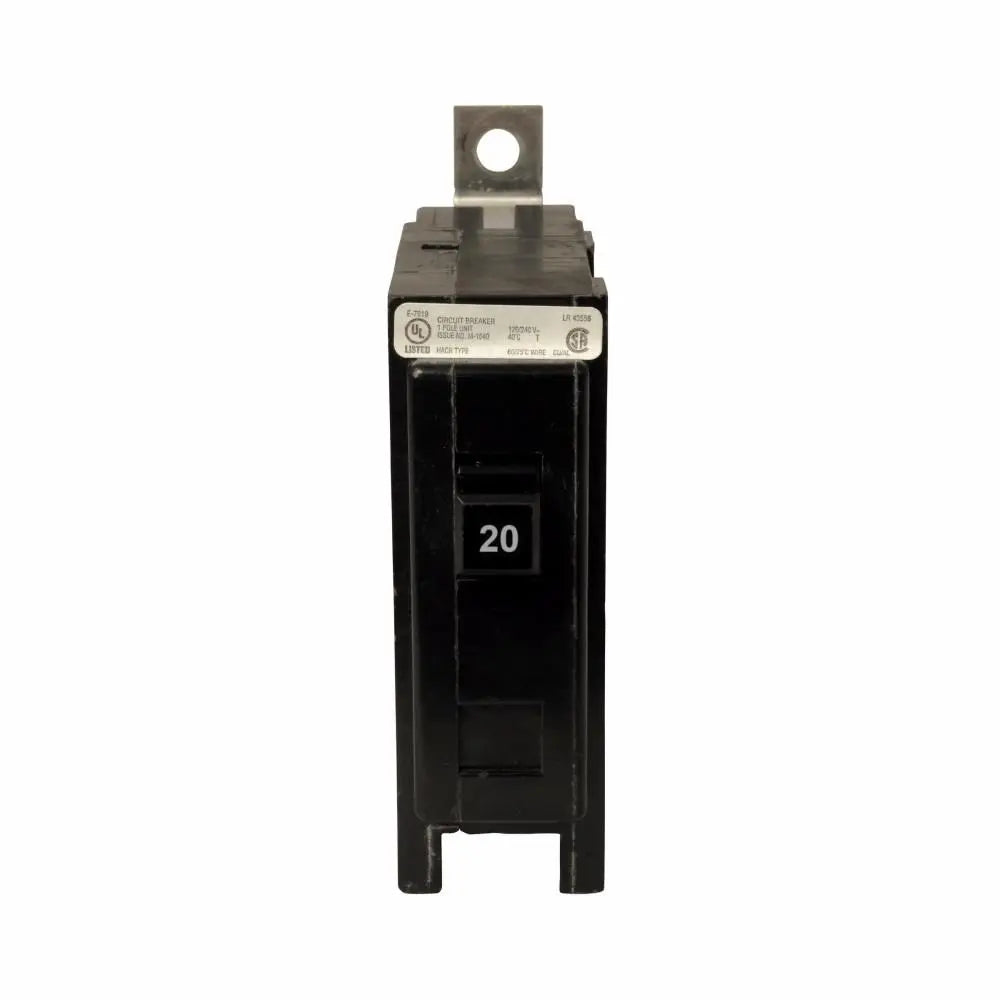

QBHW1020 is a Cutler Hammer 1 Pole thermal magnetic circuit breaker rated for 20 Amps and 120/240 Volts AC with a bolt-on mounting type.This QBHW series breaker features a BAB frame and provides a 22kA interrupting rating at 120/240VAC. It includes long time and instantaneous trip functions for reliable circuit protection. The breaker is UL and CSA certified and designed for single-phase applications.
- Key Specifications
- Amperage: 20 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupting Rating: 22kAIC at 120/240VAC
- Series/Frame: QBHW / BAB
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Certifications: UL, CSA
- Phase: Single-phase
- Connection Type: Bolt-On
Specifications
- Part Number: QBHW1020
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : QBHW
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679392058
- GTIN : 00786679392058
- Country of Origin : United States
- Dimensions : 3.9 in x 4.7 in x 1.2 in (Length/Depth x Height x Width)
- Weight : 0.3
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
