2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
QBHW1015

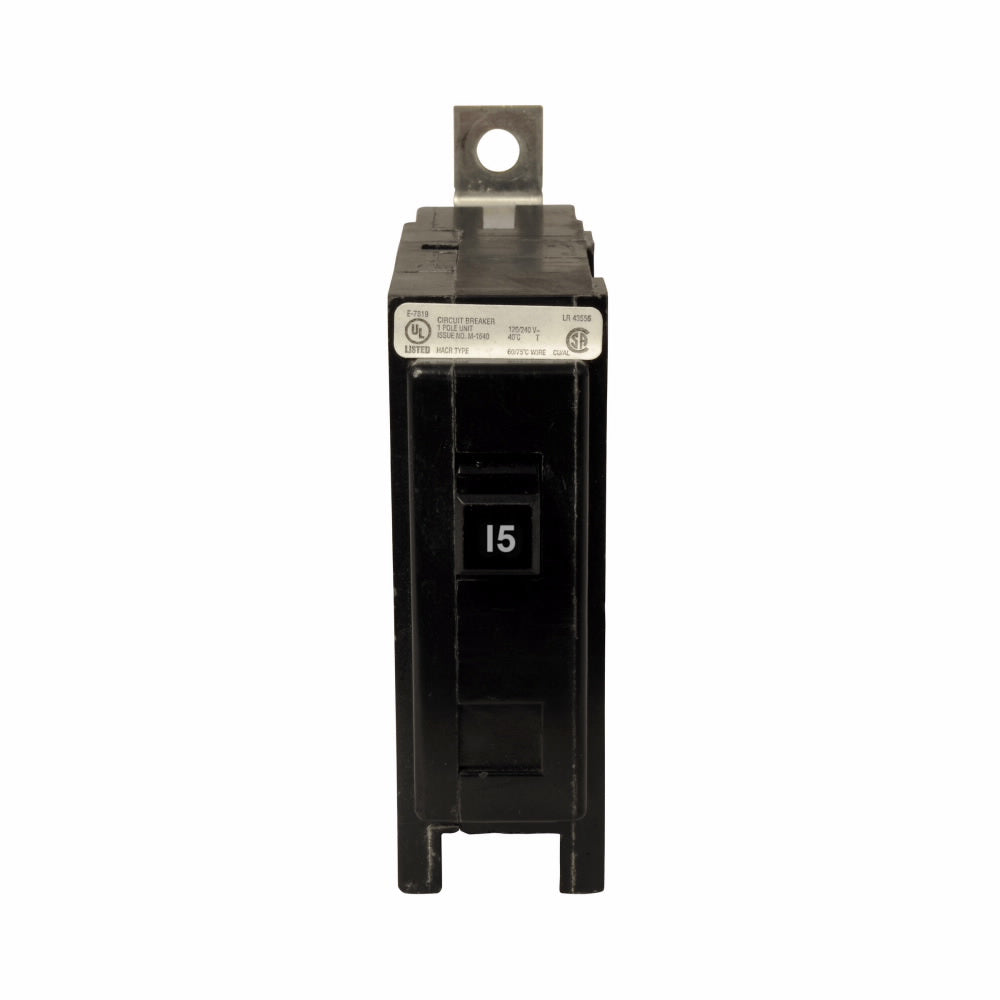

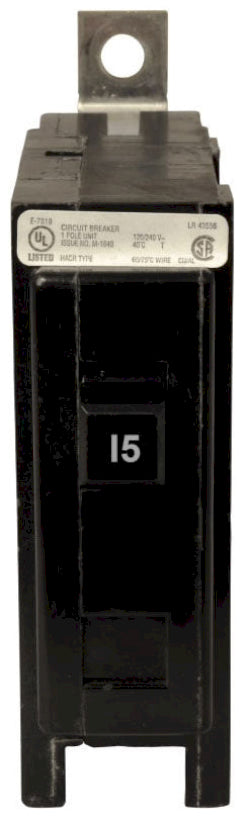

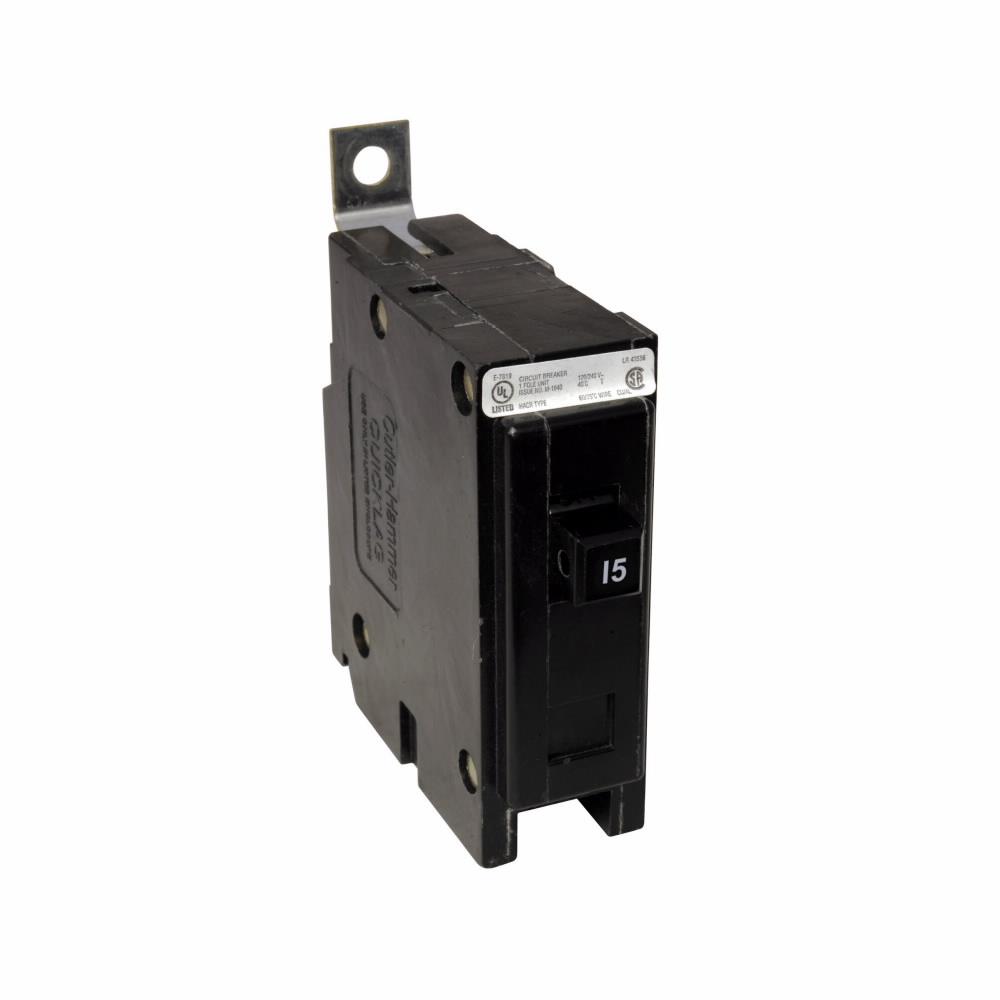

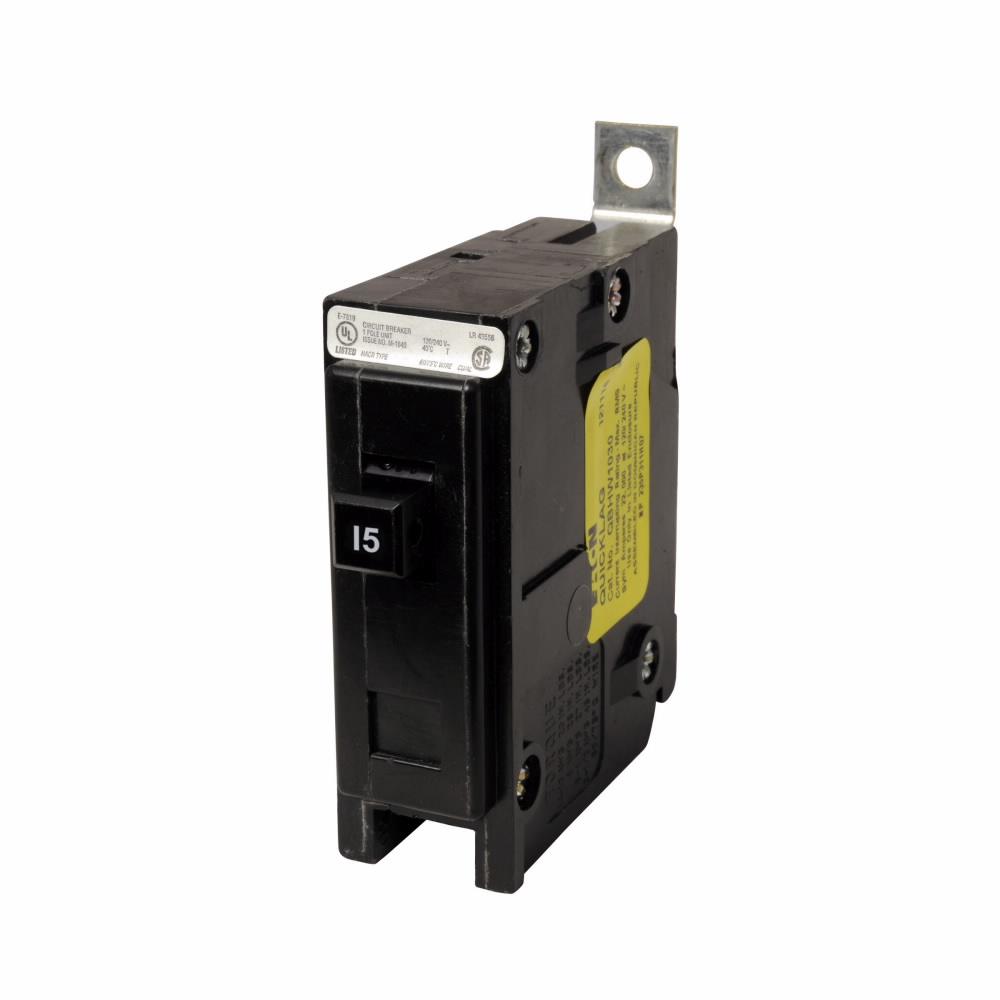

QBHW1015 is a Cutler Hammer 15 Amp, 1 Pole thermal magnetic circuit breaker designed for 120/240 VAC applications with bolt-on mounting.This Eaton QBHW series Quicklag industrial circuit breaker features a 22kA interrupting rating at 120/240 VAC, non-interchangeable trip type with long-time and instantaneous trip functions, and a BAB frame. It is UL listed and CSA certified for reliable protection in industrial and commercial electrical systems.
- Key Specifications
- Amperage: 15 A
- Voltage Rating: 120/240 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kAIC at 120/240 VAC
- Series/Frame: QBHW / BAB
- Trip Unit: Thermal Magnetic, Non-Interchangeable
- Certifications: UL Listed, CSA Certified
- Dimensions (H x W x L): 4.8 x 1.2 x 3.9 inches
- Connection Type: Bolt-On
- Phase: Single
- Functions: Long-Time and Instantaneous Trip
Specifications
- Part Number: QBHW1015
- Manufacturer : Eaton
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Quicklag
- Type : QBHW
- Voltage : 240
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 22kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786679392003
- GTIN : 00786679392003
- Country of Origin : Dominican Republic
- Dimensions : 3.9 in x 4.8 in x 1.2 in (Length/Depth x Height x Width)
- Weight : 0.3
- Standards : HACR rated
- Certification : UL Listed,CSA Certified
