Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QBHCAF1020

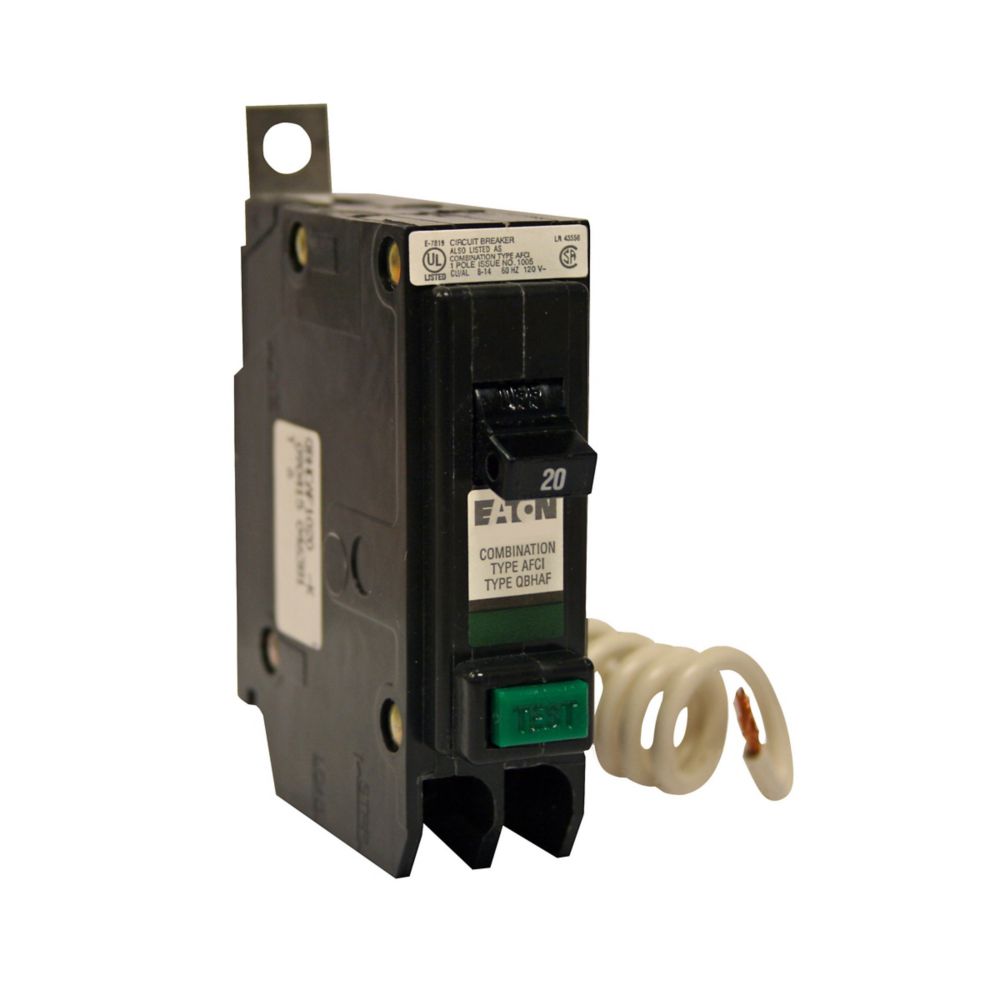

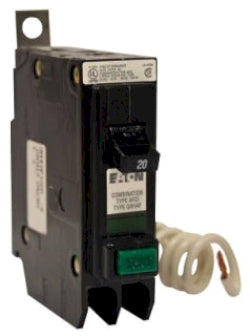

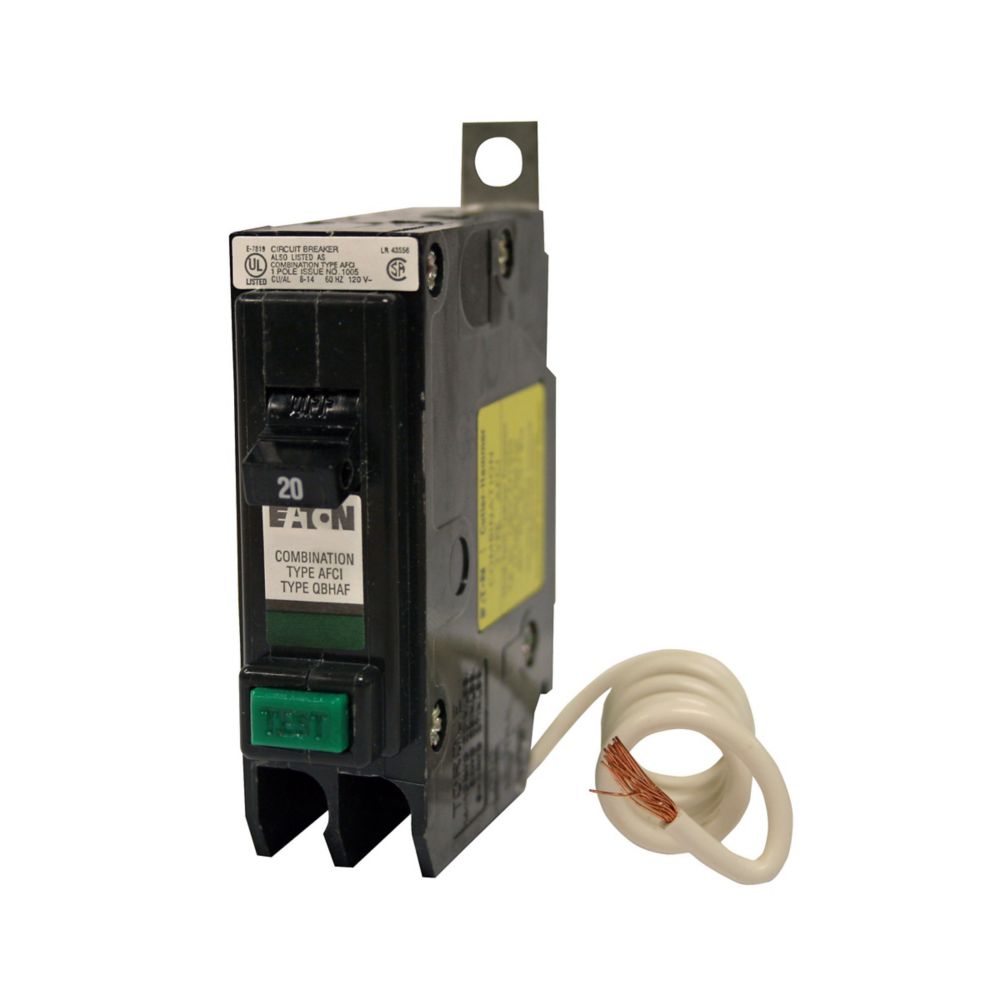

QBHCAF1020 is a Cutler Hammer 1 pole combination arc fault circuit breaker rated for 20 amps and 120/240 volts with a 22 kA interrupt rating.This Eaton-manufactured QB series breaker features a single-pole design with a bolt-on mounting type, UL 489 certification, and HACR rating for use in Sumter panels. It provides reliable arc fault protection in a compact 1-inch frame, measuring 5 inches in length, 1.2 inches in height, and 3.3 inches in width.
- Amperage: 20 A
- Voltage: 120/240 VAC
- Poles: Single-pole
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kAIC
- Series/Frame: QB
- Trip Unit: Combination Arc Fault
- Certifications: UL 489, HACR rated
- Dimensions: 5" L x 1.2" H x 3.3" W
- Weight: 0.45 lb
Specifications
- Part Number: QBHCAF1020
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QBH
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786685244938
- GTIN : 00786685244938
- Dimensions : 5 in x 1.2 in x 3.3 in (Length/Depth x Height x Width)
- Weight : 0.45
- Certification : UL
