QBH15 - Cutler Hammer 15A 120V 1-Pole Bolt-On Circuit Breaker Thermal Magnetic 10kA Interrupt

QBH15

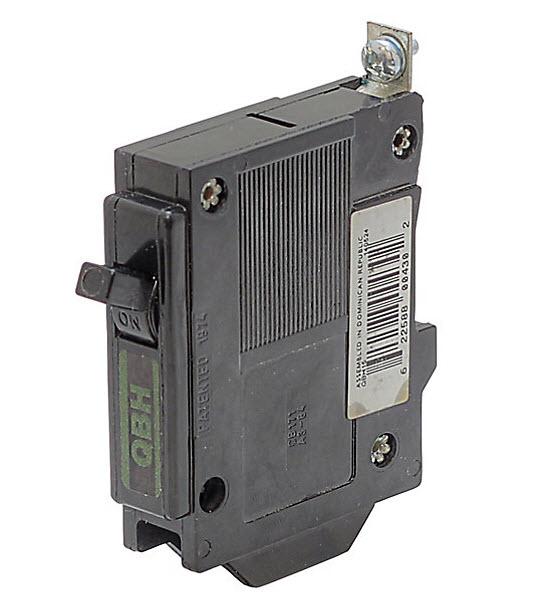

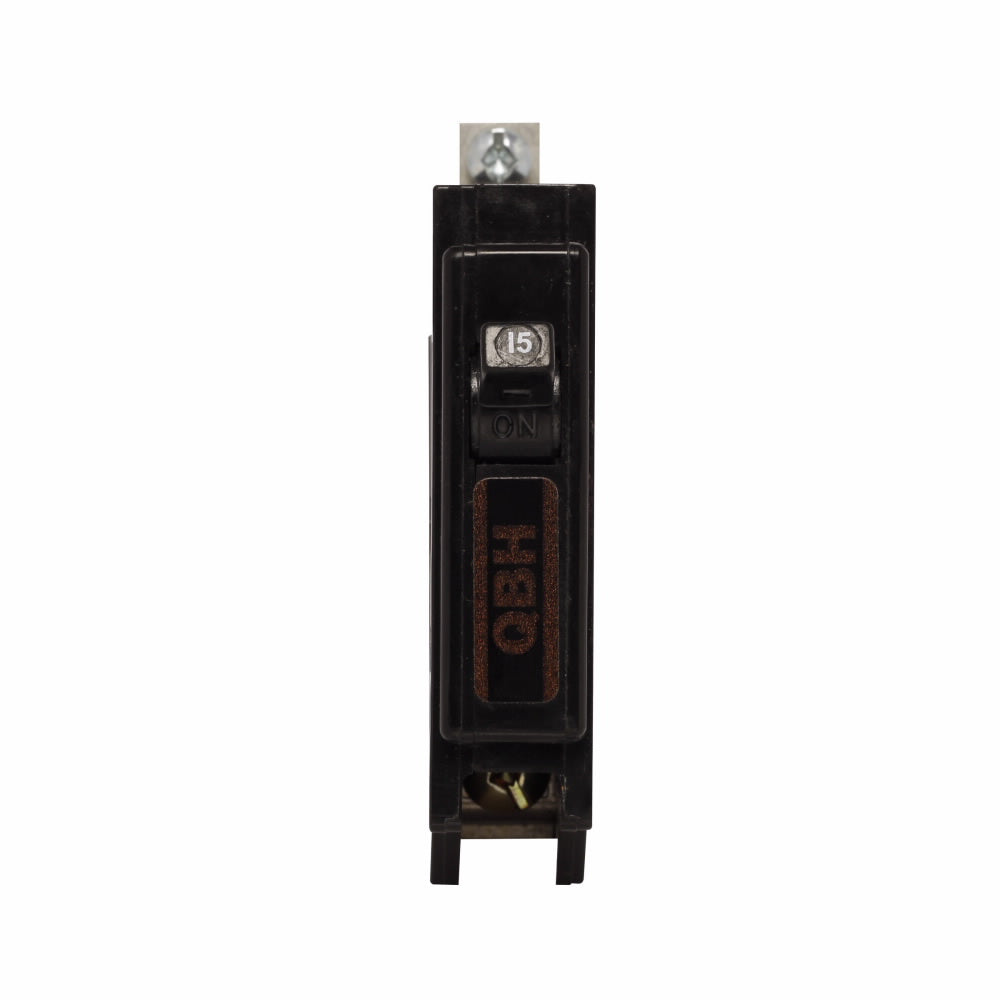

QBH15 is a Cutler Hammer 15 amp, 120 volt, single-pole bolt-on circuit breaker with thermal magnetic trip and 10 kA interrupt rating.This Eaton-manufactured QBH series breaker is designed for classic replacement applications in C.E.B (CEB), Sylvania, and Commander B/BC panels. It features a bolt-on mounting type, supports wire sizes #14-10 AWG copper and #12-10 AWG aluminum, and is CSA certified. The breaker measures approximately 2.9 inches in height, 2.375 inches in depth, and 1 inch in width, weighing 0.3 lbs.

Key Specifications
• Amperage Rating: 15 A
• Voltage Rating: 120 Vac
• Number of Poles: 1 (Single-pole)
• Interrupt Rating: 10 kAIC
• Trip Type: Thermal/Magnetic
• Mounting Type: Bolt-On
• Wire Size: #14-10 AWG Cu, #12-10 AWG Al
• Series/Frame: QBH
• Certifications: CSA Certified
• Dimensions: 2.9" H x 2.375" D x 1" W

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBH15
• Manufacturer : Cutler Hammer
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : QB Series
• Type : QBH
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 785901043478
• GTIN : 00785901043478
• Country of Origin : United States
• Dimensions : 2.375 in x 2.9 in x 1 in (Length/Depth x Height x Width)
• Weight : 0.3
