Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QBGF2030

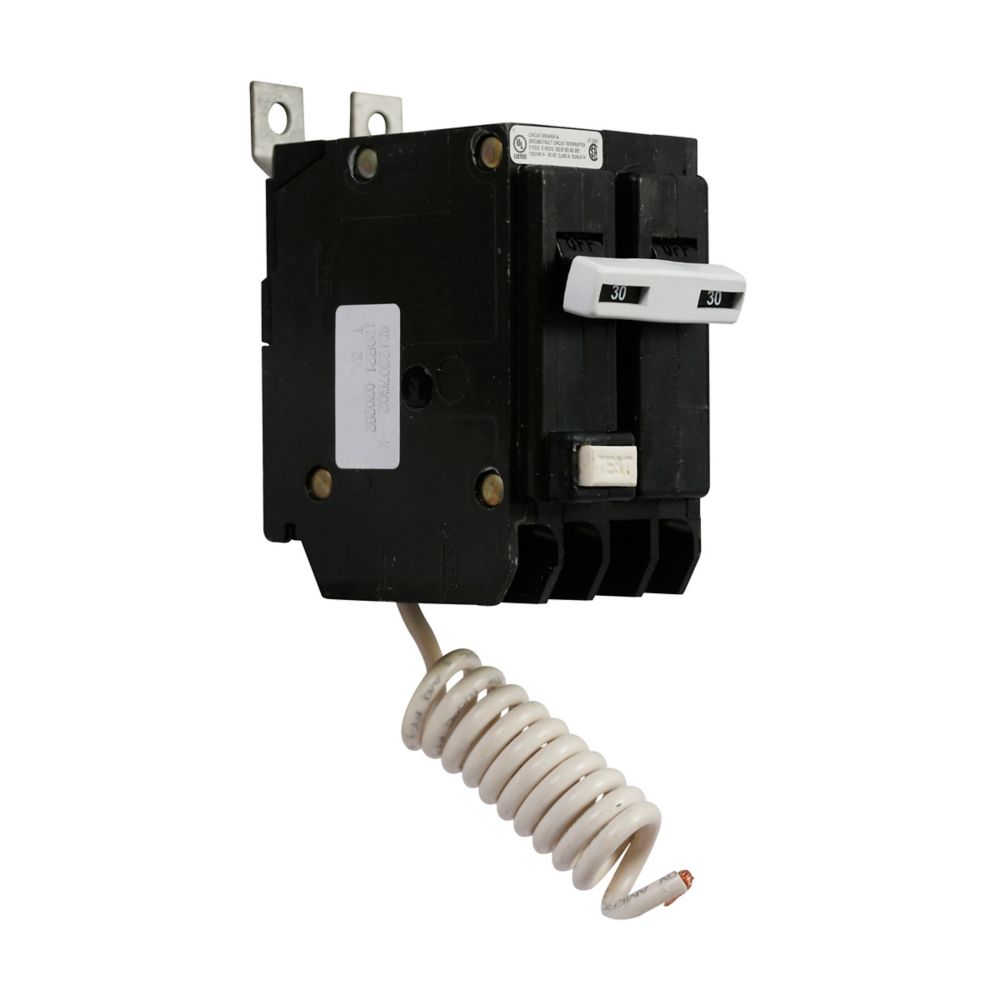

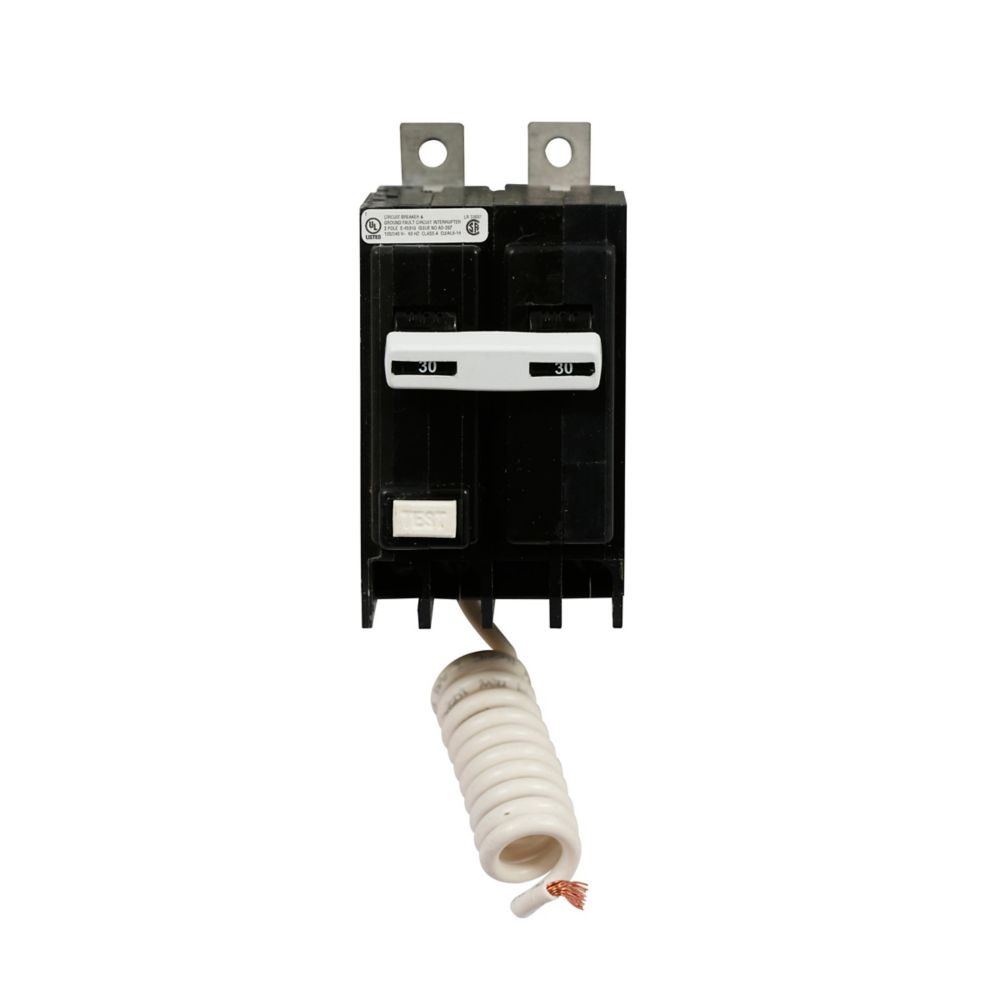

QBGF2030 is a Cutler Hammer 2 pole ground fault circuit breaker rated for 30 amps and 120/240 volts with bolt-on mounting.This thermal-magnetic circuit breaker features a 5 mA ground fault trip sensitivity, a 10,000 amp interrupting rating at 120 volts, and is HACR rated. It complies with UL 489 and CSA certifications, ensuring reliable protection for industrial and commercial electrical systems.
- Type: Ground Fault Circuit Breaker (GFCB)
- Poles: 2
- Amperage: 30 Amps
- Voltage Rating: 120/240 VAC
- Mounting Type: Bolt-On
- Interrupting Rating: 10 kA at 120V
- Trip Sensitivity: 5 mA Ground Fault
- HACR Rated: Yes
- Certifications: UL 489, CSA Certified
- Series/Frame: QB
- Trip Unit: Thermal-Magnetic
Specifications
- Part Number: QBGF2030
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QBGF
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679361306
- GTIN : 00786679361306
- Dimensions : 5.7 in x 3 in x 4.3 in (Length/Depth x Height x Width)
- Weight : 0.85
