QBA222252 - Square D PowerPact Q 225A 2-Pole 240VAC I-Line Molded Case Circuit Breaker, 10kAIC, Thermal Magnetic Trip, UL/CSA/NEMA/NOM

QBA222252

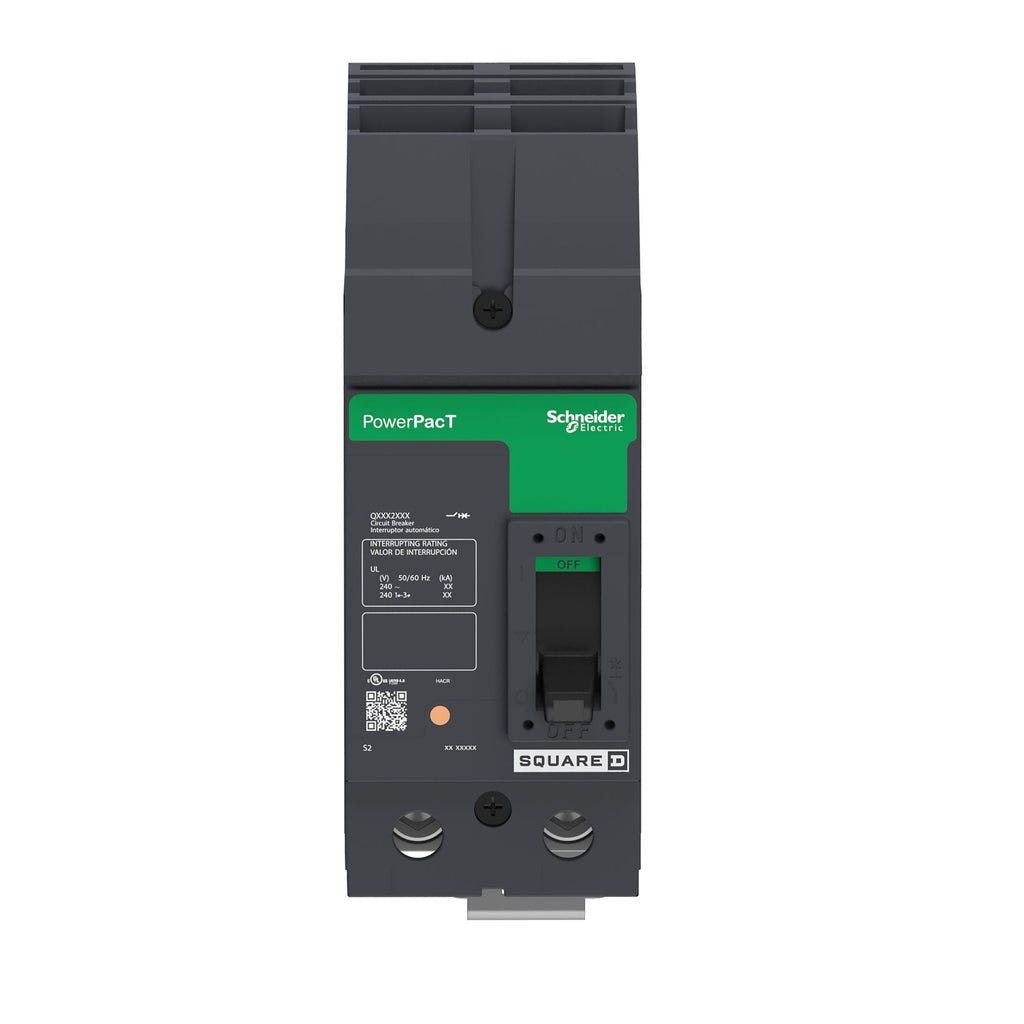

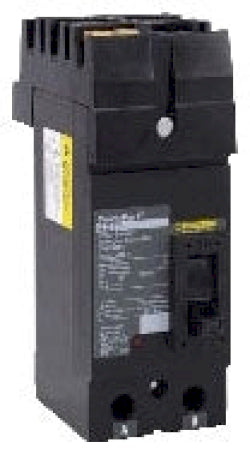

QBA222252 is a Square D PowerPact Q series molded case circuit breaker designed for reliable protection in commercial and industrial applications.

This 2-pole, 225A breaker features a 240VAC voltage rating, I-Line plug-in mounting, and a 10kA interrupting rating. It utilizes a thermal magnetic trip unit with long-time and instantaneous (LI) protection, ensuring safety and performance for a wide range of electrical systems. The QBA222252 is UL, CSA, NEMA, and NOM certified, with a robust design for demanding environments.

Key Specifications

• Part Number: QBA222252
• Manufacturer: Square D
• Series/Frame: PowerPact Q (QBA)
• Amperage: 225A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: I-Line Style Plug-In
• Interrupt Rating: 10kAIC at 240VAC
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Certifications: UL, CSA, NEMA, NOM
• Connection: Load Side Lug
• Phase: 1
• Dimensions: 3.93" D x 3" W x 6.47" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA222252
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 225
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901405160
• GTIN : 00785901405160
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.941
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
