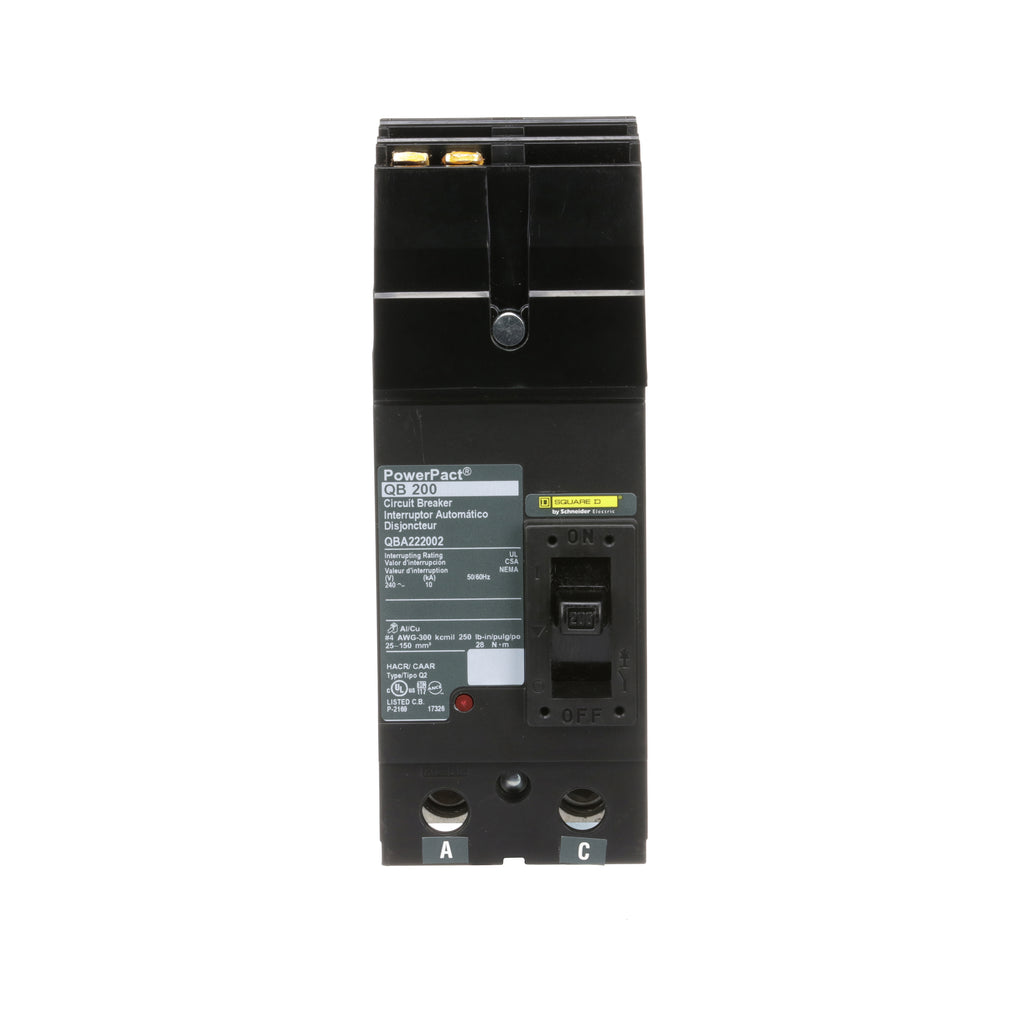

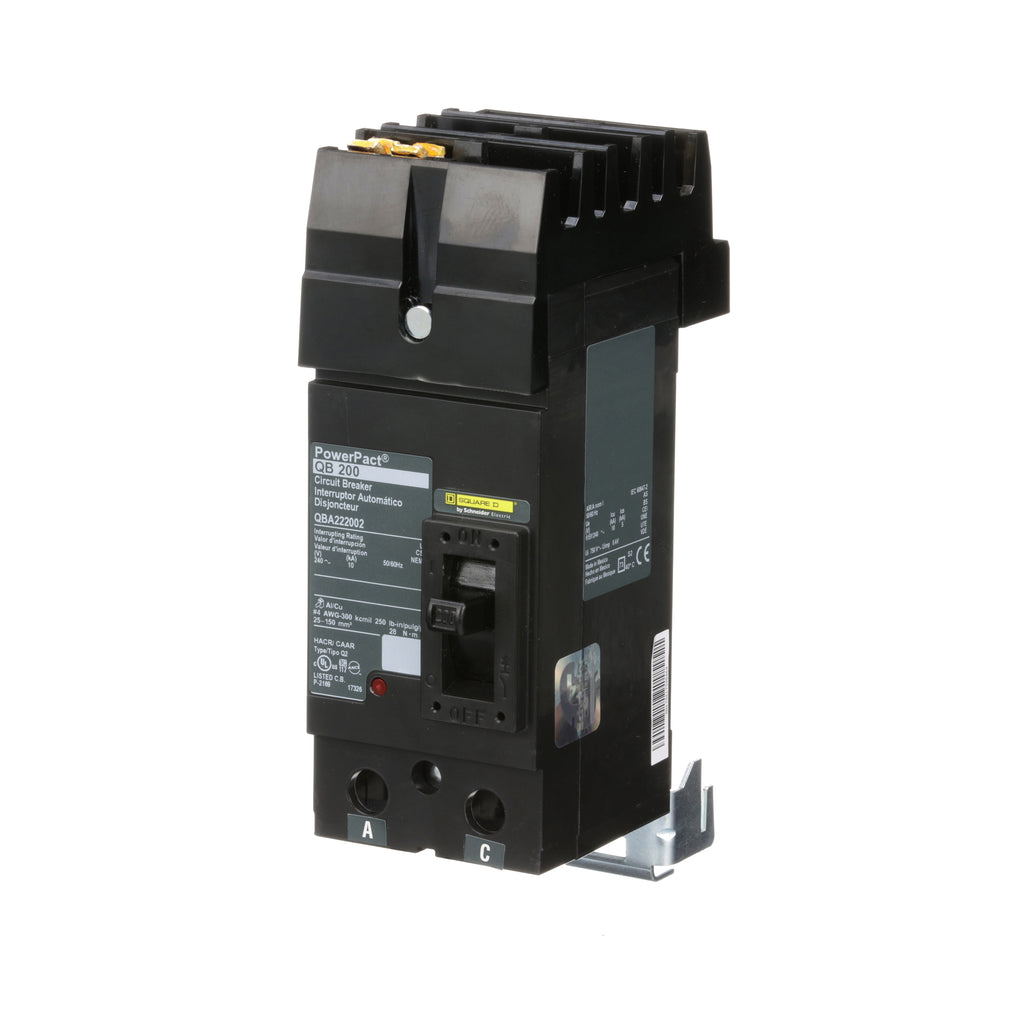

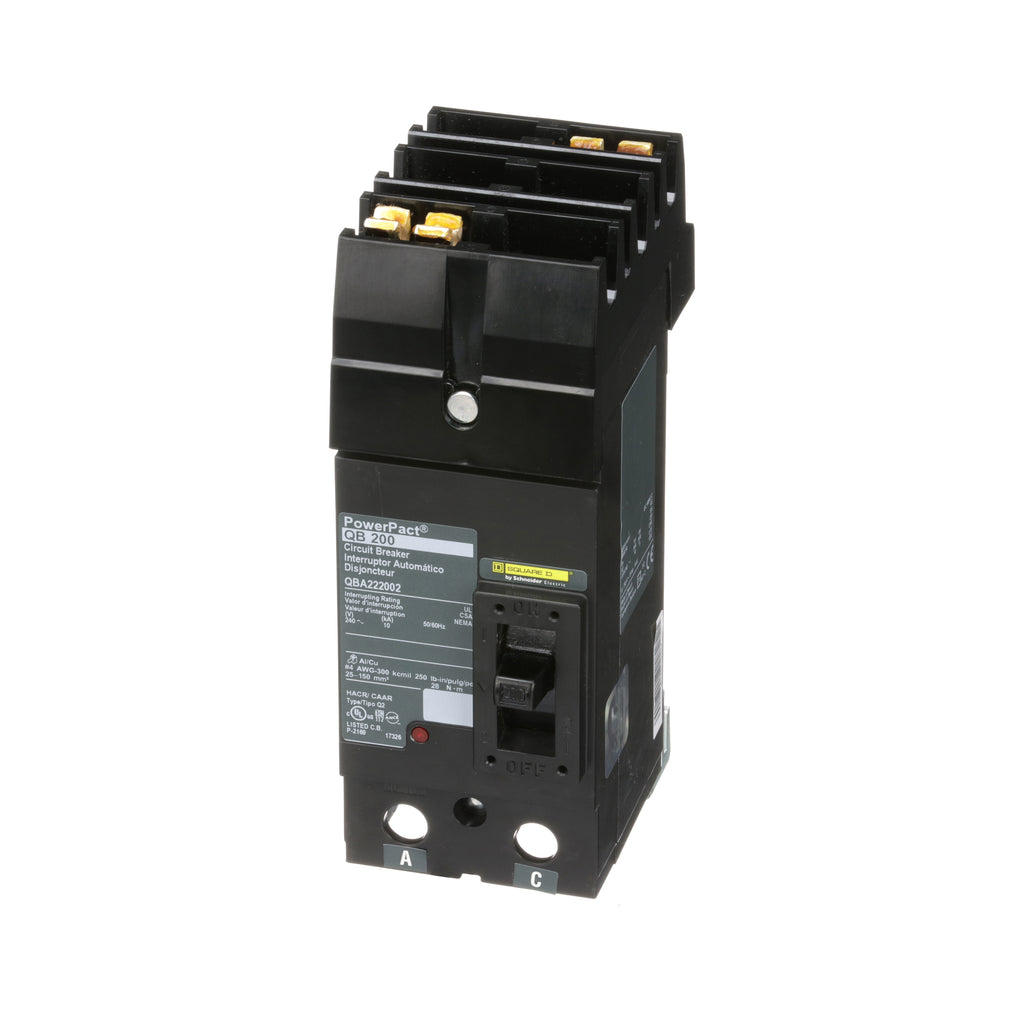

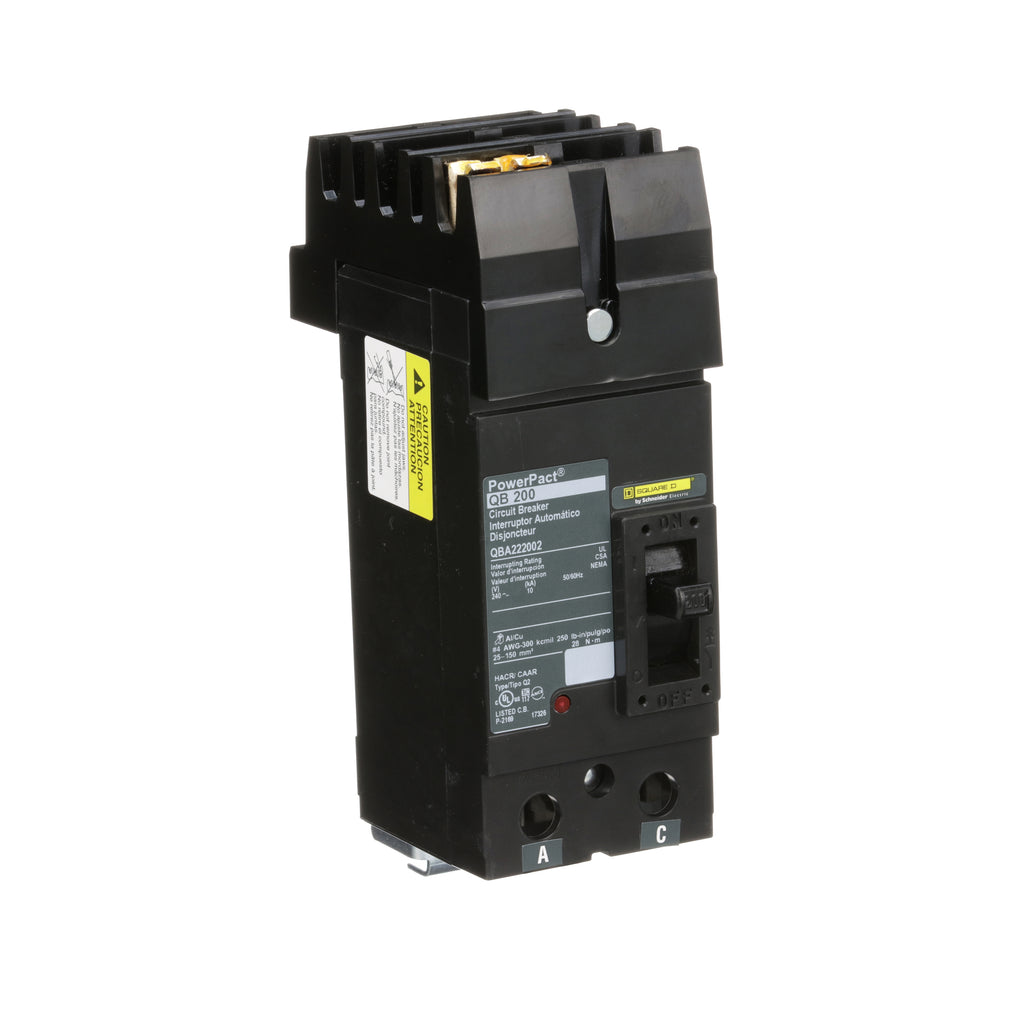

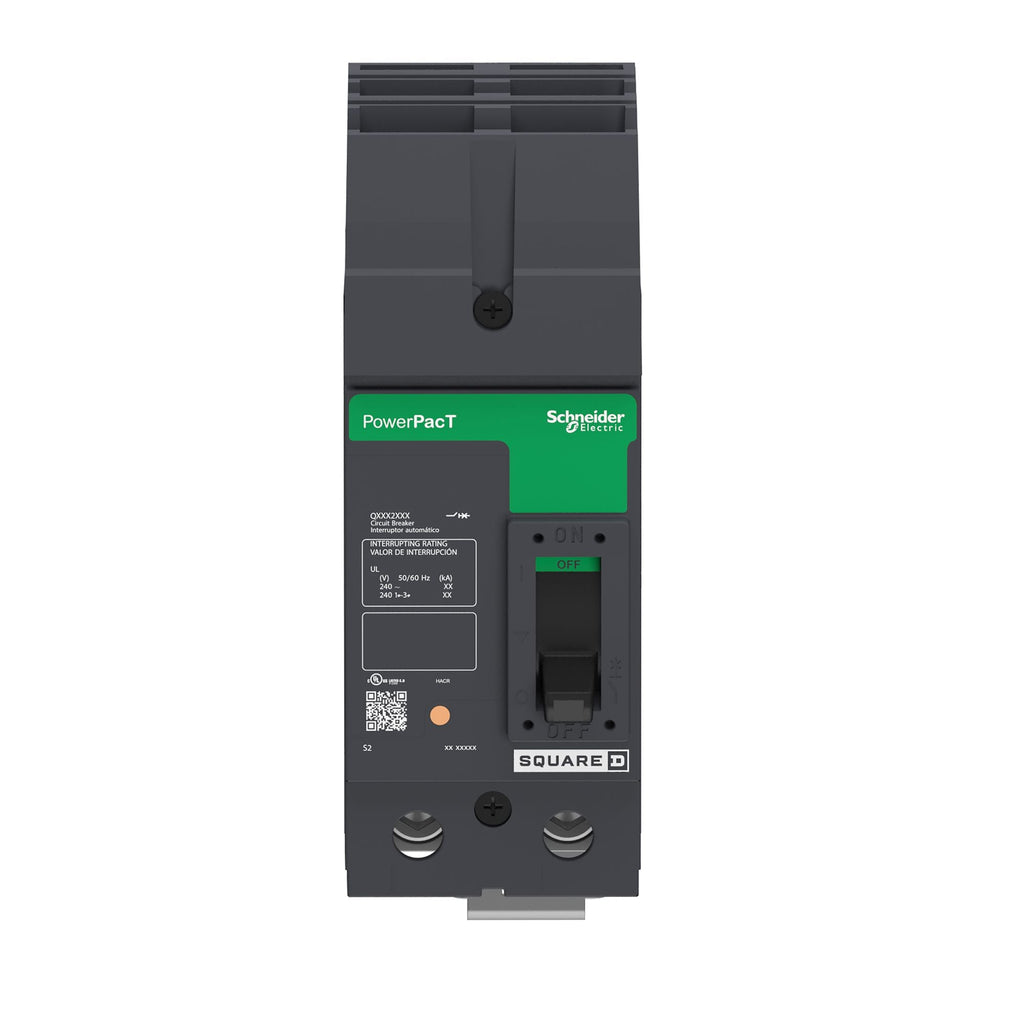

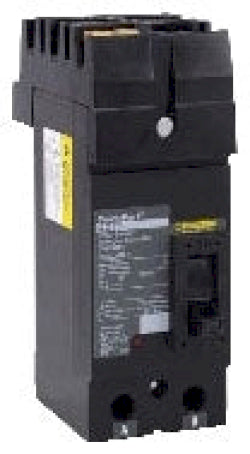

QBA222002 - Square D 200 Amp 240 Volt 2 Pole I-Line Molded Case Circuit Breaker PowerPact Q Frame

QBA222002

QBA222002 is a Square D 2 Pole 200 Amp 240 Volt molded case circuit breaker designed for reliable overcurrent protection in power distribution systems.This thermal magnetic circuit breaker features an I-Line style plug-in connection and belongs to the PowerPact Q frame series. It offers a 10kA interrupting rating at 240VAC and includes LI long-time and instantaneous trip functions for enhanced protection. The breaker is UL, CSA, NEMA, and NOM approved and mounts via an I-Line bracket. It is suitable for single-phase AC systems and has load side lug terminals.

Key Specifications
• Amperage: 200 Amp
• Voltage: 240 VAC
• Poles: 2

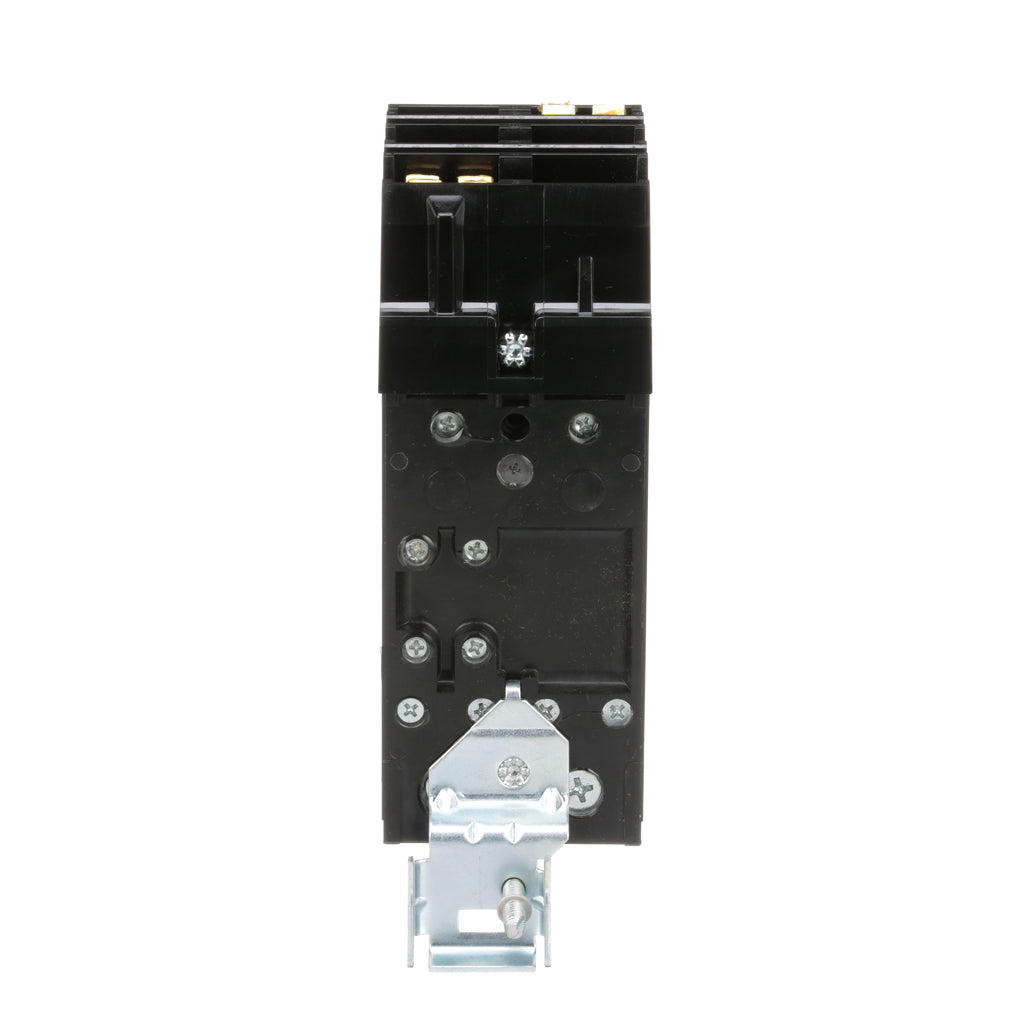

• Mounting Type: I-Line Bracket
• Interrupting Rating: 10kA at 240 VAC
• Series/Frame: PowerPact Q Frame (QBA)
• Trip Unit: LI - Long-Time and Instantaneous
• Connection Type: I-Line Style Plug-In
• Protection Type: Thermal Magnetic
• Certifications: UL, CSA, NEMA, NOM
• Phase: Single Phase
• Terminal Connection: Load Side Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA222002
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901672555
• GTIN : 00785901672555
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.78
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
