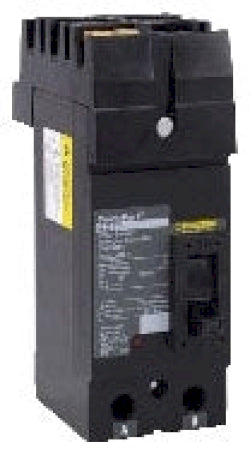

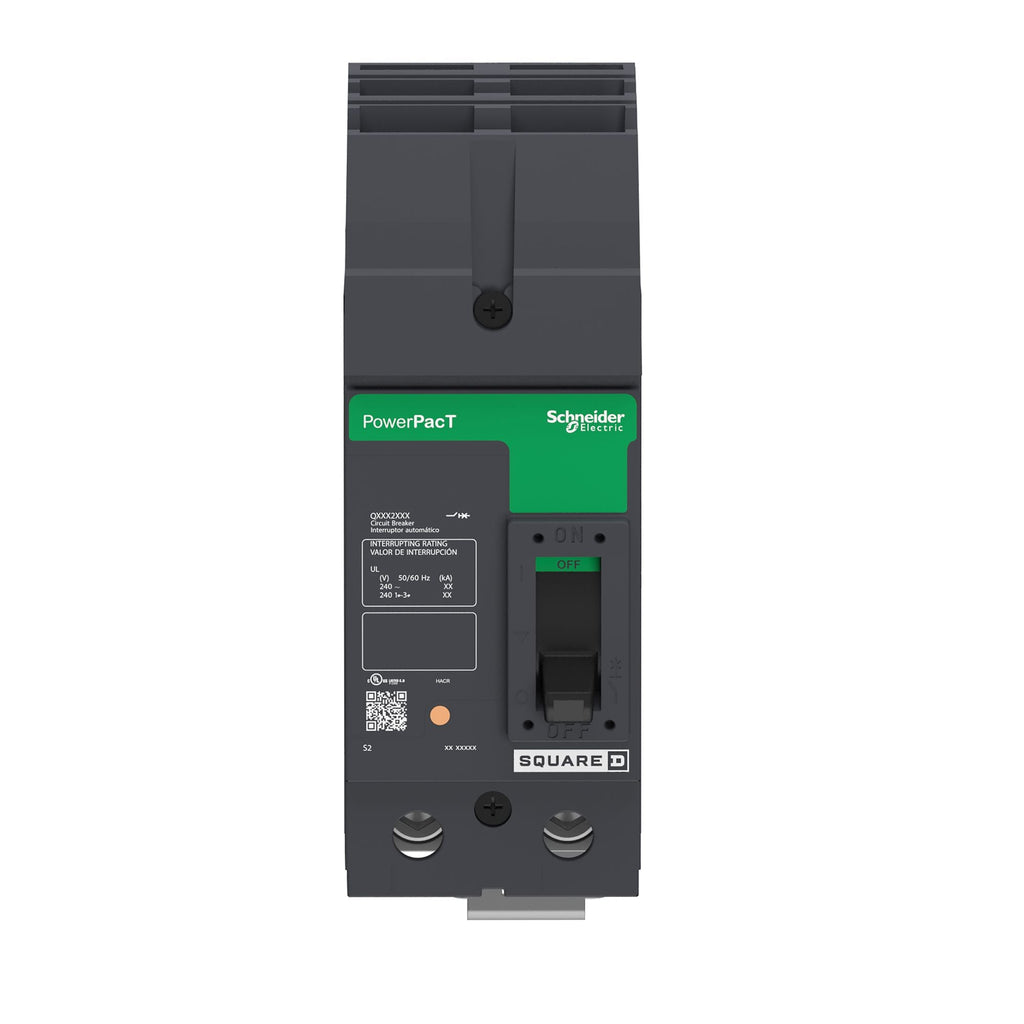

QBA222001 - Square D PowerPacT Q 200 Amp 2 Pole 240VAC I-Line Molded Case Circuit Breaker, 10kAIC, Thermal Magnetic Trip, UL/CSA/NEMA/NOM

QBA222001

QBA222001 is a Square D PowerPacT Q series, 2 pole, 200 amp, 240VAC molded case circuit breaker designed for reliable power distribution.

This thermal magnetic circuit breaker features an I-Line plug-in mounting style, a high interrupting rating of 10kAIC at 240VAC, and is built for demanding commercial and industrial applications. It includes long-time and instantaneous trip functions for enhanced protection.

Key Specifications
• Amperage: 200A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: I-Line bracket, plug-in
• Interrupt Rating: 10kAIC at 240VAC
• Series/Frame: PowerPacT Q, QBA frame
• Trip Unit: Thermal magnetic, LI (long-time and instantaneous)
• Certifications: UL, CSA, NEMA, NOM
• Phase: 1
• Standards: HACR
• Temperature Rating: 40 to 70 °C
• Connection: Load side lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA222001
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 200
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901417897
• GTIN : 00785901417897
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.89
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
