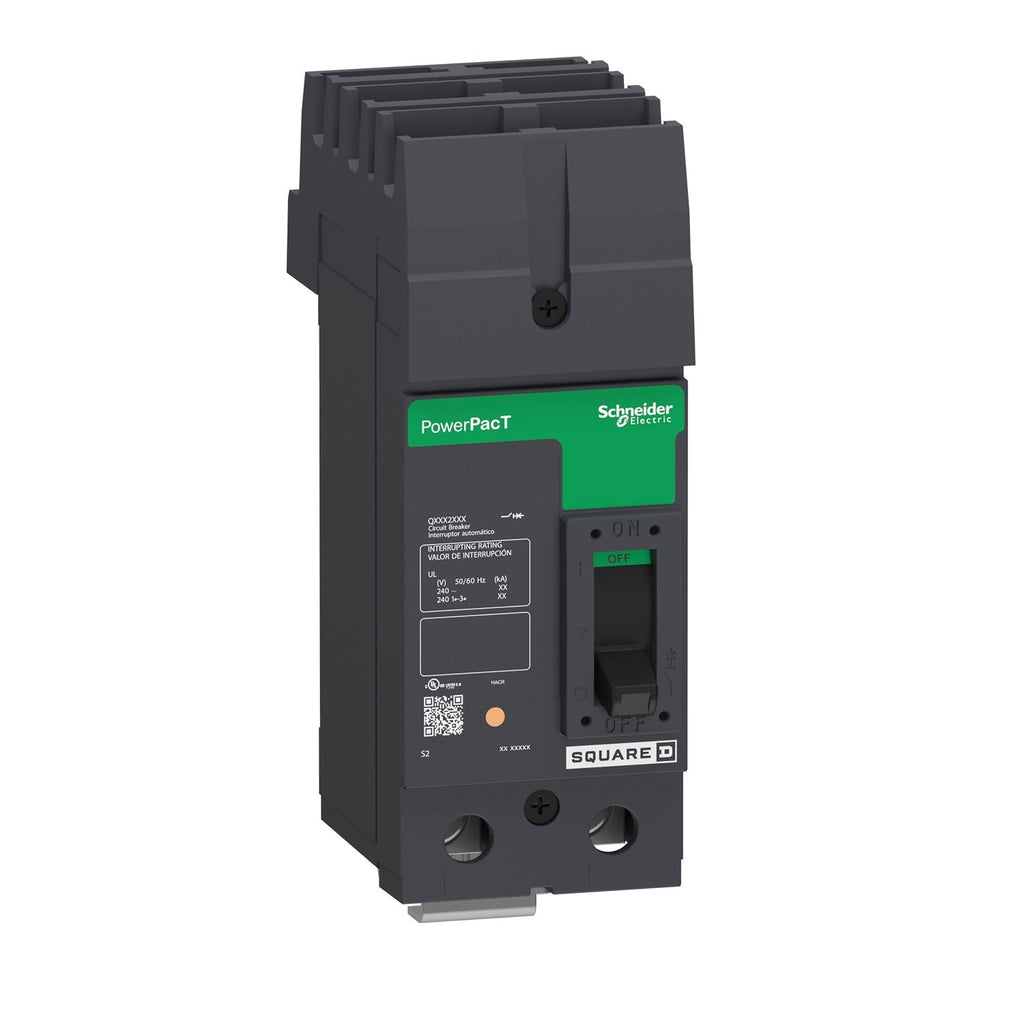

QBA221752 - Square D PowerPact Q 175A 2 Pole 240VAC I-Line Molded Case Circuit Breaker Thermal Magnetic 10kAIC

QBA221752

QBA221752 is a 2 pole, 175A, 240VAC molded case circuit breaker from the Square D PowerPact Q series, designed for reliable overcurrent protection and switching in commercial and industrial power distribution systems. This PowerPact Q circuit breaker features I-Line style plug-in mounting, thermal magnetic trip protection, and a 10kA interrupting rating at 240VAC. It includes long-time and instantaneous trip functions, mechanical lugs on the load side, and is suitable for use in I-Line busway systems. The breaker is UL, CSA, and NOM listed, and complies with HACR standards for HVAC applications.

• Part Number: QBA221752
• Manufacturer: Square D
• Series/Frame: PowerPact Q
• Amperage: 175A
• Voltage: 240VAC
• Poles: 2
• Mounting Type: I-Line Bracket
• Interrupt Rating: 10kAIC at 240VAC
• Protection Type: Thermal Magnetic
• Functions: LI - Long-Time and Instantaneous Trip
• Terminal Connection: Load Side Lug
• Certifications: UL, CSA, NOM, HACR

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA221752
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 175
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AC

Product Data

• UPC : 785901672531
• GTIN : 00785901672531
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.72
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
