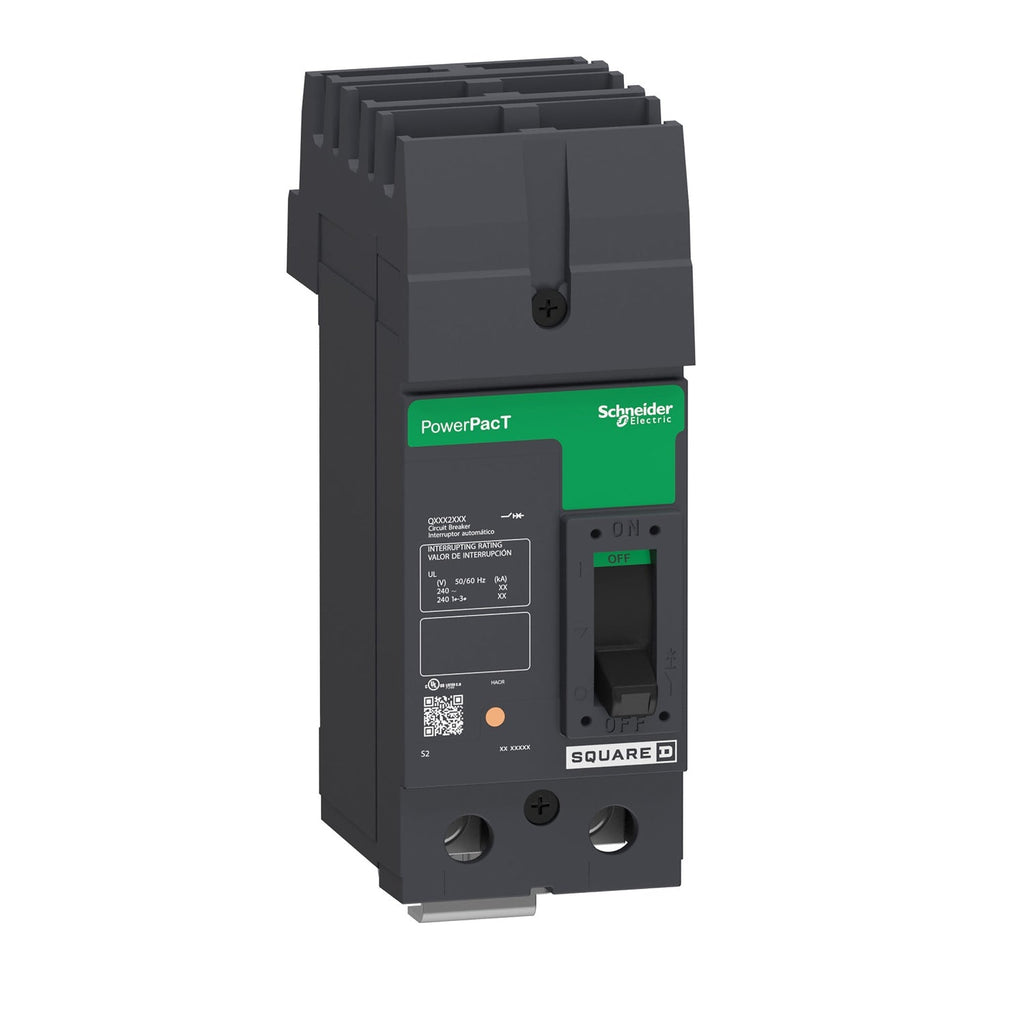

QBA221251 - Square D 125A 240V 2-Pole PowerPacT Q Molded Case Circuit Breaker I-Line Plug-In

QBA221251

QBA221251 is a 2-pole, 125 amp, 240 volt thermal magnetic molded case circuit breaker from Square D's PowerPacT Q series designed for reliable overcurrent protection.This circuit breaker features an I-Line style plug-in connection and a thermal magnetic trip unit with long-time and instantaneous trip functions. It has a 10kA interrupting rating at 240VAC and is UL, CSA, NEMA, and NOM approved. The breaker mounts using an I-Line bracket and includes load side lug terminals for secure connections.

Key Specifications
• Amperage: 125A
• Voltage: 240VAC
• Poles: 2
• Series/Frame: PowerPacT QBA
• Mounting Type: I-Line bracket
• Interrupting Rating: 10kAIC at 240VAC
• Trip Unit: Thermal magnetic with LI (long-time and instantaneous) functions
• Connection Type: I-Line style plug-in
• Terminal Connection: Load side lug
• Certifications: UL, CSA, NEMA, NOM
• Phase: Single phase
• Temperature Rating: 40 to 70 °C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA221251
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : I-Line, Lug
• Frame Size : Q
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic
• Phase Connection : AB

Product Data

• UPC : 785901403807
• GTIN : 00785901403807
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.93
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
