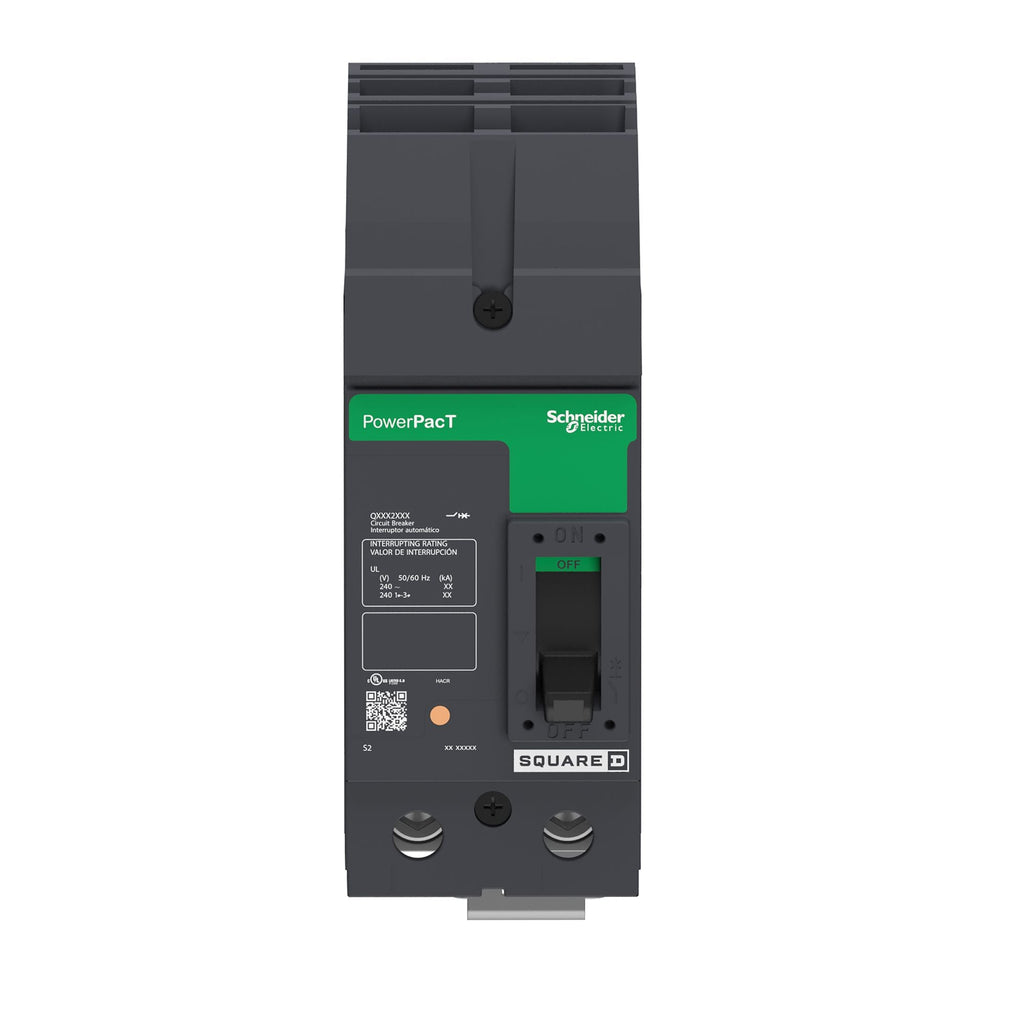

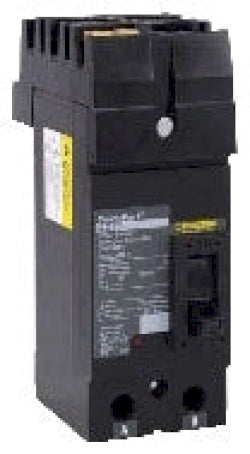

QBA221001 - Square D PowerPact Q Molded Case Circuit Breaker, 2-Pole, 100A, 240V, 10kA Interrupt, I-Line Plug-In, Thermal Magnetic Trip, UL/CSA/IEC Certified

QBA221001

QBA221001 Square D PowerPact Q molded case circuit breaker delivers reliable overload and short circuit protection for commercial and industrial power distribution.

This 2-pole, 100A, 240V AC circuit breaker features a thermal magnetic trip unit, 10kA interrupting rating at 240V, and I-Line plug-in mounting for easy installation. It is designed for AB-phase connection, supports both copper and aluminum conductors, and is certified to UL, CSA, and IEC standards for safety and performance.

Key Specifications
• Part Number: QBA221001
• Manufacturer: Square D (Schneider Electric)
• Amperage: 100A
• Voltage: 240V AC
• Poles: 2
• Mounting Type: I-Line Plug-In
• Interrupt Rating: 10kA at 240V
• Series/Frame: PowerPact Q (QBA)
• Trip Unit: Thermal Magnetic (LI - Long-Time and Instantaneous)
• Connection: AB-phase
• Certifications: UL 489, CSA C22.2 No. 5-02, IEC, RoHS Compliant
• Application: Power distribution, overload and short circuit protection
• Standards: NEMA AB1-1999, NMX-J-266-ANCE-2002

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA221001
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 100
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Frame Size : Q Frame
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901387077
• GTIN : 00785901387077
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.85
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
