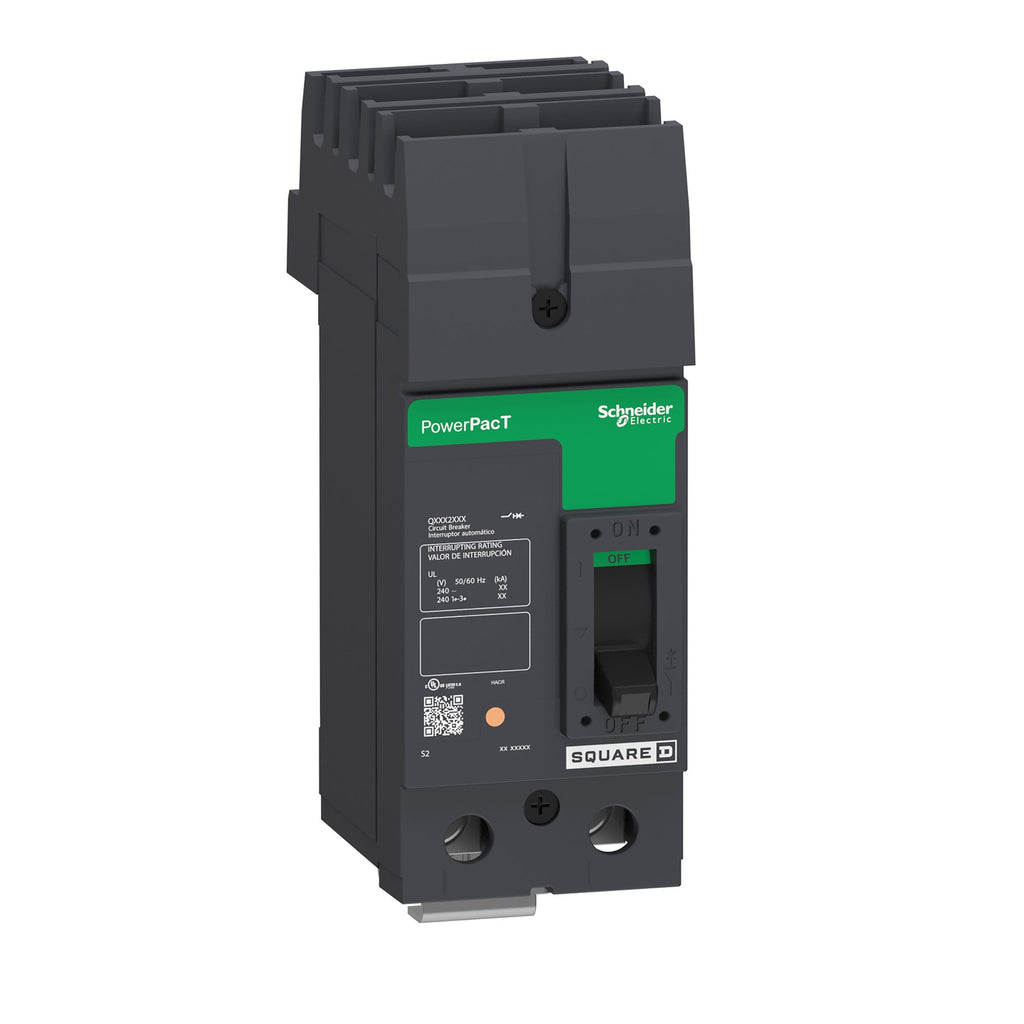

QBA220702 - Square D PowerPact Q 70 Amp 2 Pole 240VAC 10kAIC Molded Case Circuit Breaker

QBA220702

QBA220702 is a Square D PowerPact Q molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 70 amp rating, 2 pole configuration, and 240VAC operational voltage, making it suitable for a wide range of applications. It utilizes a thermal magnetic trip unit for dependable overcurrent protection and is built with an I-Line mounting style for easy installation in compatible panels. The QBA220702 is rated for a 10kA interrupting capacity, ensuring safety in demanding environments.

• Part Number: QBA220702
• Manufacturer: Square D
• Series/Frame: PowerPact Q
• Amperage: 70 Amps
• Poles: 2 Pole
• Voltage: 240VAC
• Interrupting Rating: 10kAIC
• Mounting Type: I-Line
• Frame Type: Q Frame
• Mounting Style: I-Line
• Application: Industrial, Commercial
• Trip Unit: Thermal Magnetic
• Standards: UL 489, CSA C22.2 No. 5

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: QBA220702
• Manufacturer : Schneider Electric
• Brand : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : I-Line
• Type : QBA
• Voltage : 240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : I-Line Style Plug-In
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13–158 °F (-25–70 °C)
• Protection : Thermal Magnetic

Product Data

• UPC : 785901629917
• GTIN : 00785901629917
• Country of Origin : Mexico
• Dimensions : 6.47 in (164.34 mm) x 3 in (76.2 mm) x 3.93 in (99.82 mm) (Height x Width x Depth)
• Weight : 4.751
• Standards : UL, CSA, NEMA, NOM-003-SCFI-2000
• Certification : UL, CSA, NOM
• Wire Size : AWG 4 to 300KCmil, Aluminum/Copper
