Product Info
- Manufacturer:Burndy
Description
QB4C

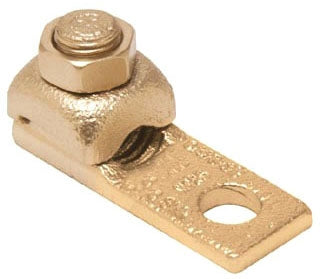

QB4C is a right angled heavy duty copper lug connector designed for secure cable termination with side entrance configuration. This copper terminal accommodates #8-4 AWG stranded conductors and features a 1/4 inch stud with single screw fastening for reliable electrical connections. QB4C specifications include a side entry terminal design that joins a range of cables at right angles to terminal blocks, with one clamping element and one hole configuration. The connector meets UL 486A-486B industry standards and carries UL listing. Key Specifications
- Conductor Size: #8-4 AWG Stranded Copper
- Connector Type: Right Angle
- Stud Size: 1/4 inch
- Number of Holes: 1
- Number of Screws: 1
- Installation Torque: 110 LBS/in
- Overall Length: 1.38 inches
- Height: 1.03 inches
- Width: 0.70 inches
- Material: Copper
- Industry Standard: UL 486A-486B
- UL Listed: Yes
Specifications
- Part Number: QB4C
- Manufacturer : Burndy
- Brand : Burndy
Product Data
- UPC : 781810324202
- GTIN : 00781810324202
- Weight : 5.19
