Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QB1030EP

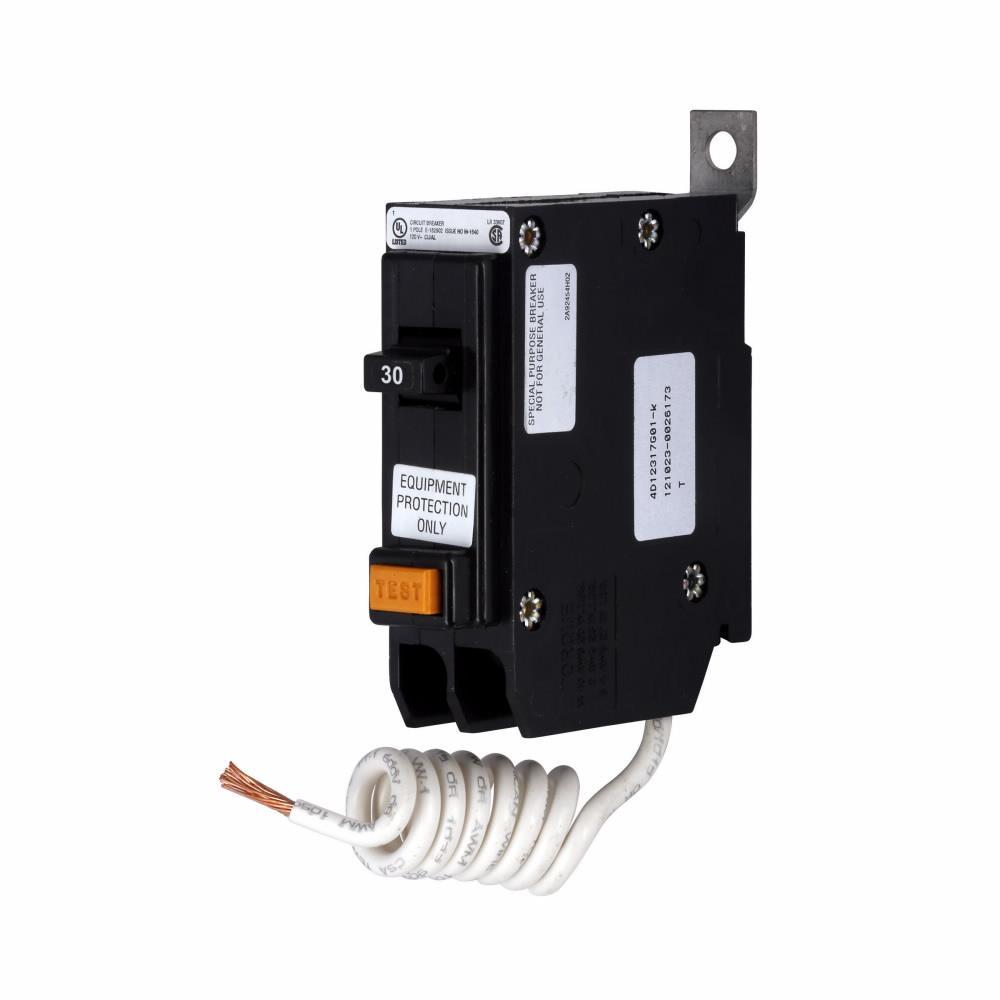

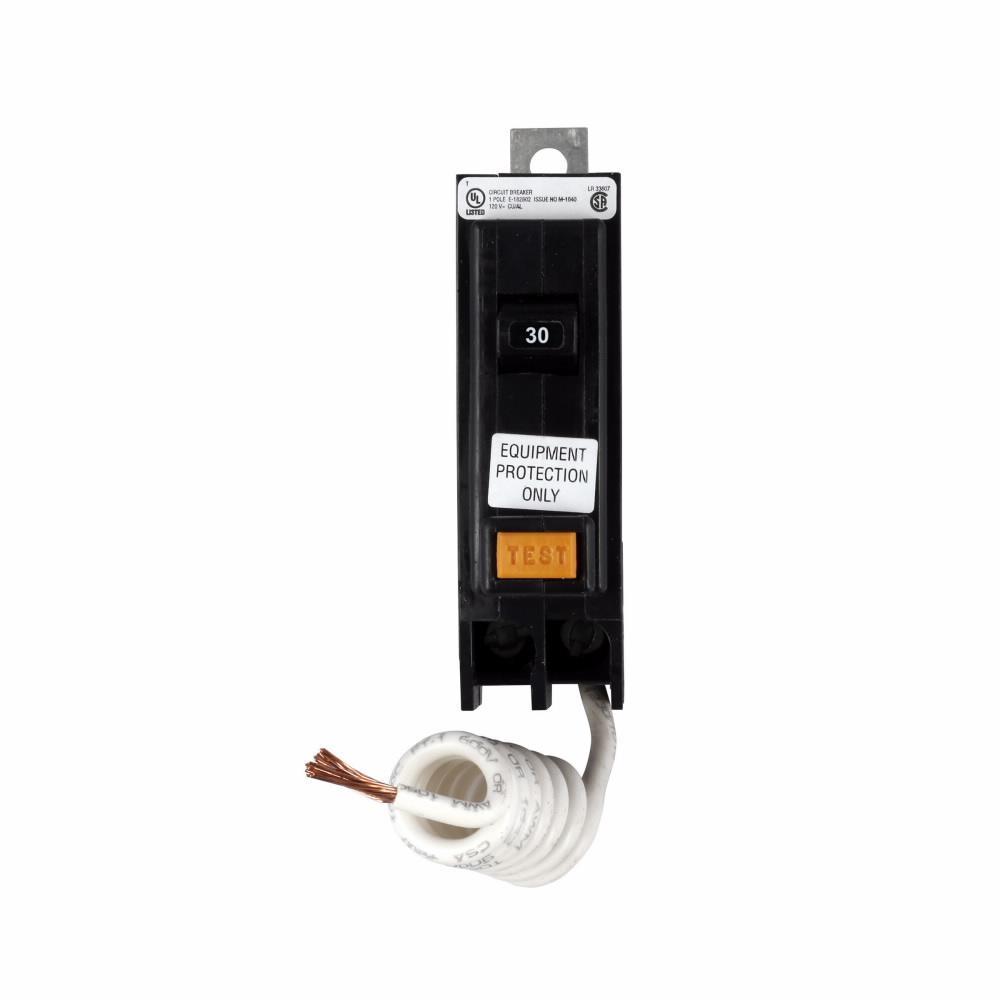

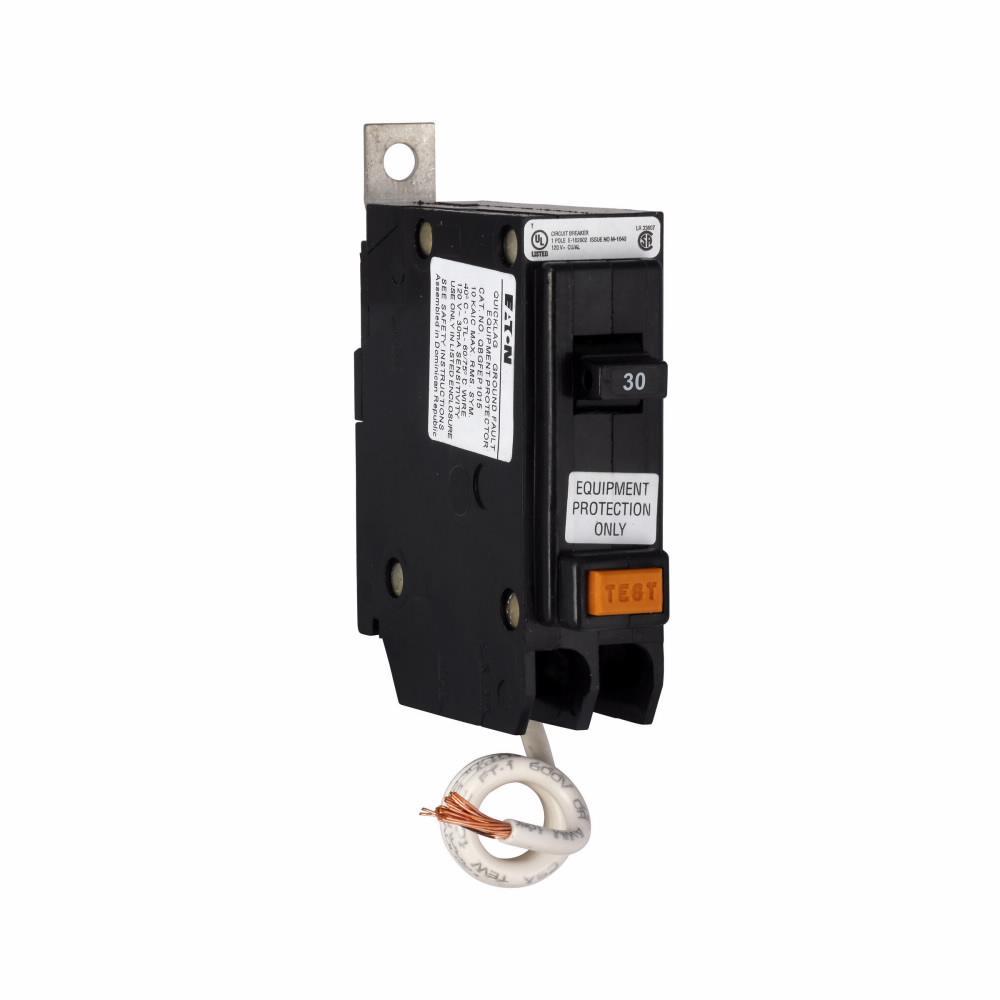

QB1030EP is a Cutler Hammer 1 pole, 30 amp, bolt-on ground fault circuit breaker designed for equipment protection in 120/240VAC applications.
This QB Series circuit breaker features thermal magnetic trip protection, a 10 kAIC interrupting rating, and a 30 mA ground fault trip sensitivity. It is non-interchangeable, certified to UL 489, and accepts wire sizes from #14 to #4 AWG. The bolt-on mounting ensures secure installation in compatible panels.
-
Key Specifications
- Amperage: 30 A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kAIC at 120V
- Series/Frame: QB
- Trip Unit: Thermal Magnetic, 30 mA GFCI
- Certifications: UL 489
- Connection Type: Bolt-On
- Wire Range: #14 to #4 AWG
- Temperature Rating: 40°C
- Non-Interchangeable
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: QB1030EP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Voltage : 120
- Amperage : 30
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 78667918601
- GTIN : 00786679186015
- Dimensions : 4 in x 1 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.4
- Wire Size : AWG 14 to AWG 4
