Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
QB1020EP

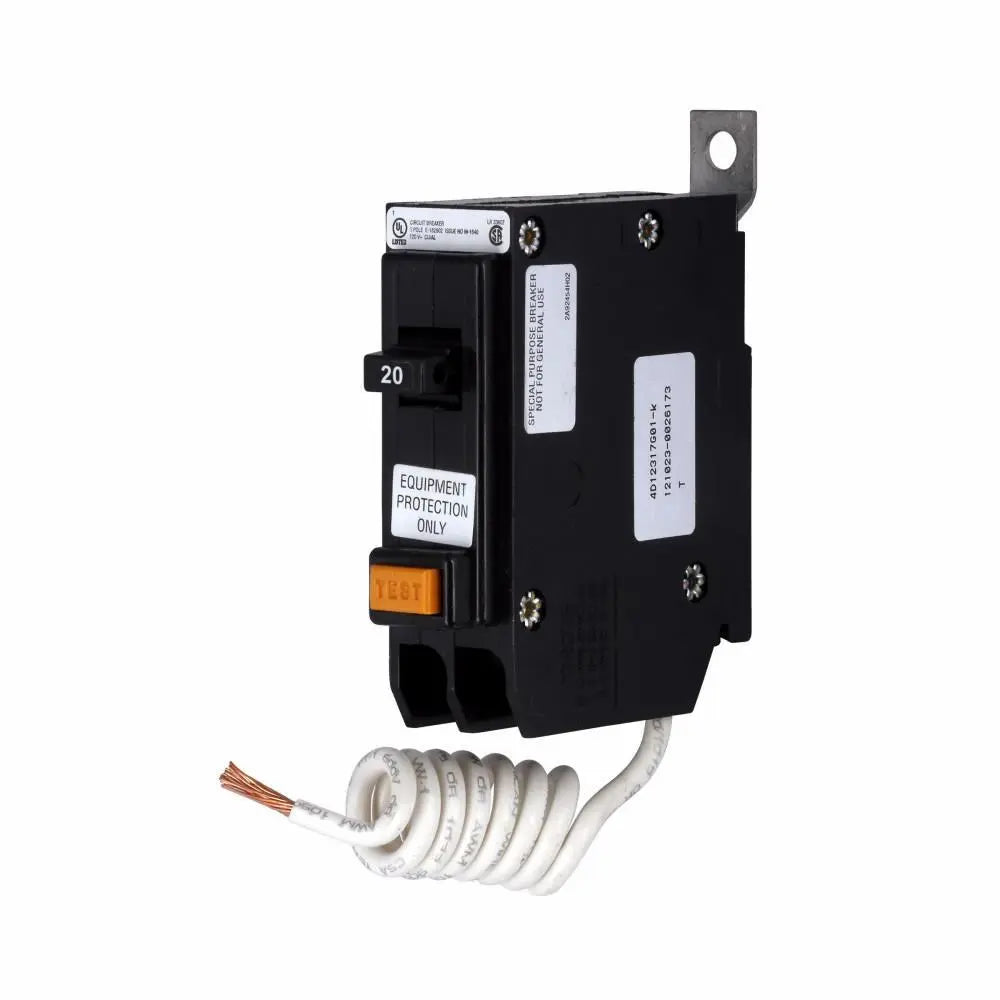

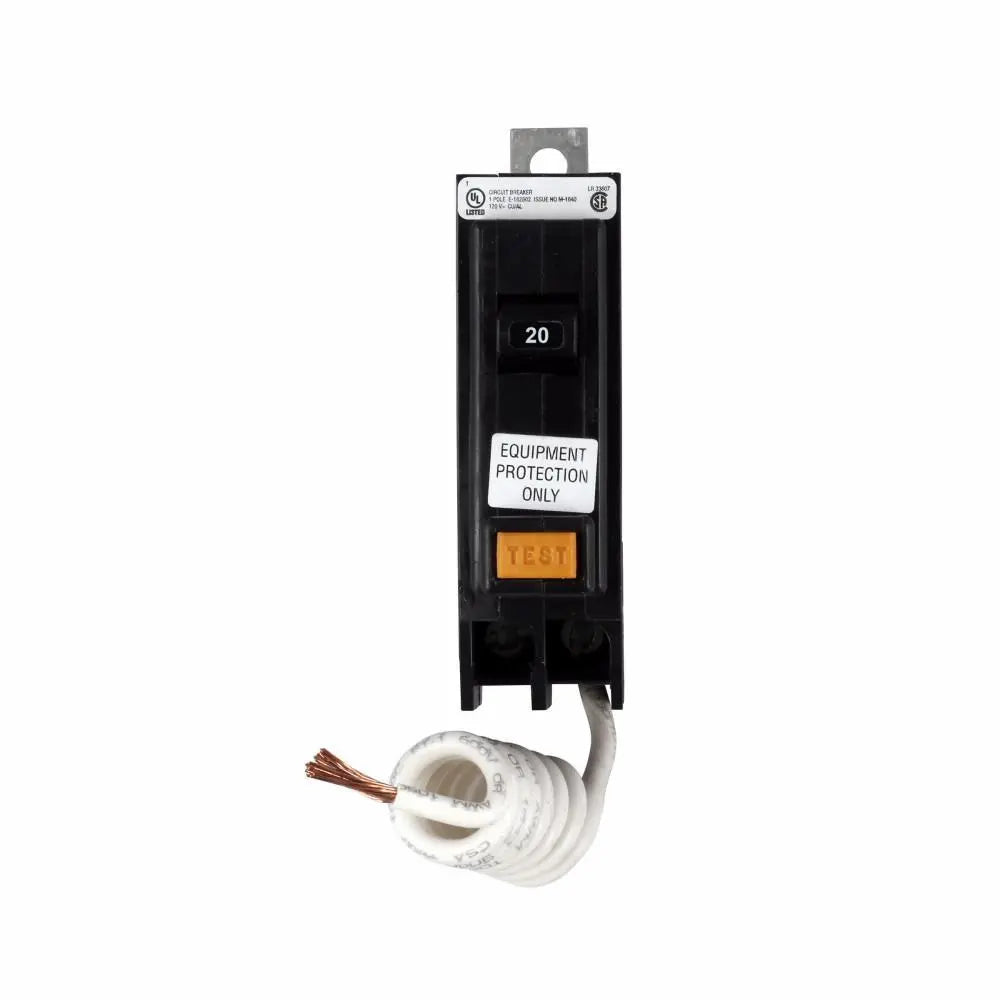

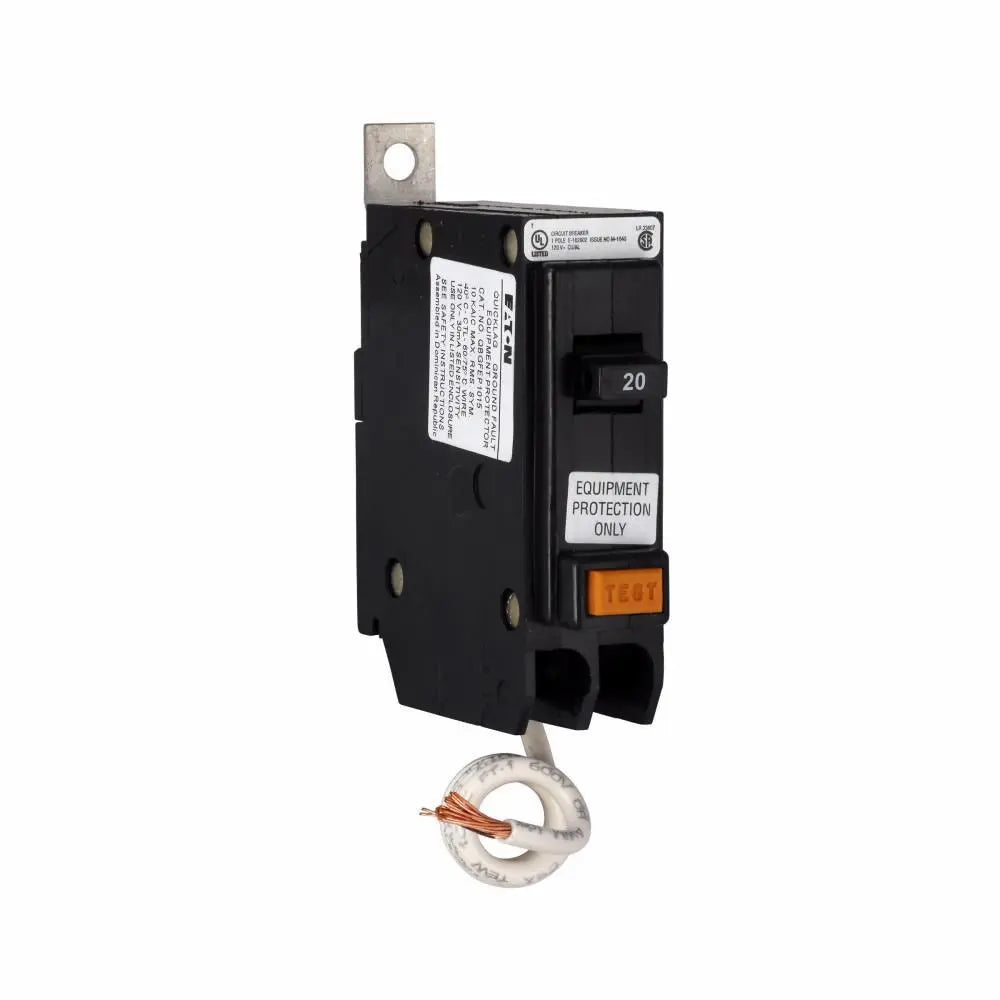

QB1020EP is a Cutler Hammer 20 Amp, 120/240 Volt, single-pole GFCI circuit breaker designed for bolt-on mounting in QB series panels.This Eaton-manufactured breaker provides ground fault equipment protection with a 30 mA trip sensitivity and a 10 kA interrupt rating. It features a non-interchangeable trip unit and supports conductor sizes from 14 to 4 AWG. The breaker is UL 489 certified and designed for reliable, safe operation in residential and commercial electrical systems.
- Key Specifications
- Amperage: 20 Amp
- Voltage: 120/240 Volt
- Poles: Single-pole
- Mounting Type: Bolt-on
- Interrupt Rating: 10 kAIC
- Series/Frame: QB Series
- Trip Unit: Non-Interchangeable, 30 mA GFCI
- Conductor Size: #14-4 AWG
- Certifications: UL 489
- Trip Sensitivity: 30 mA
Specifications
- Part Number: QB1020EP
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : QUICKLAG
- Type : QB
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 786679185995
- GTIN : 00786679185995
- Dimensions : 3.5 in x 1 in x 3.5 in (Length/Depth x Height x Width)
- Weight : 0.45
- Wire Size : AWG 14 to AWG 4
