Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q37000S01

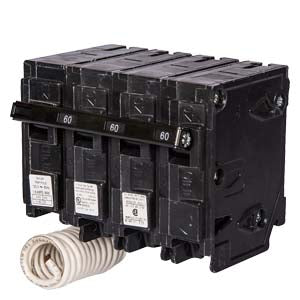

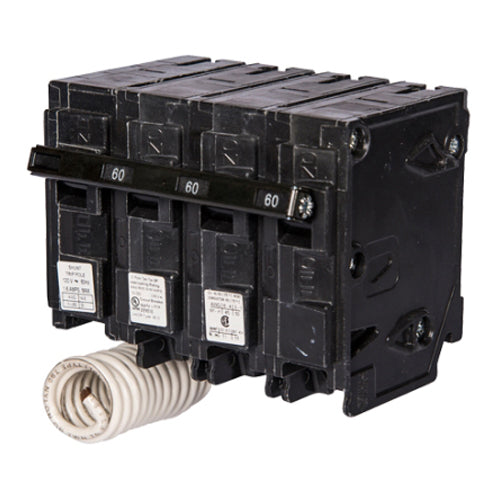

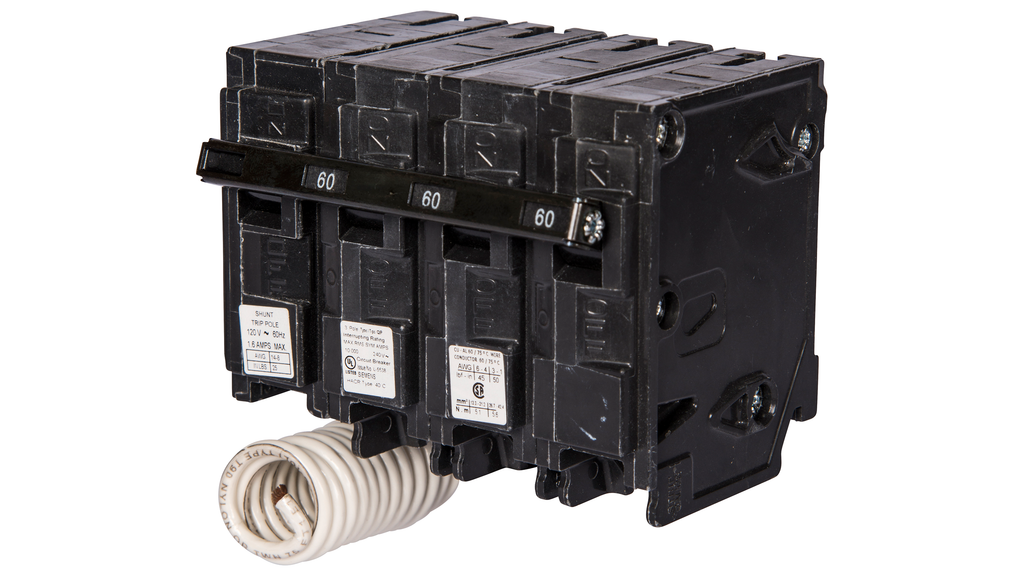

Q37000S01 is a 3-pole molded case circuit breaker manufactured by Siemens, part of the QP family, designed for circuit protection in both residential and light-commercial panelboards and load centers. This breaker has a current rating of 70 A and a voltage rating of 240 V AC (120/240 V systems). It features a thermal-magnetic trip mechanism, plug-in style mounting, and is rated for an interrupting capacity of approximately 10 kA at 240 V. It supports conductor sizes of #8 AWG up to #2/0 AWG in copper or aluminum.
- Part Number: Q37000S01
- Manufacturer: Siemens
- Series / Family: QP (QP/MP frame)
- Poles: 3-pole
- Amperage Rating: 70 A
- Voltage Rating: 240 V AC (120/240 V system)
- Interrupting Rating (AIC): 10 kA at 240 V
- Connection Style: Plug-in (load-center main/feeder style)
- Wire Size Range: #8 AWG to #2/0 AWG copper/aluminum
- Trip Type: Thermal-Magnetic (Long-time + Instantaneous)
Specifications
- Part Number: Q37000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 240
- Amperage : 70
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237667
- GTIN : 00783643237667
- Country of Origin : Mexico
- Dimensions : 4.724 x 3.937 x 3.937 inch
- Weight : 1.543
- Certification : UL
