Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q32000S01

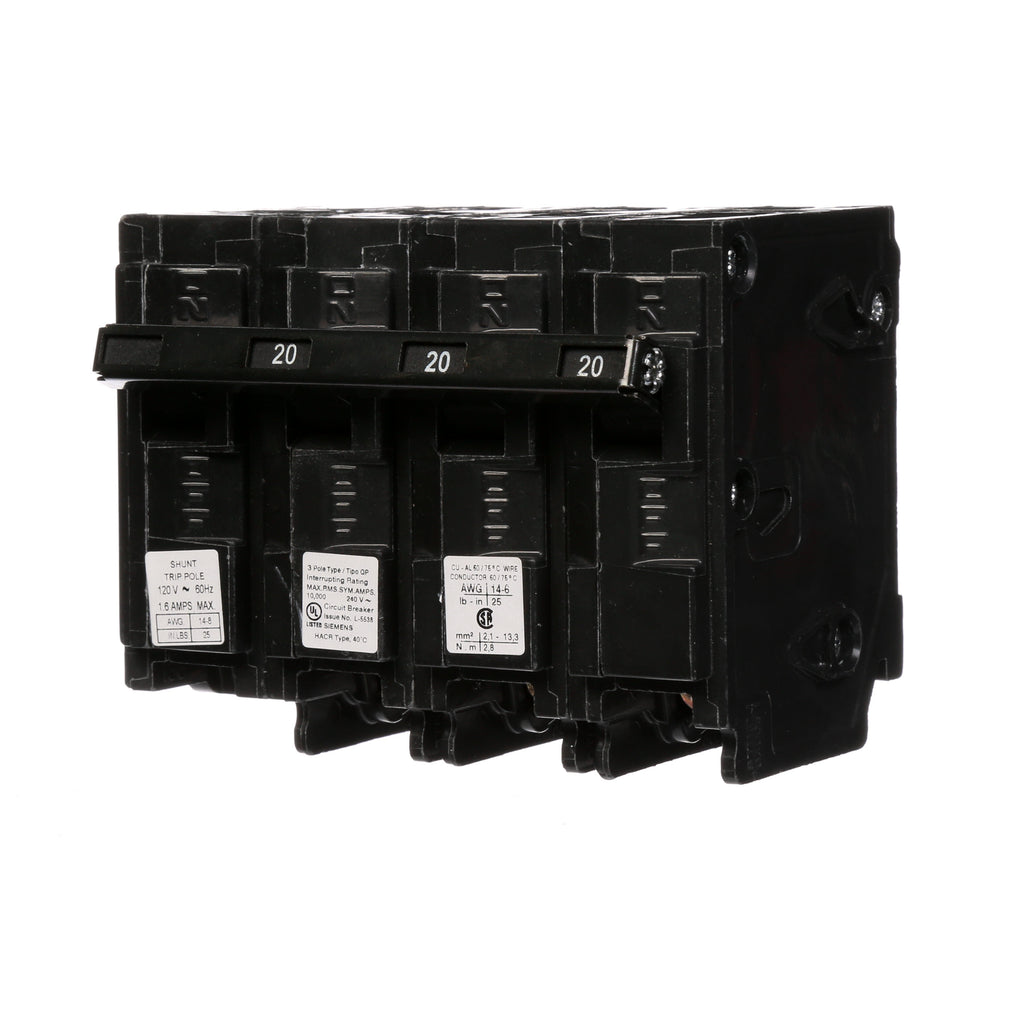

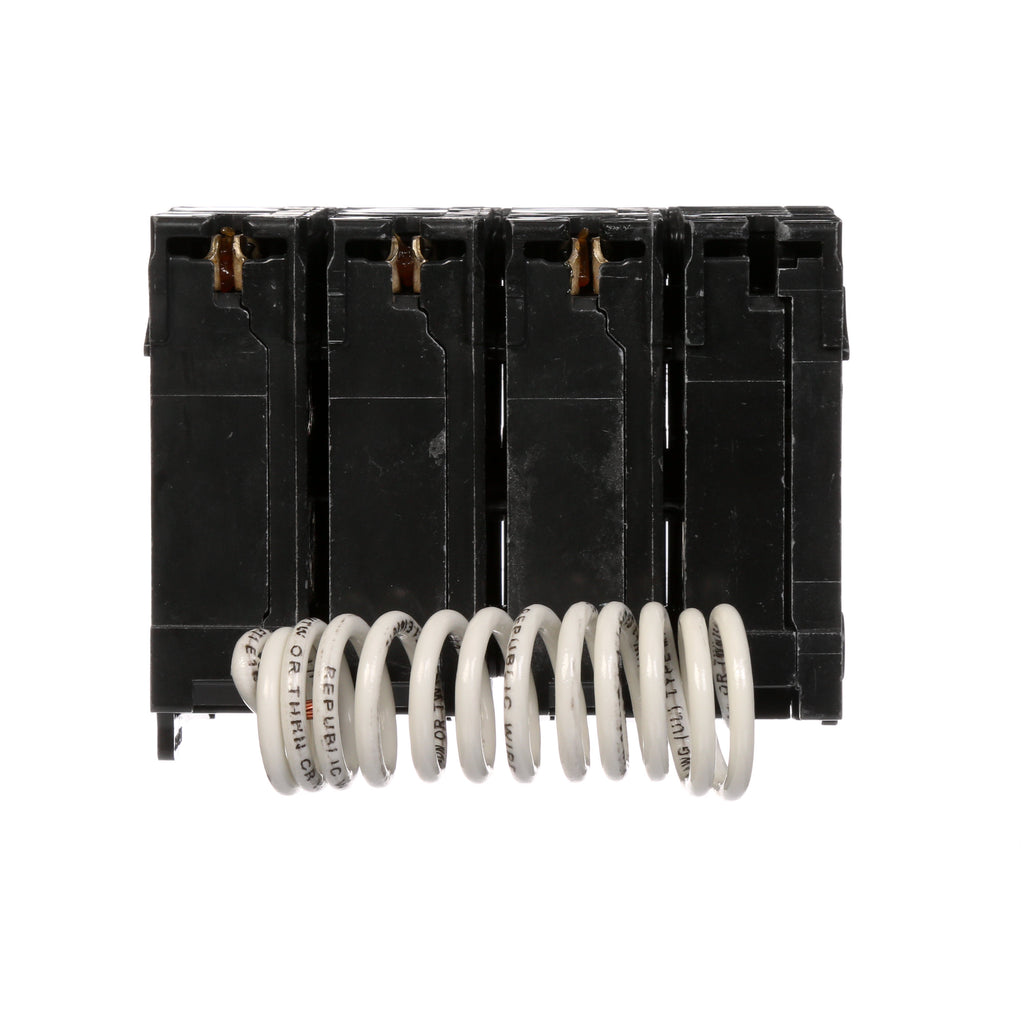

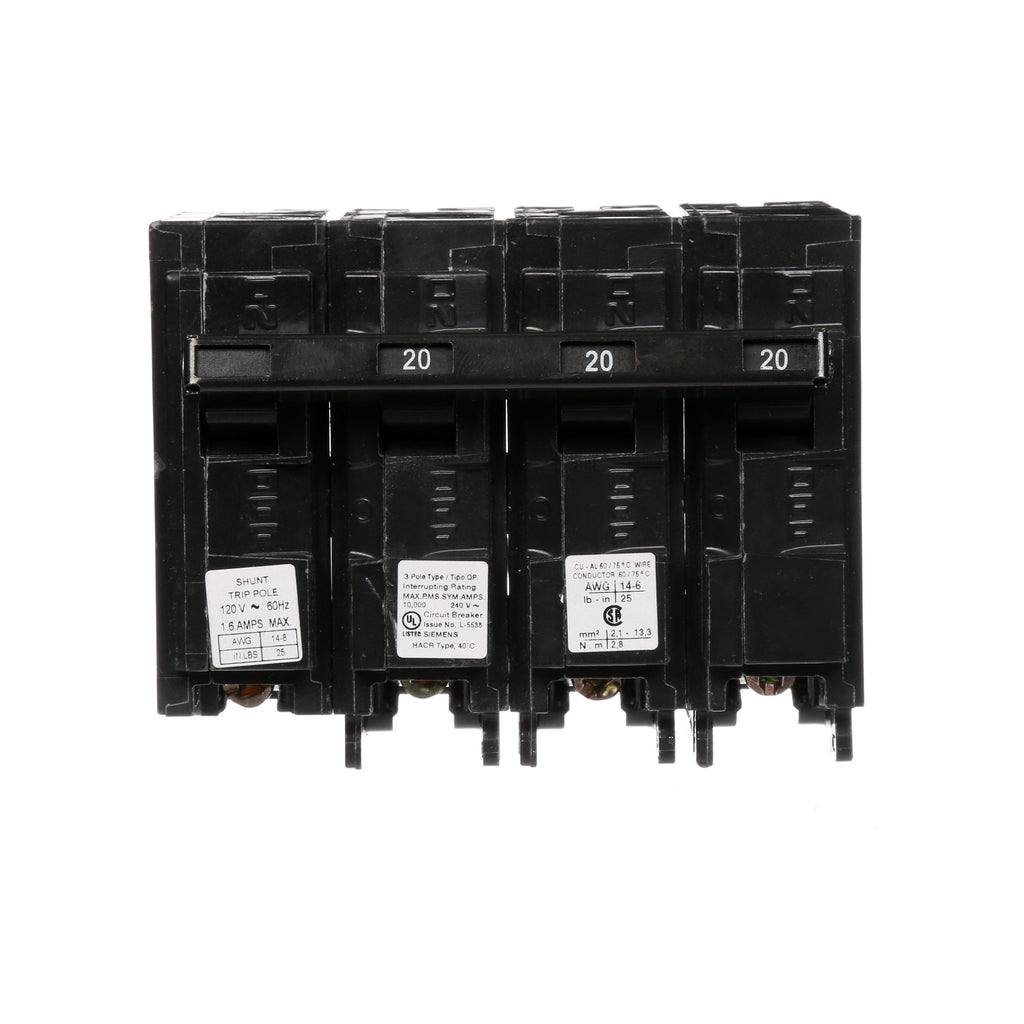

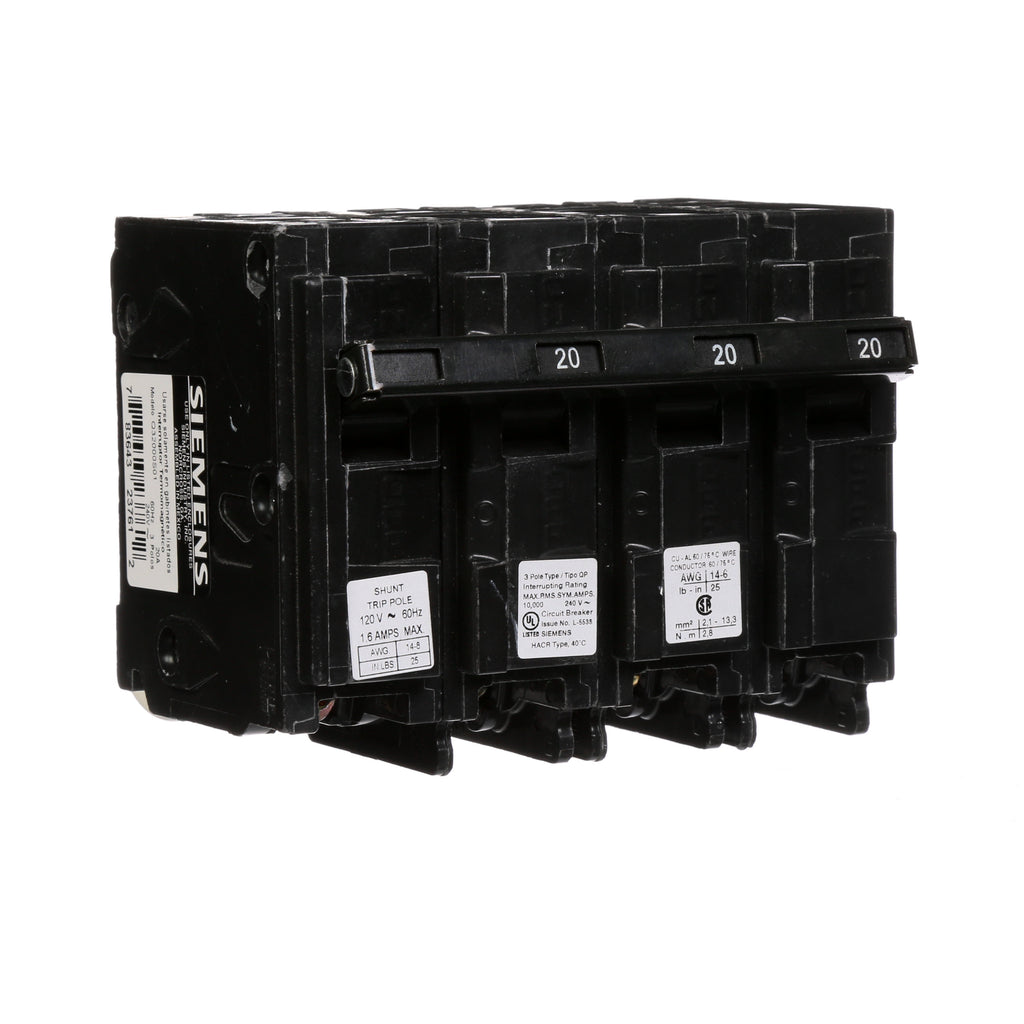

Q32000S01 is a Siemens 3-pole, 20 Amp, 240V circuit breaker with 120V shunt trip, designed for reliable electrical distribution.
This Type QP molded case circuit breaker features a thermal magnetic trip unit, plug-in mounting, and a 10kA interrupting rating at 240V AC. It is part of the Siemens Q Series and is certified to UL 489, CAs, and NOM standards for safety and performance.
-
Key Specifications
- Amperage: 20A
- Voltage: 120/240V AC
- Poles: 3
- Mounting Type: Plug-In
- Interrupt Rating: 10,000A @ 240V AC
- Series/Frame: Q Series (Type QP)
- Trip Unit: Thermal Magnetic with 120V Shunt Trip
- Certifications: UL 489, CAs, NOM
- Conductor Size: 12-10 AWG (AL), 14-12 AWG (CU)
- Application: Electrical distribution
- Standard: UL 489
- Temperature Rating: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: Q32000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 783643237612
- GTIN : 00783643237612
- Country of Origin : Mexico
- Dimensions : 4.724 x 3.937 x 3.937 inch
- Weight : 1.499
- Wire Size : 14 to 6 AWG CU/AL
