Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
Q2L3225

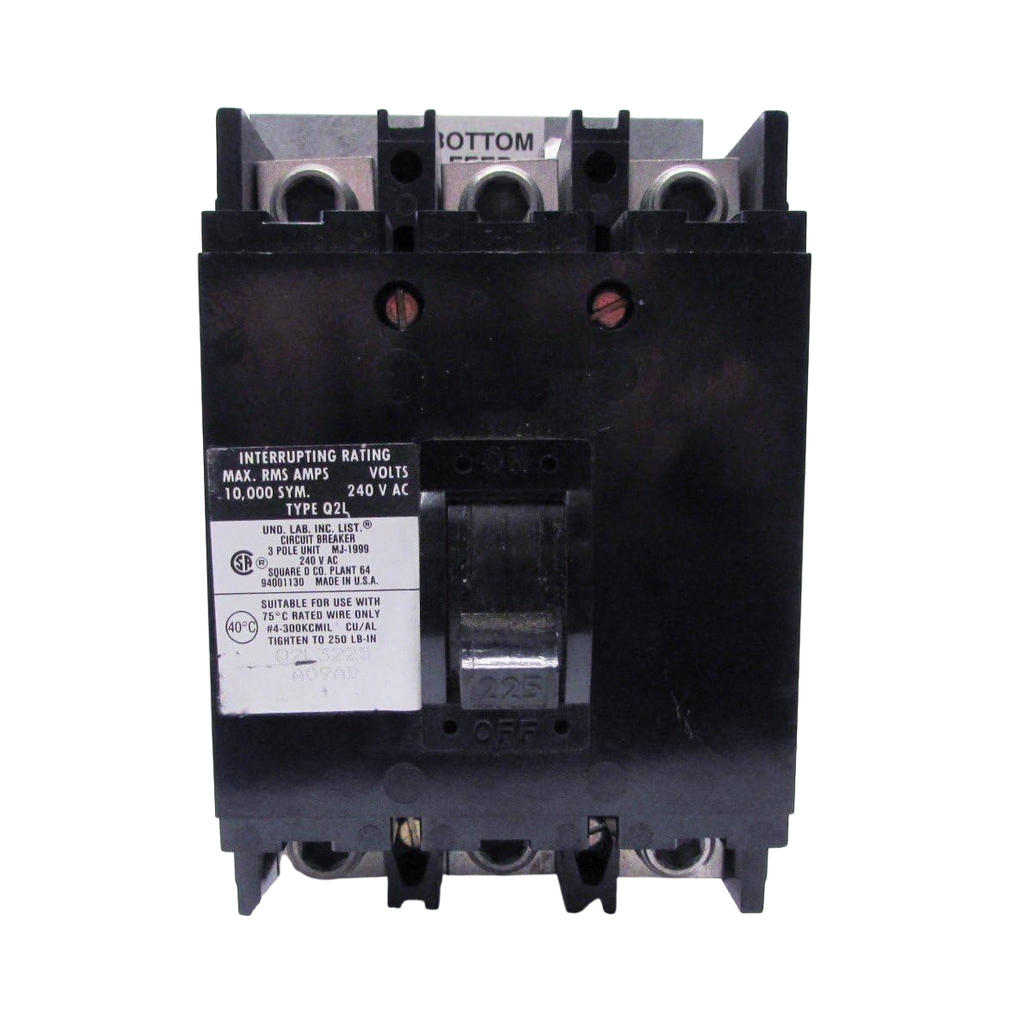

Q2L3225 is a Square D 225 amp, 240 volt, 3-pole molded case circuit breaker designed for industrial and commercial power distribution protection.This Q2L series breaker features thermal magnetic trip units with long time and instantaneous trip functions, feed-thru mounting, and line and load side lug terminals. It has a 10kA interrupt rating at 240V AC and is built to meet UL 489, UL 1066, ANSI C37, and NETA standards. The breaker is designed for reliable performance in three-phase systems and includes a Q2L frame type.
- Amperage: 225A
- Voltage: 240V AC
- Poles: 3
- Frame Type: Q2L
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal Magnetic
- Mounting Type: Feed-Thru
- Line & Load Lug Terminals
- Certifications: UL 489, UL 1066, ANSI C37, NETA
- Commercial Grade
- Non-Interchangeable Trip
Specifications
- Part Number: Q2L3225
- Manufacturer : Square D
- Brand : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q2 Series
- Type : Q2L
- Voltage : 240
- Amperage : 225
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 782451062072
- GTIN : 00782451062072
- Weight : 4
- Certification : Ul Listed
