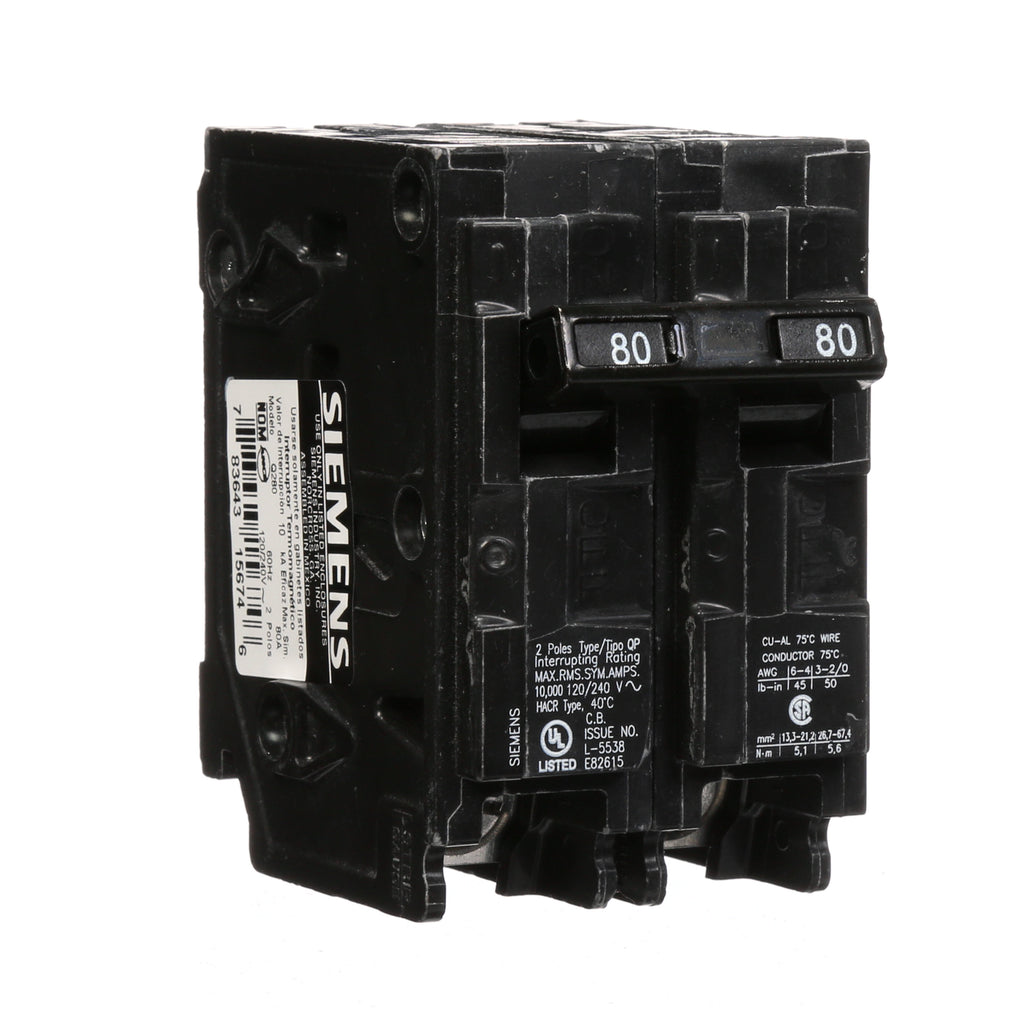

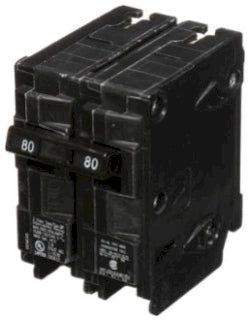

Q280 - Siemens 80 Amp 2 Pole 120/240VAC Plug-In Circuit Breaker 10kAIC Thermal Magnetic

Q280

Q280 is a Siemens 80 Amp 2 Pole plug-in circuit breaker designed for use in Siemens EQ, Ultimate, ITE, and Gould load centers. This molded case breaker features thermal magnetic protection and a 10kAIC interrupting rating for reliable electrical distribution. The Siemens Q280 offers a plug-in mounting type, common trip function, and is UL Listed and CSA Approved. It is suitable for 120/240VAC applications and provides long time and instantaneous trip protection for enhanced safety and performance.

• Part Number: Q280
• Manufacturer: Siemens
• Amperage: 80 Amps
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupting Rating: 10kAIC
• Series/Frame: Q/QP
• Protection Type: Thermal Magnetic
• Functions: Long Time and Instantaneous Trip
• Certifications: UL Listed, CSA Approved
• For Use With: EQ, Ultimate, ITE, Gould Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q280
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 120/240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643156746
• GTIN : 00783643156746
• Country of Origin : Mexico
• Dimensions : 12.598 x 3.543 x 3.15 inch
• Weight : 0.617 lb
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
