Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q260

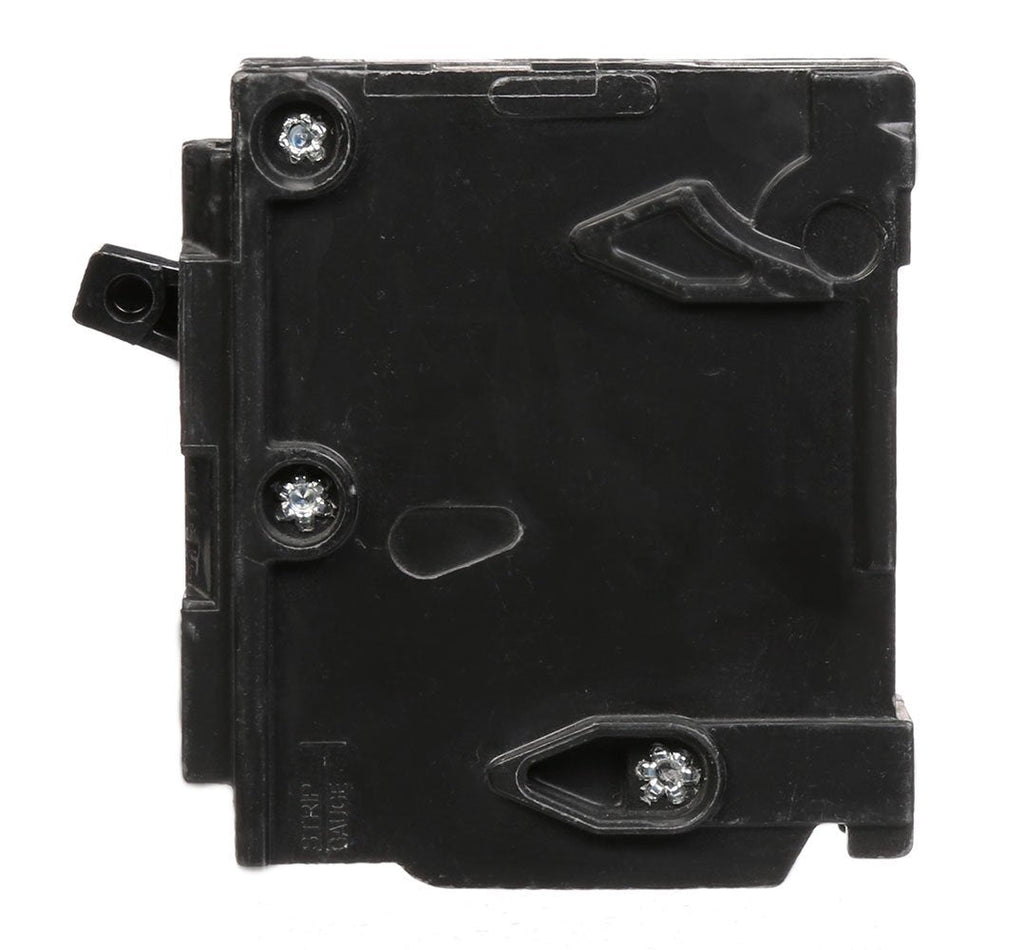

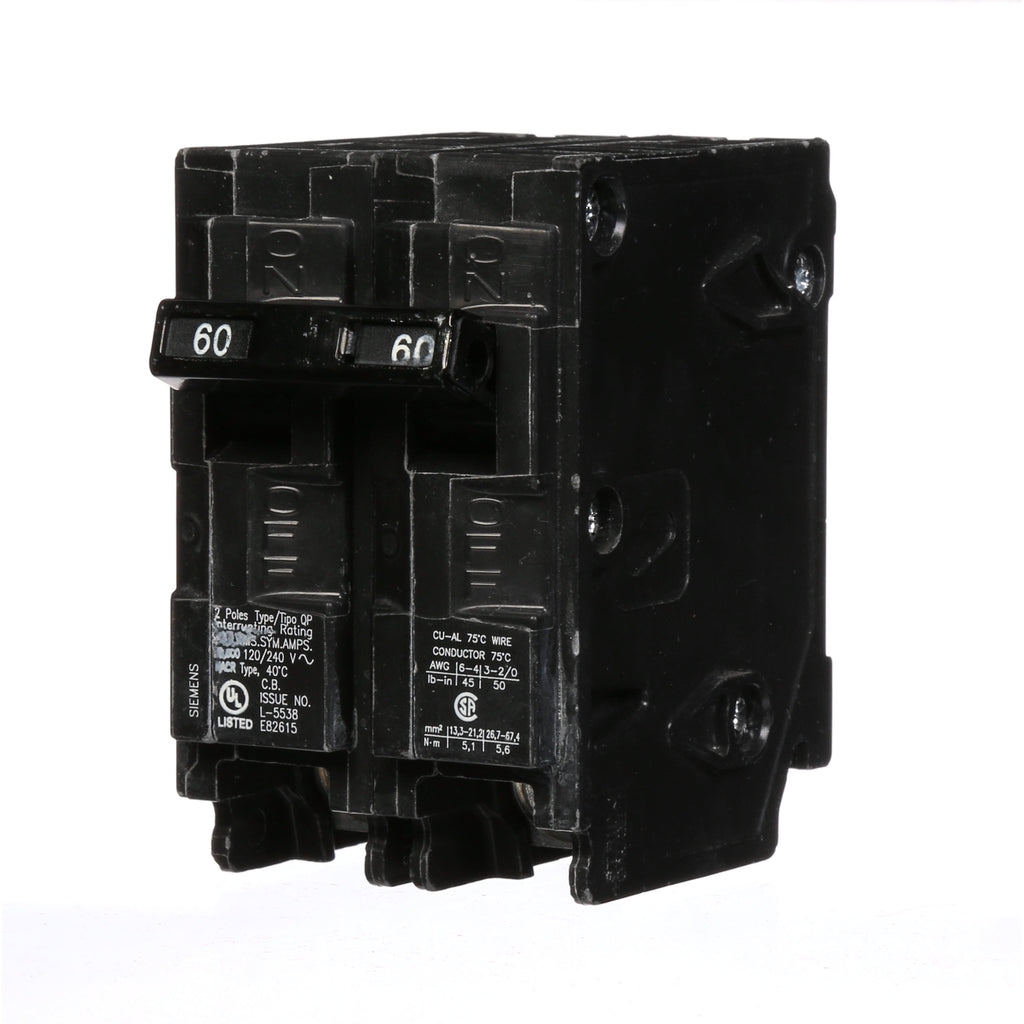

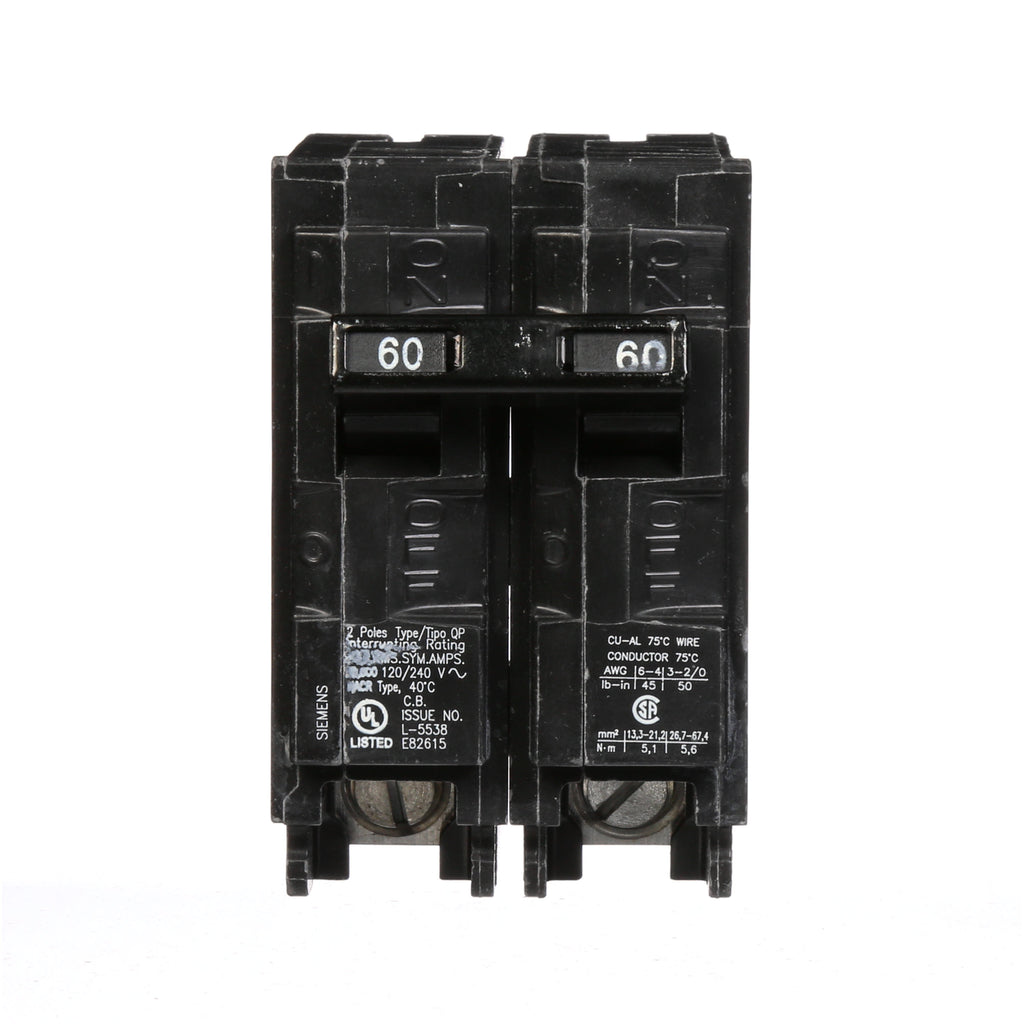

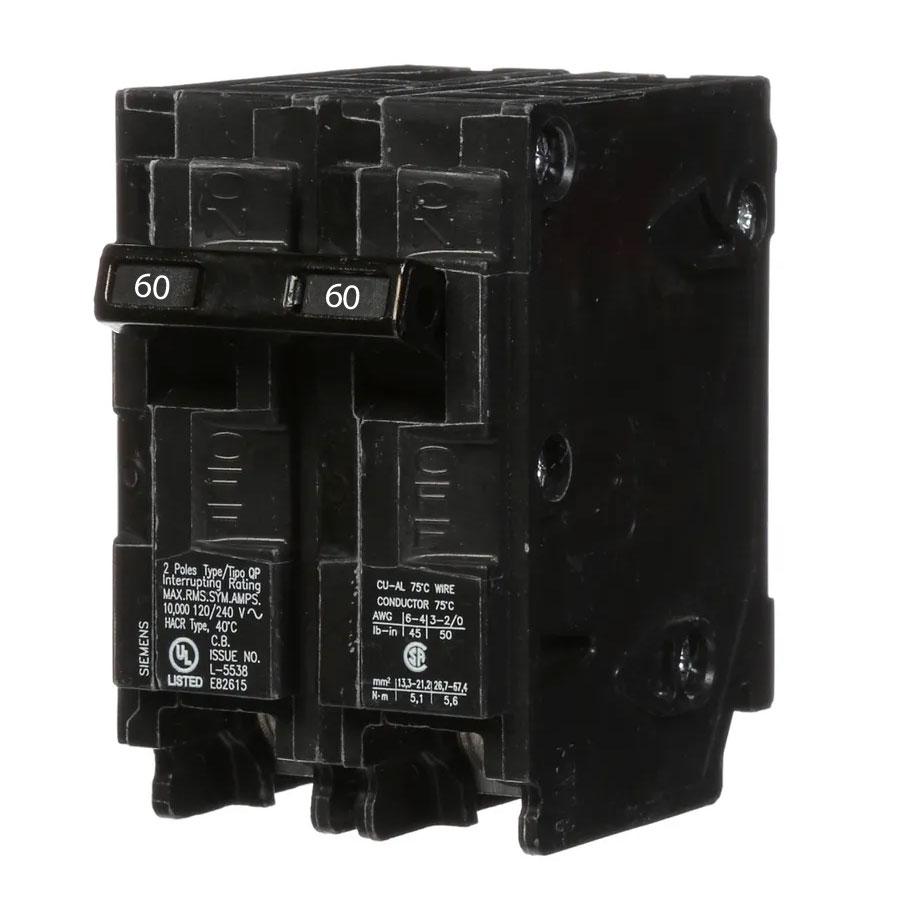

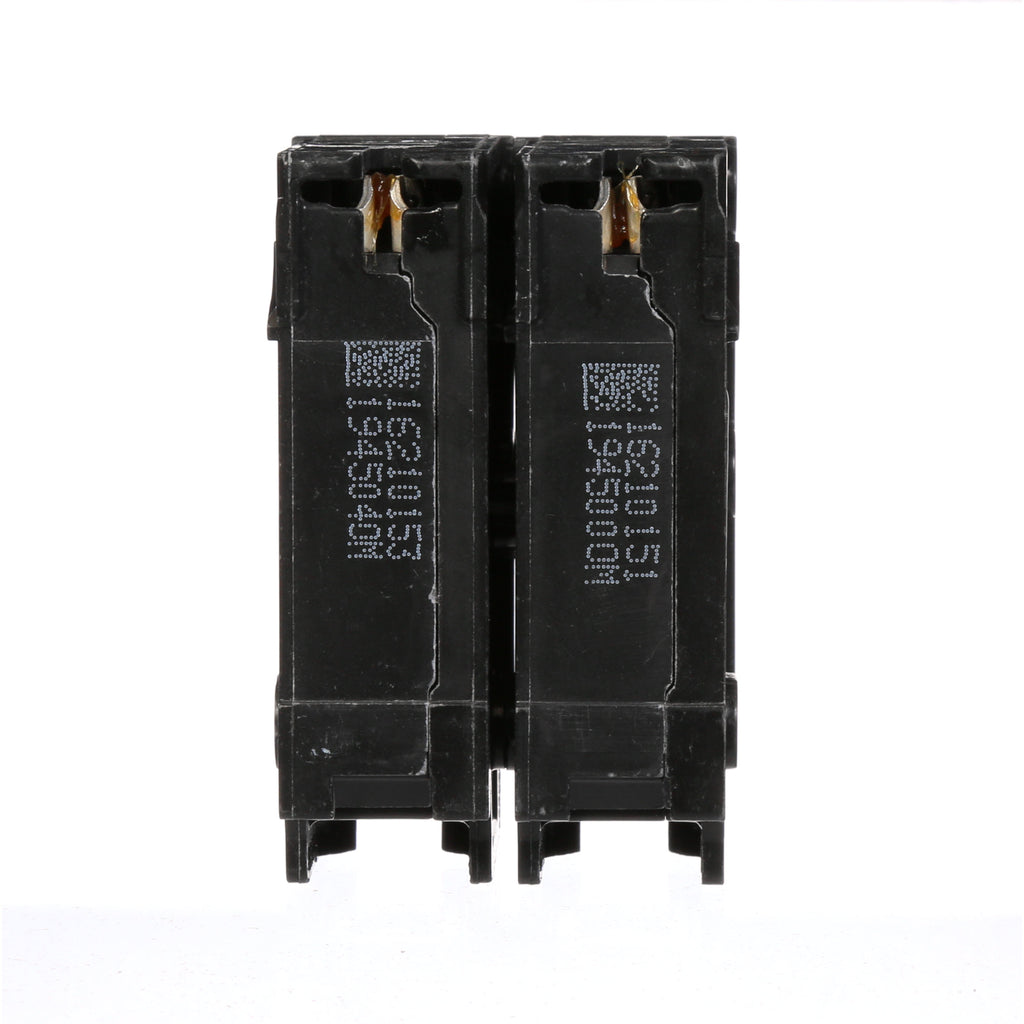

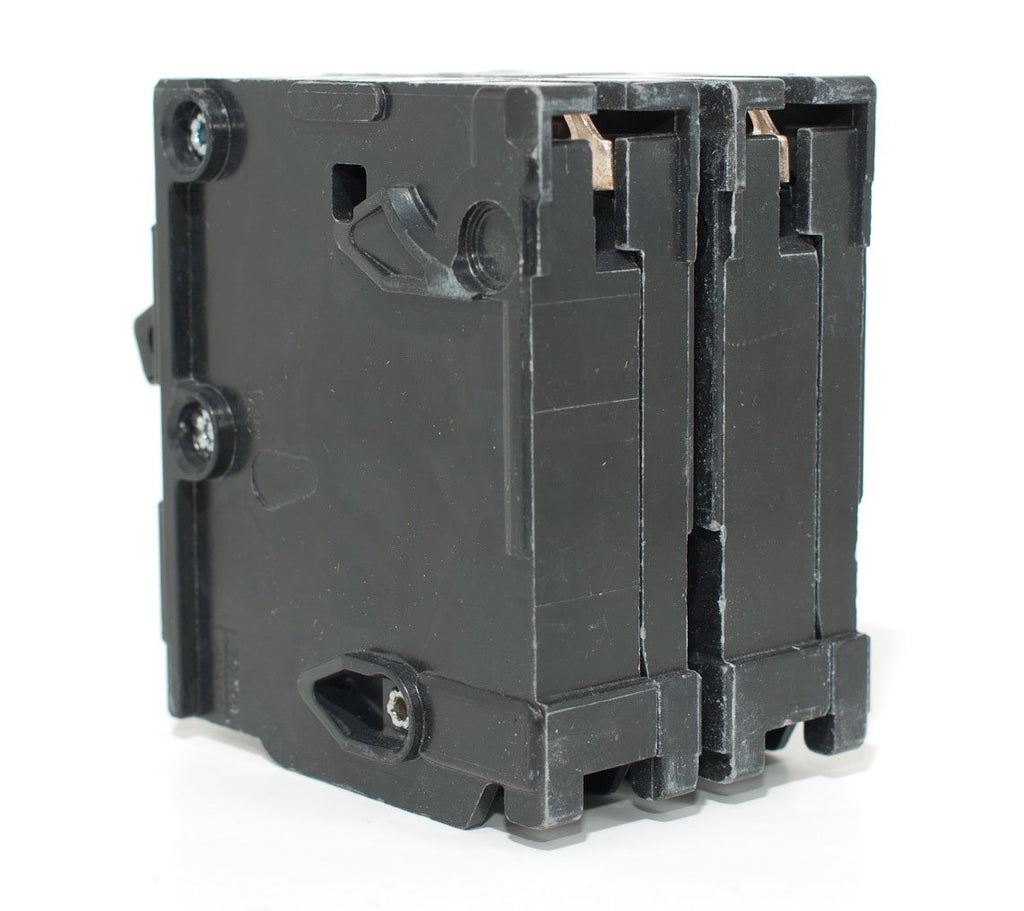

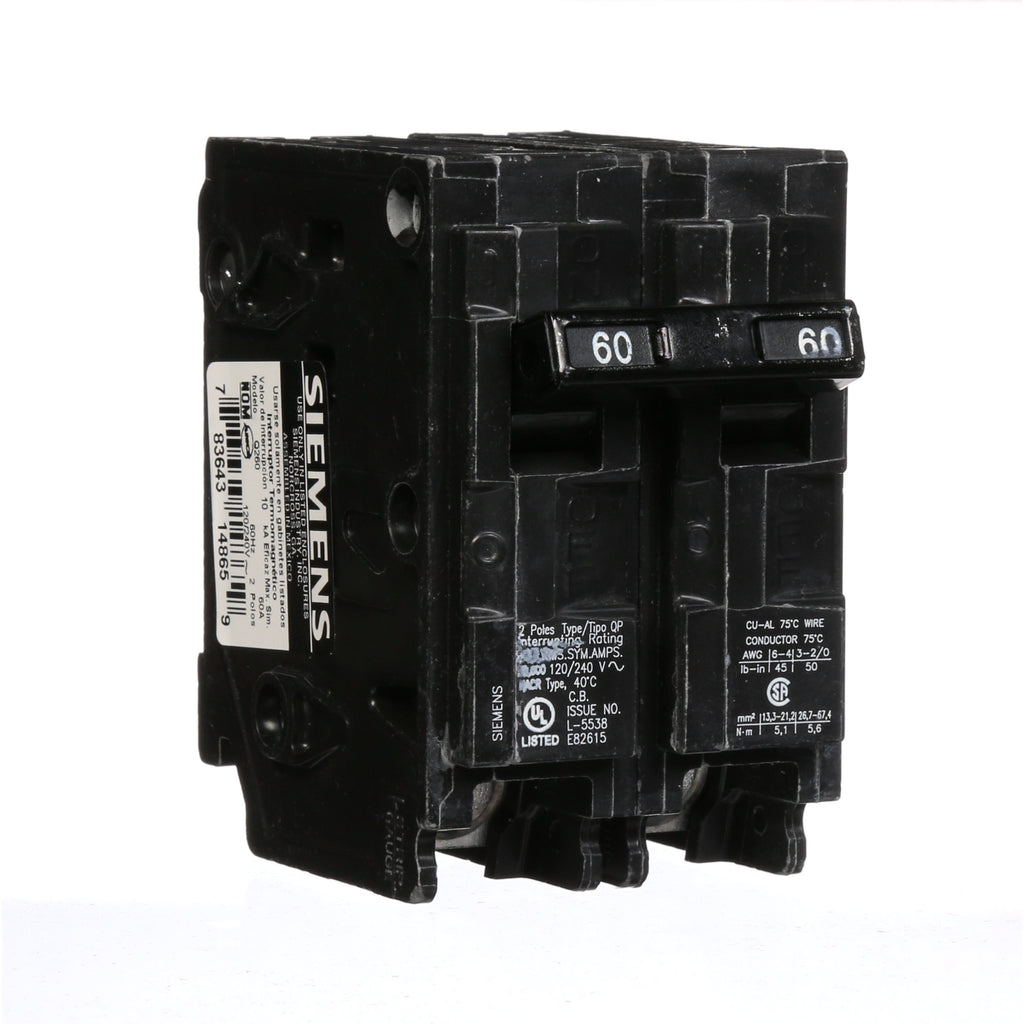

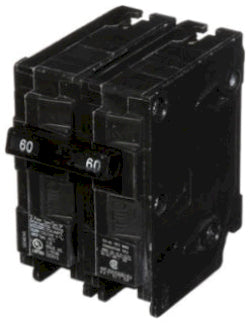

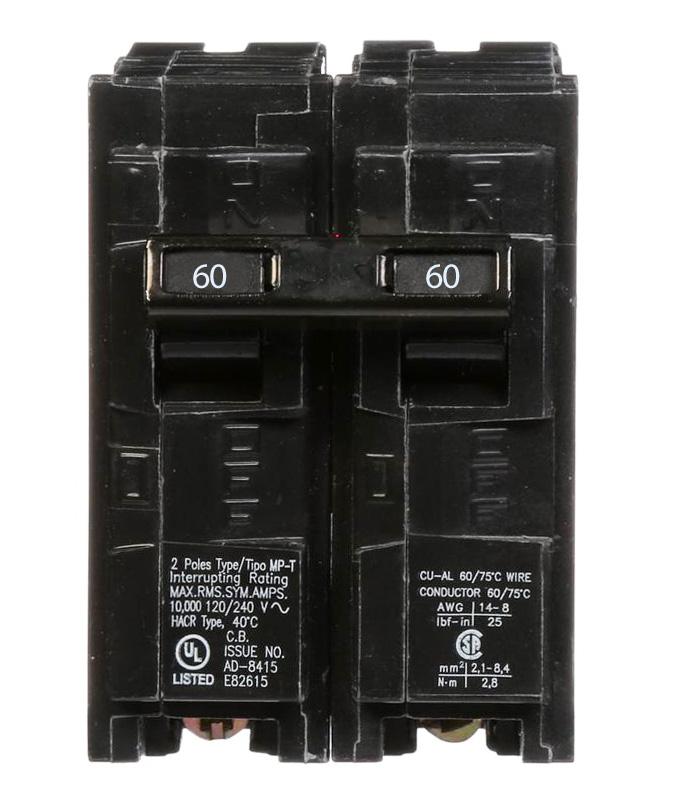

Q260 is a Siemens 2 Pole, 60 Amp thermal magnetic circuit breaker designed for residential use with 120/240VAC voltage rating and plug-in mounting.Q260 features a 10,000 Amp interrupt rating, long-time and instantaneous trip functions, and lug terminal connections. It is UL listed and CSA certified, compatible with Siemens EQ series load centers, and supports wire sizes from 8 to 4 AWG.
- Key Specifications
- Manufacturer: Siemens
- Part Number: Q260
- Amperage: 60 Amp
- Voltage: 120/240 VAC, 48 VDC
- Poles: 2
- Mounting Type: Plug-In
- Interrupt Rating: 10 kAIC at 120/240 VAC
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Terminal Connection: Lug
- Series/Frame: Q Series
- Certifications: UL Listed, CSA Certified
- Dimensions: Approx. 3" H x 2" W x 3" D
Specifications
- Part Number: Q260
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 120/240
- Amperage : 60
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/QP
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643148659
- GTIN : 00783643148659
- Country of Origin : Mexico
- Dimensions : 2.756 x 1.969 x 2.756 inch
- Weight : 0.617
- Panel Type : Siemens EQ Load Centers
- Standards : UL Listed
- Certification : UL Listed
