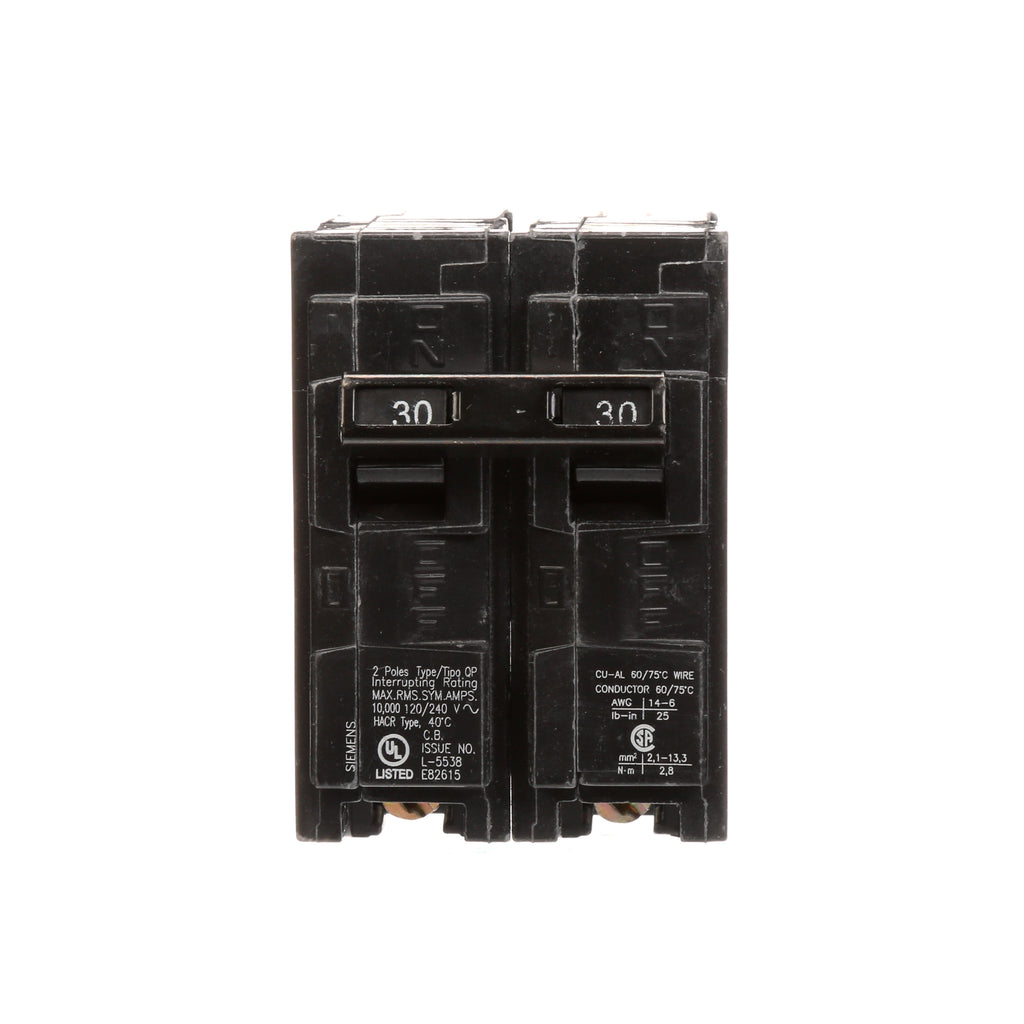

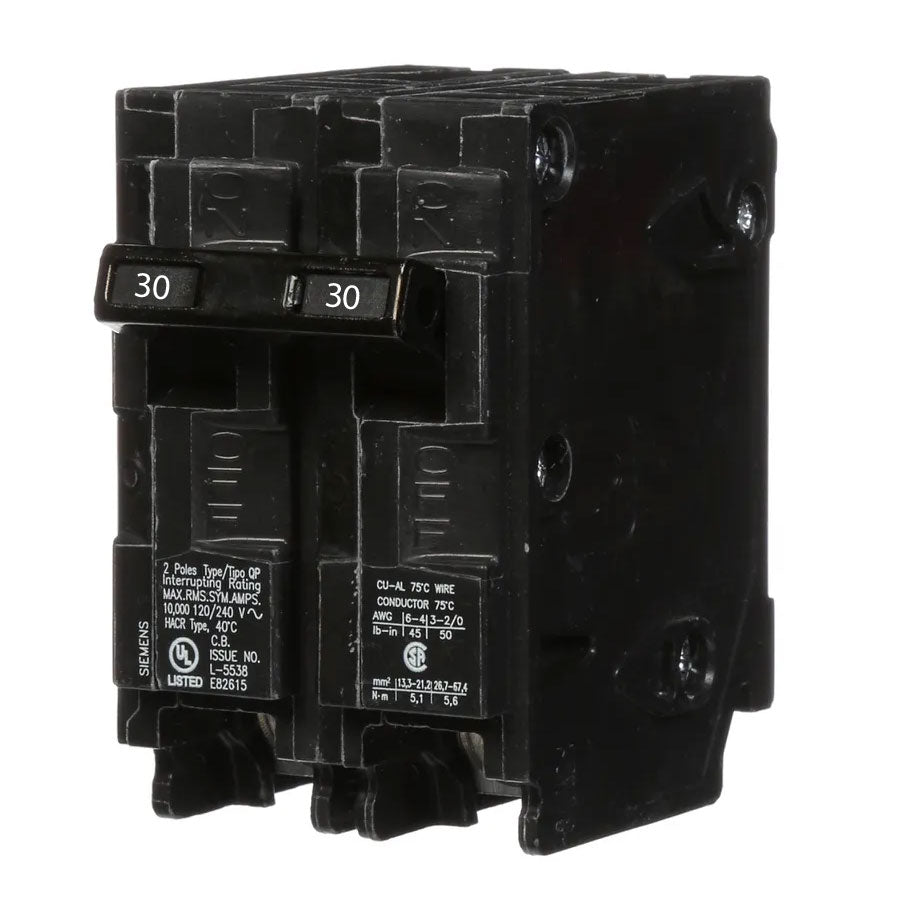

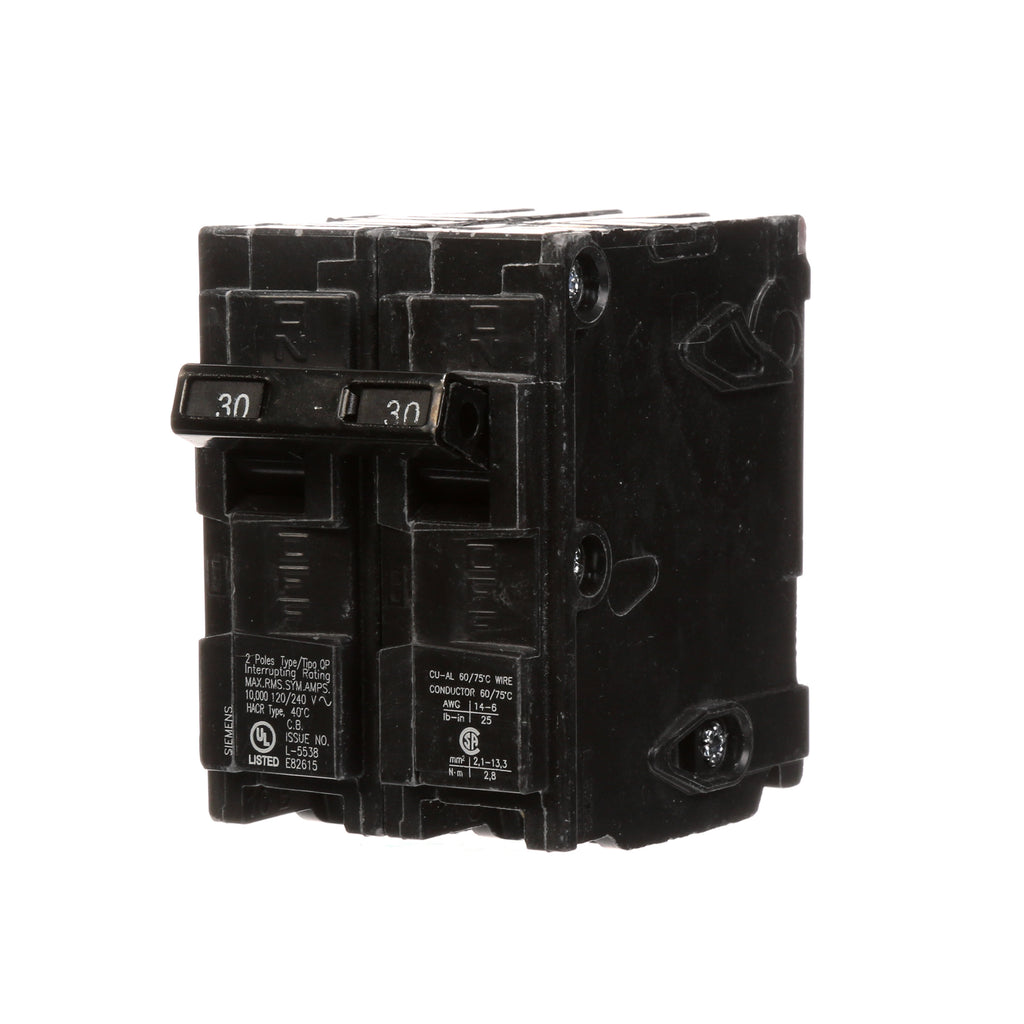

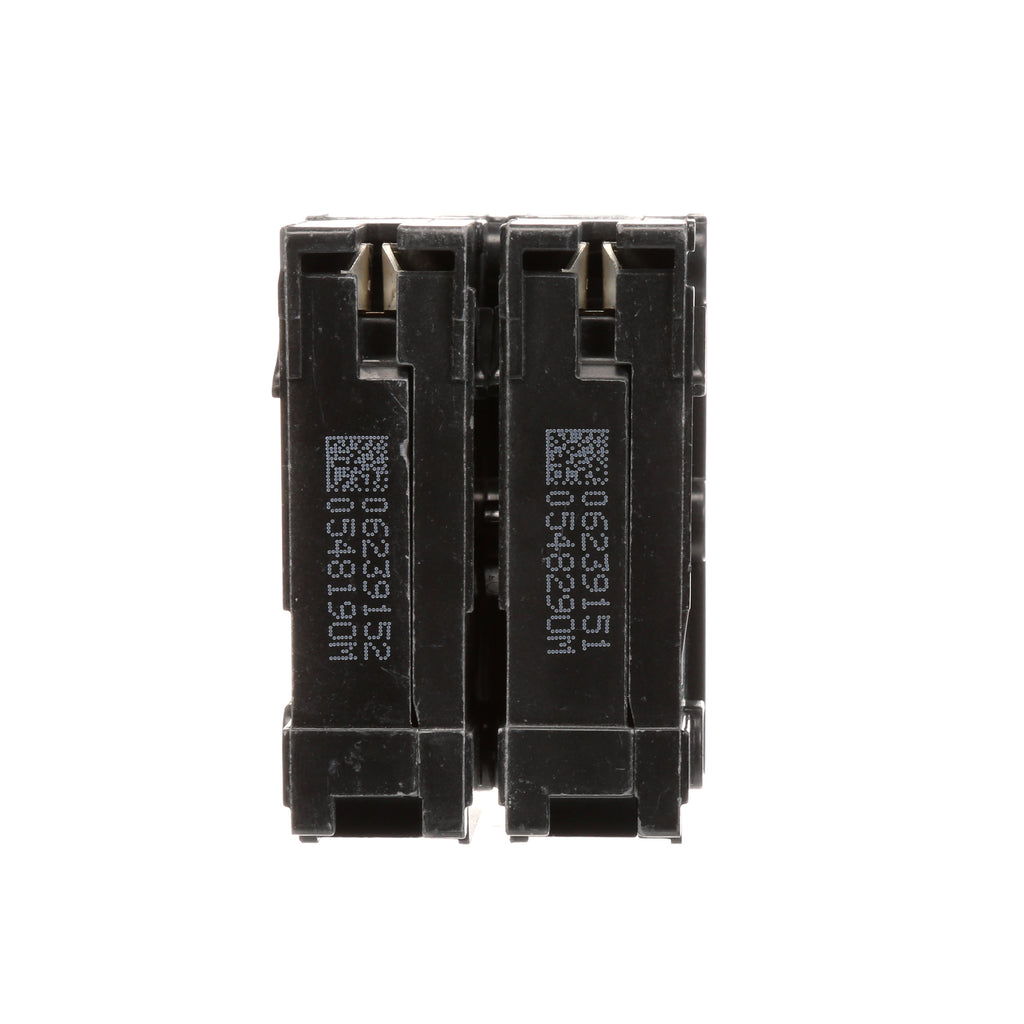

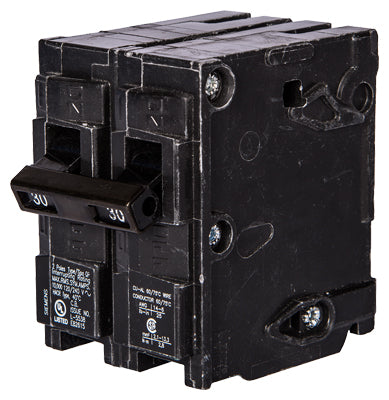

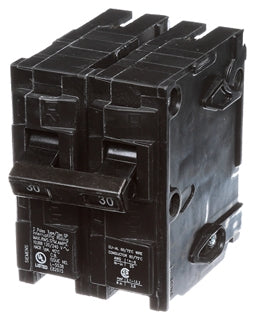

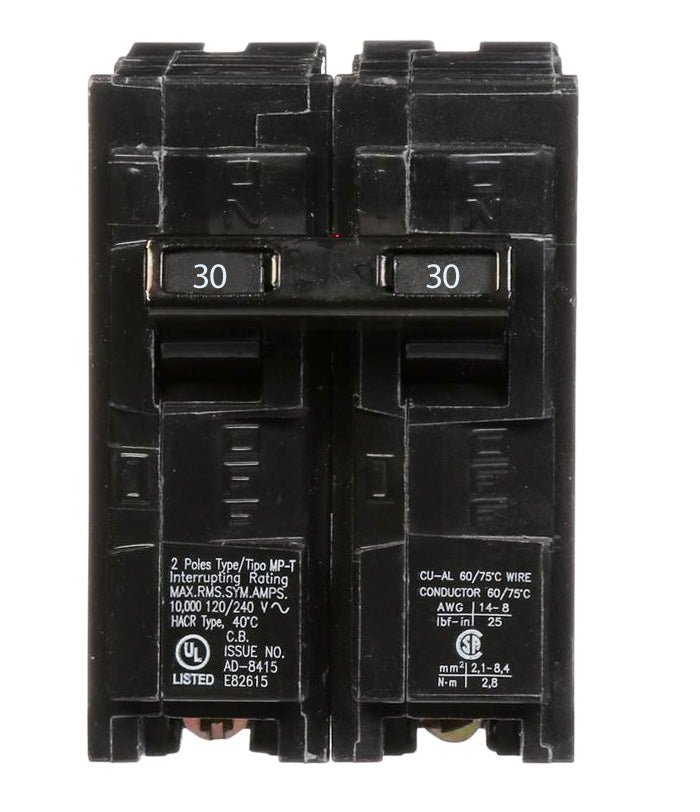

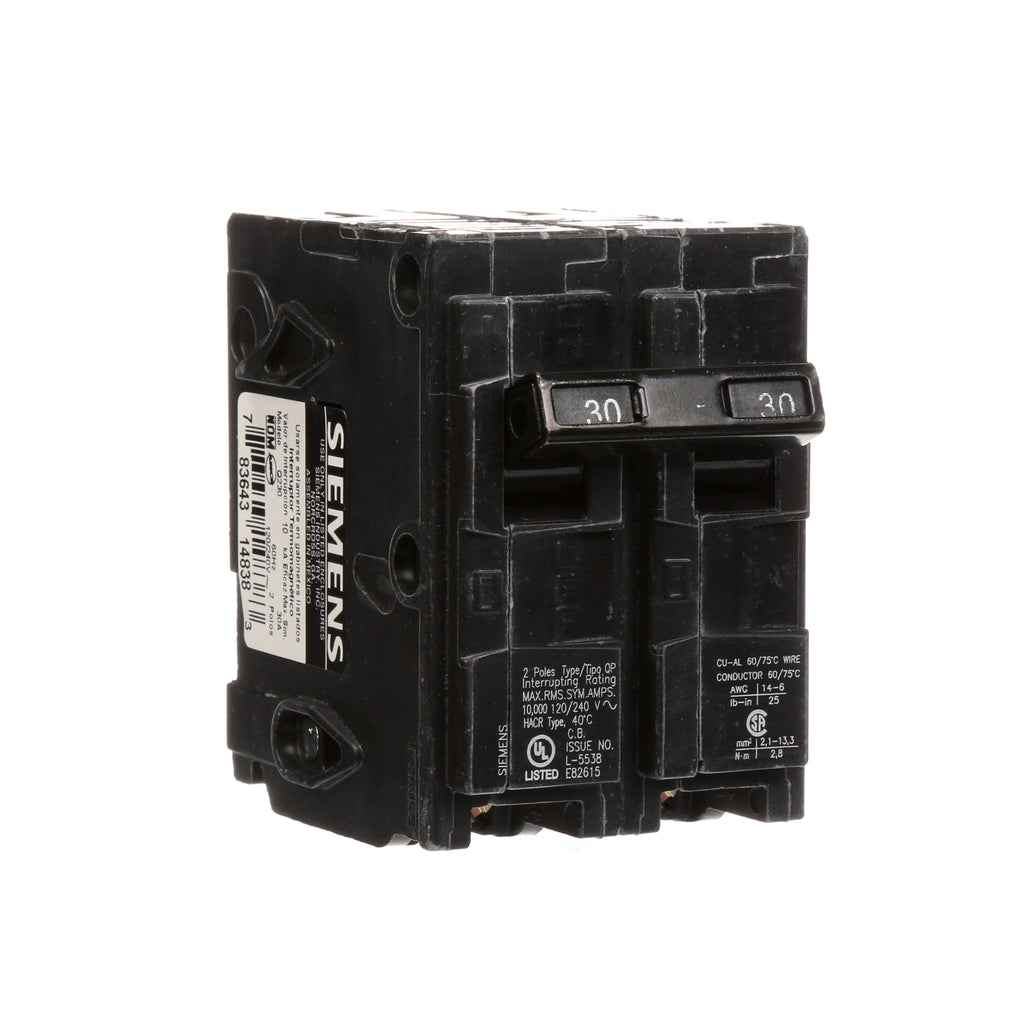

Q230 - Siemens 30 Amp 2 Pole 120/240VAC Plug-In Molded Case Circuit Breaker, Type QP/MP, 10 kA Interrupt, Thermal Magnetic Trip, UL/CSA Certified

Q230

Q230 is a Siemens 2-pole, 30 Amp molded case circuit breaker designed for residential and light commercial electrical distribution.

This Type QP/MP low voltage miniature circuit breaker features a plug-in connection, 120/240VAC voltage rating, and a 10 kA interrupting capacity. It is equipped with a thermal magnetic trip unit for reliable overload and short-circuit protection, and is compatible with Siemens EQ, EQL, SEQ, EQG, PL, and ES series loadcenters. The Q230 is ideal for air conditioning, heating, refrigeration, and general distribution applications, supporting 14–6 AWG copper or aluminum wire.

Key Specifications
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 2
• Mounting Type: Plug-In
• Interrupt Rating: 10 kA
• Series/Frame: Q/MP
• Trip Unit: Thermal Magnetic (LI)
• Certifications: UL 489 Listed, CSA Certified
• Connection: Plug-In
• Wire Size: 14–6 AWG
• Temperature Rating: 40°C
• Dimensions: 3 in L x 3 in W x 2 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q230
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 120/240
• Amperage : 30
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643148383
• GTIN : 00783643148383
• Country of Origin : Mexico
• Dimensions : 12.598 x 3.15 x 3.543 inch
• Weight : 0.551 lb
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
