Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q220AFC

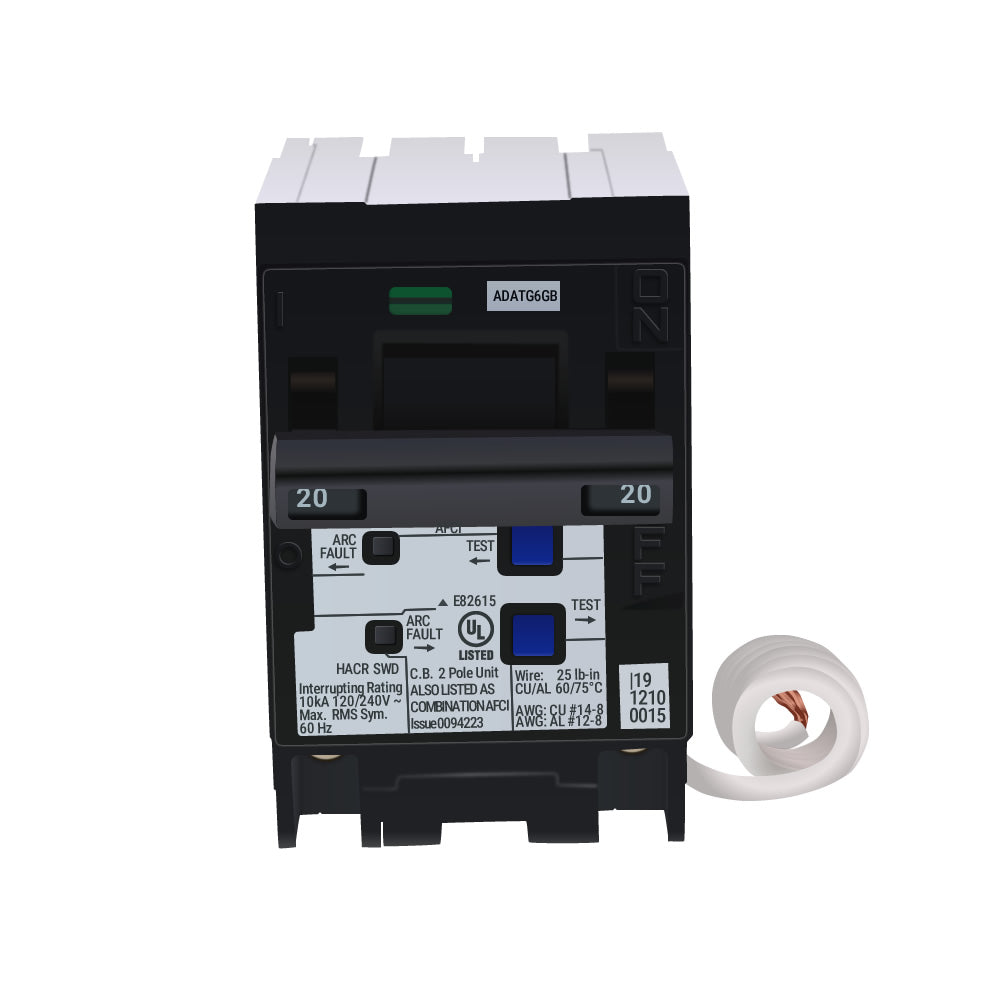

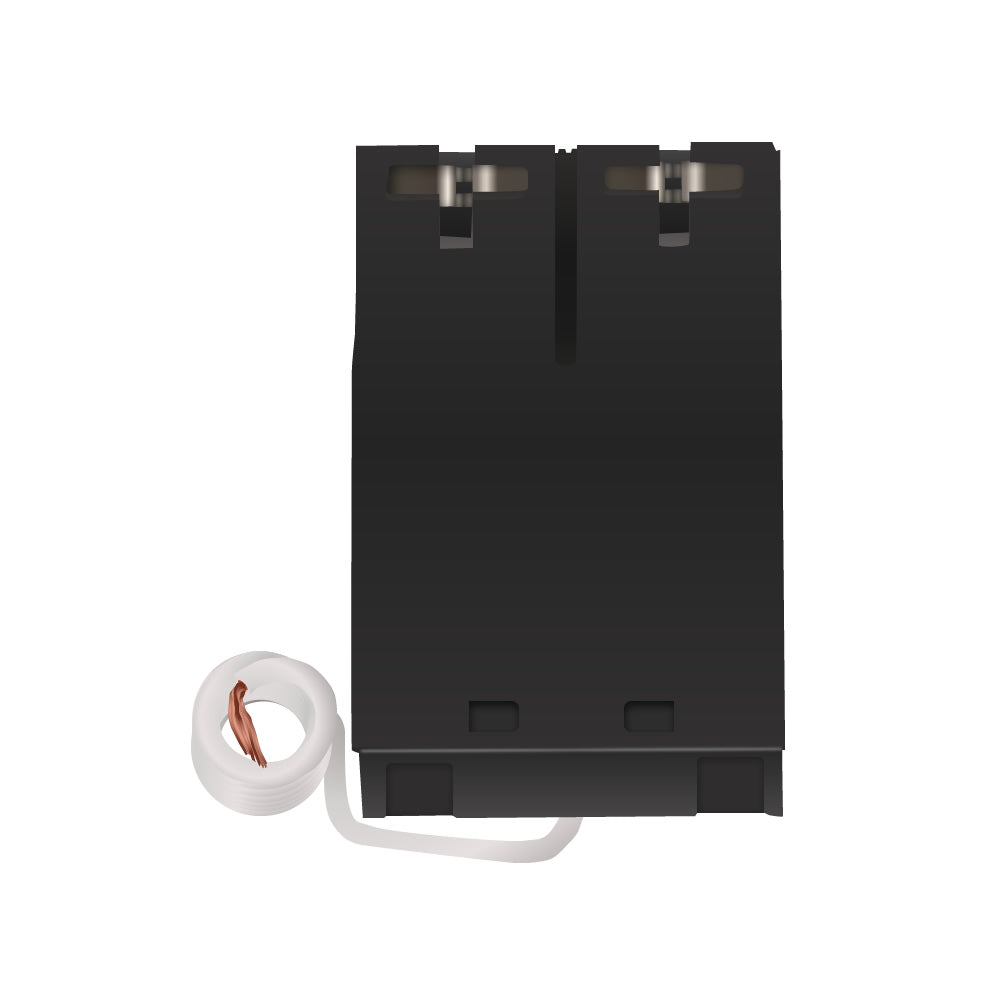

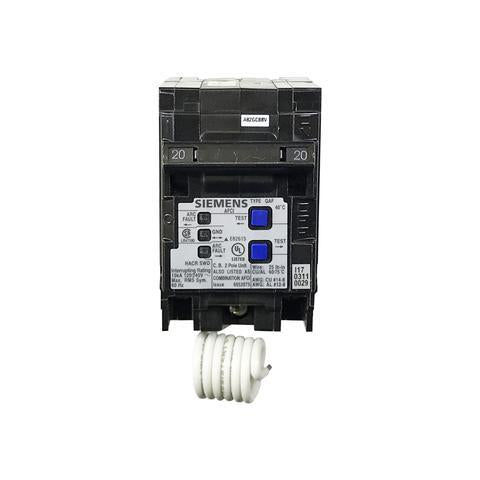

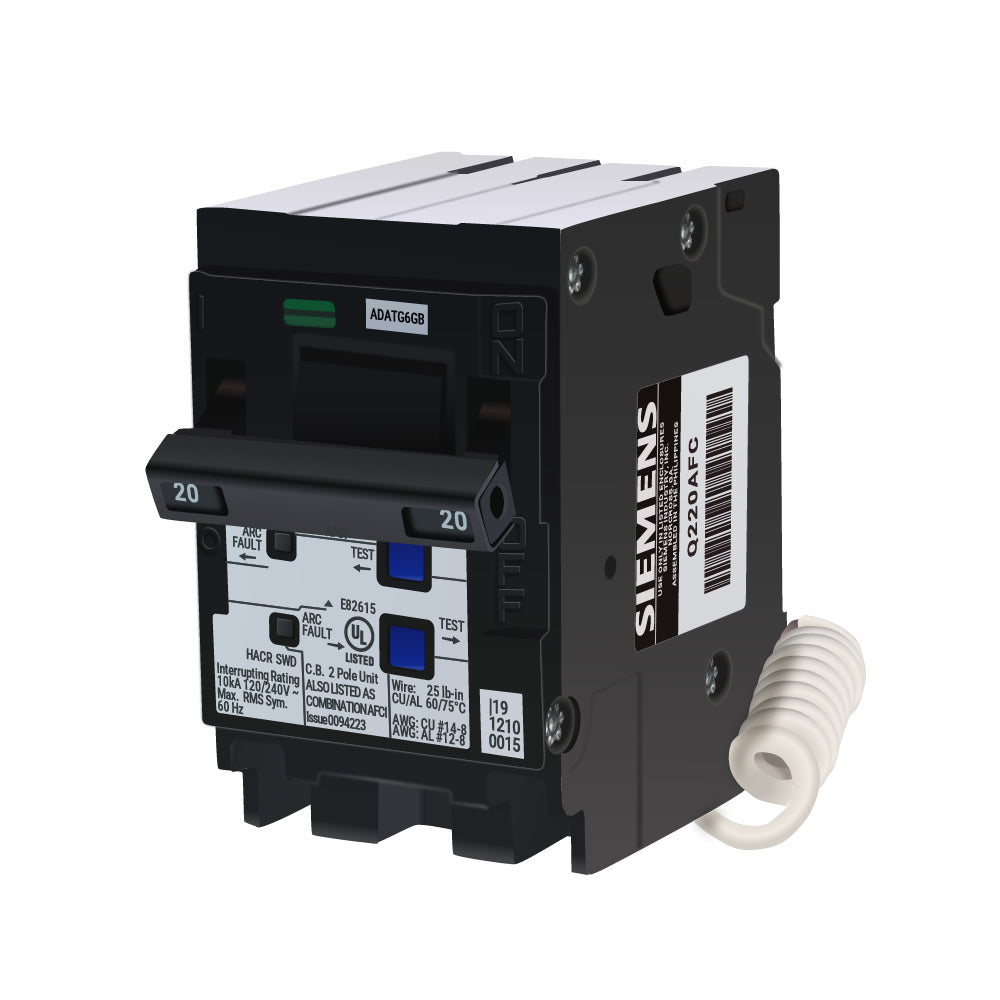

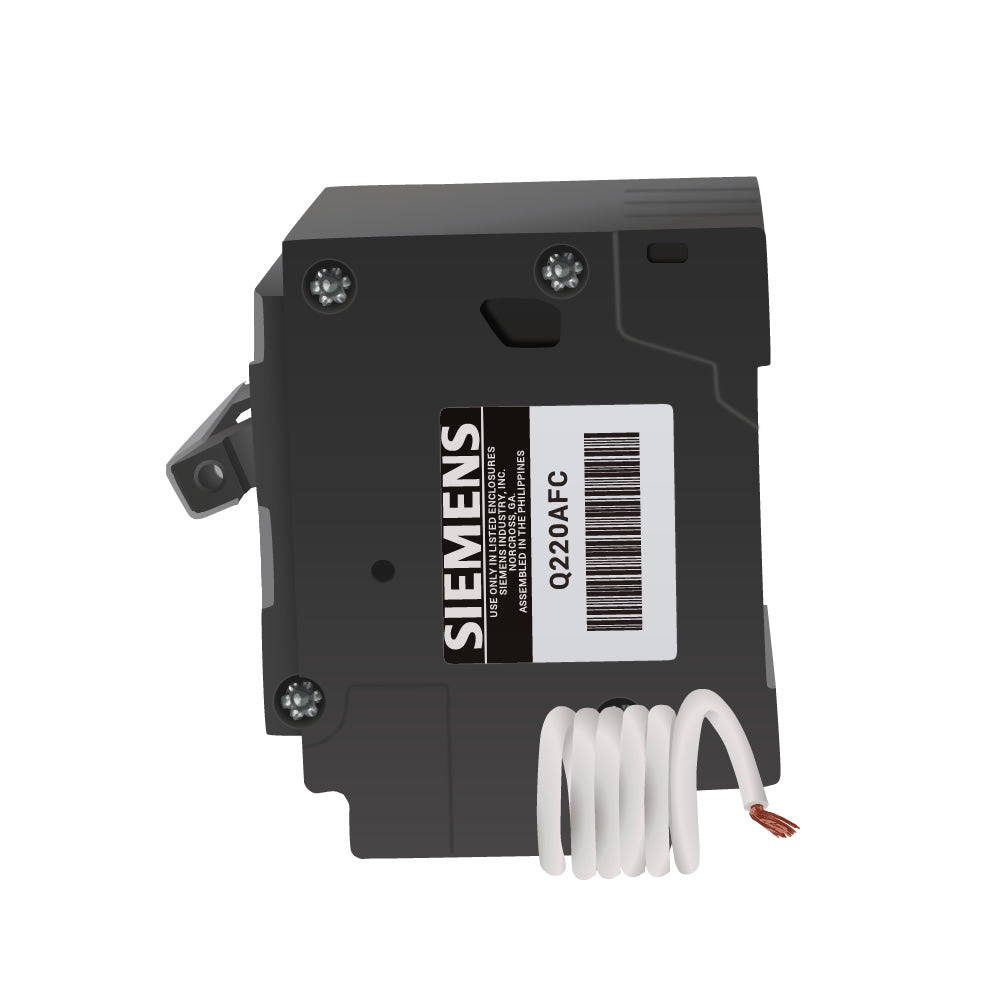

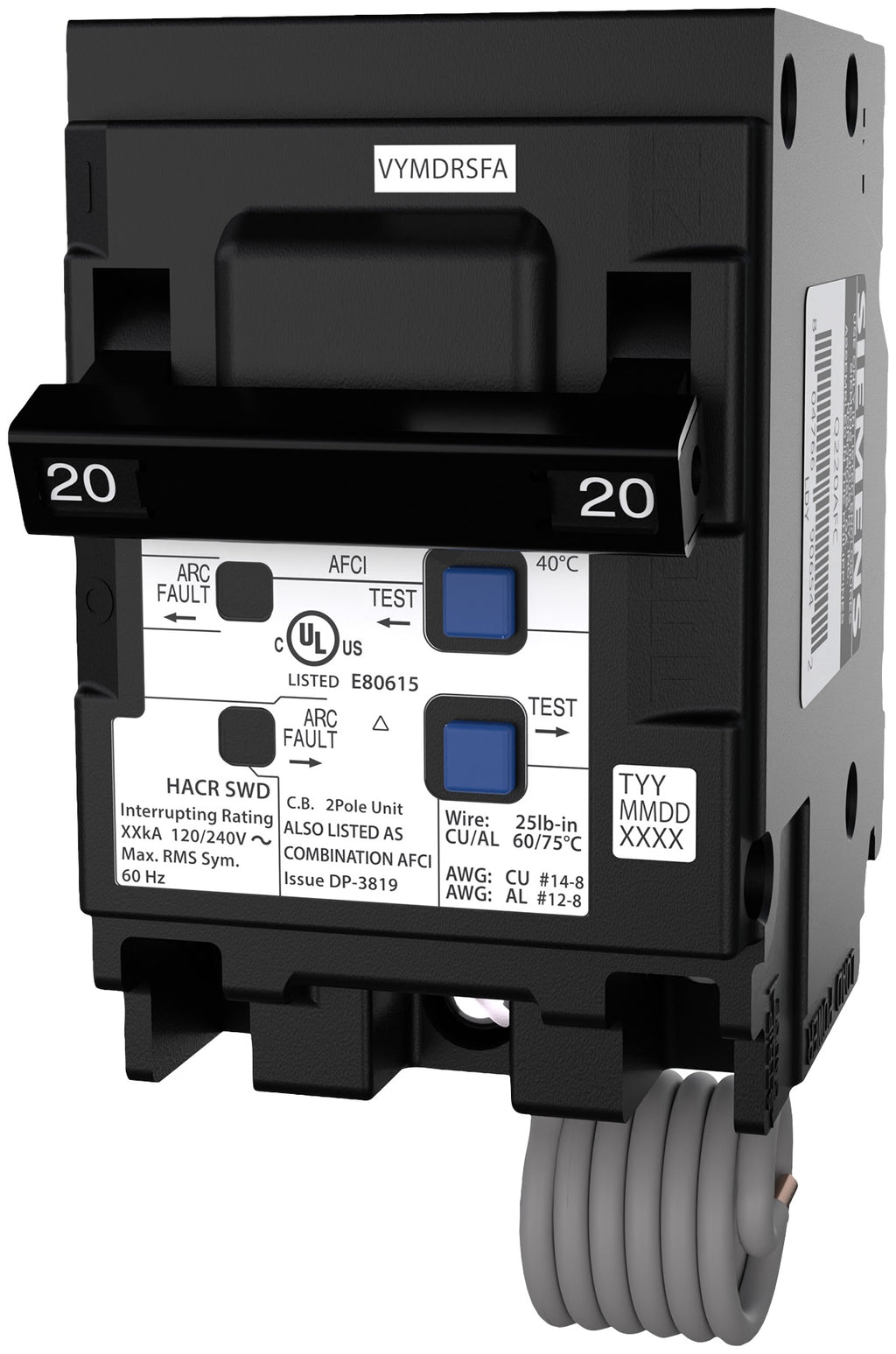

Q220AFC is a Siemens 2 pole combination arc fault circuit breaker rated for 20 amps and 120/240 volts AC with plug-in mounting.This Siemens Q220AFC circuit breaker features a 10kA interrupting rating at 240V, thermal magnetic protection with long time and instantaneous trip functions, and is designed for residential load centers. It supports wire sizes 14-8 AWG copper and 12-8 AWG aluminum with load side lug terminals. The breaker is UL listed, HACR rated, and CSA certified for safety and reliability.
- Amperage: 20 Amp
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Plug-In
- Interrupting Rating: 10kA @ 240V
- Series/Frame: Q
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Wire Gauge: 14-8 AWG Copper, 12-8 AWG Aluminum
- Terminal Connection: Load Side Lug
- Certifications: UL Listed, HACR Rated, CSA Certified
- Operating Temperature: 40°C
Specifications
- Part Number: Q220AFC
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : Q-AFC
- Voltage : 240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Temp Rating : -13–158 °F (-25–70 °C)
- Protection : Thermal Magnetic
Product Data
- UPC : 040892148893
- GTIN : 00040892148893
- Country of Origin : Philippines
- Dimensions : 12.598 x 3.15 x 3.15 inch
- Weight : 0.728
- Wire Size : 14 to 8 AWG Copper, 12 to 8 AWG Aluminum
