Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q22030CT

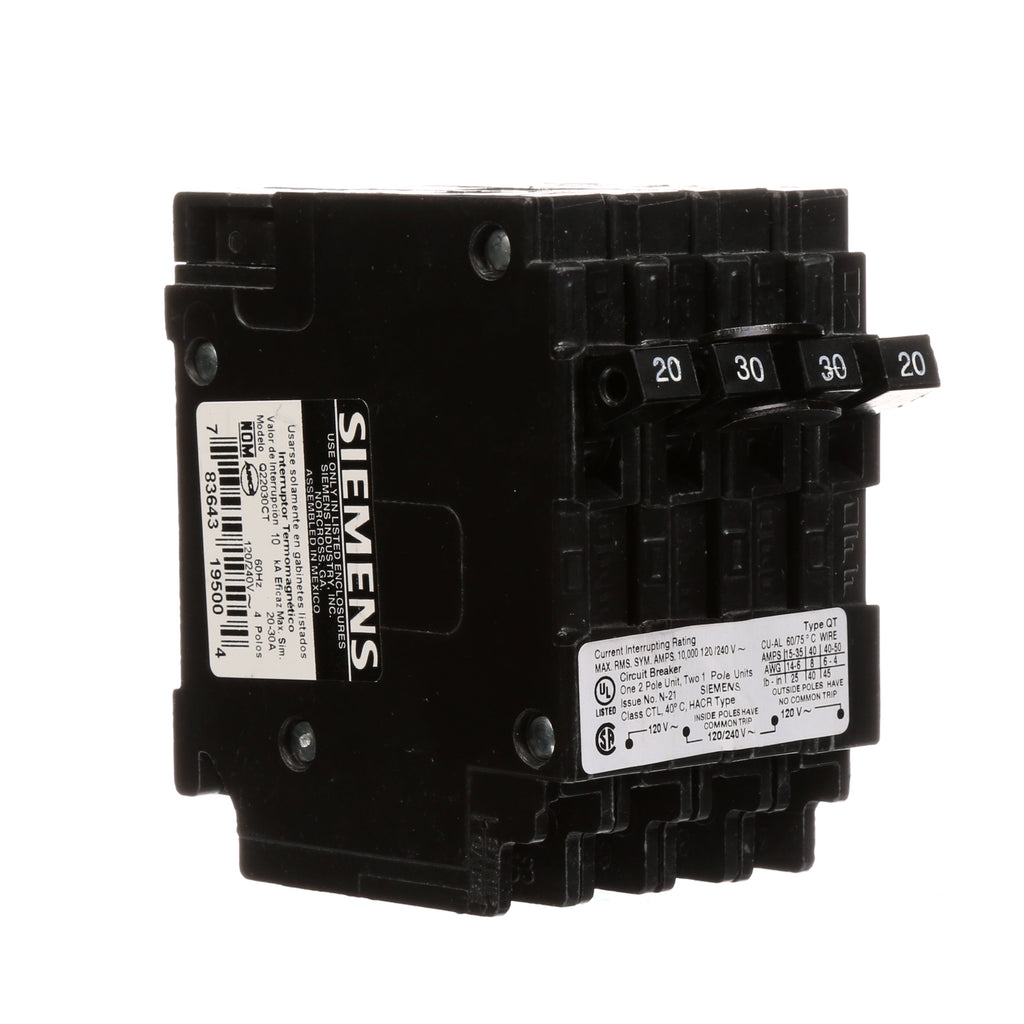

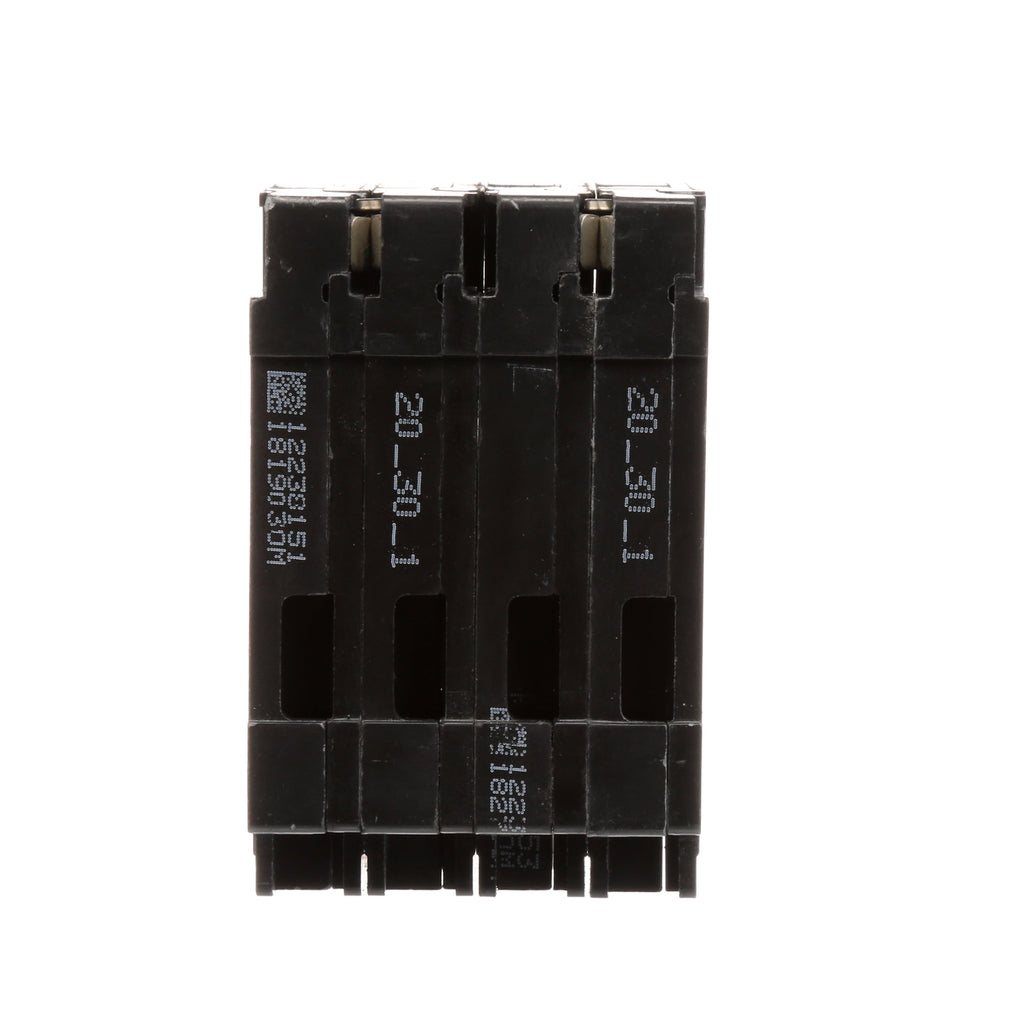

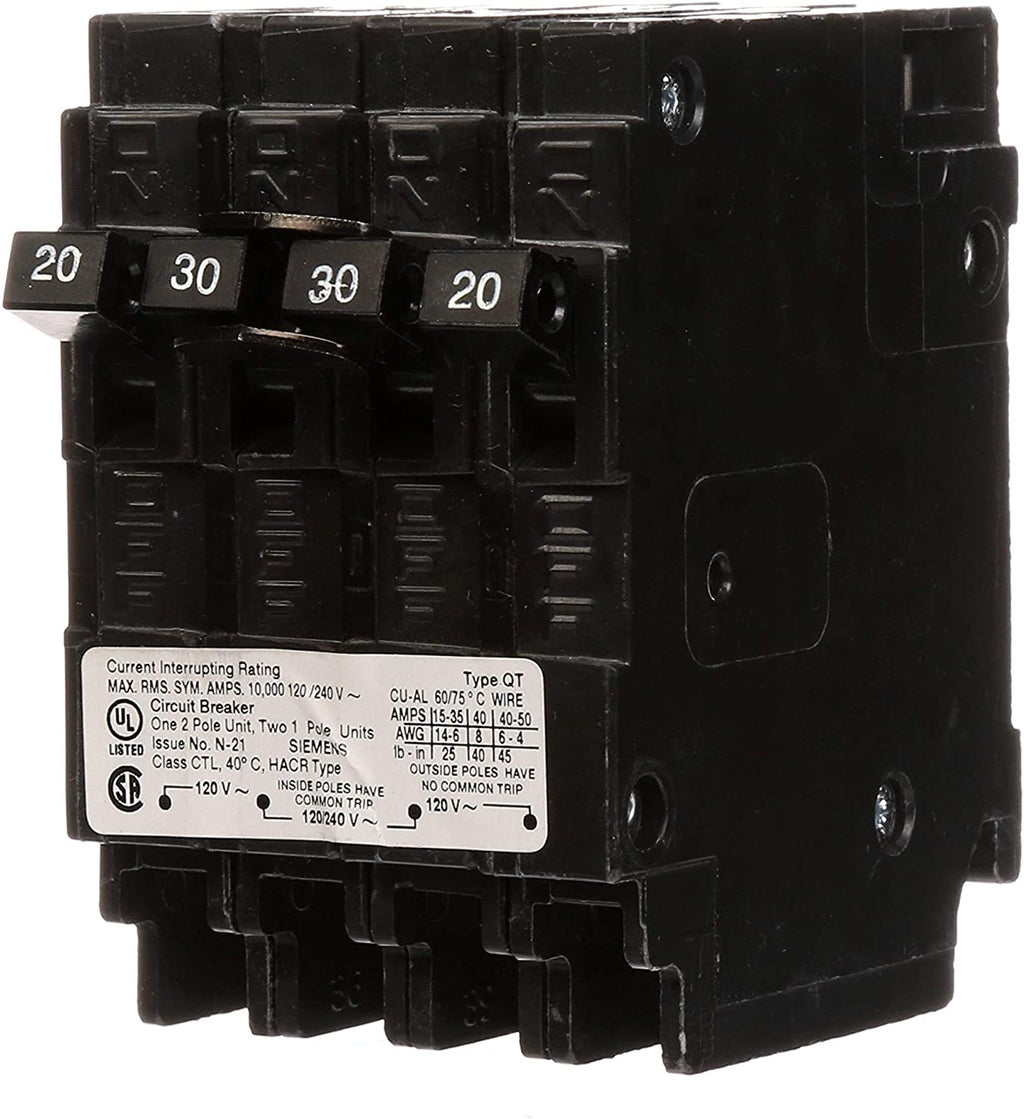

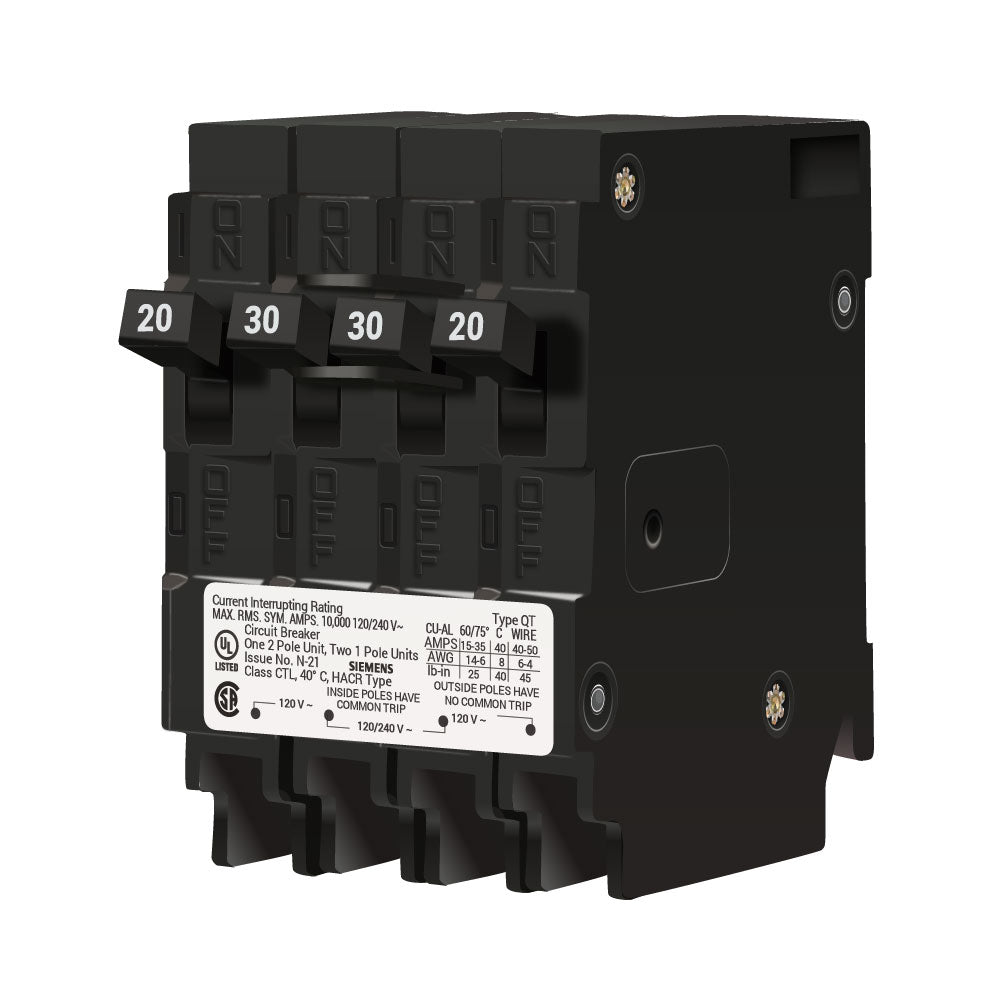

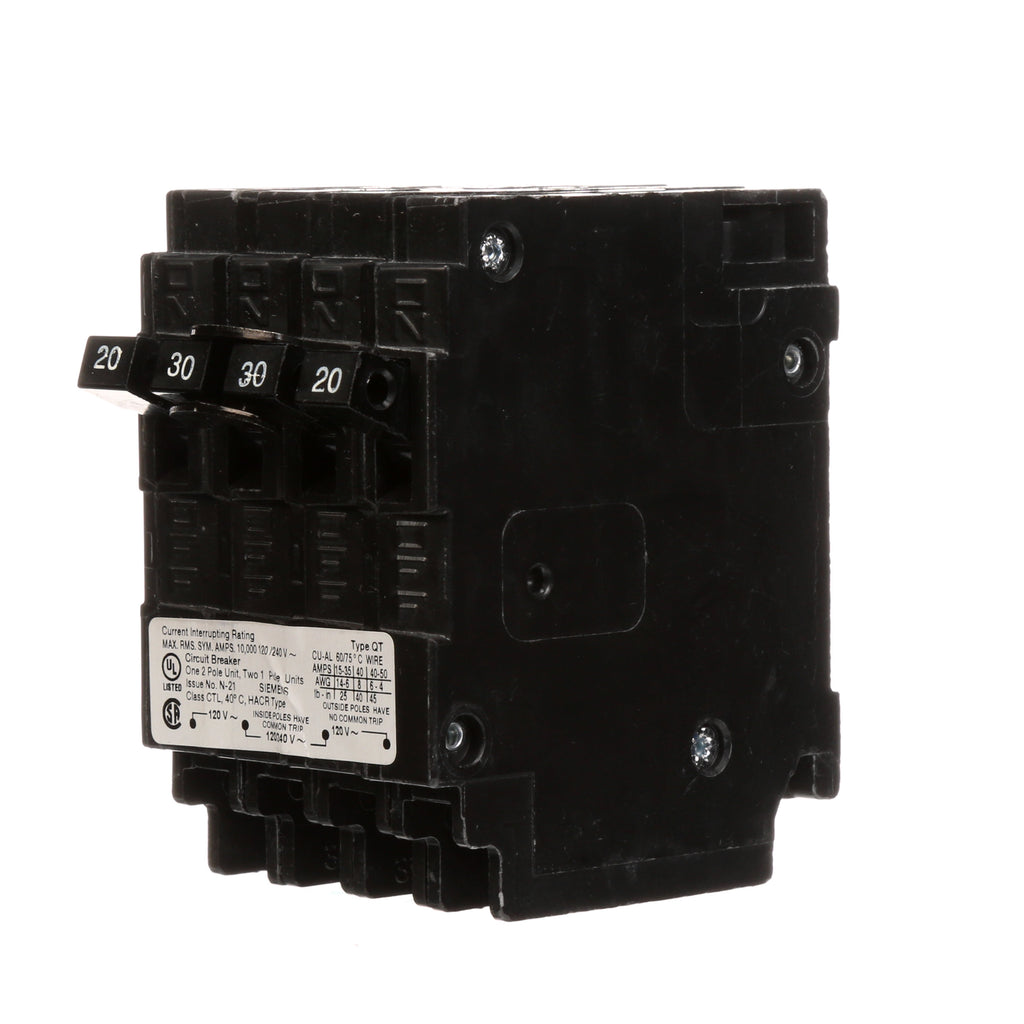

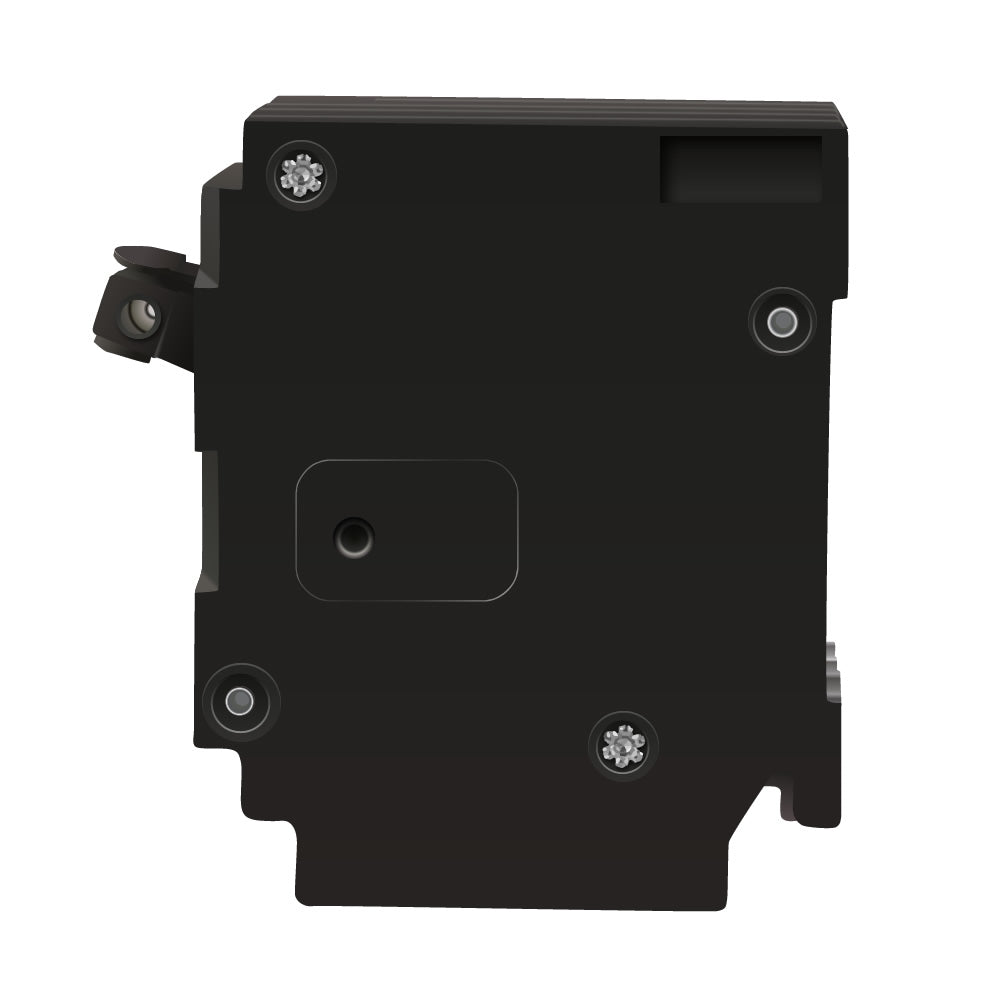

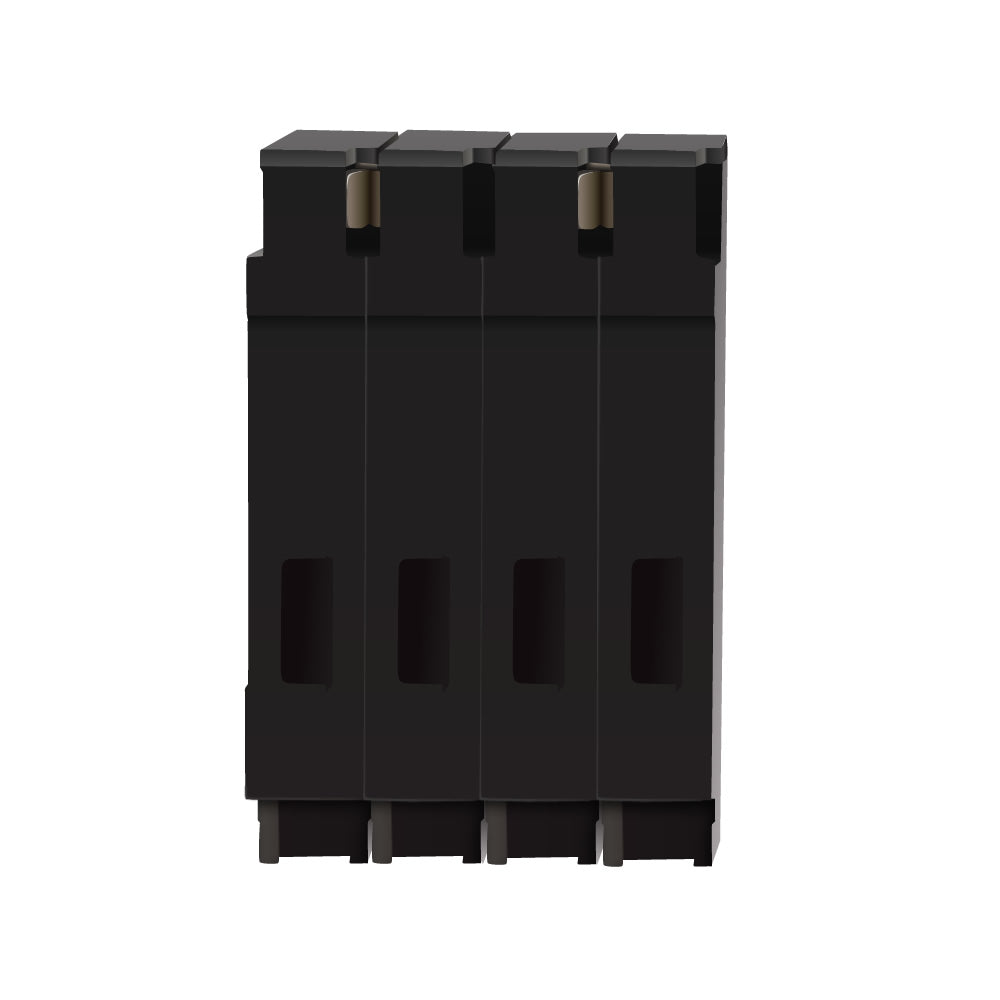

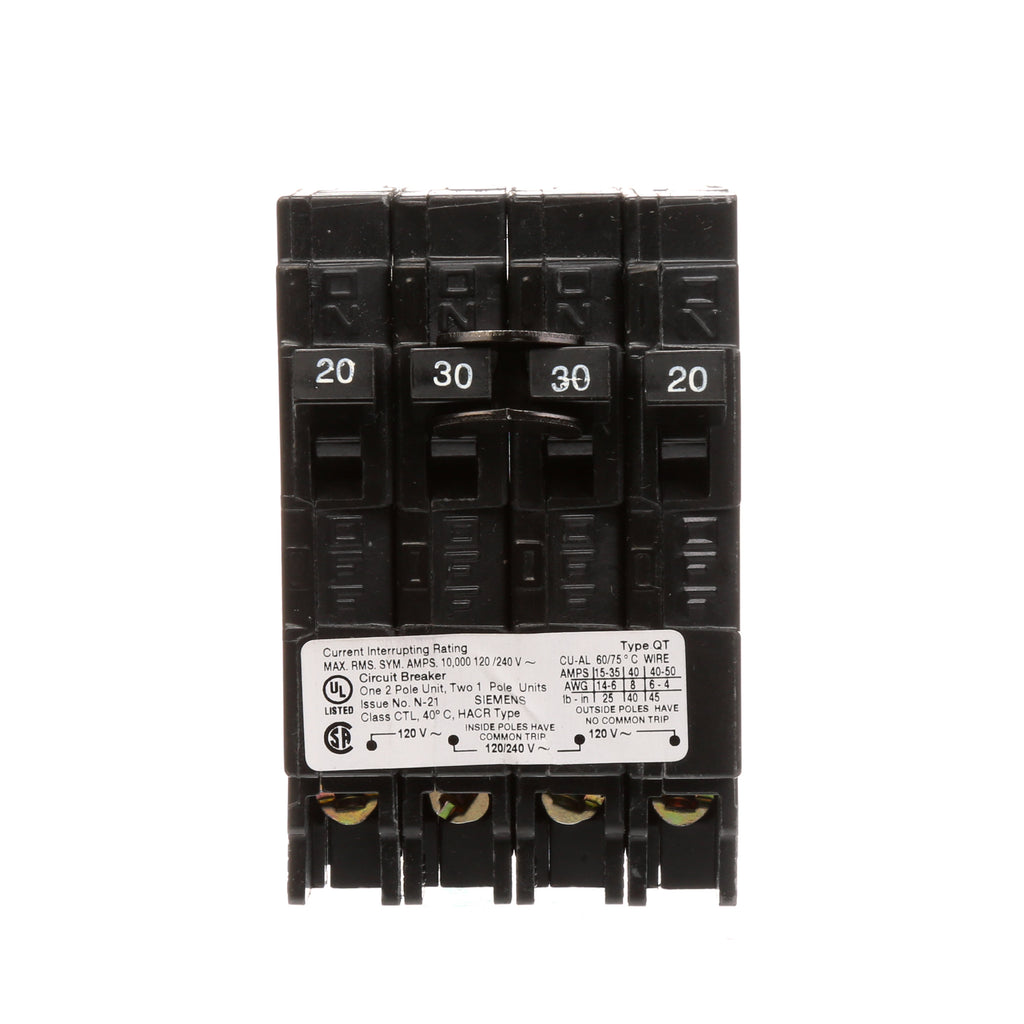

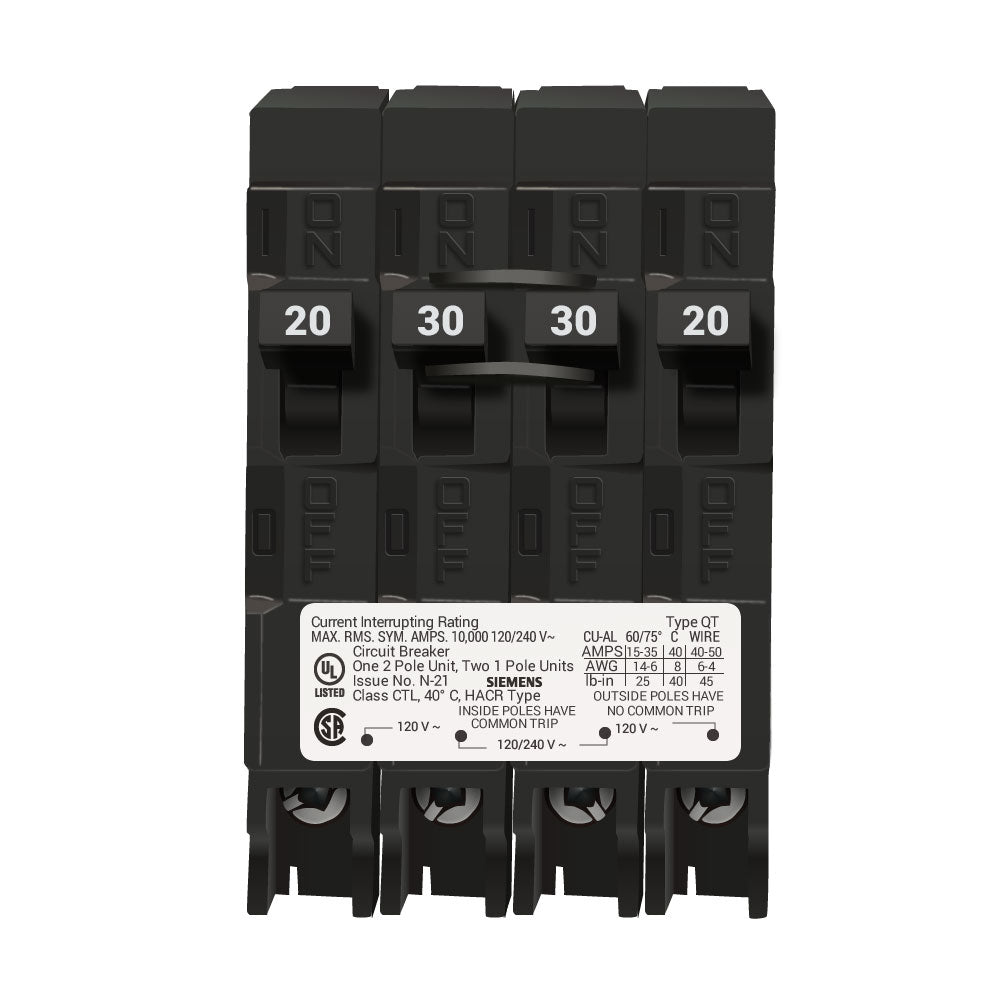

Q22030CT is a Siemens molded case circuit breaker designed for 120/240 VAC electrical systems with a 3-pole QT frame configuration.This thermal magnetic trip unit breaker features a 20 to 30 ampere rating, 10 kA interrupting capacity, and plug-in mounting type. It supports 14 to 6 AWG copper or aluminum wire and is suitable for single-phase applications. The breaker is UL 489 certified and built for reliable low voltage circuit protection.
- Brand: Siemens
- Part Number: Q22030CT
- Amperage Rating: 20 to 30 A
- Voltage Rating: 120/240 VAC
- Number of Poles: 3 (Triplex configuration)
- Frame/Series: QT
- Trip Unit: Thermal Magnetic
- Interrupt Rating: 10 kA
- Mounting Type: Plug-In
- Wire Size Range: 14 to 6 AWG Copper/Aluminum
- Phase: Single
- Certifications: UL 489
Specifications
- Part Number: Q22030CT
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QT
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Plug-In
- Breaker Type : QT
- Protection : Thermal Magnetic
Product Data
- UPC : 078364319500
- GTIN : 00783643195004
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 1.969 inch
- Weight : 0.794
- Standards : UL 489
- Certification : UL 489
