2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Load Center
Description
Q2125S

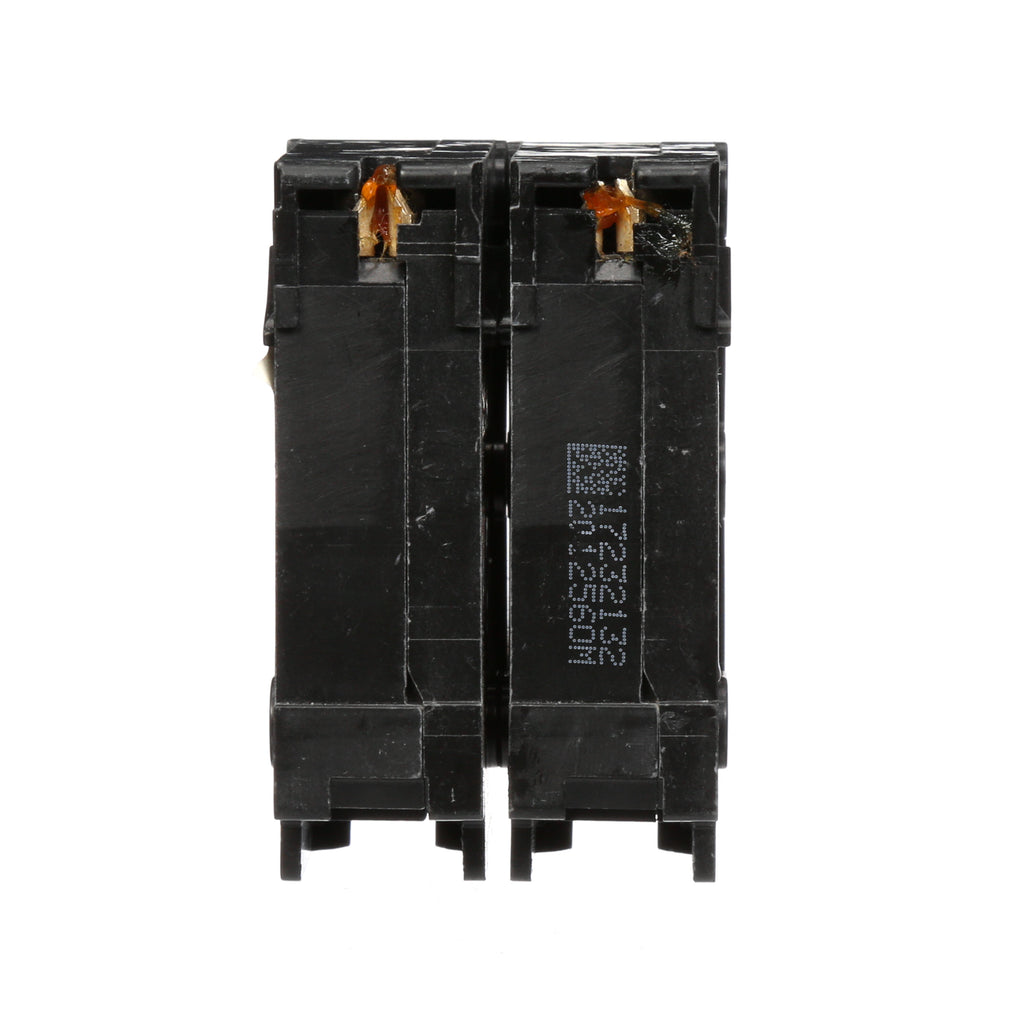

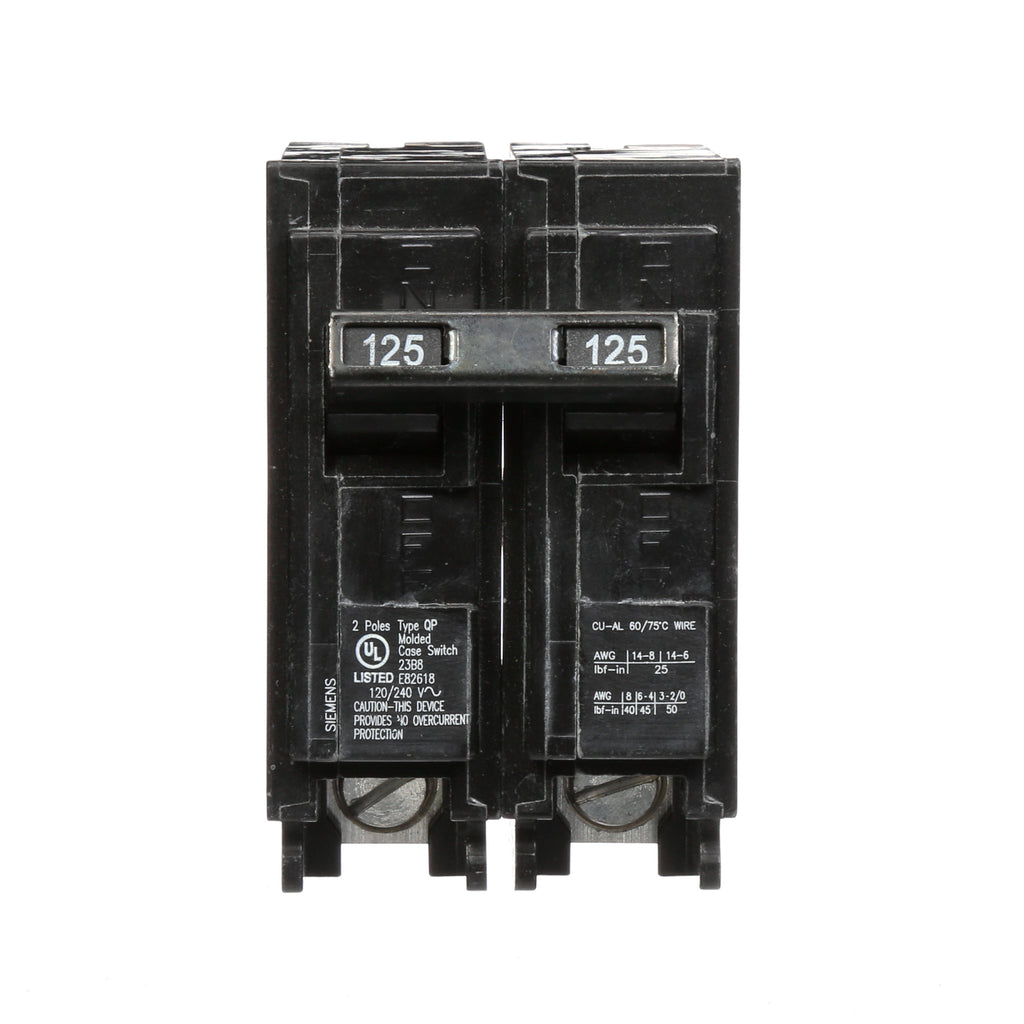

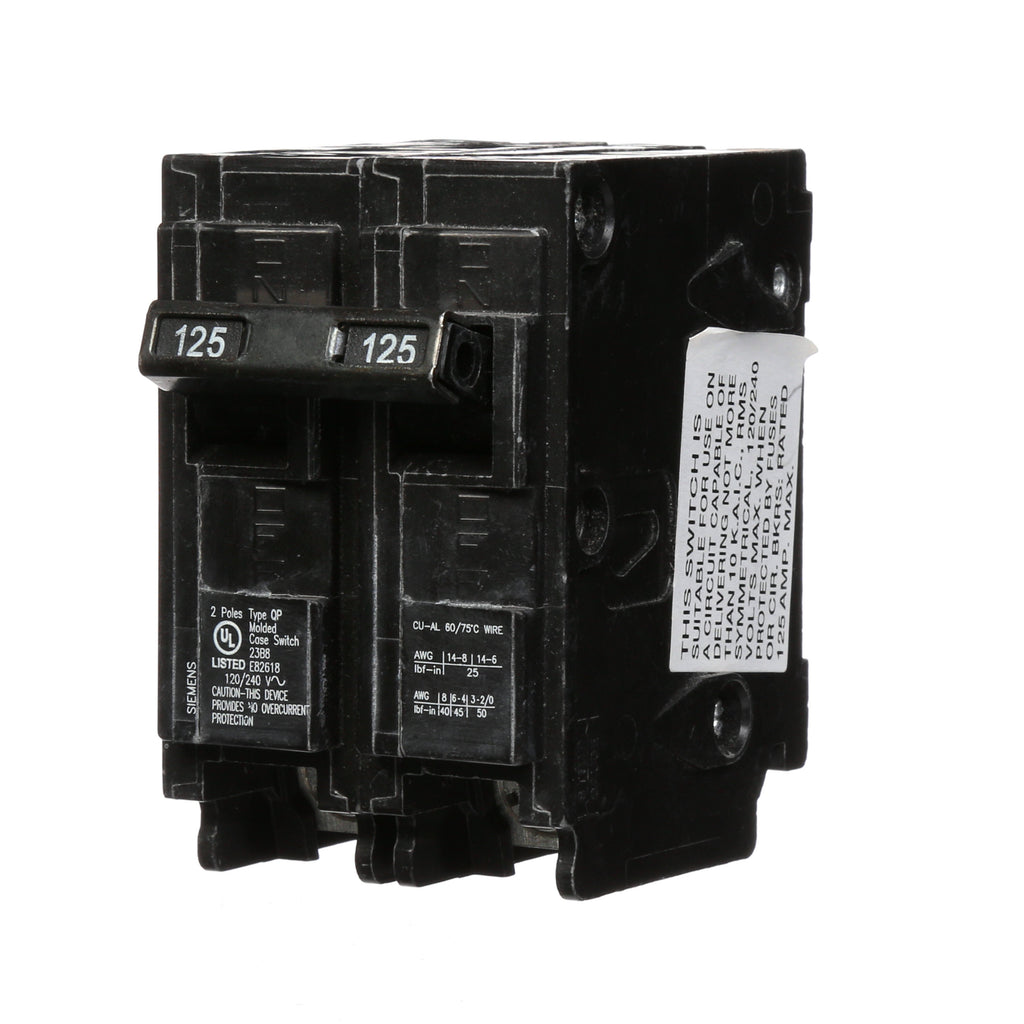

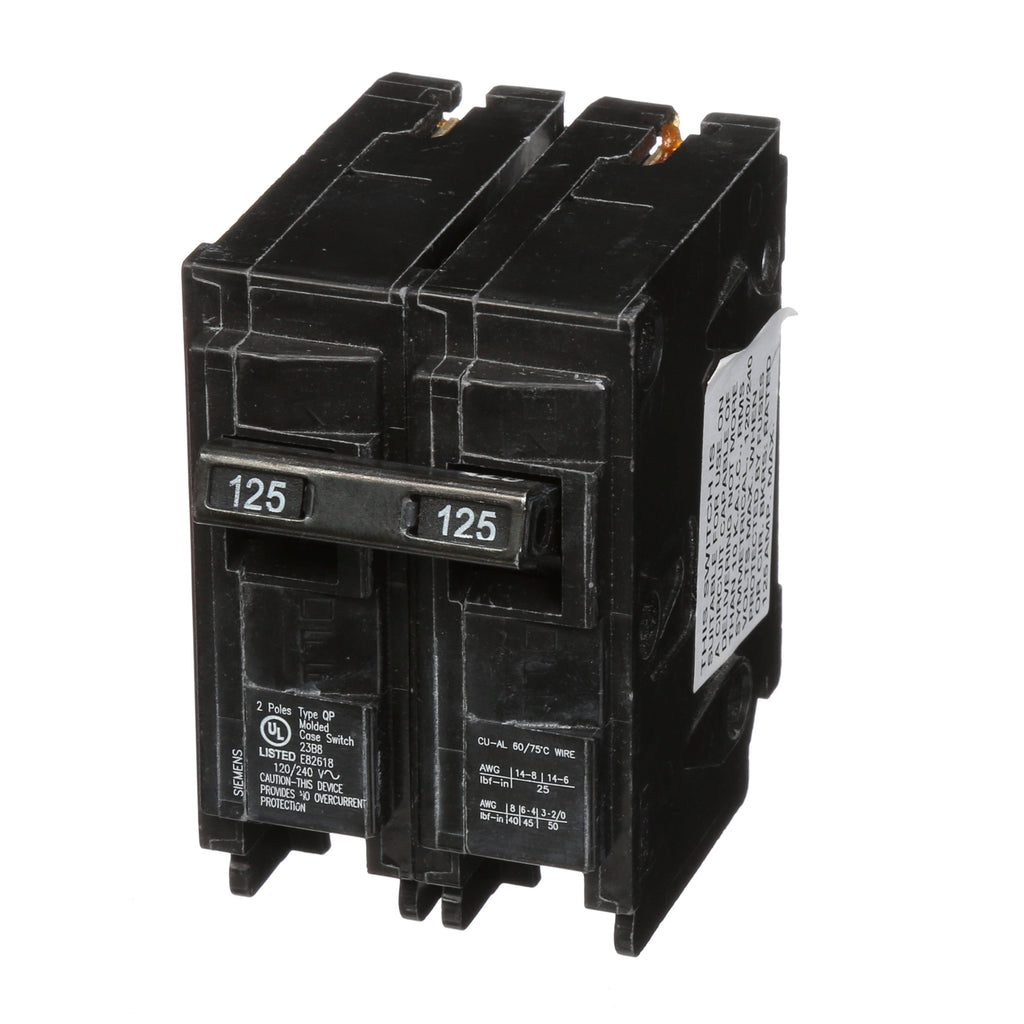

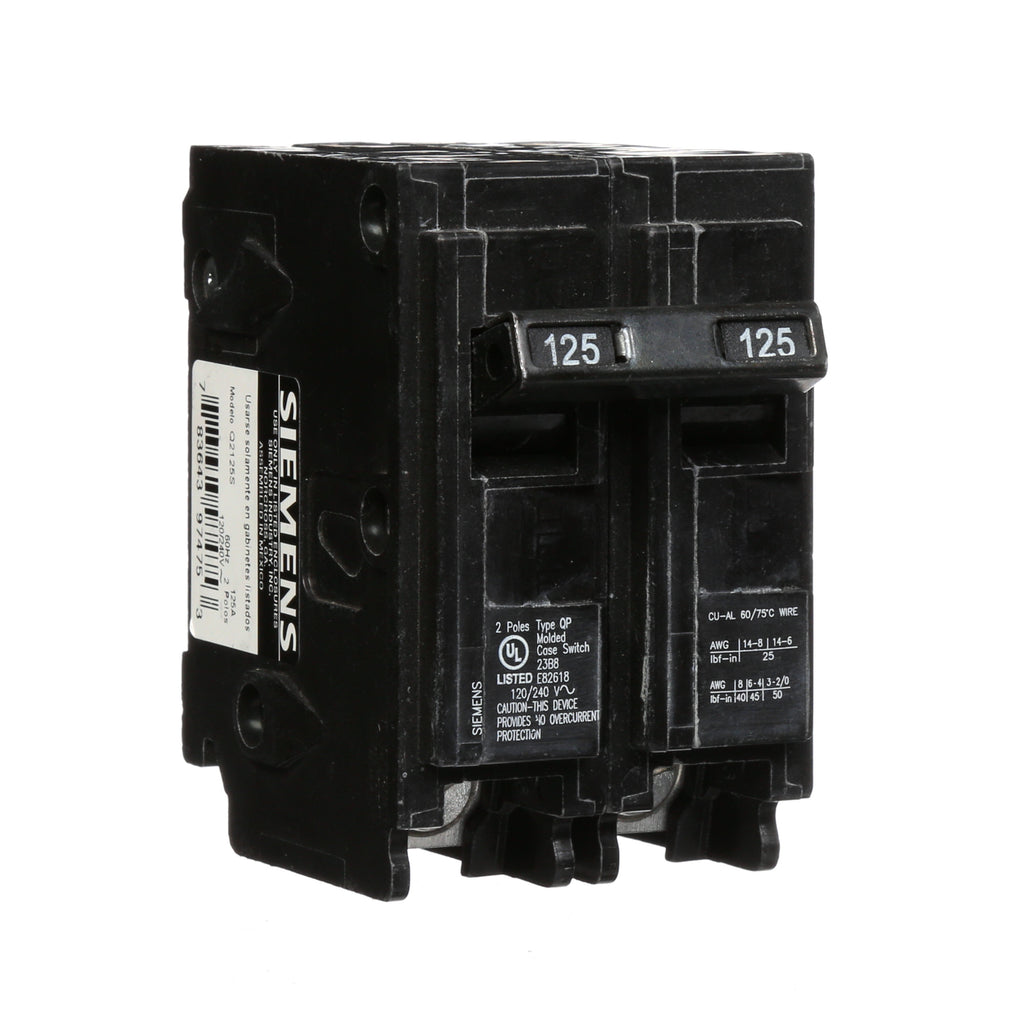

Q2125S is a Siemens 2 pole, 125 amp, 120/240VAC plug-in circuit breaker designed for residential and light commercial use.Q2125S features a thermal magnetic trip unit with long-time and instantaneous trip functions, a 10kA interrupting rating at 240V, and a Type QP frame for plug-in mounting. It is UL Listed and HACR rated for air conditioning and heating applications.
- Key Specifications
- Amperage: 125 Amps
- Voltage Rating: 120/240 VAC
- Number of Poles: 2
- Mounting Type: Plug-In
- Interrupting Rating: 10kA at 240V
- Frame Type: QP
- Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
- Connection Type: Plug-In
- Standards: UL Listed, HACR Rated
- Application: Residential, HVAC
Specifications
- Part Number: Q2125S
- Manufacturer : Siemens
- Category : Circuit Breaker
- Item Subcategory : Load Center
Product Data
- UPC : 783643974753
- GTIN : 00783643974753
- Country of Origin : Mexico
- Dimensions : 3.15 x 2.362 x 1.575 inch
- Weight : 0.309
