Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q2100HH

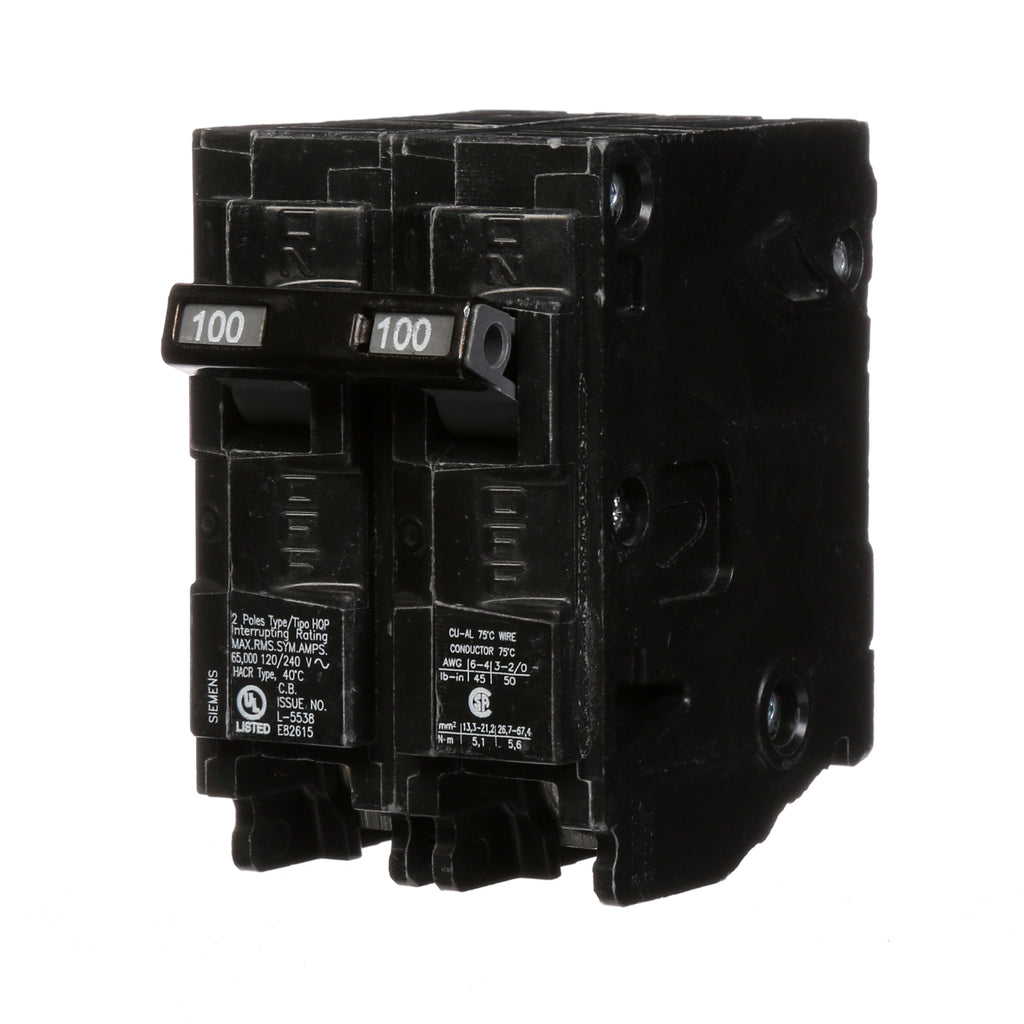

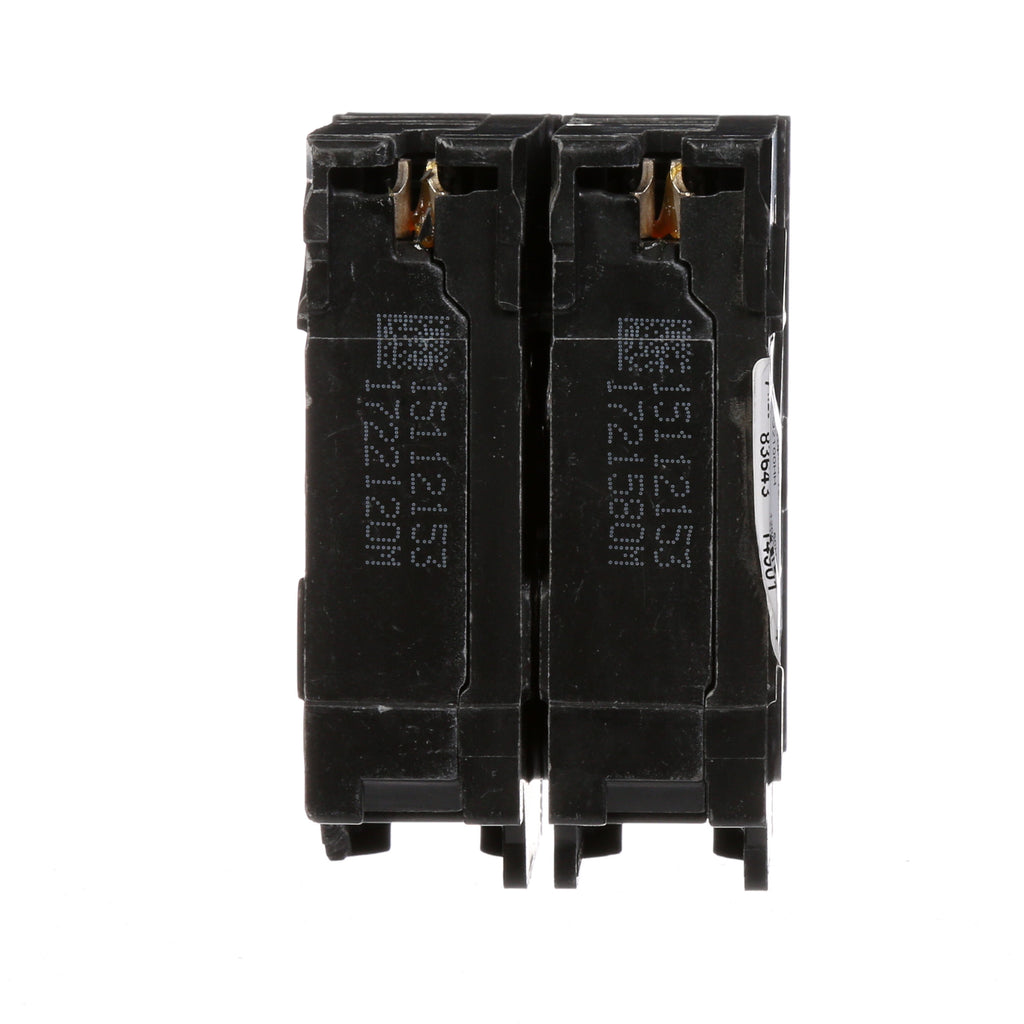

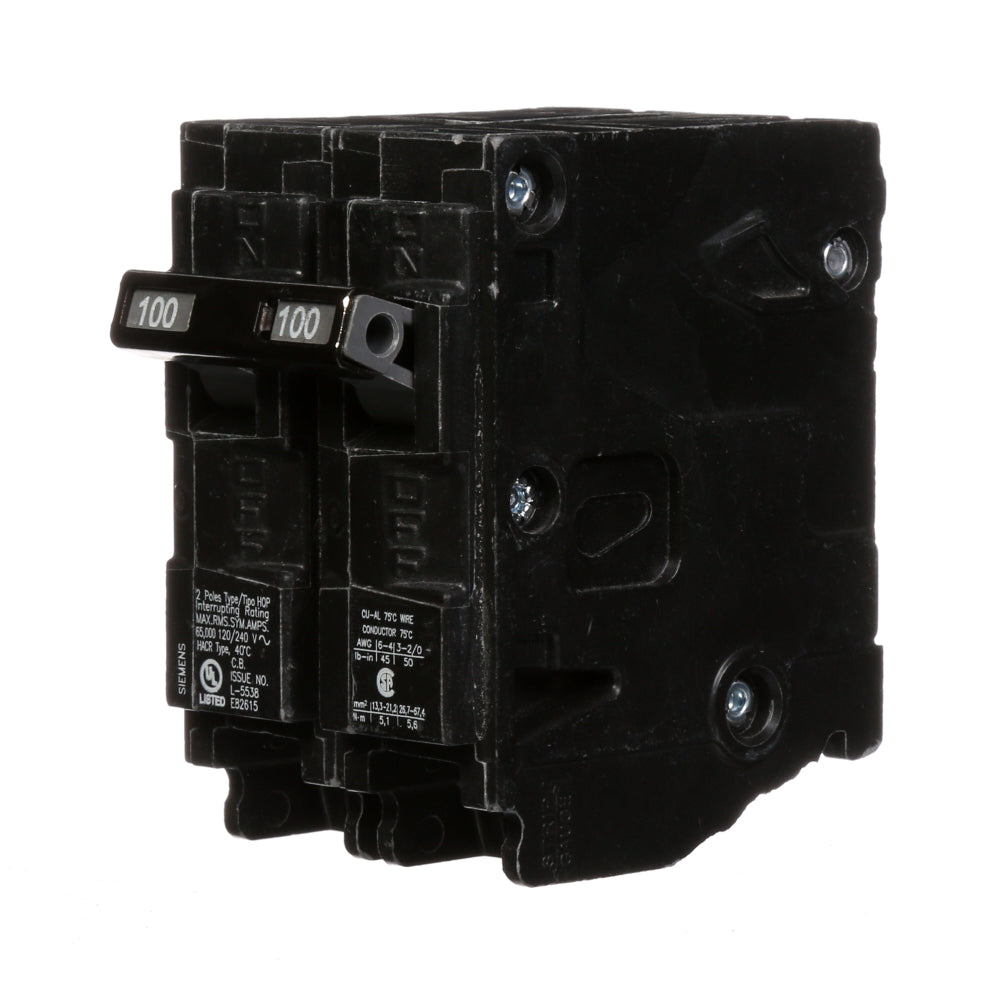

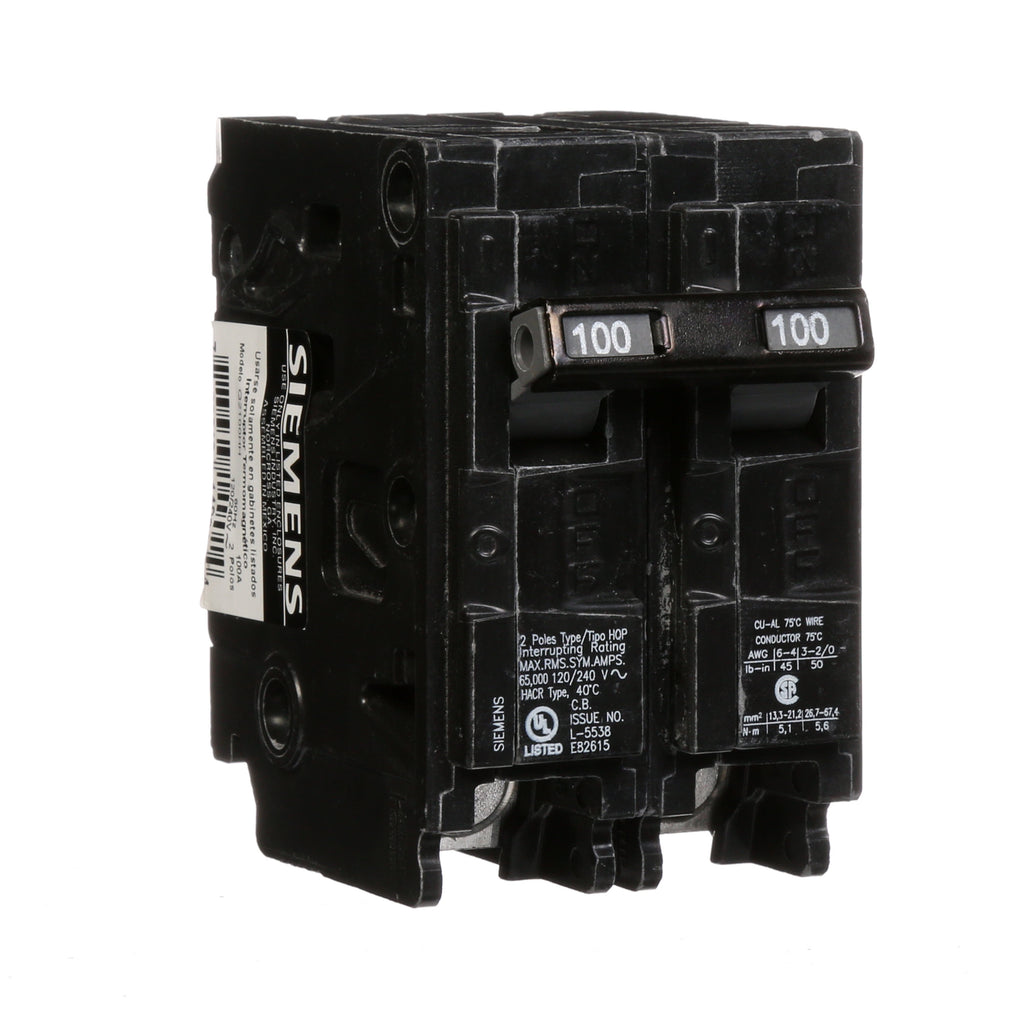

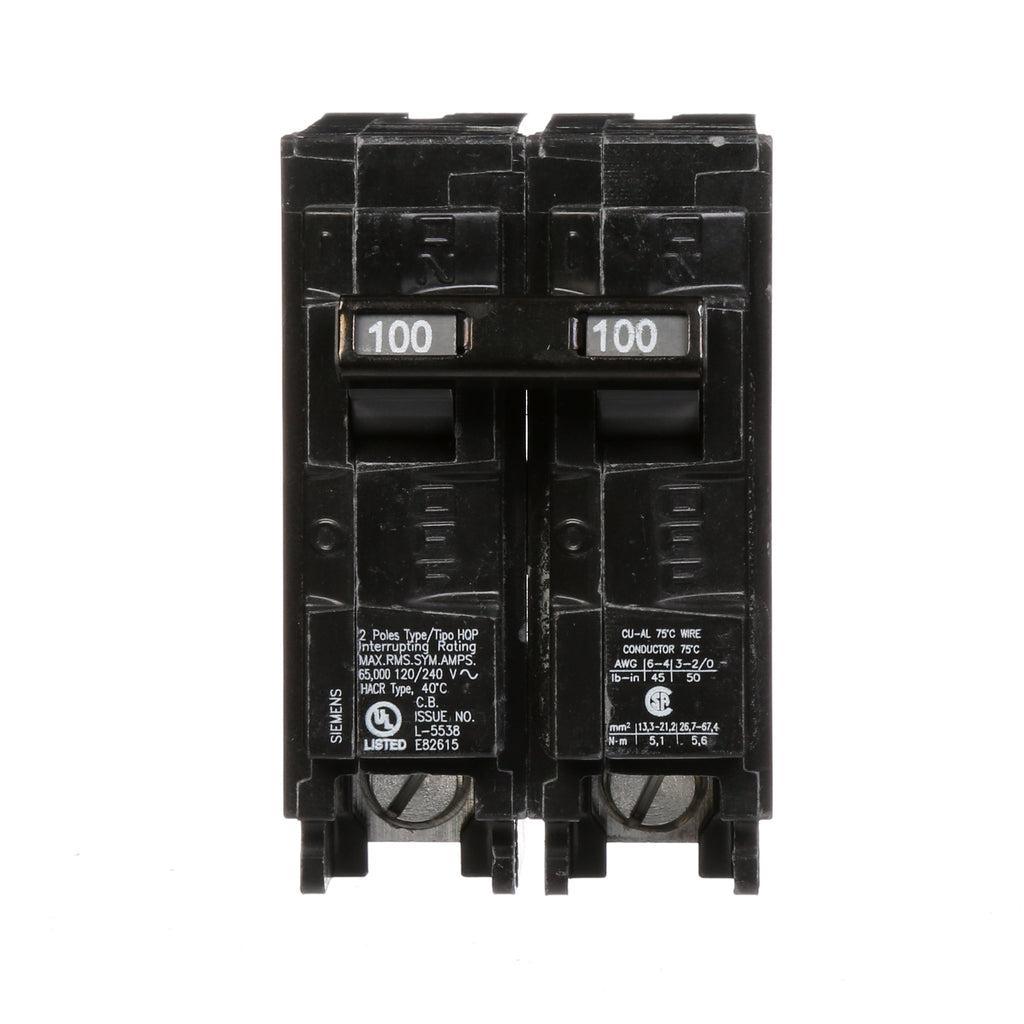

Q2100HH is a Siemens 2 Pole, 100 Amp thermal magnetic molded case circuit breaker designed for 120/240VAC applications.This Siemens Q2100HH circuit breaker features a bolt-on mounting type with a 65kA interrupting rating at 240V. It includes long time and instantaneous trip functions, supports wire gauges from #8 to 2/0 aluminum or copper, and is UL certified. The breaker is part of the Q frame series and is suitable for use with Siemens 3 phase load centers.
- Key Specifications
- Amperage: 100 Amps
- Voltage: 120/240 VAC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 65kAIC @ 240V
- Frame Type: Q
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Wire Gauge Range: #8 to 2/0 Aluminum/Copper
- Connection Type: Plug-In
- Certifications: UL Listed
- Part Number: Q2100HH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : HQP
- Voltage : 240
- Amperage : 100
- Phase : 1
- Poles : 2
- AIC rating : 65kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
- UPC : 783643149014
- GTIN : 00783643149014
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 1.969 inch
- Weight : 0.683
- Wire Size : #8 to 2/0 Aluminum/Copper
