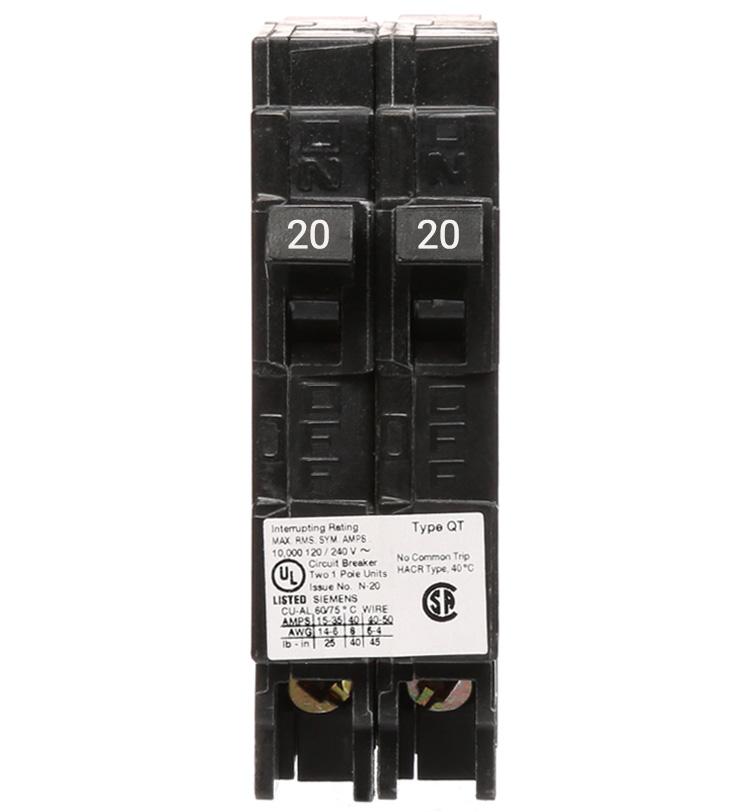

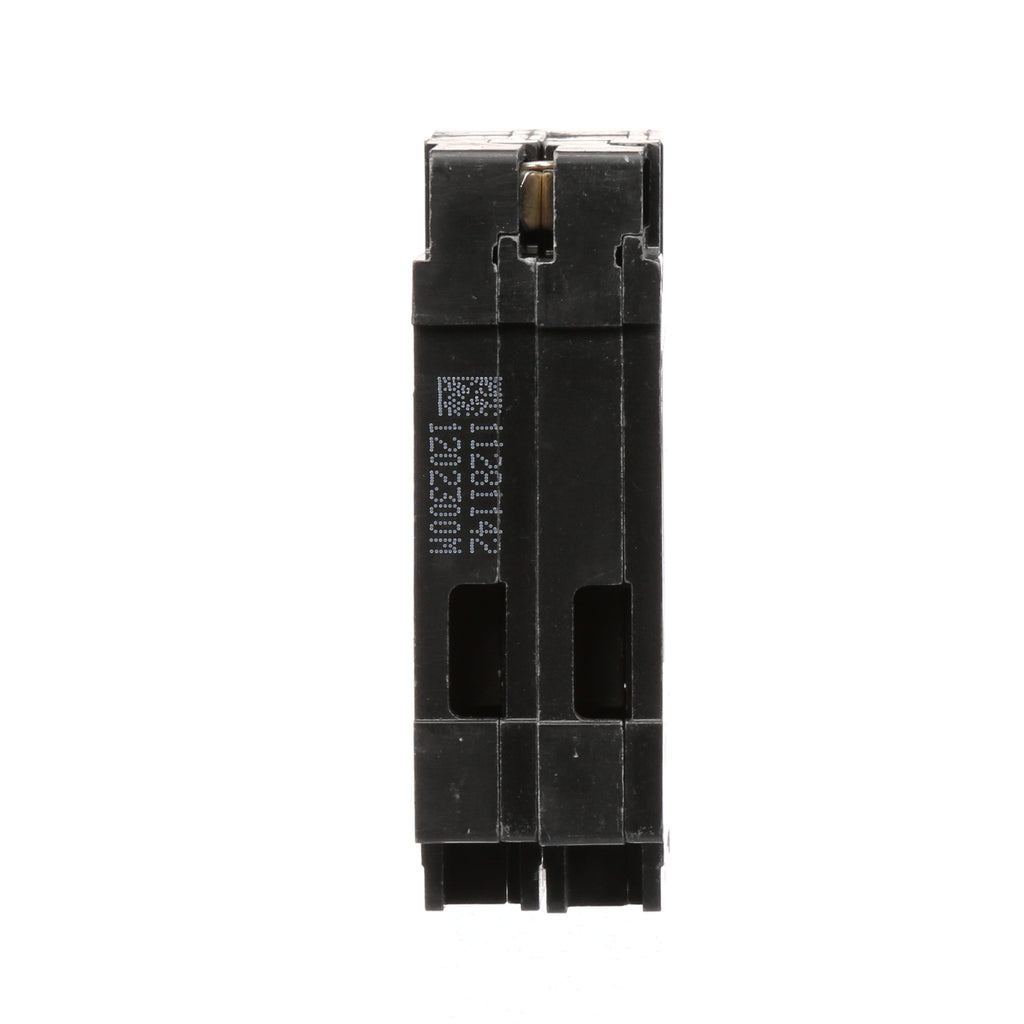

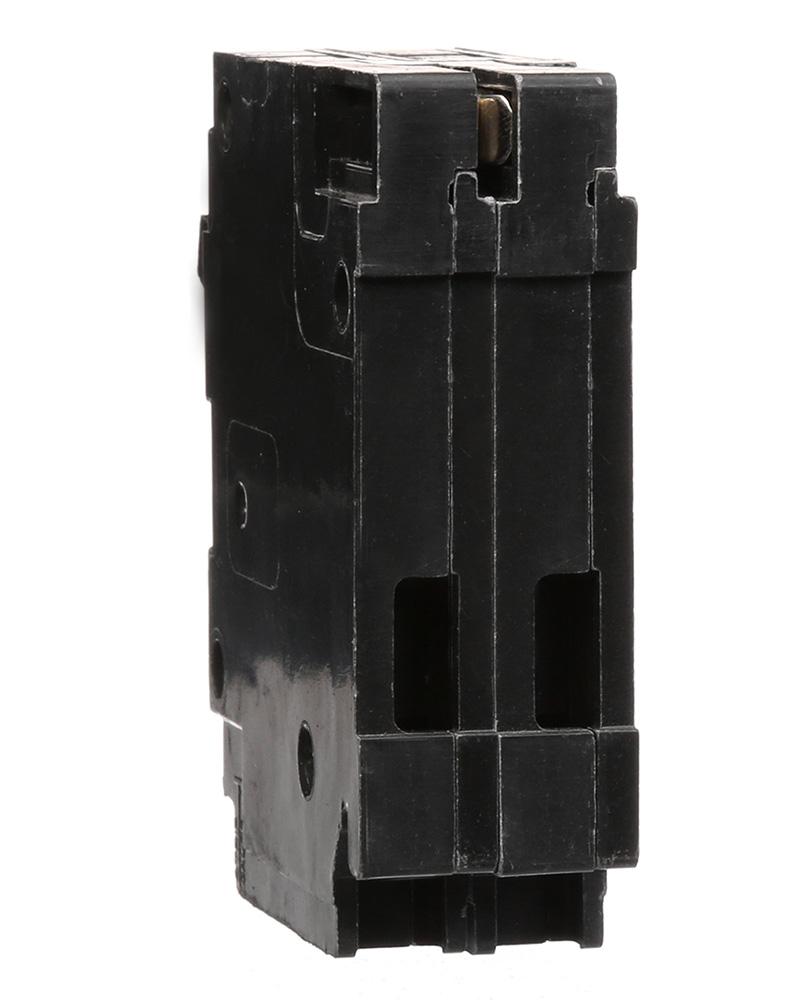

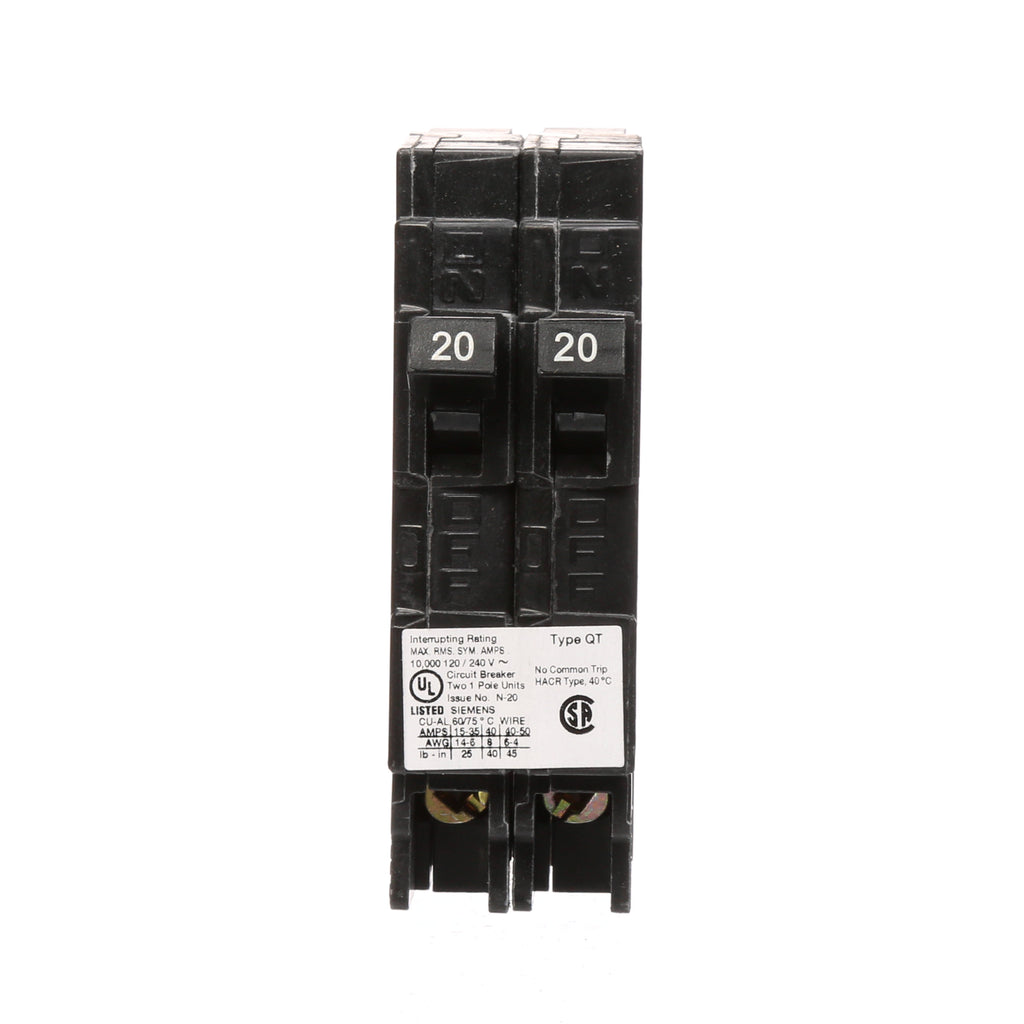

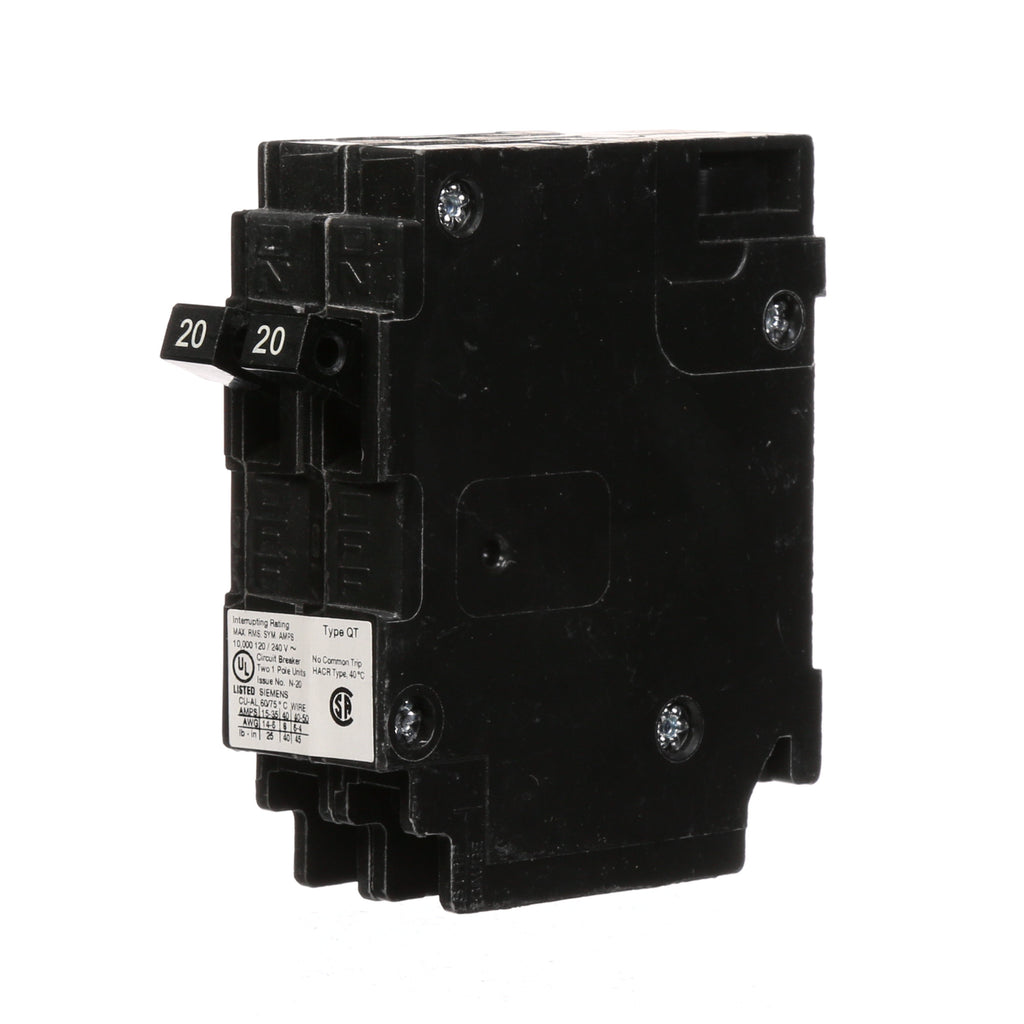

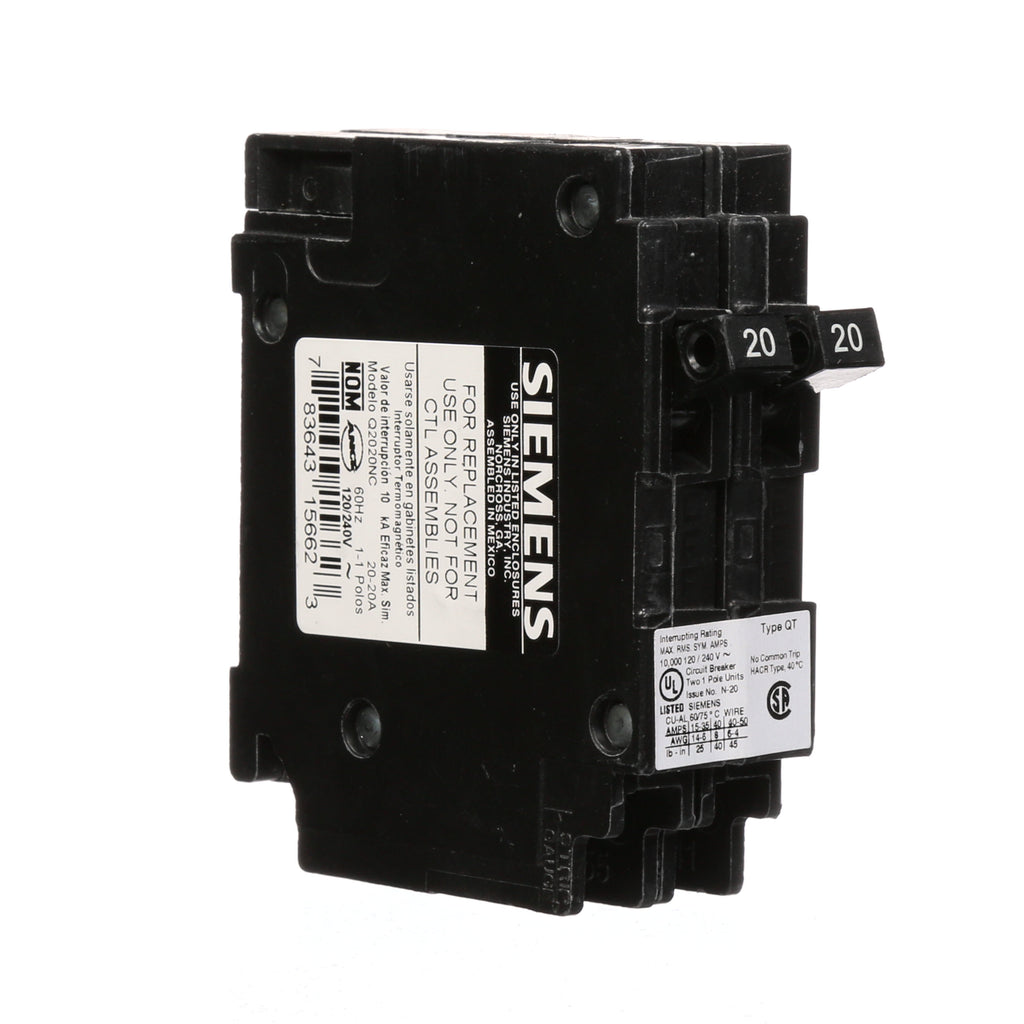

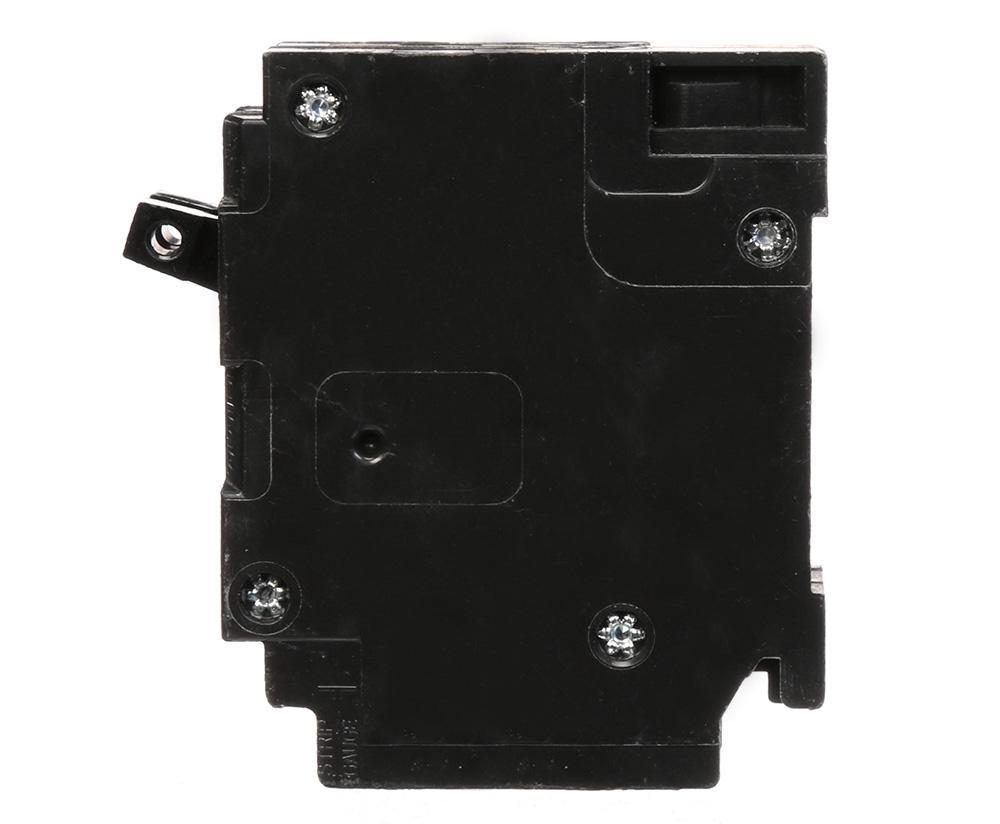

Q2020NC - Siemens 20 Amp 120/240VAC 2-Pole Tandem Circuit Breaker Thermal Magnetic

Q2020NC

Q2020NC is a Siemens 20 Amp tandem circuit breaker designed for 120/240VAC electrical distribution applications.This thermal magnetic molded case circuit breaker features 2 poles in a tandem configuration, providing reliable protection with a 10kA interrupting rating at 120/240VAC. It uses a plug-in connection type compatible with EQ load centers and includes long time and instantaneous trip functions for enhanced circuit protection. The breaker supports wire sizes from AWG 14 to AWG 8 and is UL listed.

• Manufacturer: Siemens
• Part Number: Q2020NC
• Amperage: 20/20 Amp
• Voltage: 120/240VAC
• Poles: 2 (Tandem)
• Interrupting Rating: 10kAIC at 120/240VAC
• Connection Type: Plug-In
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Mounting Type: Plug-In for EQ Load Centers
• Terminal Connection: Lug
• Wire Size Range: AWG 14 to AWG 8
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q2020NC
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QT
• Voltage : 120/240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Duplex, Non CTL
• Protection : Thermal Magnetic

Product Data

• UPC : 783643156623
• GTIN : 00783643156623
• Country of Origin : Mexico
• Dimensions : 12.598 x 3.543 x 3.15 inch
• Weight : 0.375
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
