Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q2020

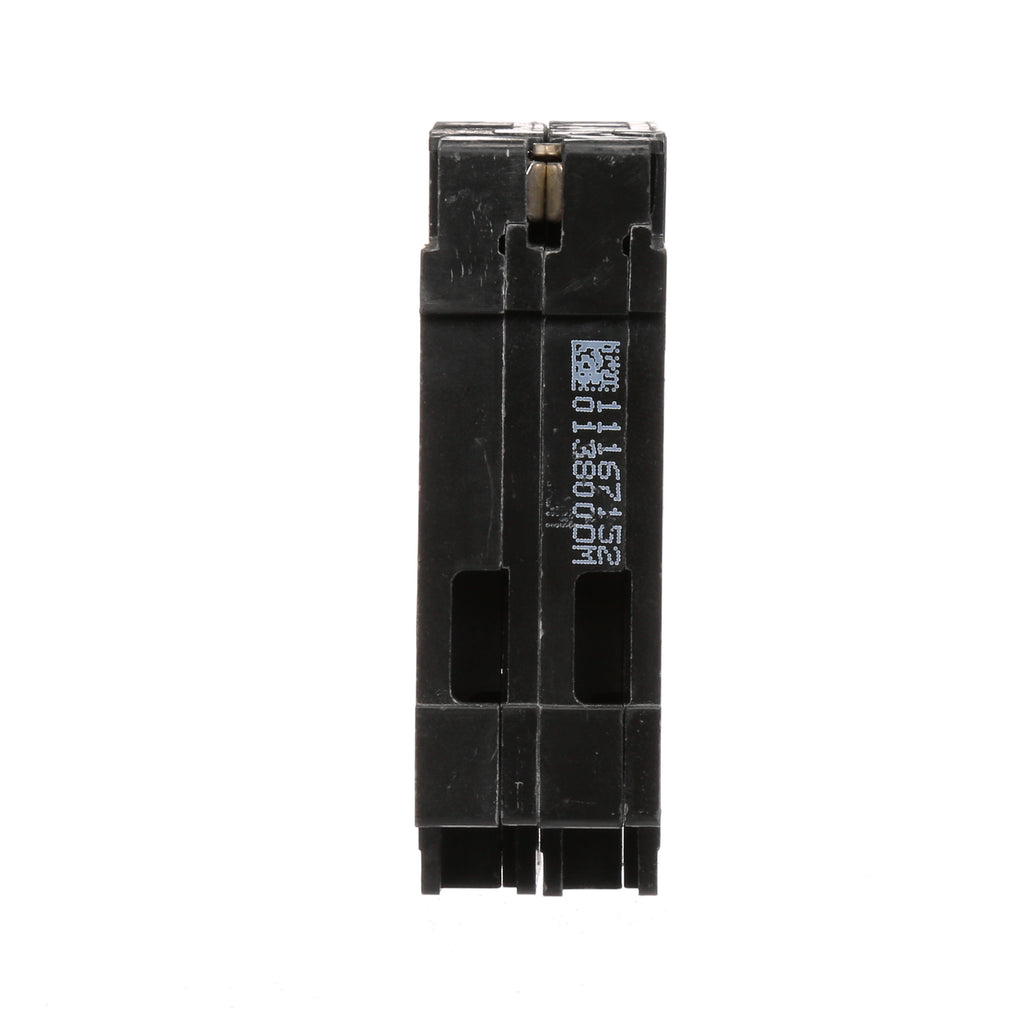

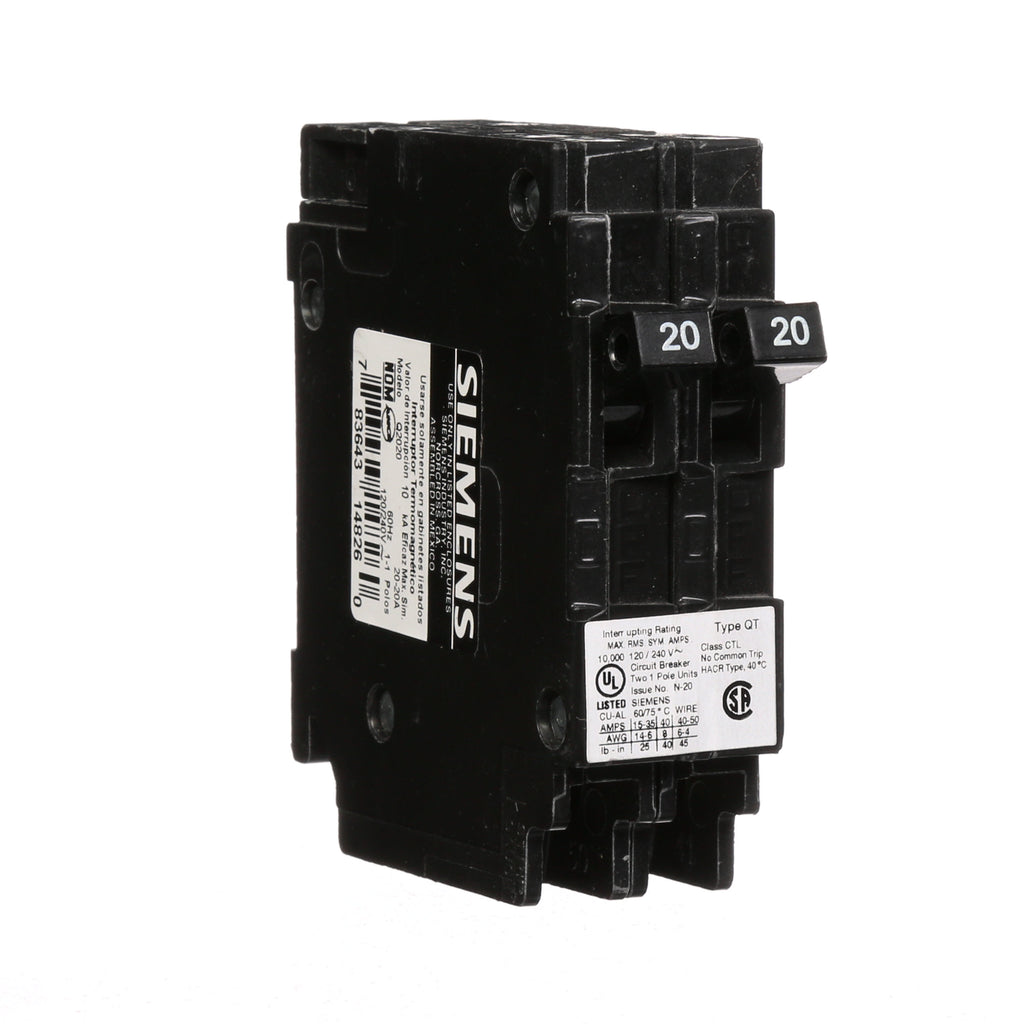

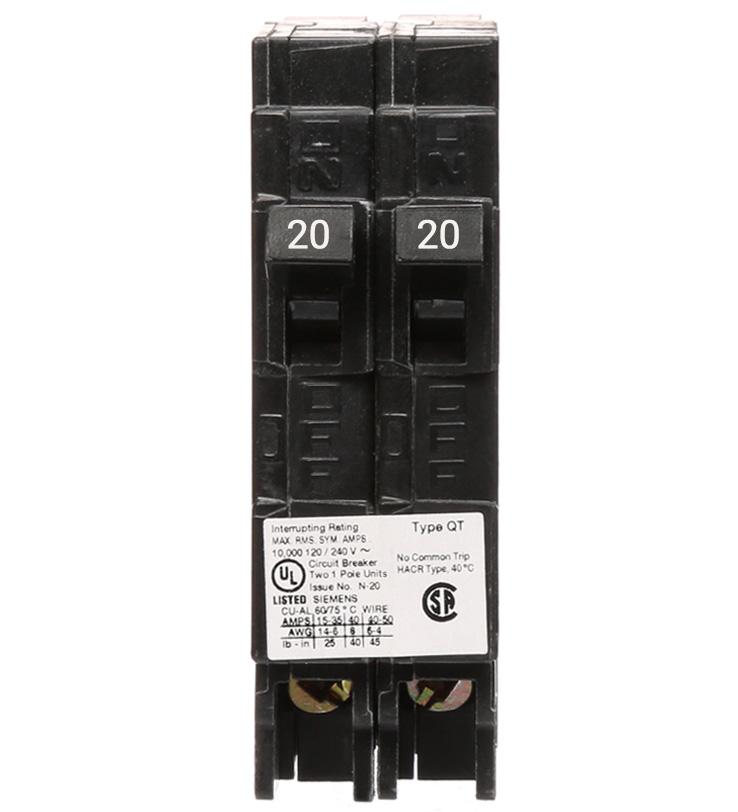

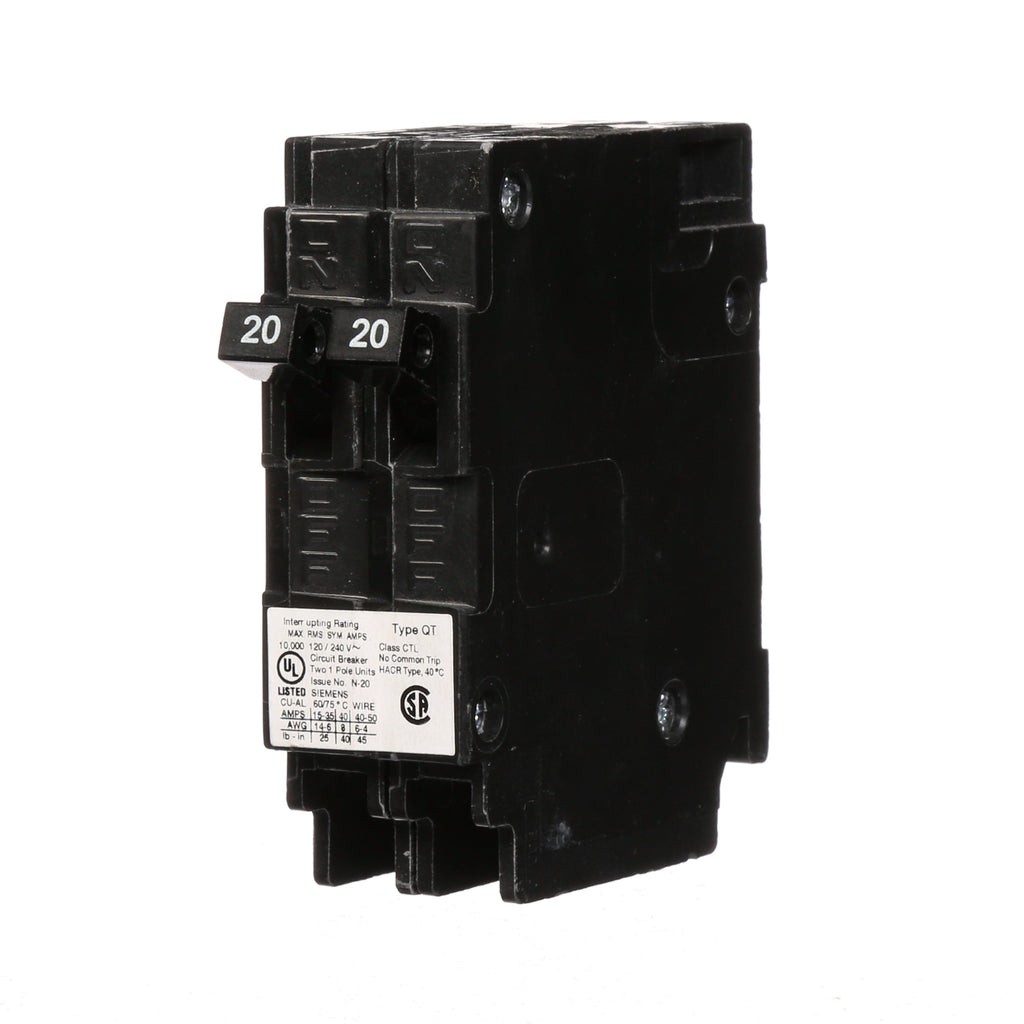

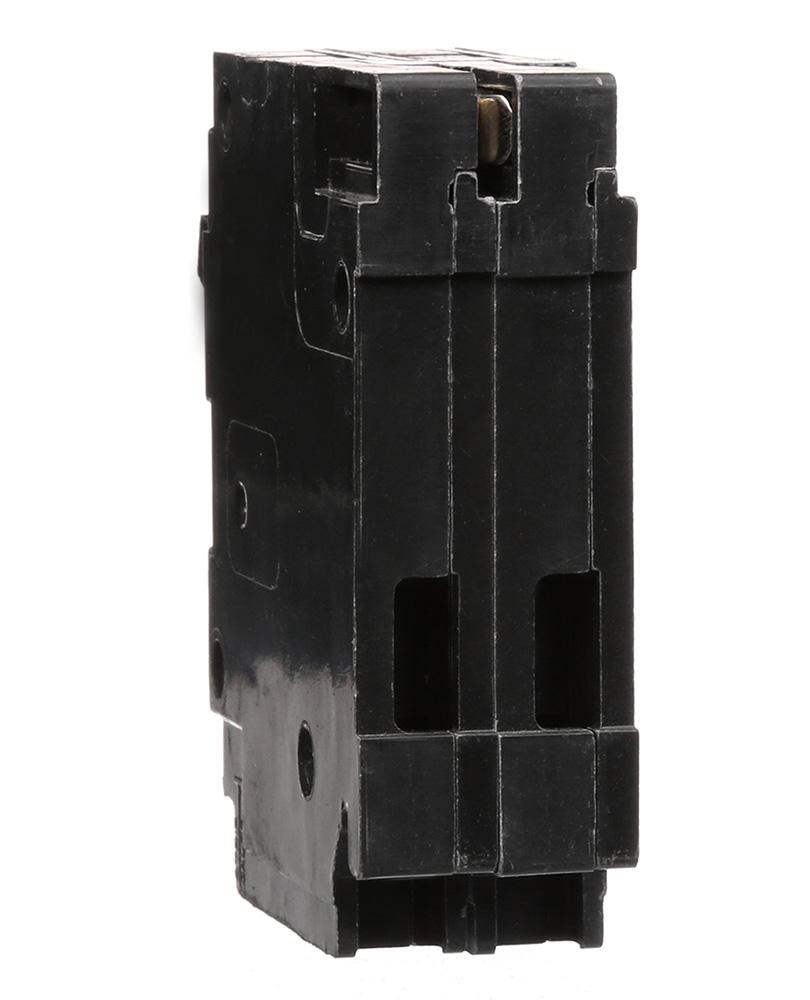

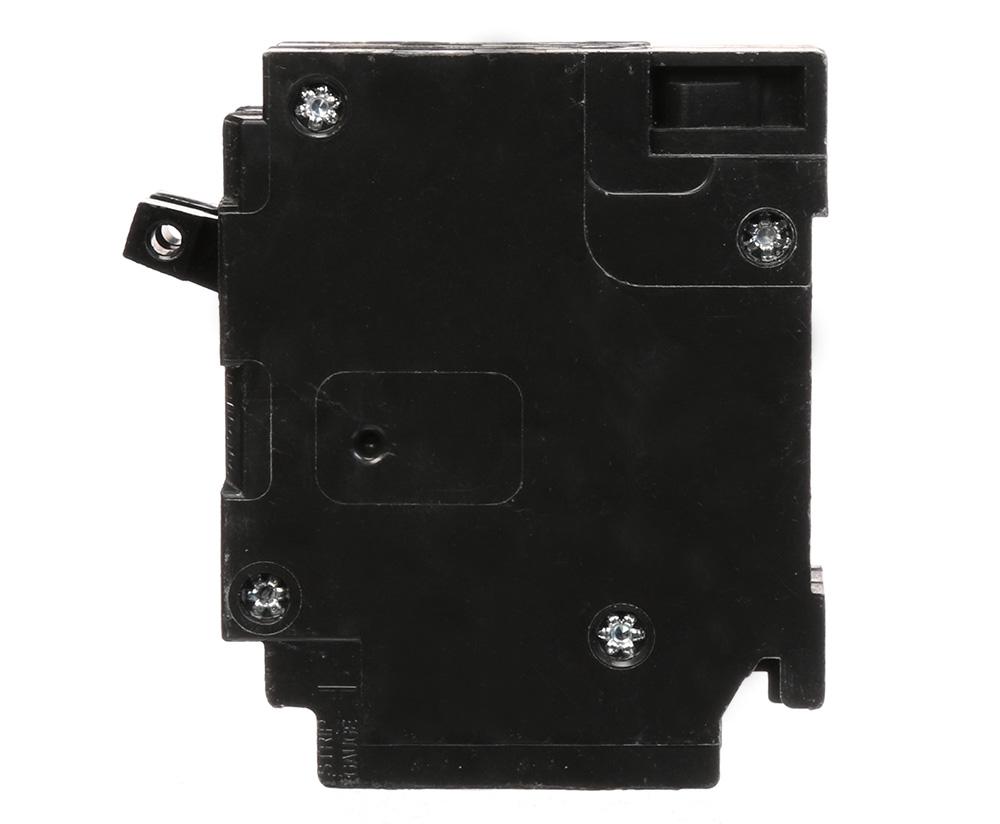

Q2020 is a Siemens 20 Amp tandem circuit breaker designed for 120/240 Volt electrical distribution applications.This Type QT tandem breaker features two single poles in the space of one, providing a space-saving solution for panelboards. It has a 10,000 Amp interrupt rating and is compatible with Siemens load centers including EQ, EQL, SEQ, EQG, PL, and ES series. The breaker is plug-in mounted and UL listed for safety and reliability.
- Amperage: 20 Amp per pole (2 poles)
- Voltage: 120/240 VAC
- Poles: 2 Single Pole (Tandem)
- Mounting Type: Plug-In
- Interrupt Rating: 10,000 AIC
- Series/Frame: Type QT
- Trip Unit: Thermal Magnetic
- Certifications: UL Listed, CSA Approved
- Dimensions: Approximately 3" H x 1" W x 3" L
- Compatible with Siemens EQ, EQL, SEQ, EQG, PL, ES load centers
Specifications
- Part Number: Q2020
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QT
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Plug-In
- Breaker Type : QT
- Protection : Thermal Magnetic
Product Data
- UPC : 783643148260
- GTIN : 00783643148260
- Country of Origin : Mexico
- Dimensions : 12.598 x 3.543 x 3.15 inch
- Weight : 0.375
- Standards : UL 489
- Certification : UL Listed
