Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q170

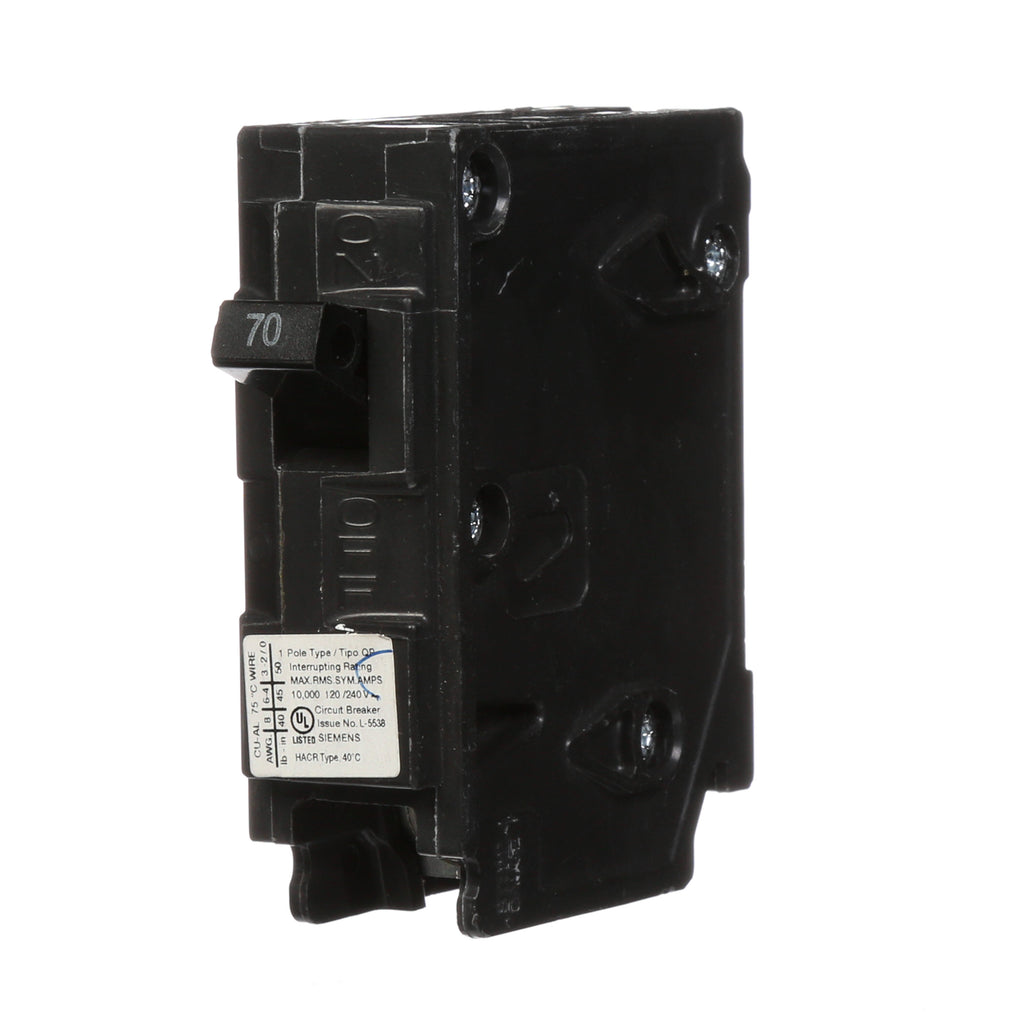

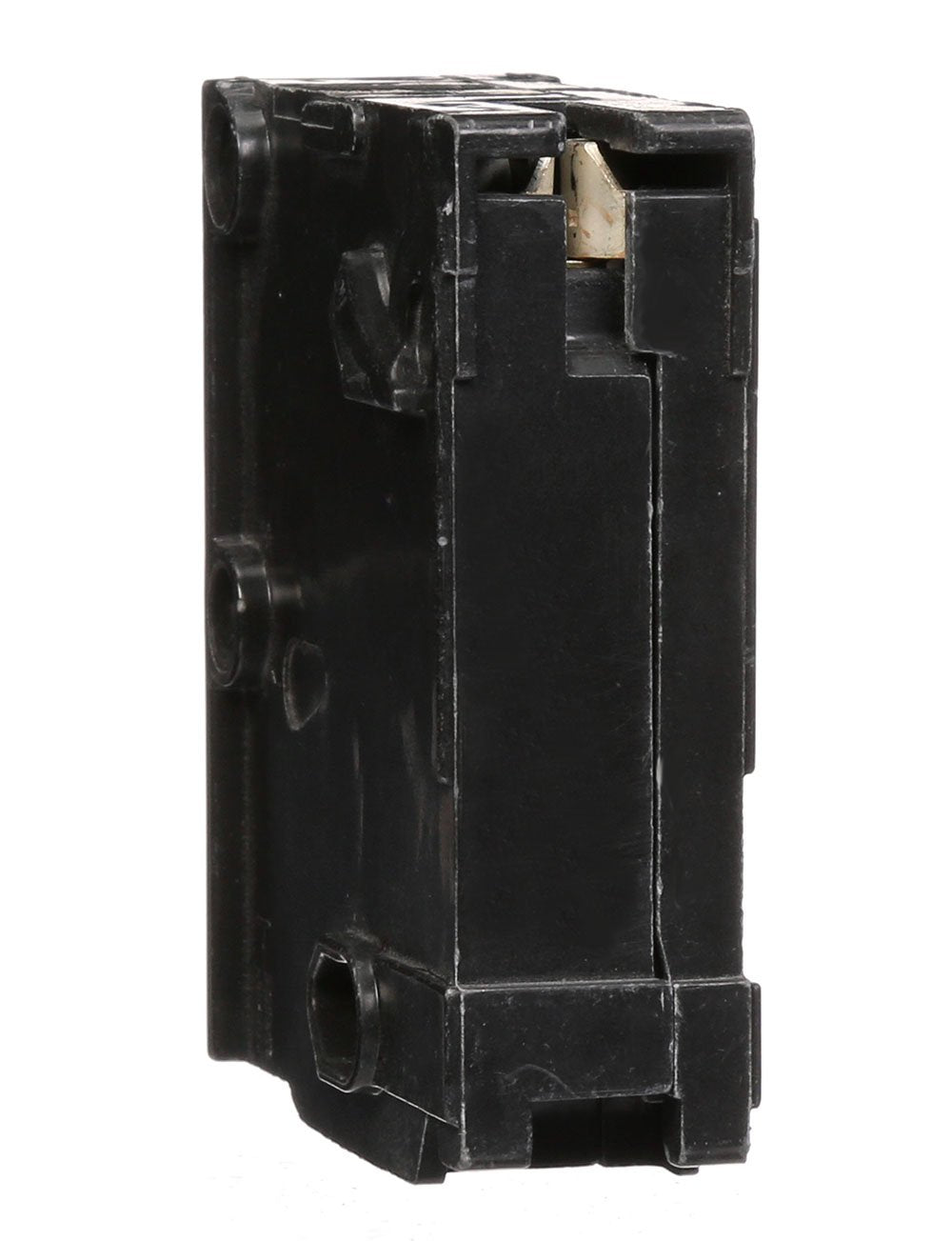

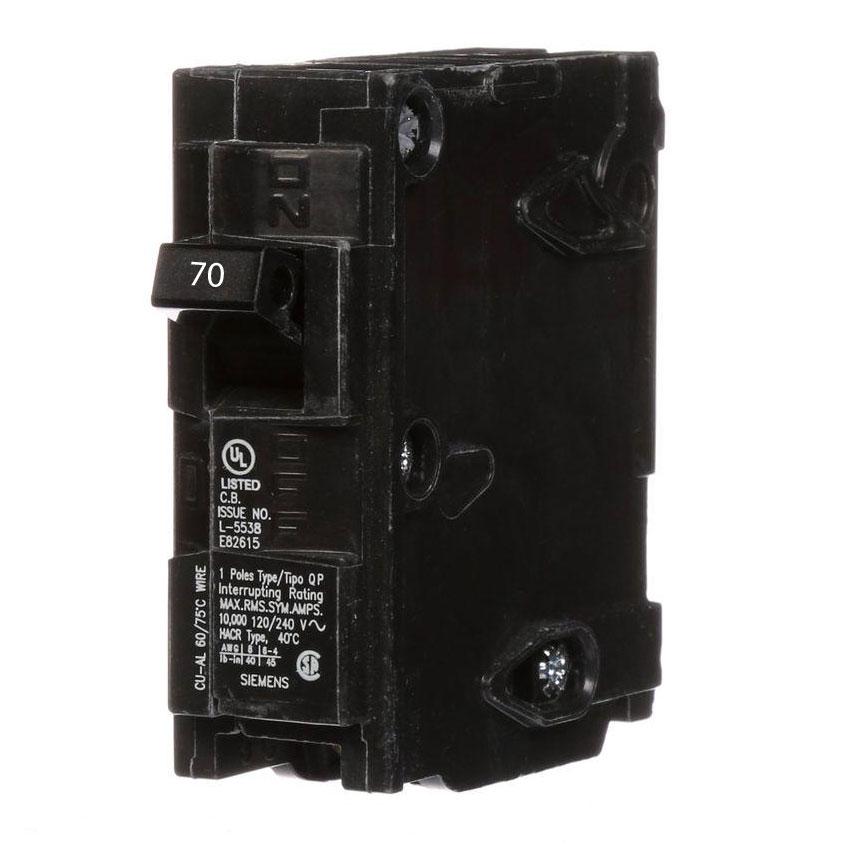

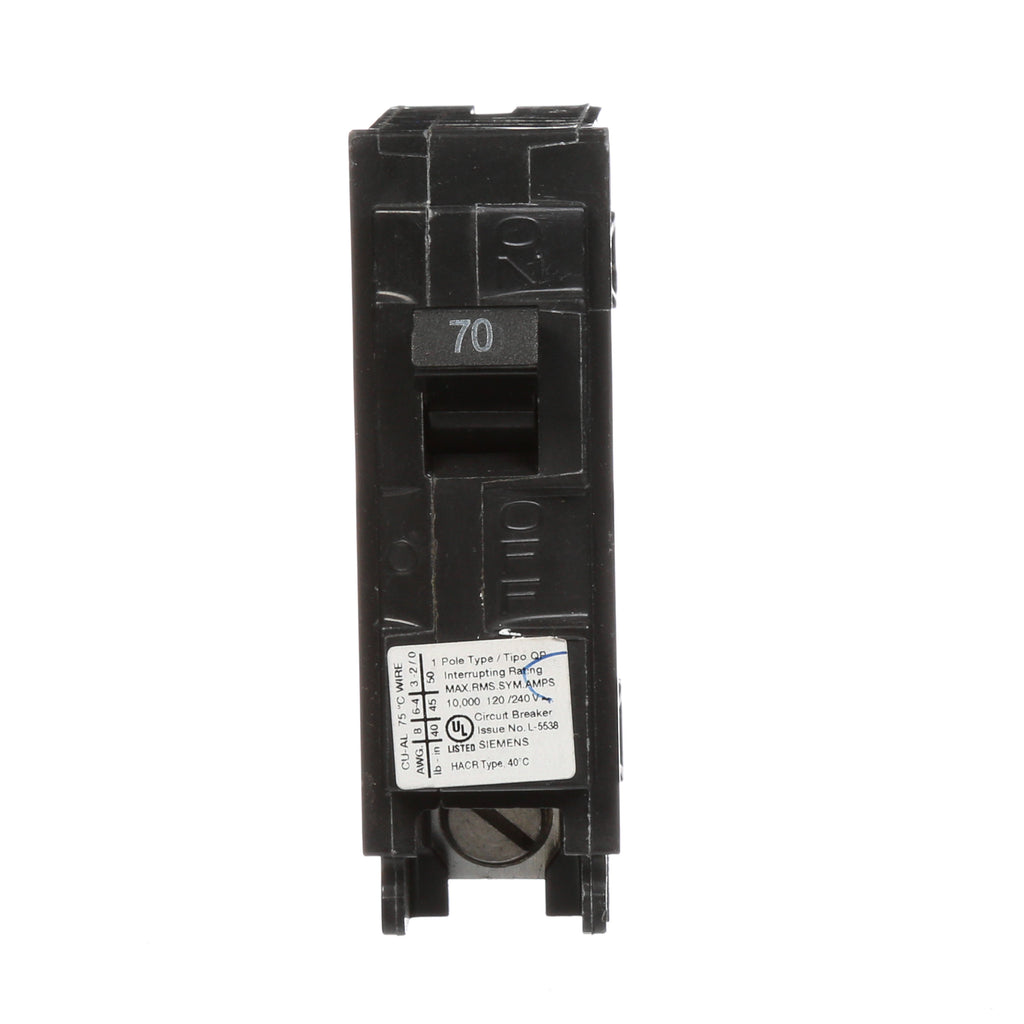

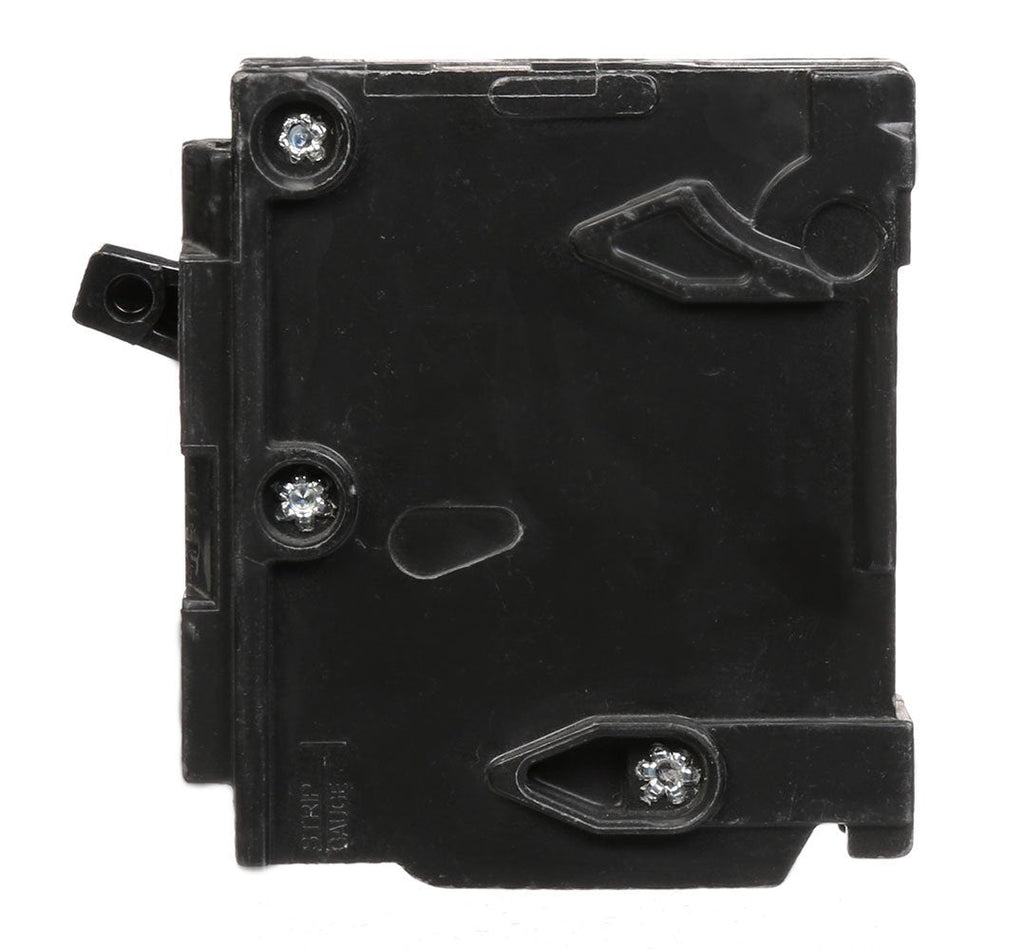

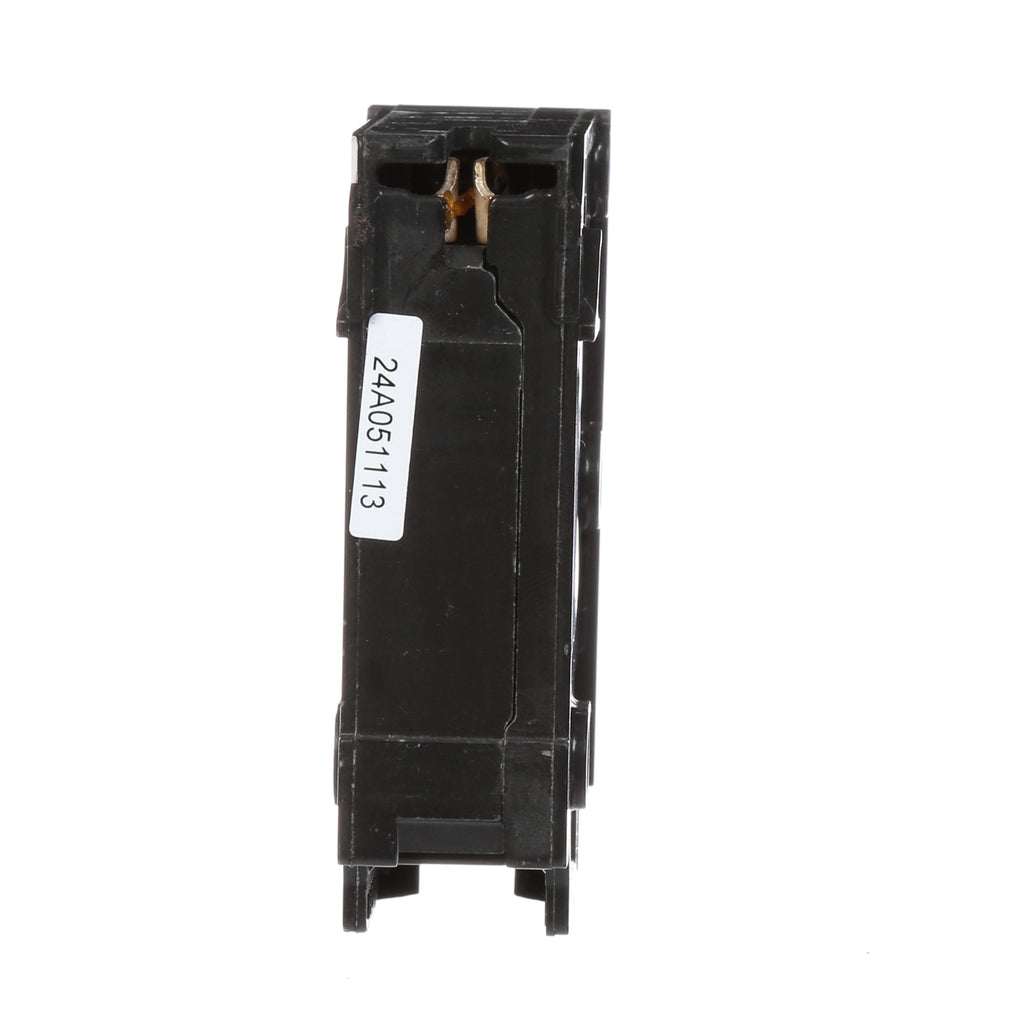

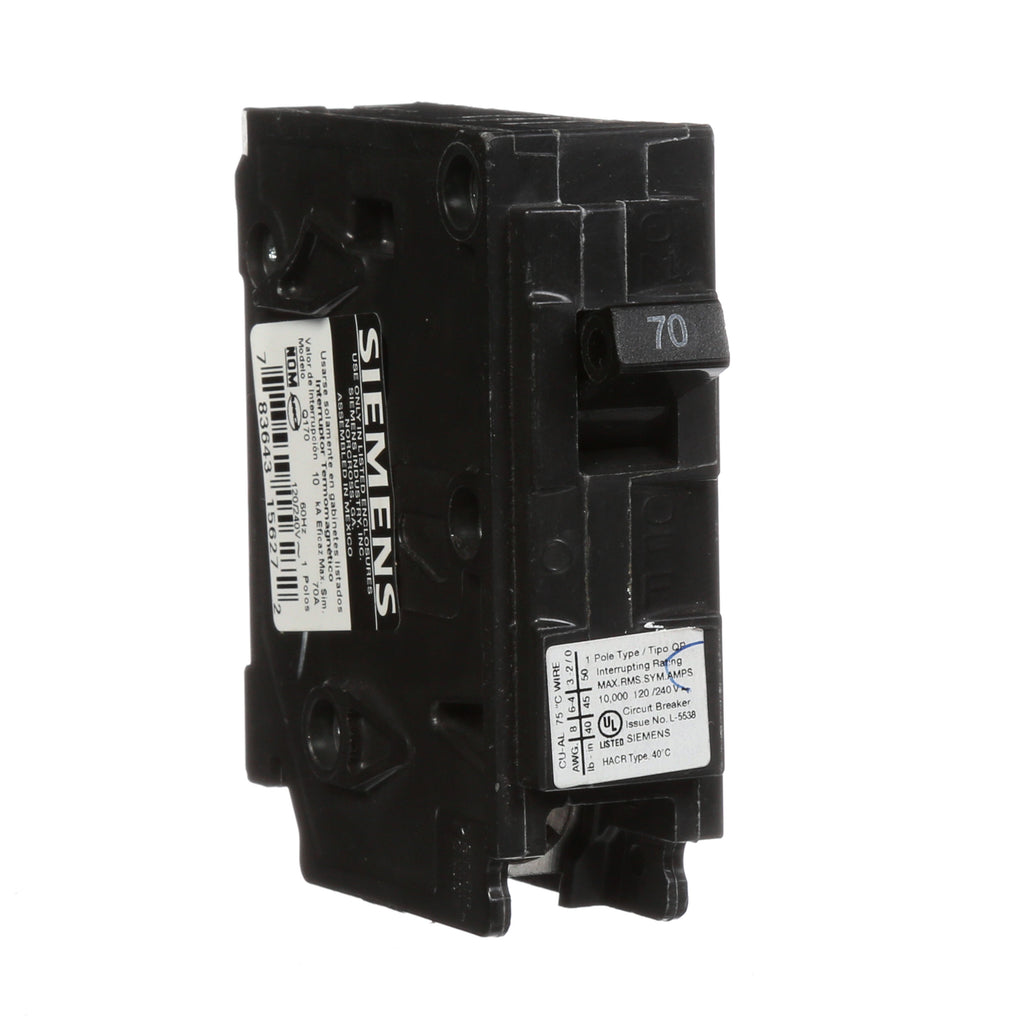

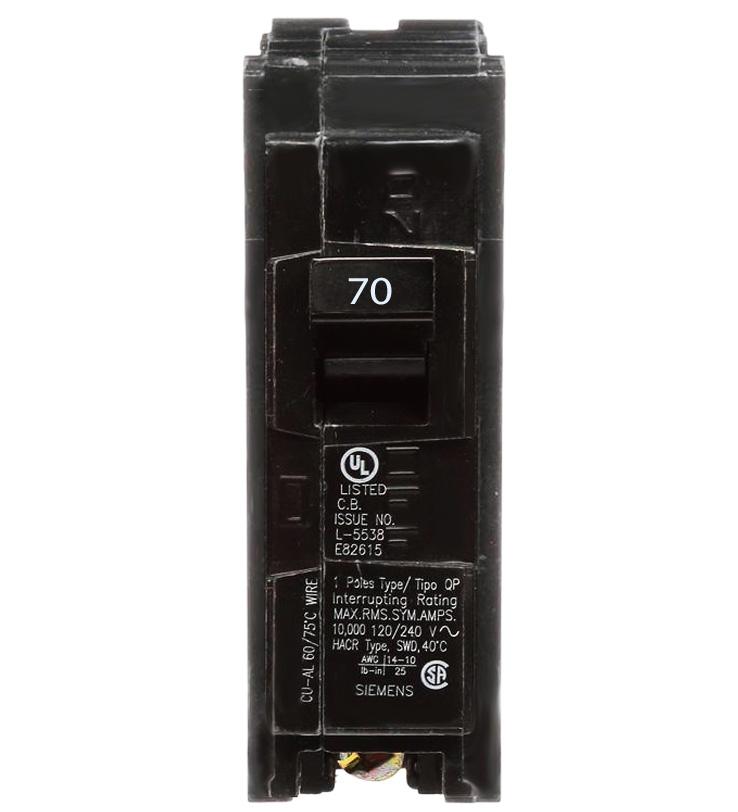

Q170 is a Siemens 70 amp, 120 volt, 1-pole plug-in circuit breaker designed for residential and light commercial electrical distribution.This molded case circuit breaker features a thermal magnetic trip unit and a 10,000 AIC interrupt rating. It is part of the QP/MP series frame and mounts via plug-in connection. The breaker is UL listed, CSA, and NOM certified, suitable for protecting electrical circuits in load centers and panelboards.
- Amperage Rating: 70A
- Voltage Rating: 120V AC
- Number of Poles: 1
- Interrupt Rating: 10,000 AIC
- Trip Unit: Thermal Magnetic
- Mounting Type: Plug-In
- Series/Frame: QP/MP (125A frame)
- Standards: UL Listed, CSA, NOM Certified
- Frequency: 50/60 Hz
- Conductor Size: 8-4 AWG (Copper), 8-2 AWG (Aluminum)
- Application: Electrical Distribution
- UPC: 783643156272
Specifications
- Part Number: Q170
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 120
- Amperage : 70
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 078364315627
- GTIN : 7.83643E+11
- Country of Origin : Mexico
- Dimensions : 2.756 x 2.756 x 0.787 inch
- Weight : 0.309
