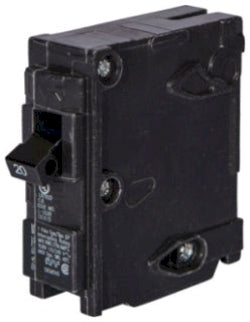

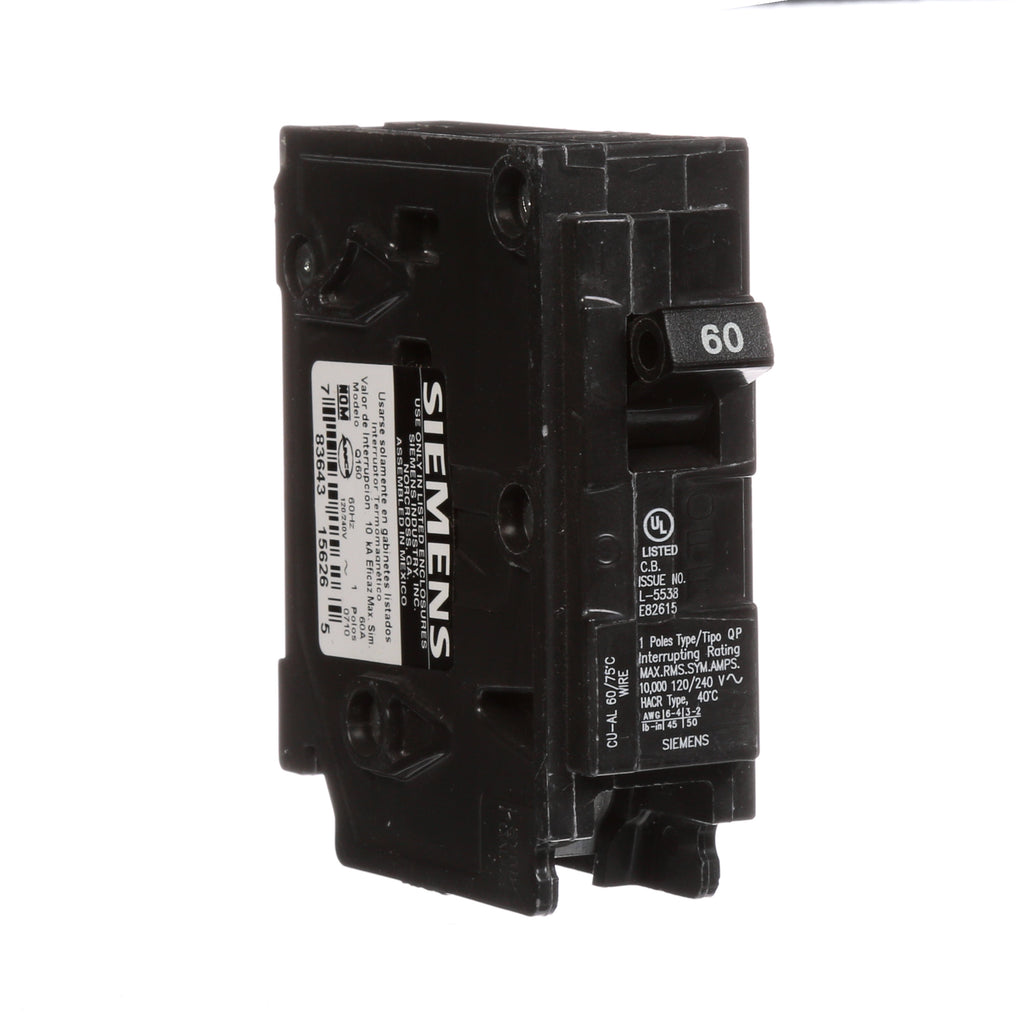

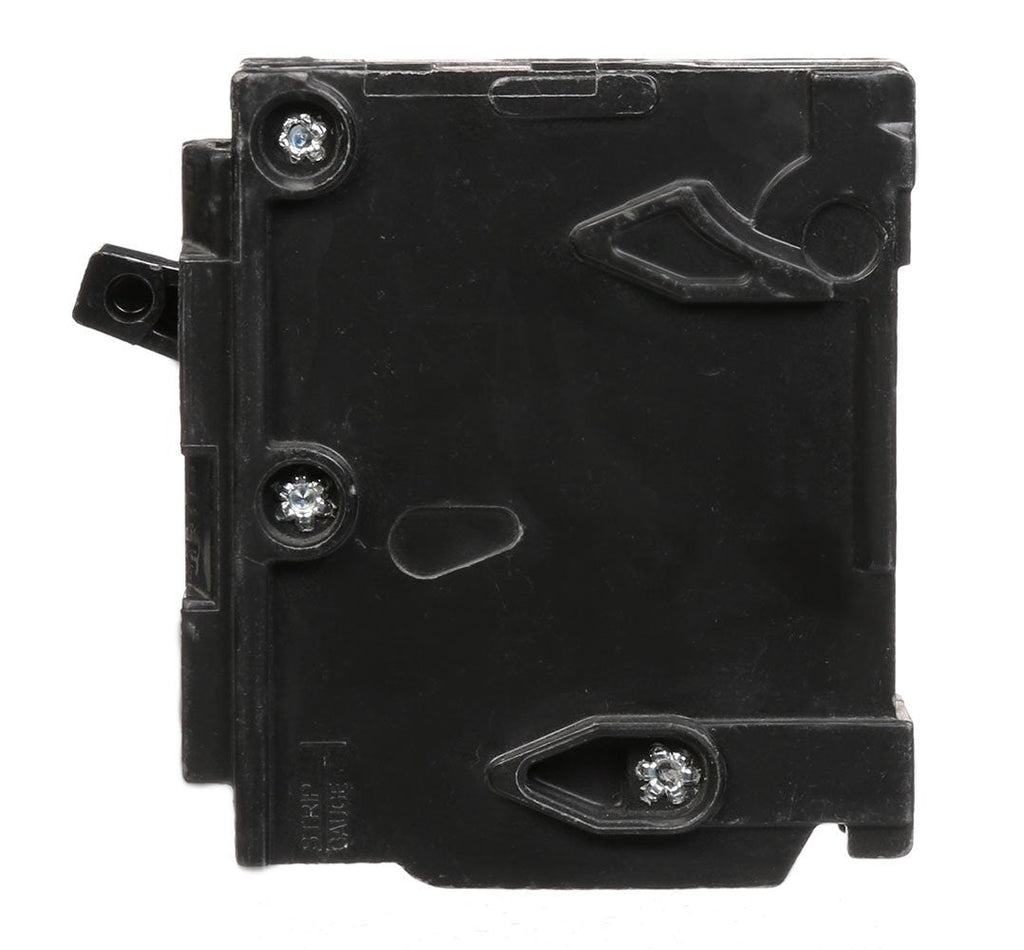

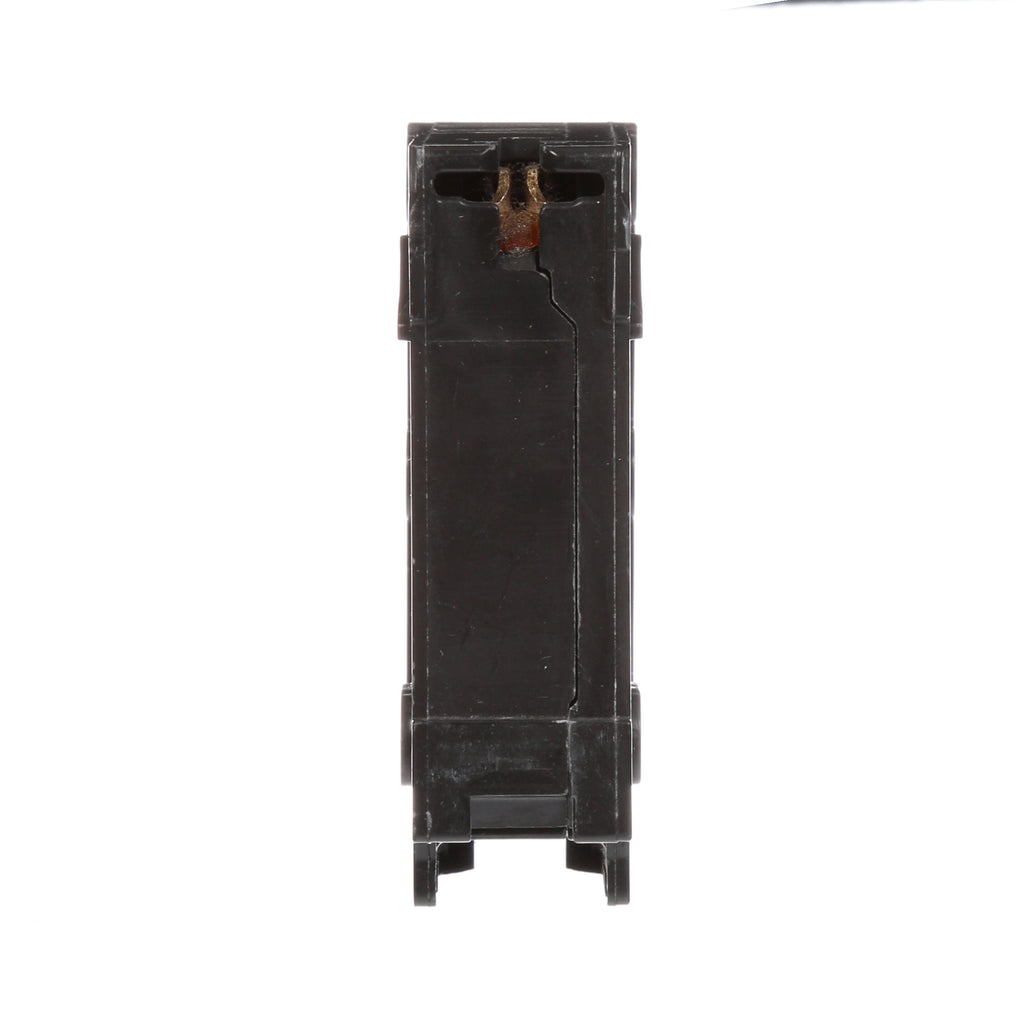

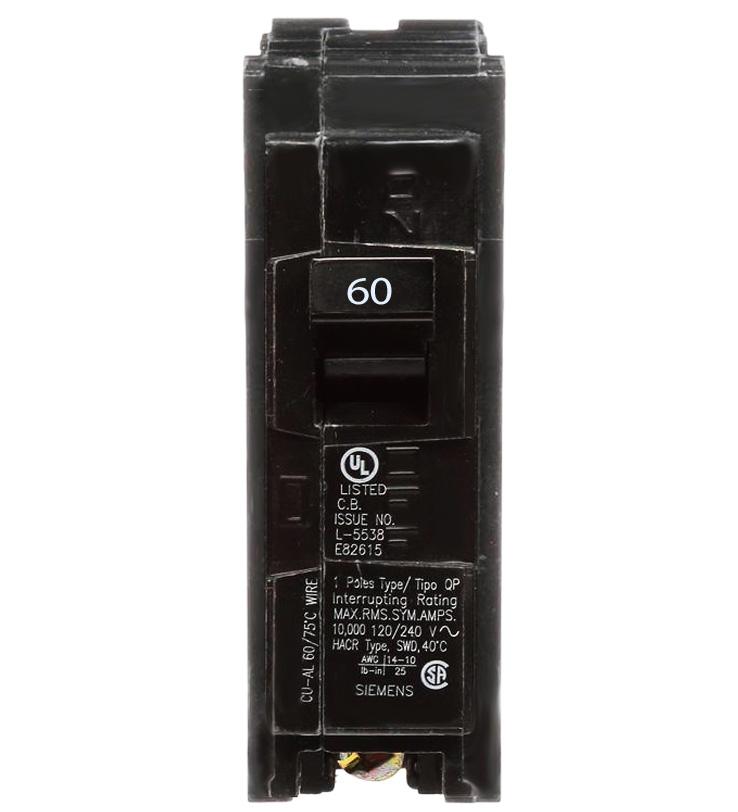

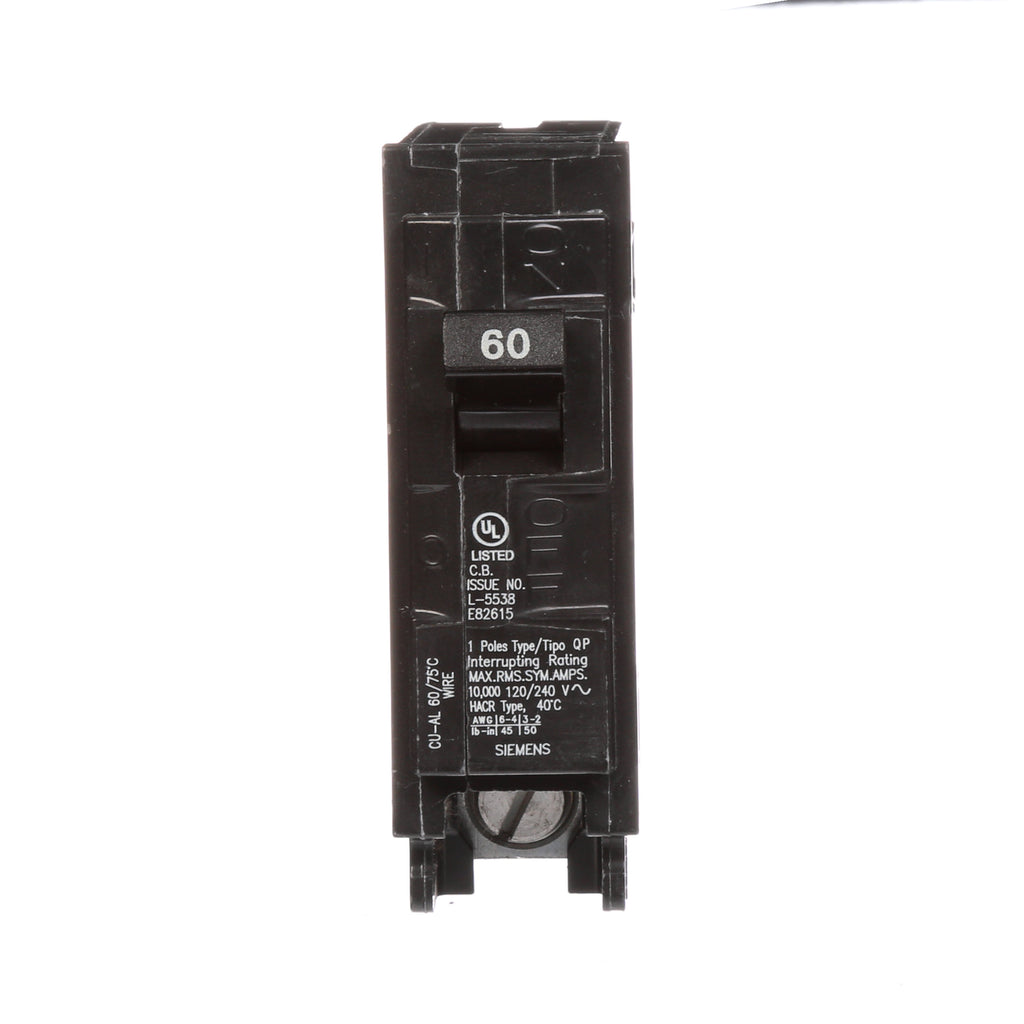

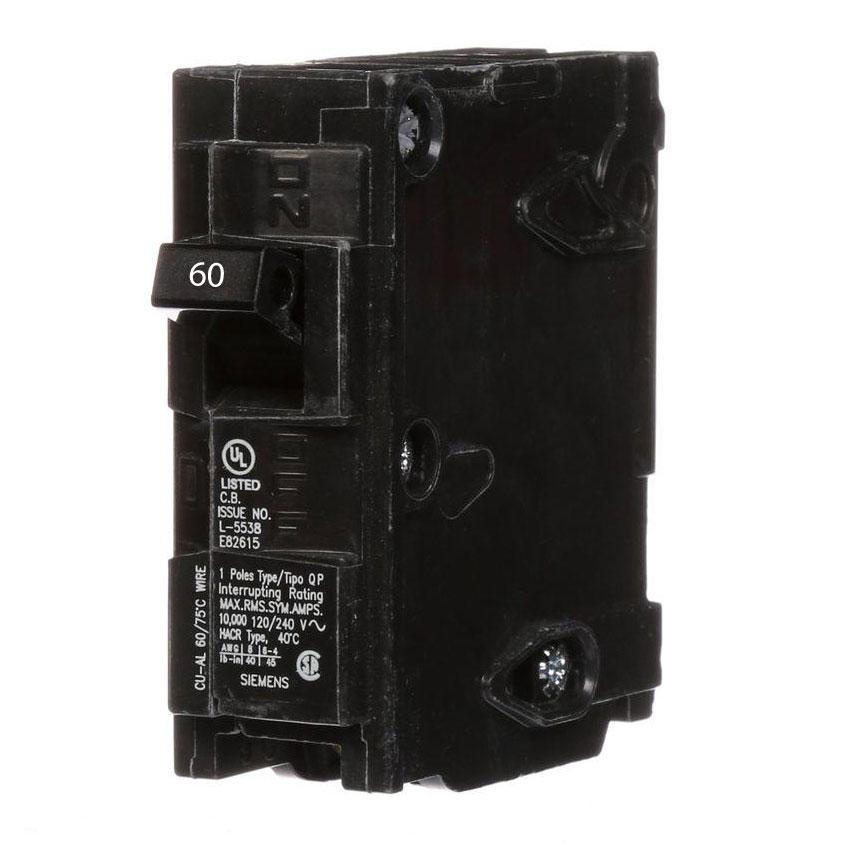

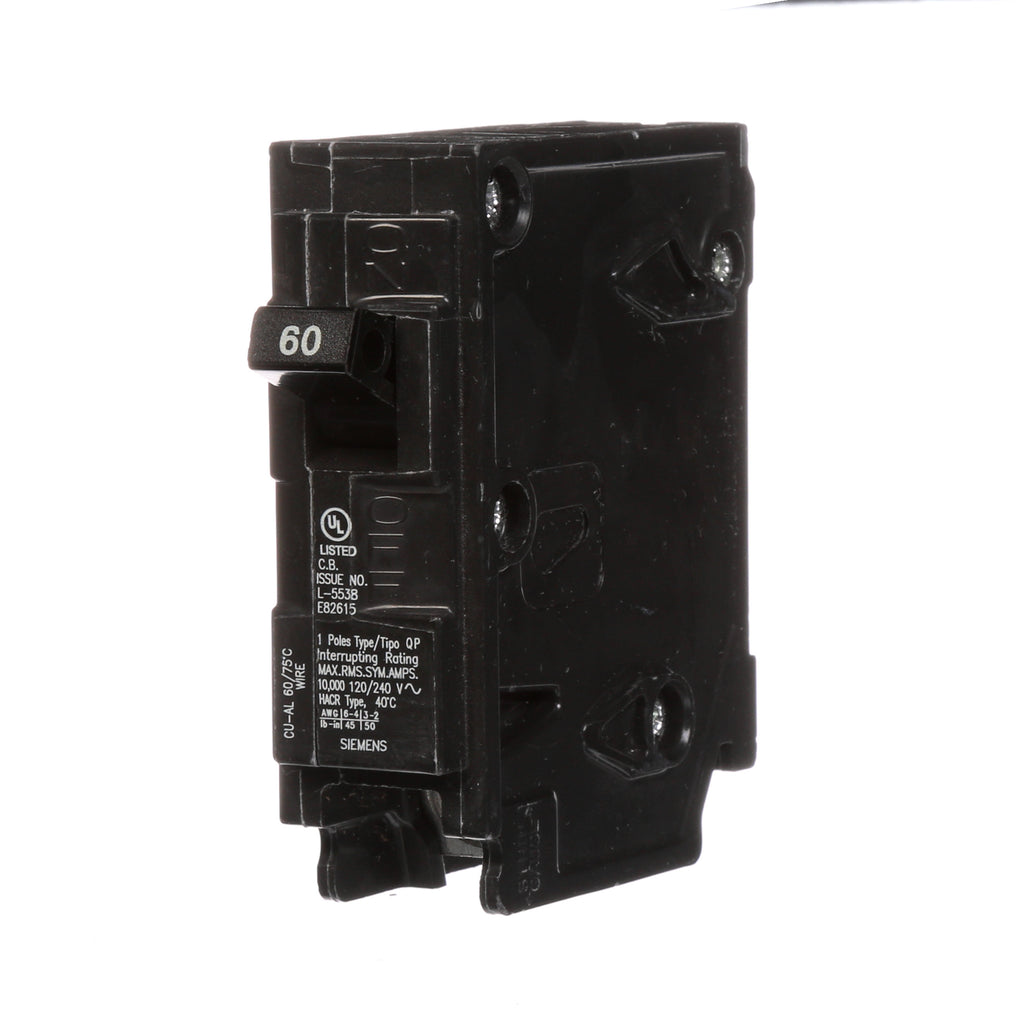

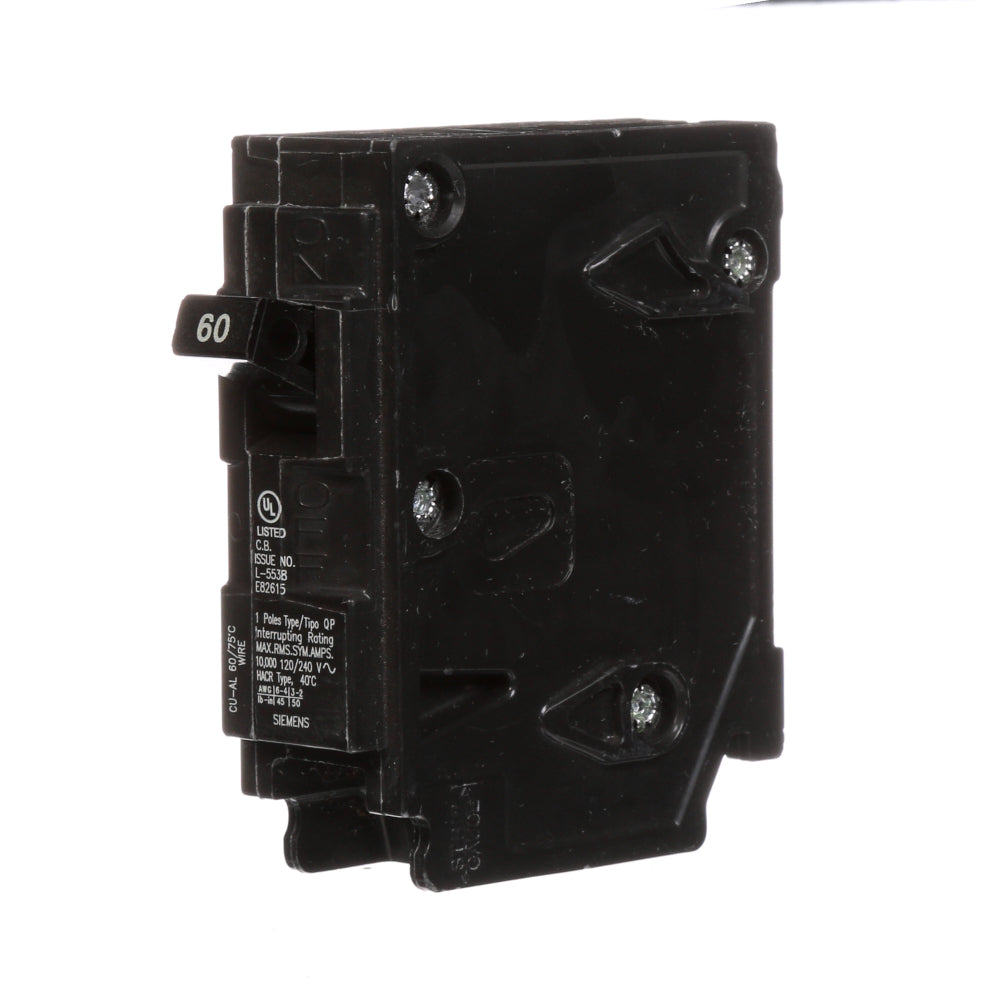

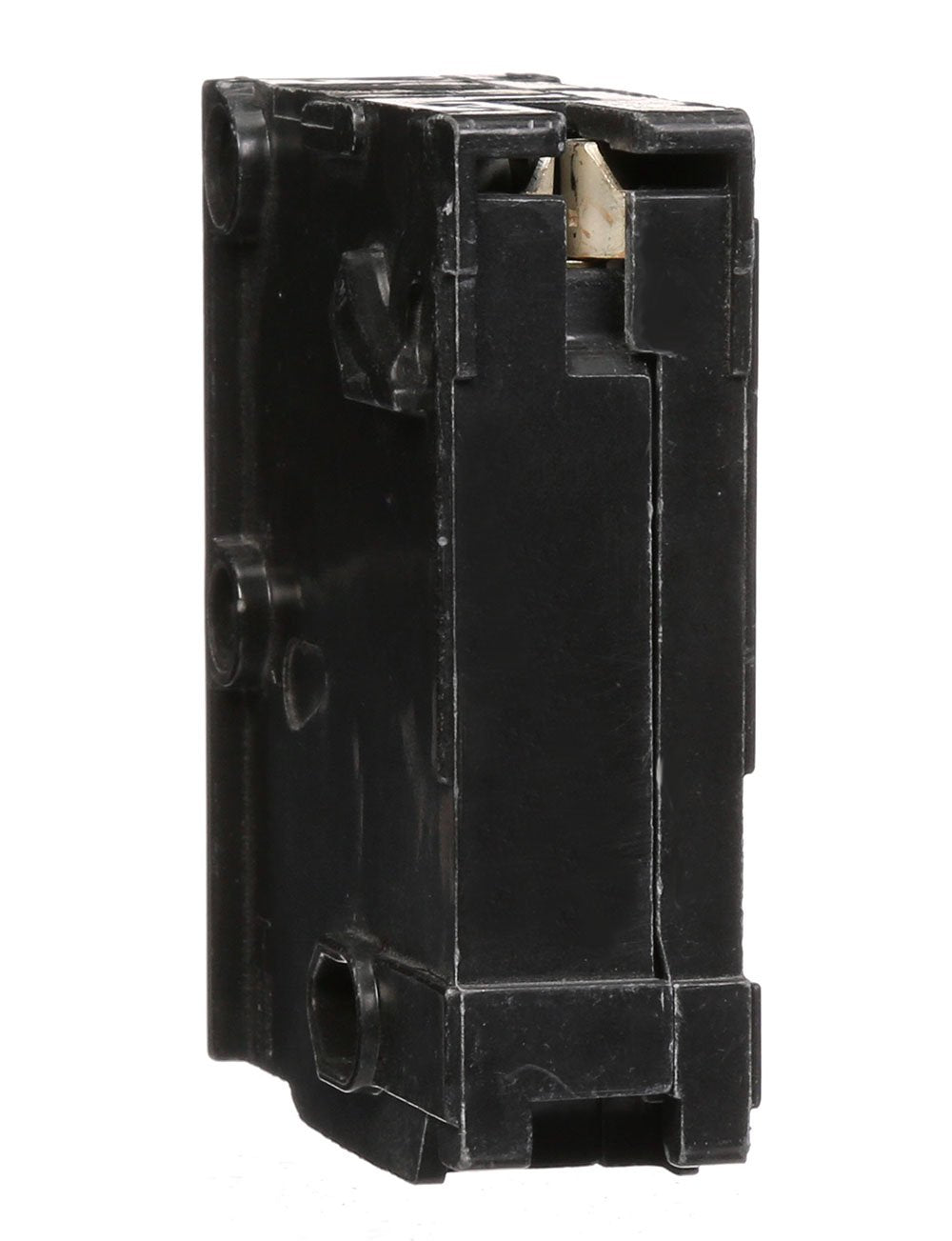

Q160 - Siemens 60 Amp 120 Volt 1 Pole Molded Case Circuit Breaker Plug-In QP Frame

Q160

Q160 is a Siemens 60 Amp, 120 Volt, 1 Pole molded case circuit breaker designed for reliable electrical protection.This Siemens Q160 circuit breaker features a plug-in connection type with a QP/MP frame, thermal magnetic trip unit, and a 10 kA interrupt rating. It is rated for single-phase 120 VAC operation at 50/60 Hz frequency and supports wire sizes from 8 to 4 AWG. The breaker is UL 489, CSA, and NOM certified and suitable for use in Siemens Type EQ, EQL, SEQ, EQG, PL, and ES series load centers. It has a NEMA 1/3R enclosure rating and operates at a temperature rating of 40°C.

Key Specifications
• Amperage: 60 A
• Voltage: 120 VAC
• Number of Poles: 1
• Frame Type: QP/MP
• Trip Unit: Thermal Magnetic
• Interrupt Rating: 10 kA
• Connection Type: Plug-In
• Wire Size Range: 8 to 4 AWG
• Frequency: 50/60 Hz
• Enclosure Type: NEMA 1/3R
• Certifications: UL 489, CSA, NOM
• Operating Temperature: 40°C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: Q160
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 120
• Amperage : 60
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : LI - Long-Time and Instantaneous Trip
• Protection : Thermal Magnetic



Product Data

• UPC : 783643156265
• GTIN : 00783643156265
• Country of Origin : Mexico
• Dimensions : 2.756 x 0.787 x 2.756 inch
• Weight : 0.309
