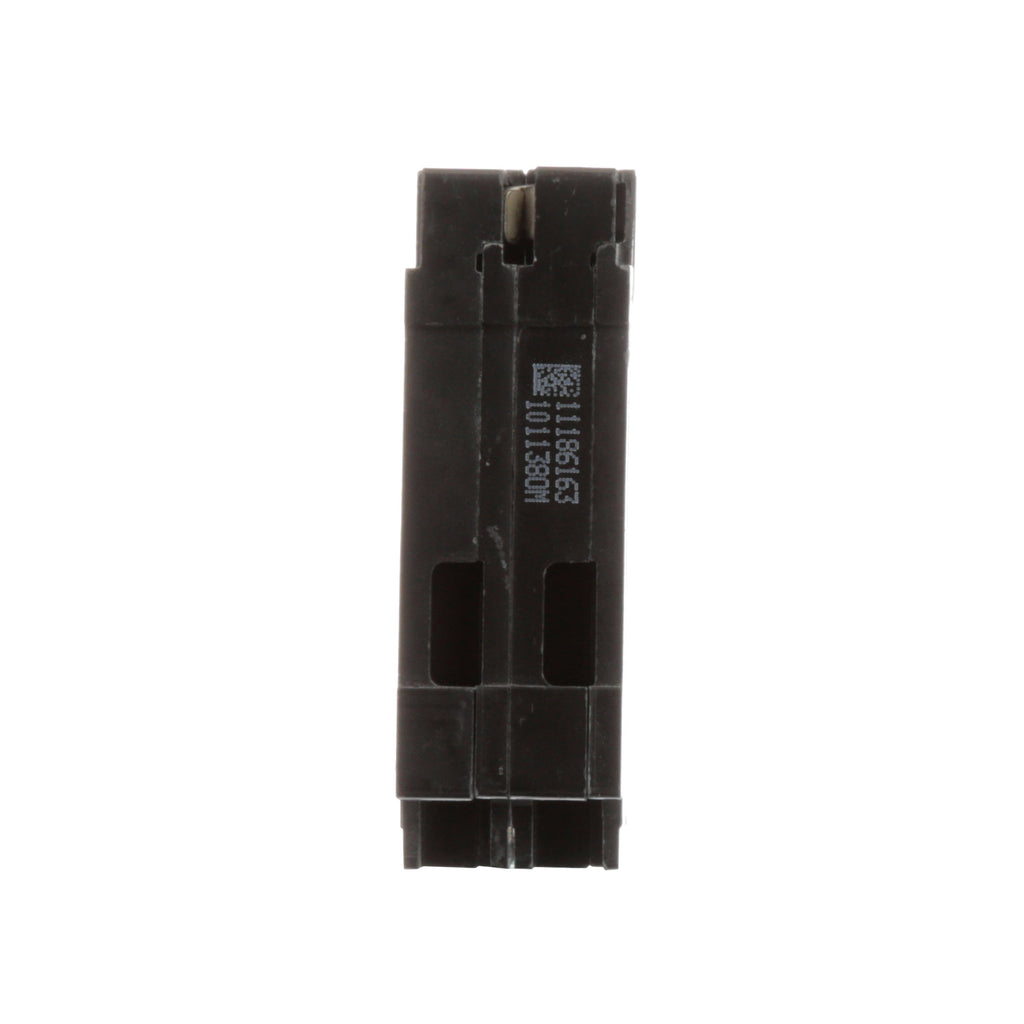

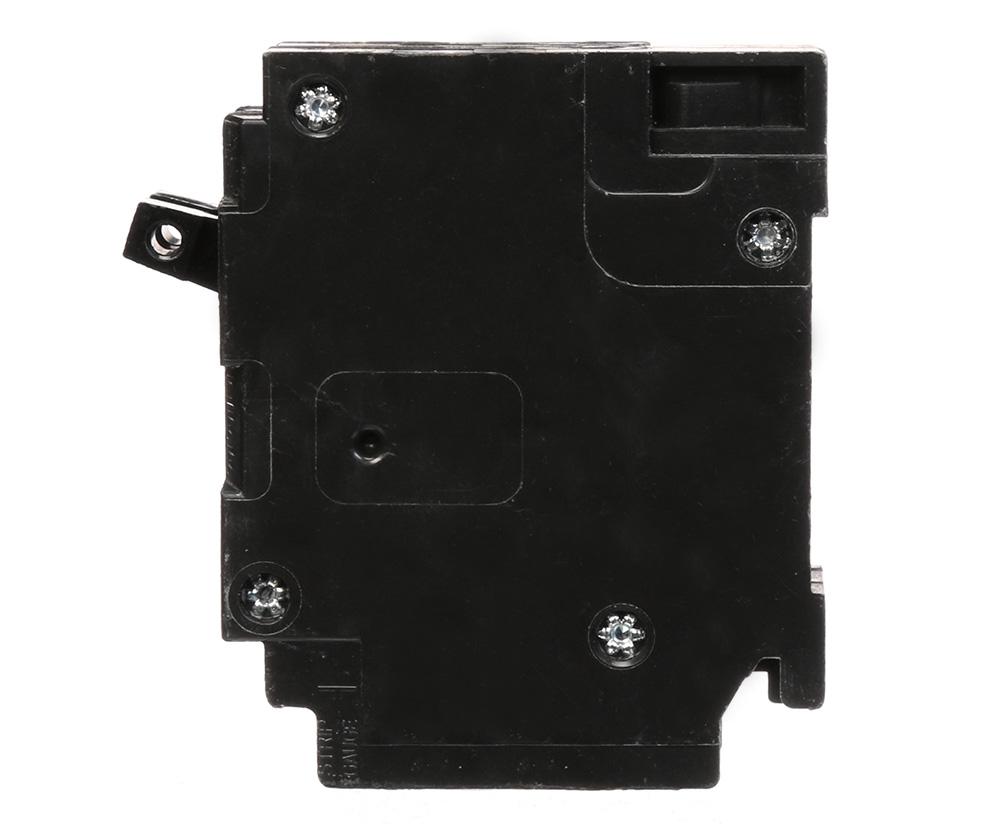

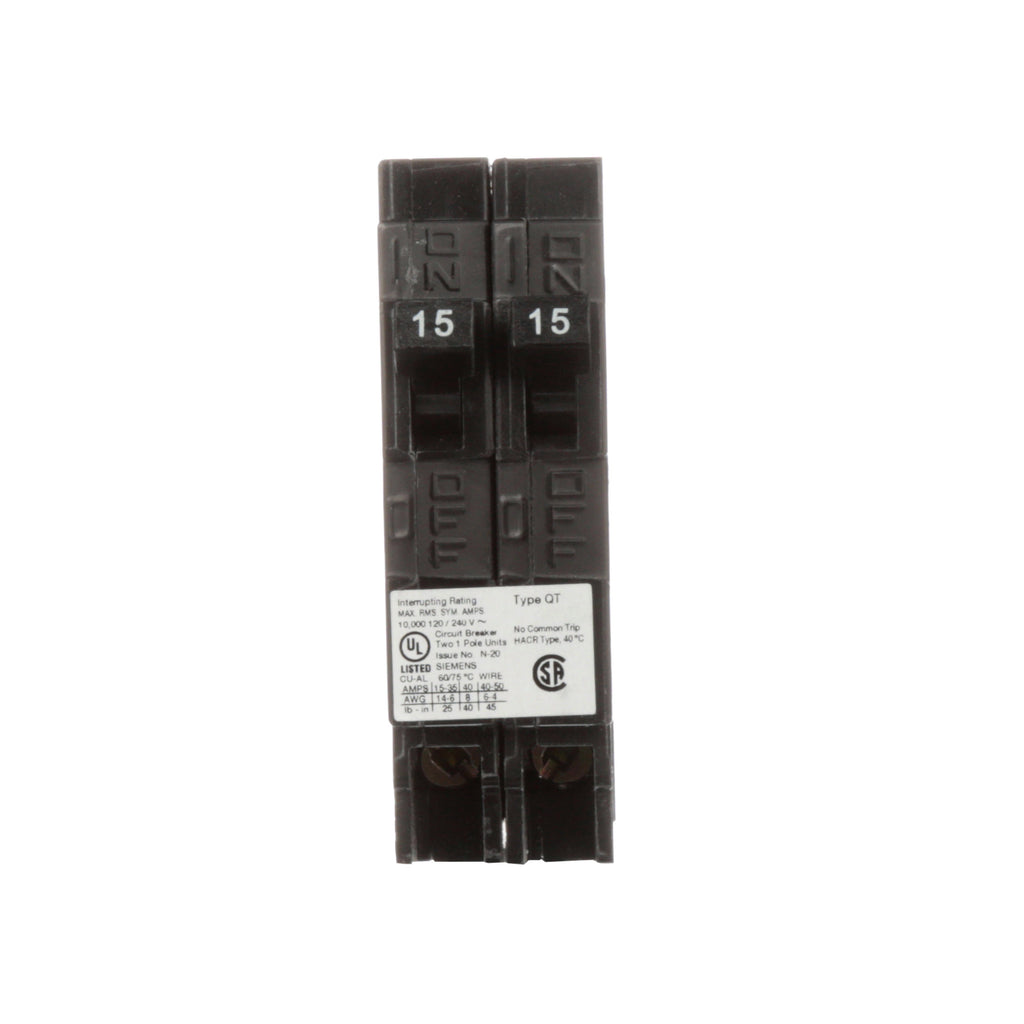

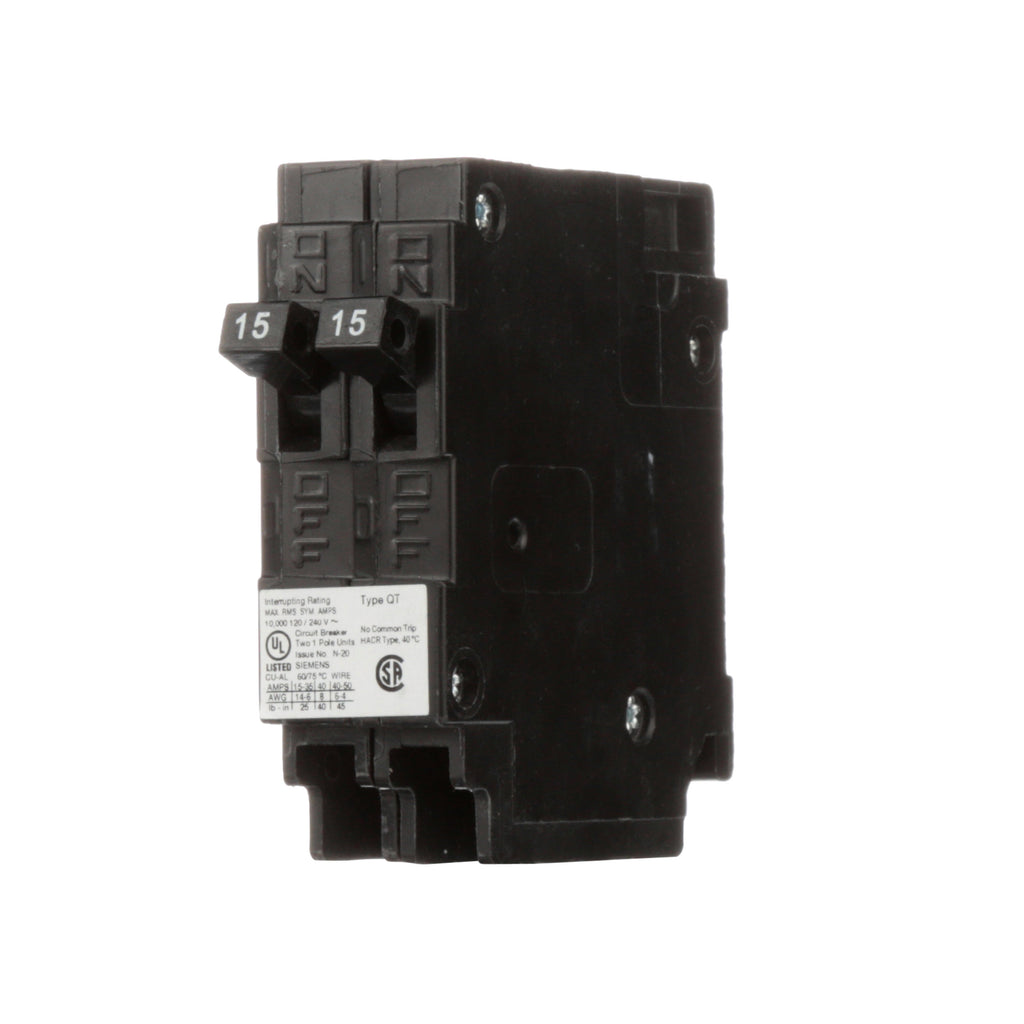

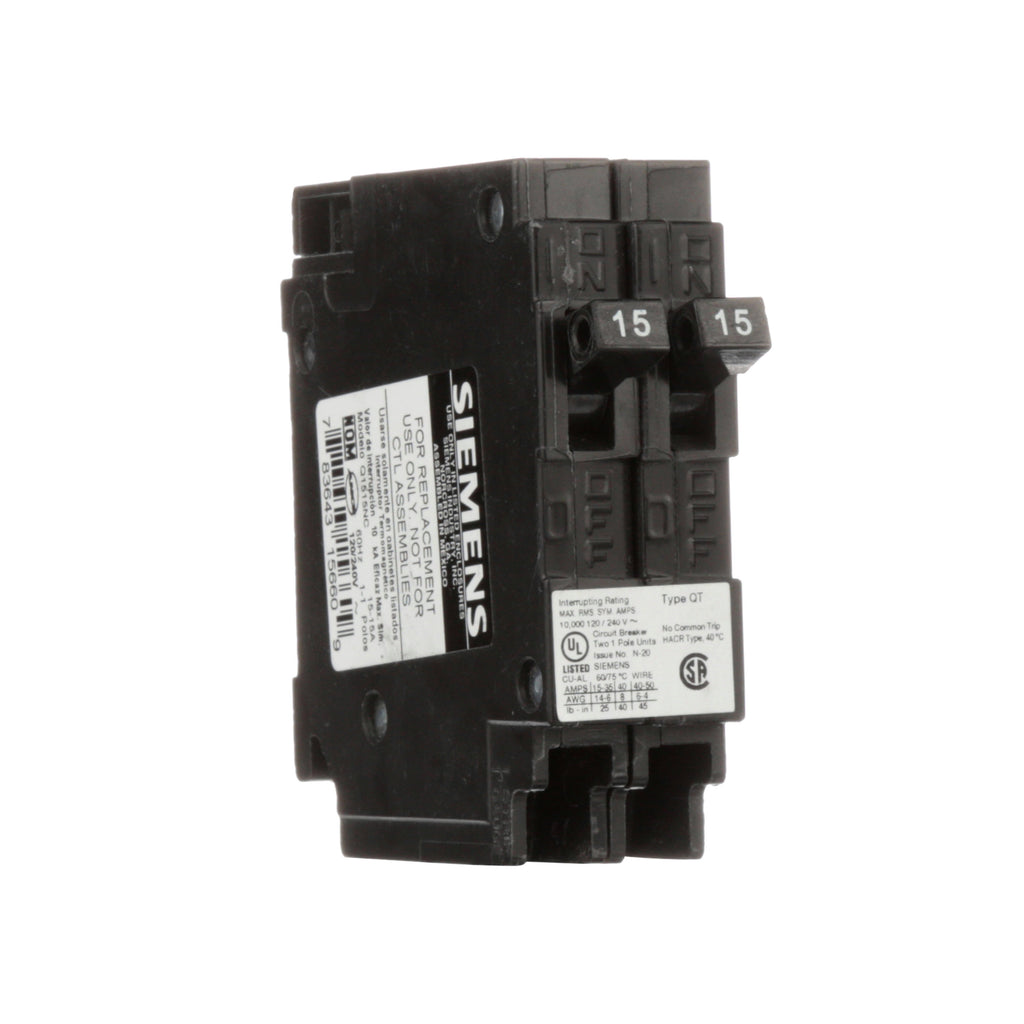

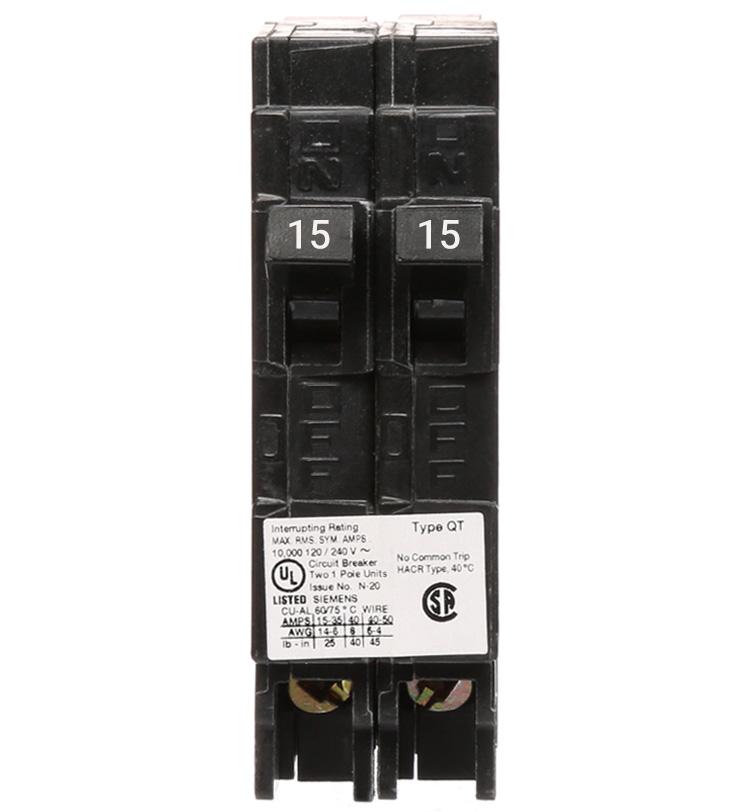

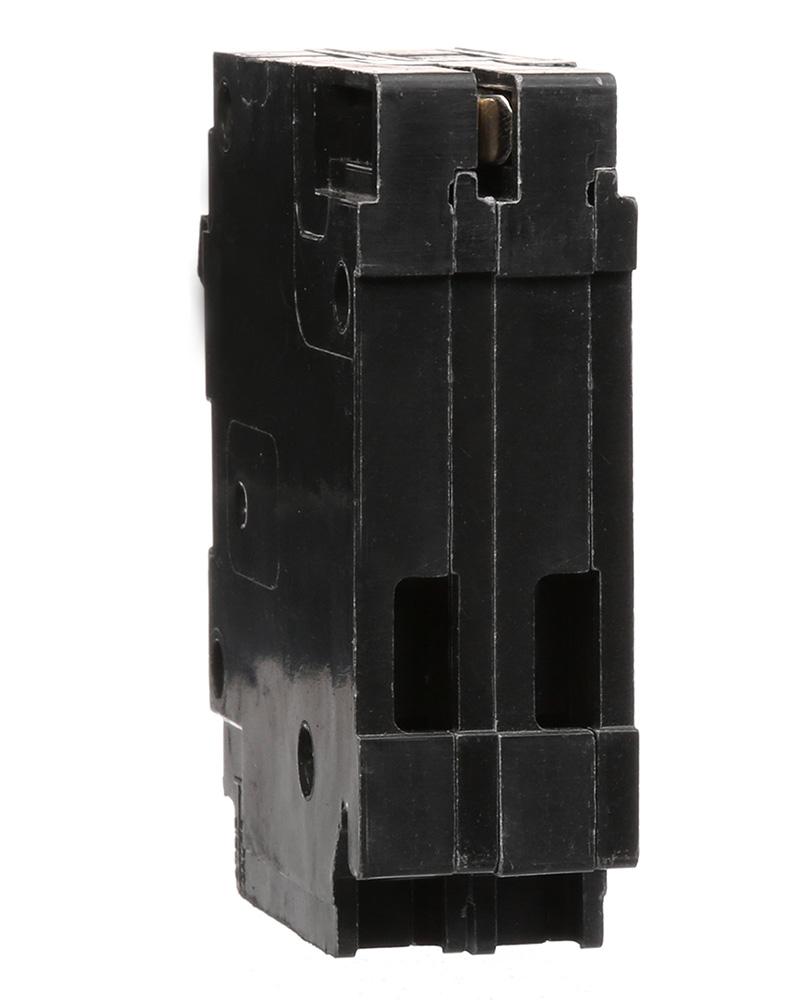

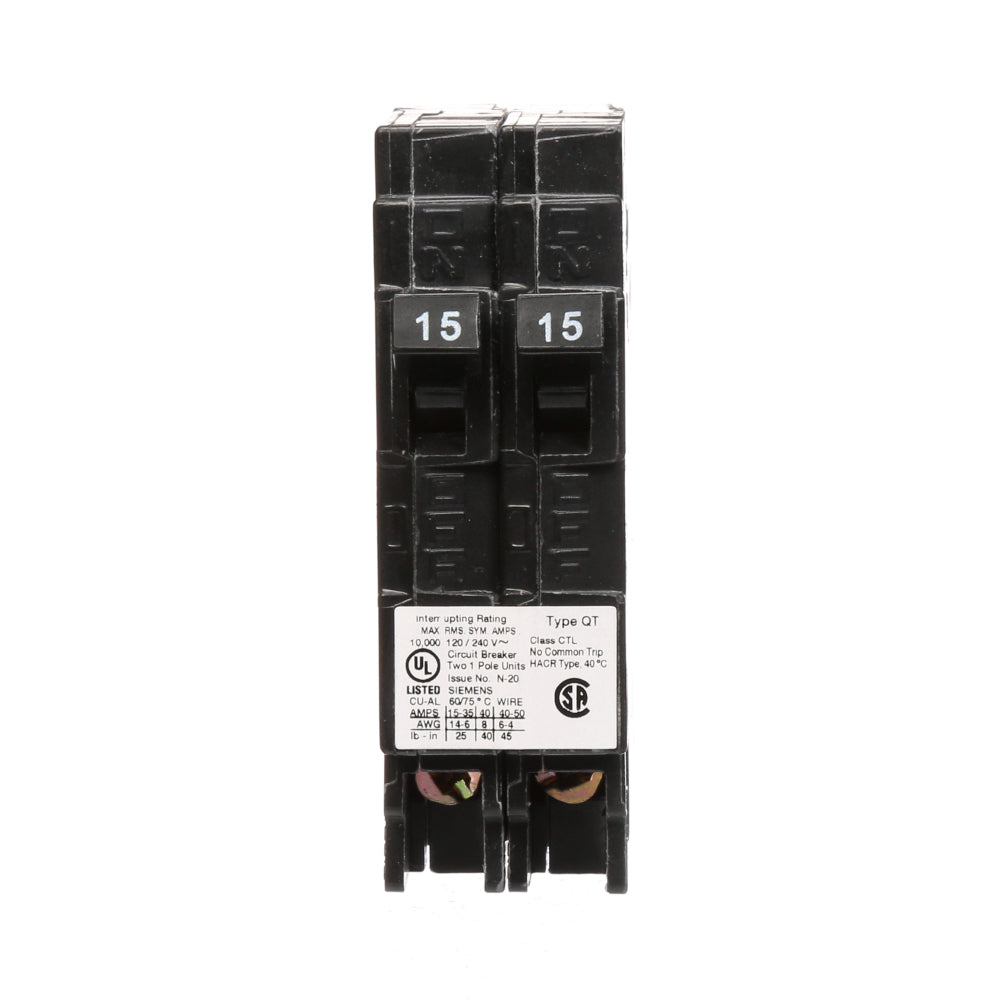

Q1515NC - Siemens 15 Amp 120/240V 1-Pole Tandem Circuit Breaker Plug-In Thermal Magnetic

Q1515NC

Q1515NC is a Siemens 15 Amp, 120/240 Volt, 1-Pole tandem circuit breaker with plug-in mounting and thermal magnetic trip protection.This Siemens Q1515NC circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It is designed for residential and light commercial applications, providing 10kA interrupting rating at 120/240VAC. The breaker fits Siemens Q series load centers and offers space-saving tandem design with plug-in connection and lug terminals.

• Amperage: 15 Amp
• Voltage Rating: 120/240 VAC
• Number of Poles: 1 Pole (Tandem)
• Mounting Type: Plug-In
• Interrupting Rating: 10,000 AIC at 120/240 VAC
• Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
• Series/Frame: Siemens Q Series
• Terminal Type: Lug
• Dimensions: 3 in L x 1 in W x 3 in H
• UL Listed and CSA Approved
• Wire Size Range: AWG 14 to 8

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q1515NC
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QT
• Voltage : 120
• Amperage : 15
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 8 AWG
• Breaker Type : Duplex, Non CTL
• Protection : Thermal Magnetic

Product Data

• UPC : 783643156609
• GTIN : 00783643156609
• Country of Origin : Mexico
• Dimensions : 12.598 x 3.543 x 3.15 inch
• Weight : 0.375 lb
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
