Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q120DFN

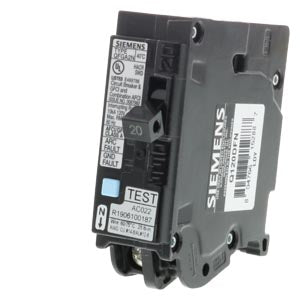

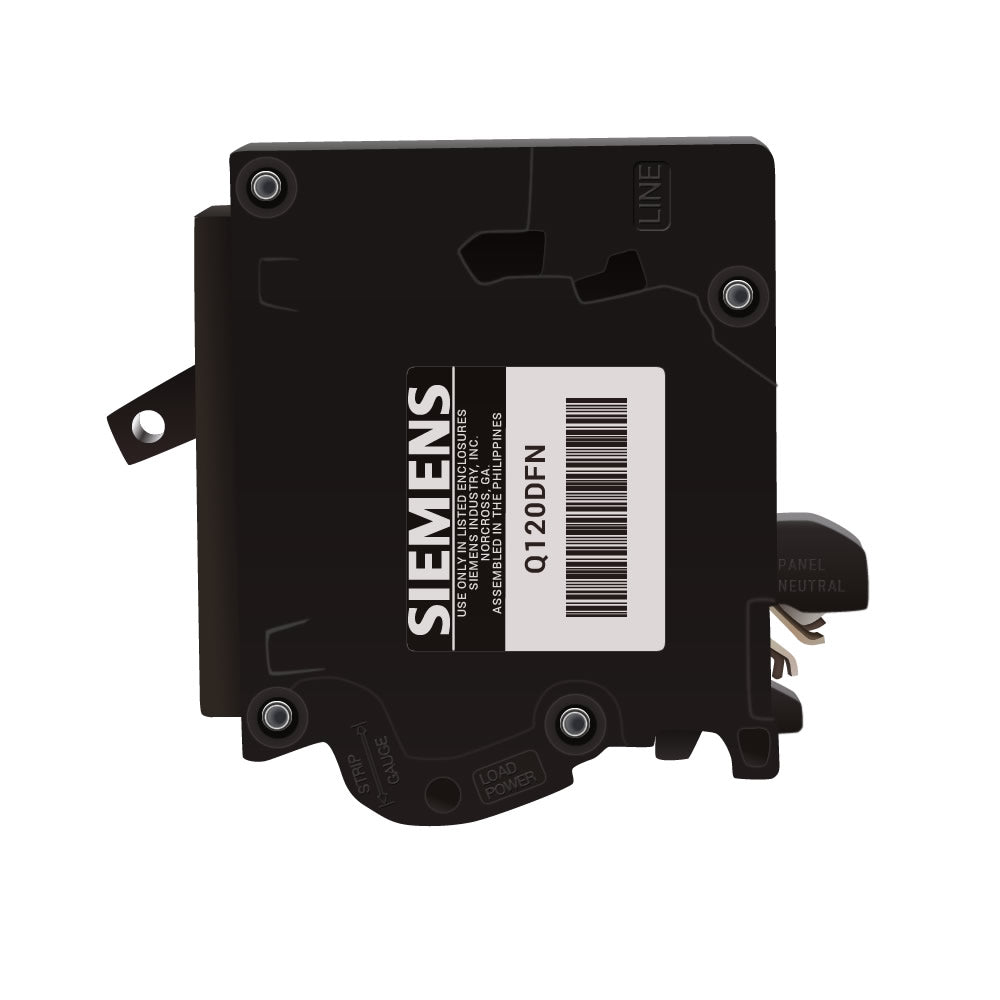

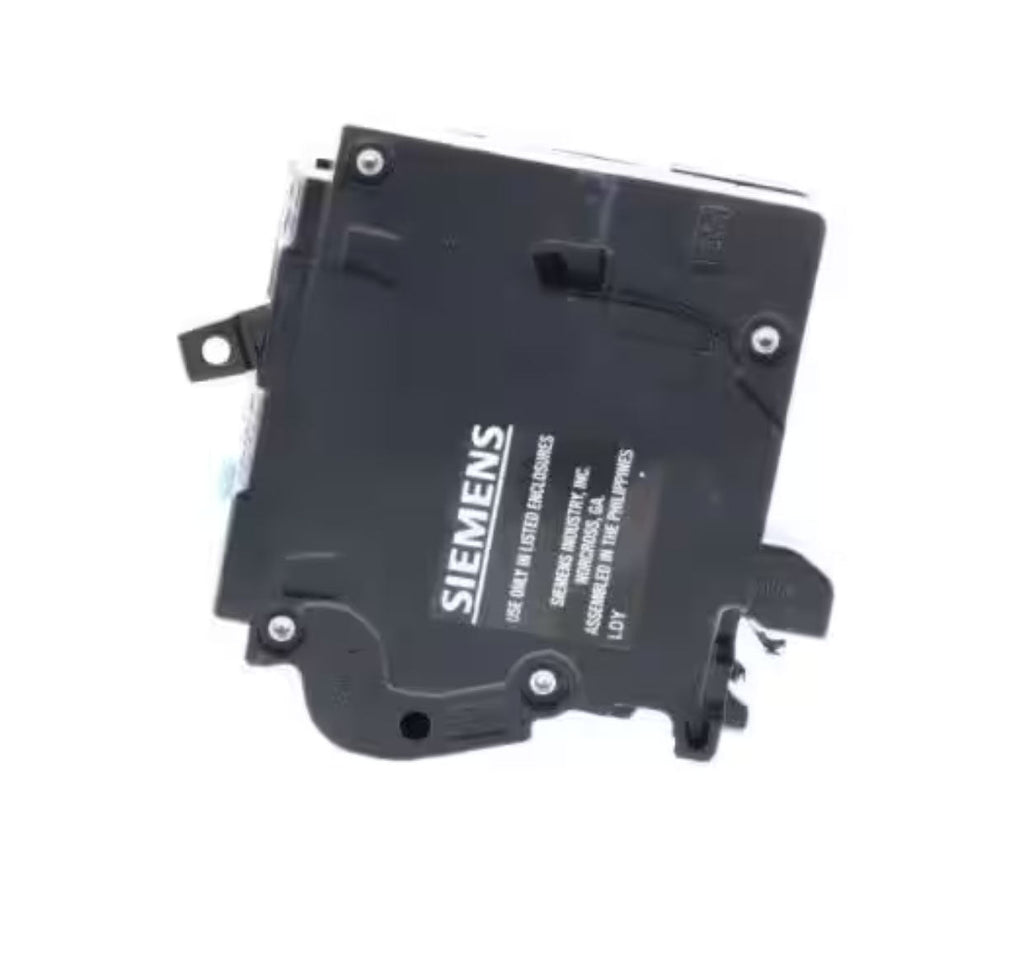

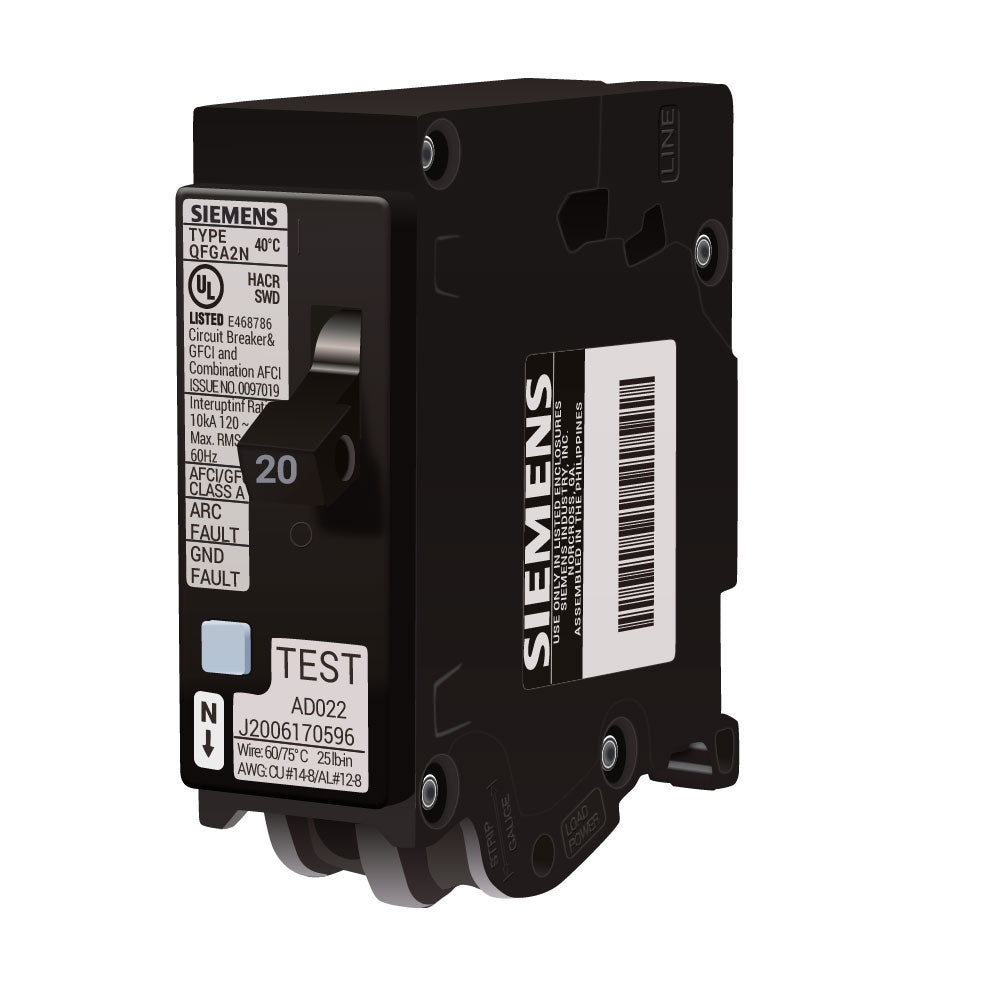

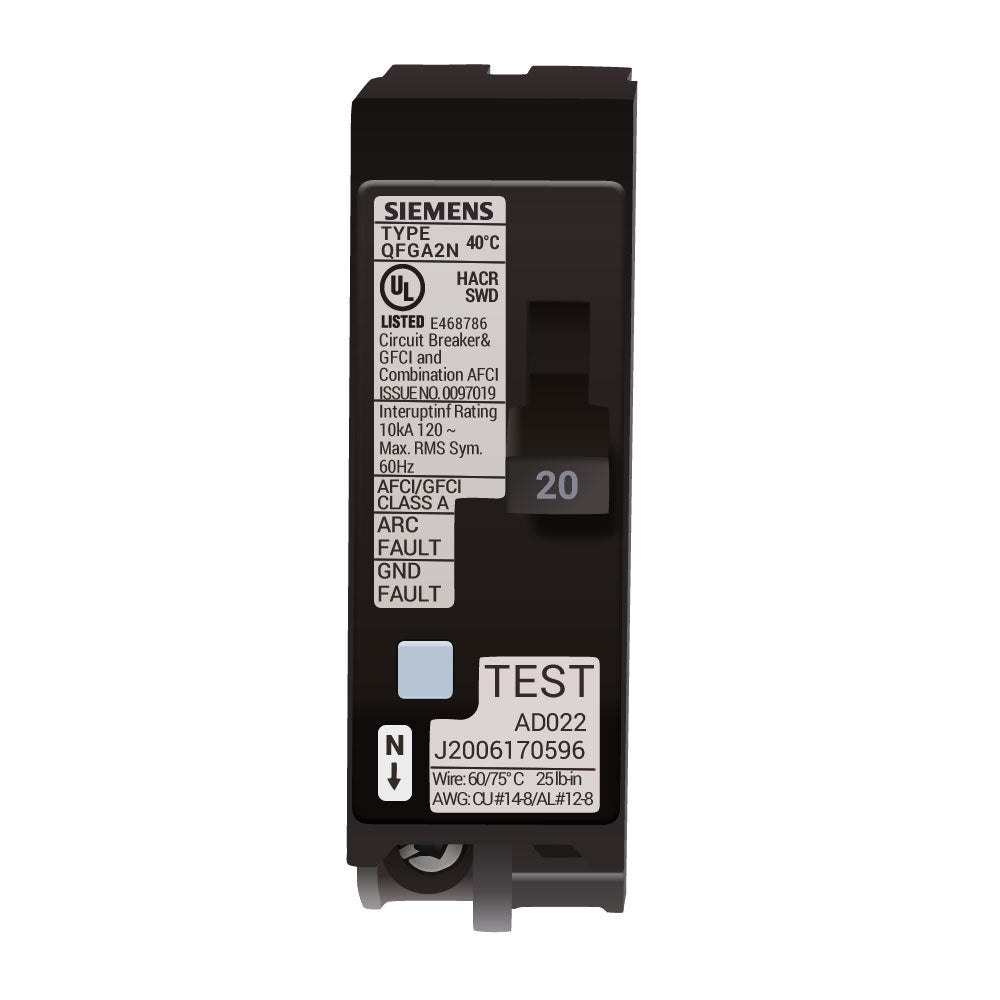

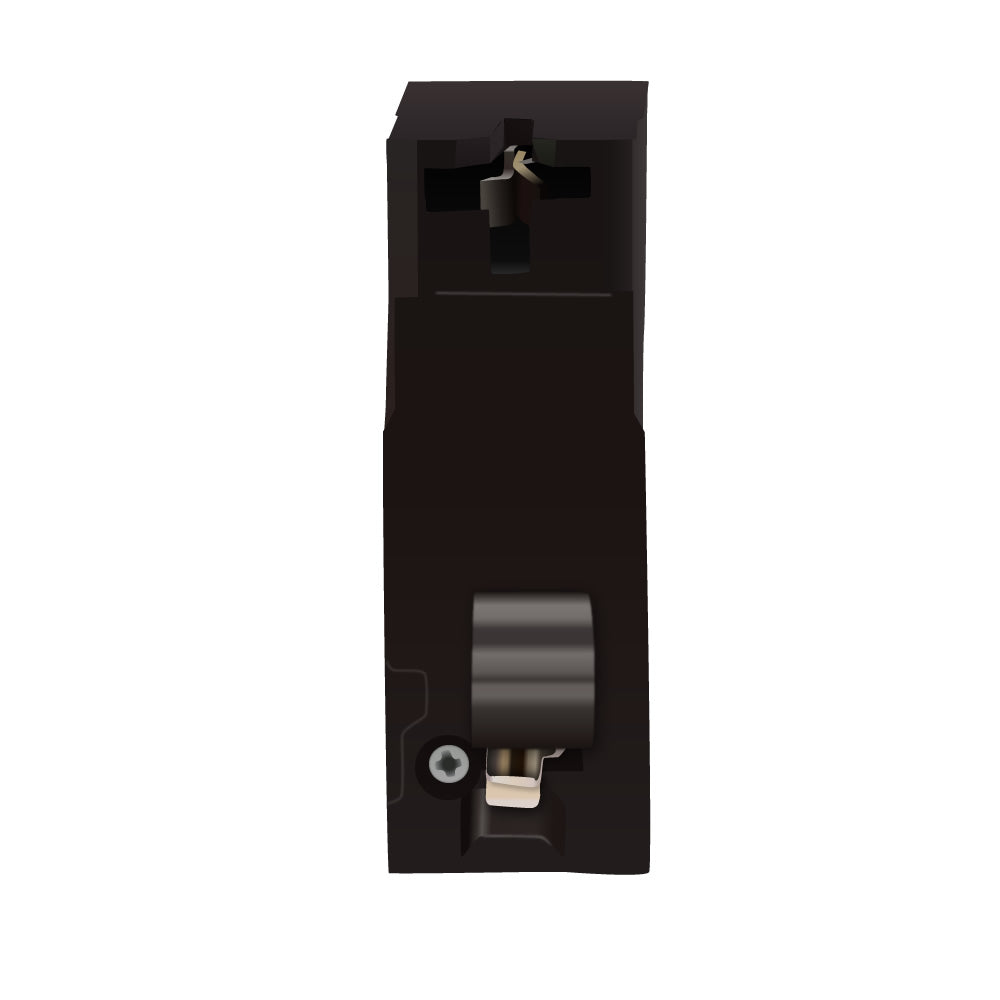

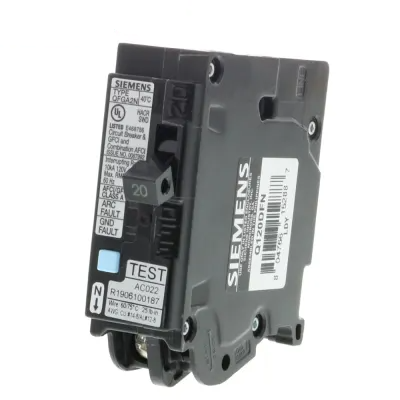

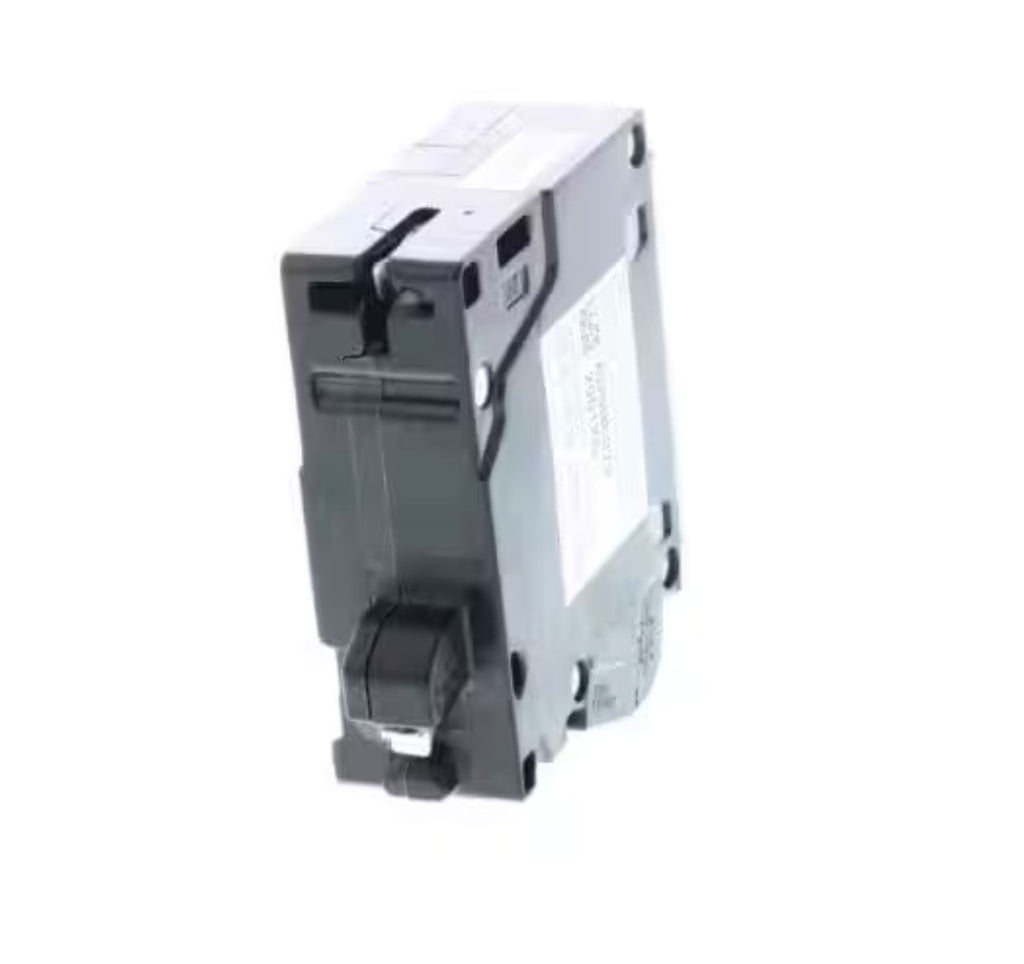

Q120DFN is a Siemens 1 Pole 20 Amp dual function AFCI/GFCI circuit breaker designed for 120/240 VAC systems with plug-on neutral connection.This Siemens Q series circuit breaker features a thermal-magnetic trip unit with long time and instantaneous trip functions. It provides arc-fault and ground-fault protection with a 10kA interrupting rating at 120V. The breaker is UL listed and CSA approved, designed for residential and light commercial applications with a plug-on mounting type for easy installation.
- Key Specifications
- Manufacturer: Siemens
- Part Number: Q120DFN
- Amperage: 20 Amp
- Voltage Rating: 120/240 VAC
- Number of Poles: 1
- Mounting Type: Plug-On Neutral
- Interrupting Rating: 10kA at 120V
- Frame Type: QFGA2N
- Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
- Functions: Dual Function AFCI & GFCI
- Certifications: UL Listed, CSA Approved
Specifications
- Part Number: Q120DFN
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : Q
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
- Trip Type : AFCI/GFCI
Product Data
- UPC : 804766906596
- GTIN : 00804766906596
- Country of Origin : Philippines
- Dimensions : 3.15 x 0.787 x 5.118 inch
- Weight : 0.331 lb
- Certification : UL
