Q120 - Siemens 20A 1-Pole 120V Plug-In Circuit Breaker QP Series 10kAIC

Q120

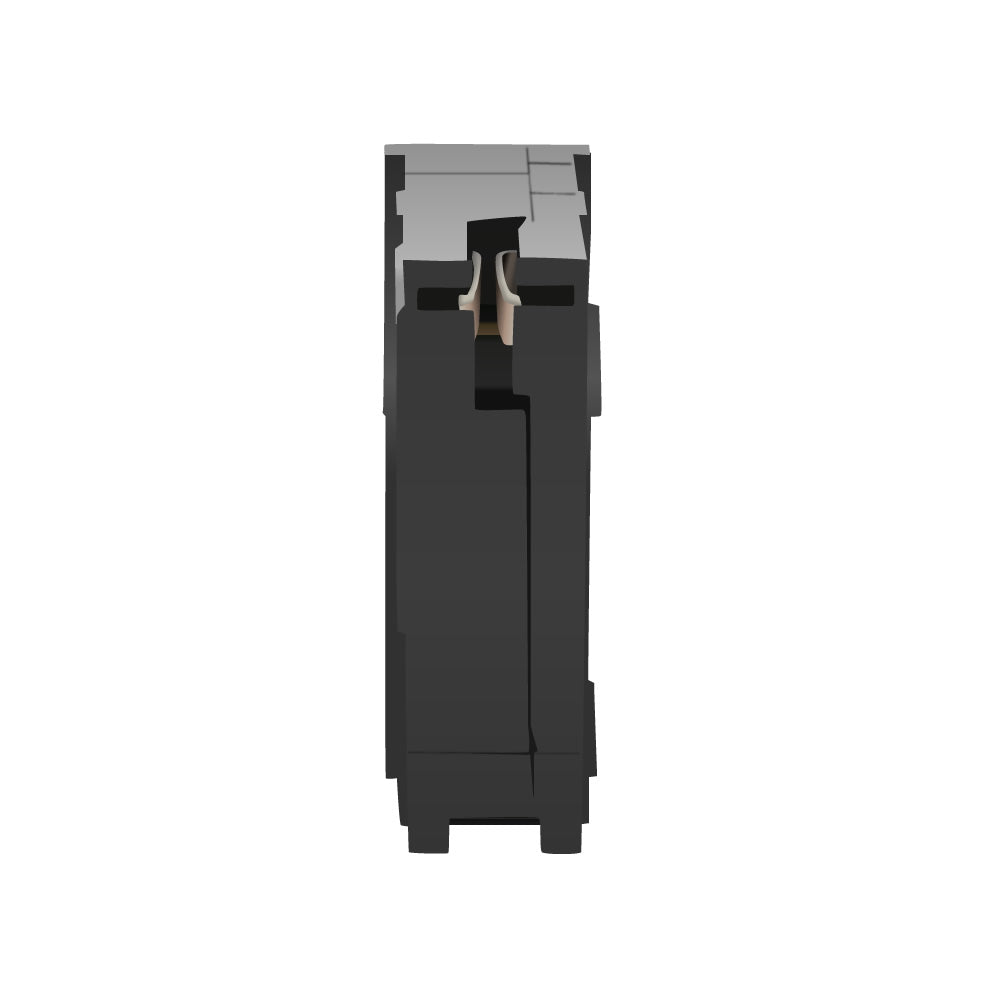

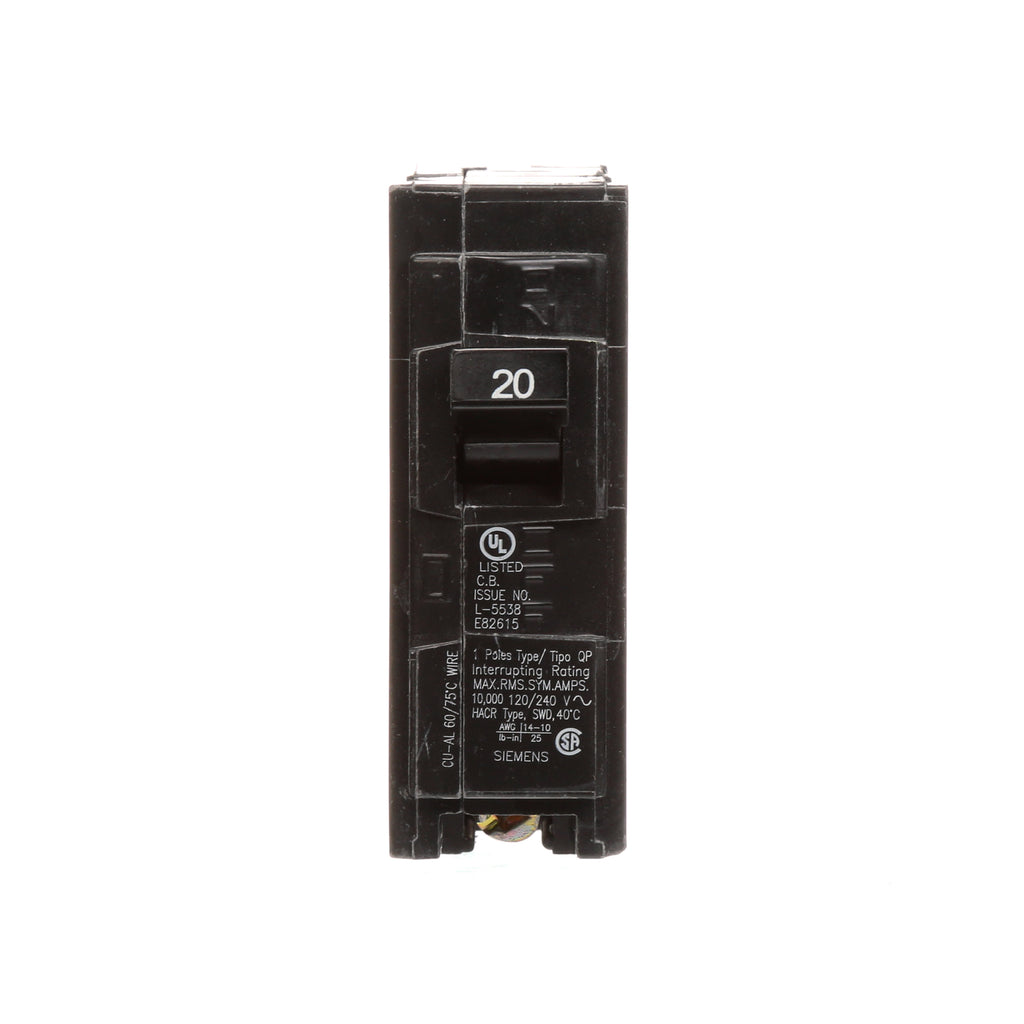

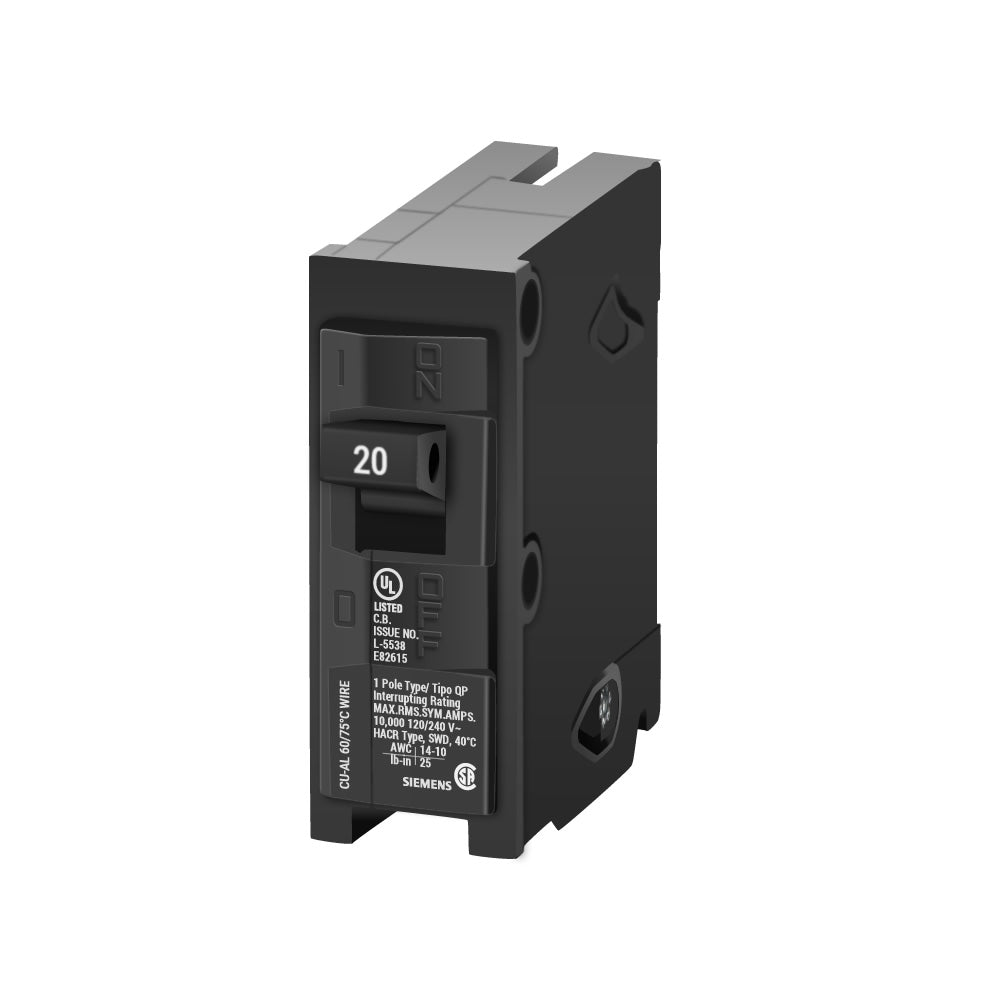

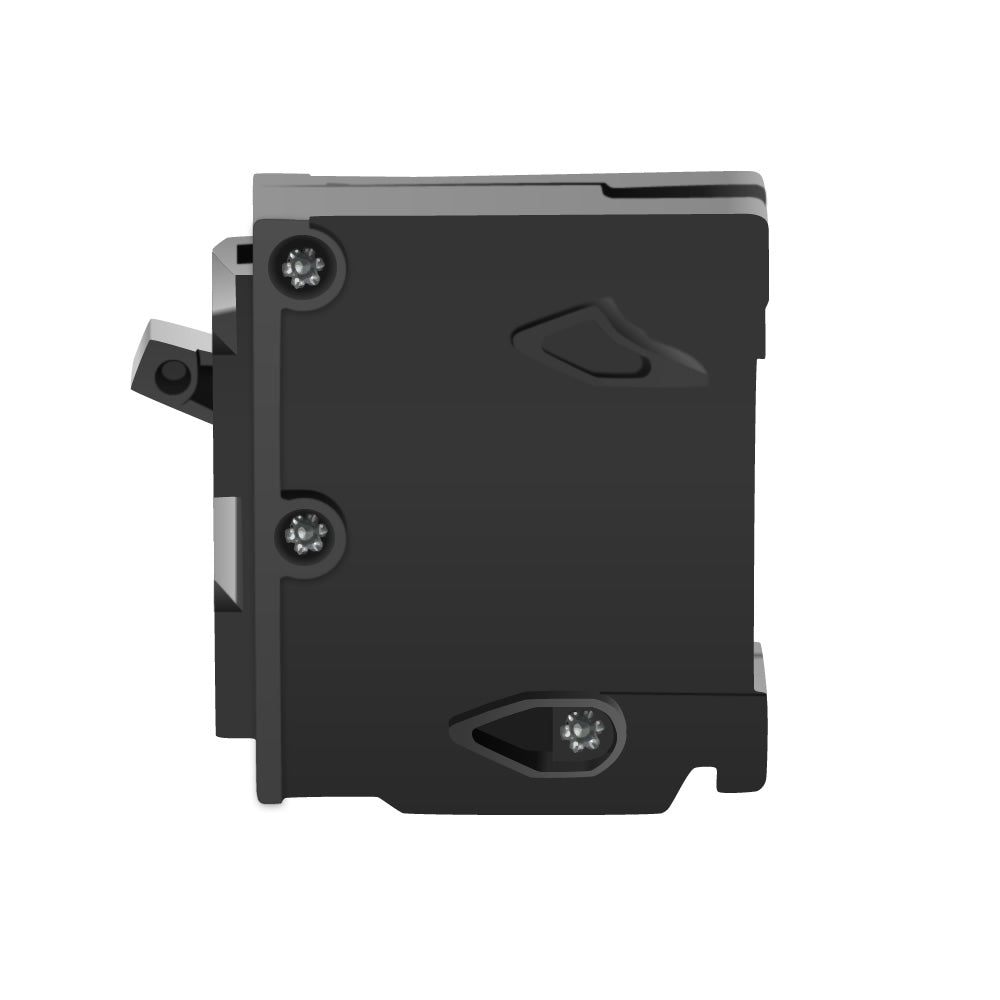

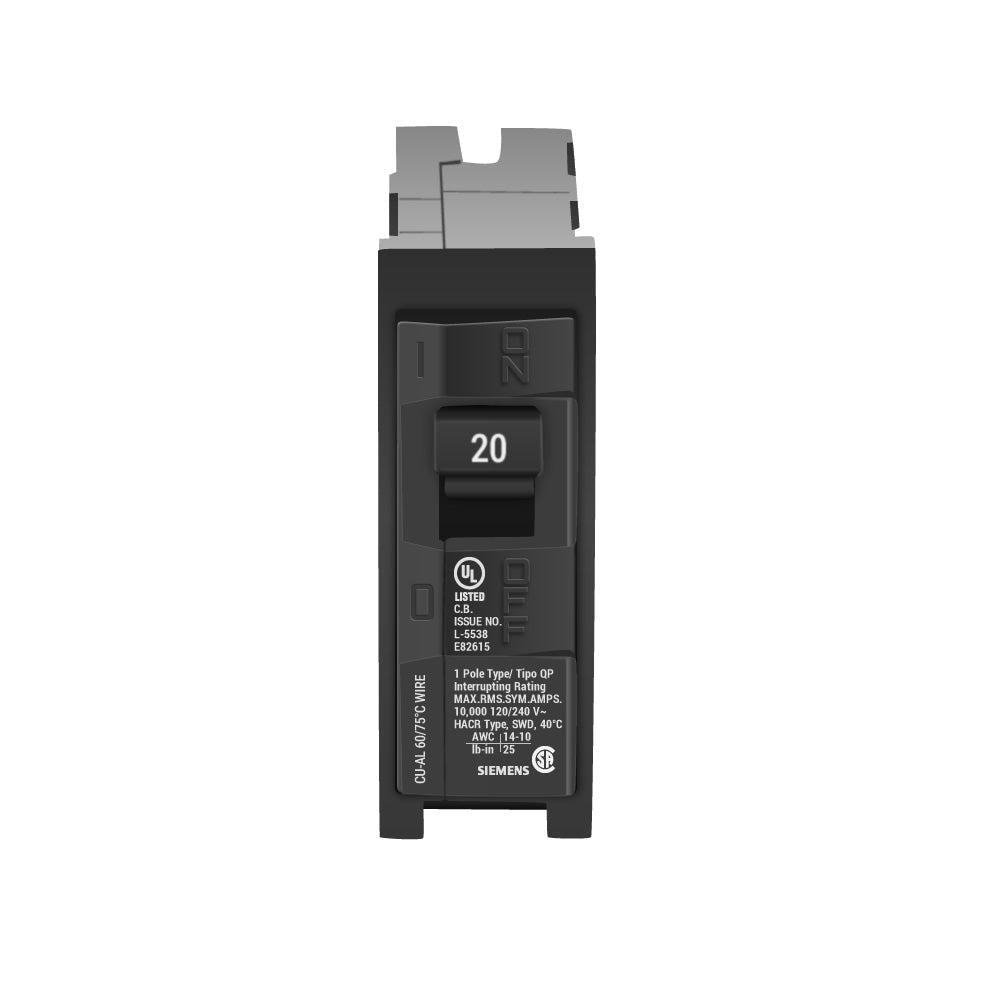

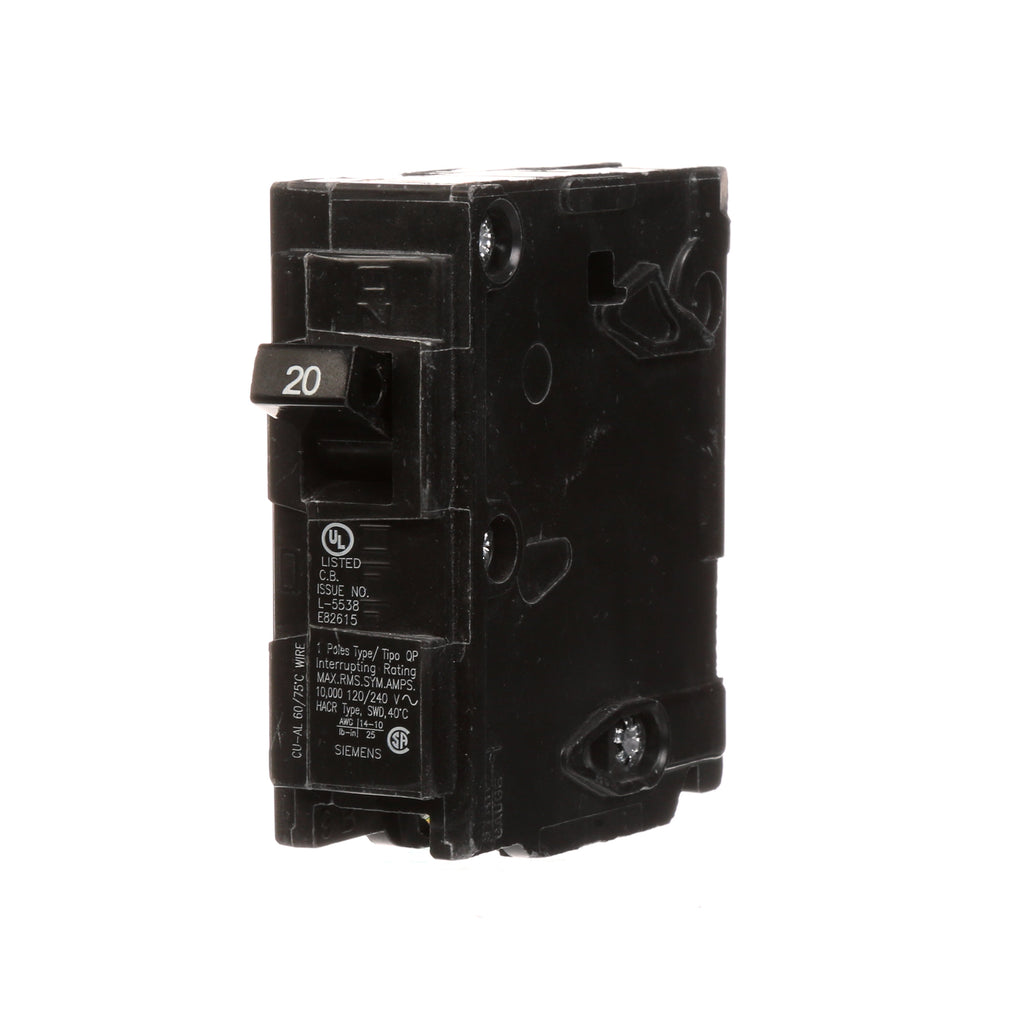

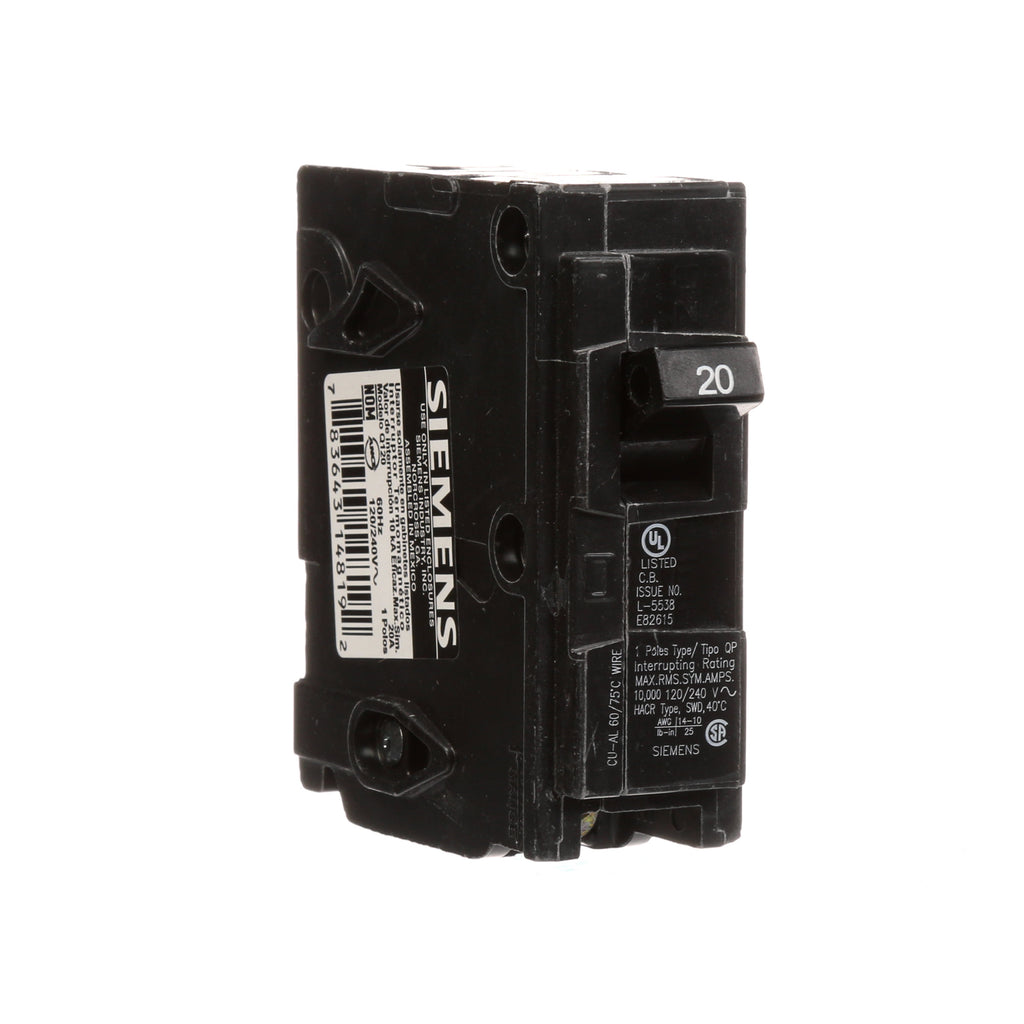

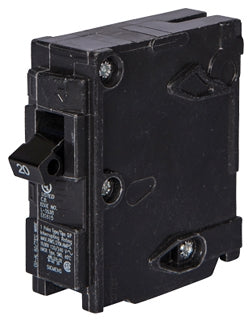

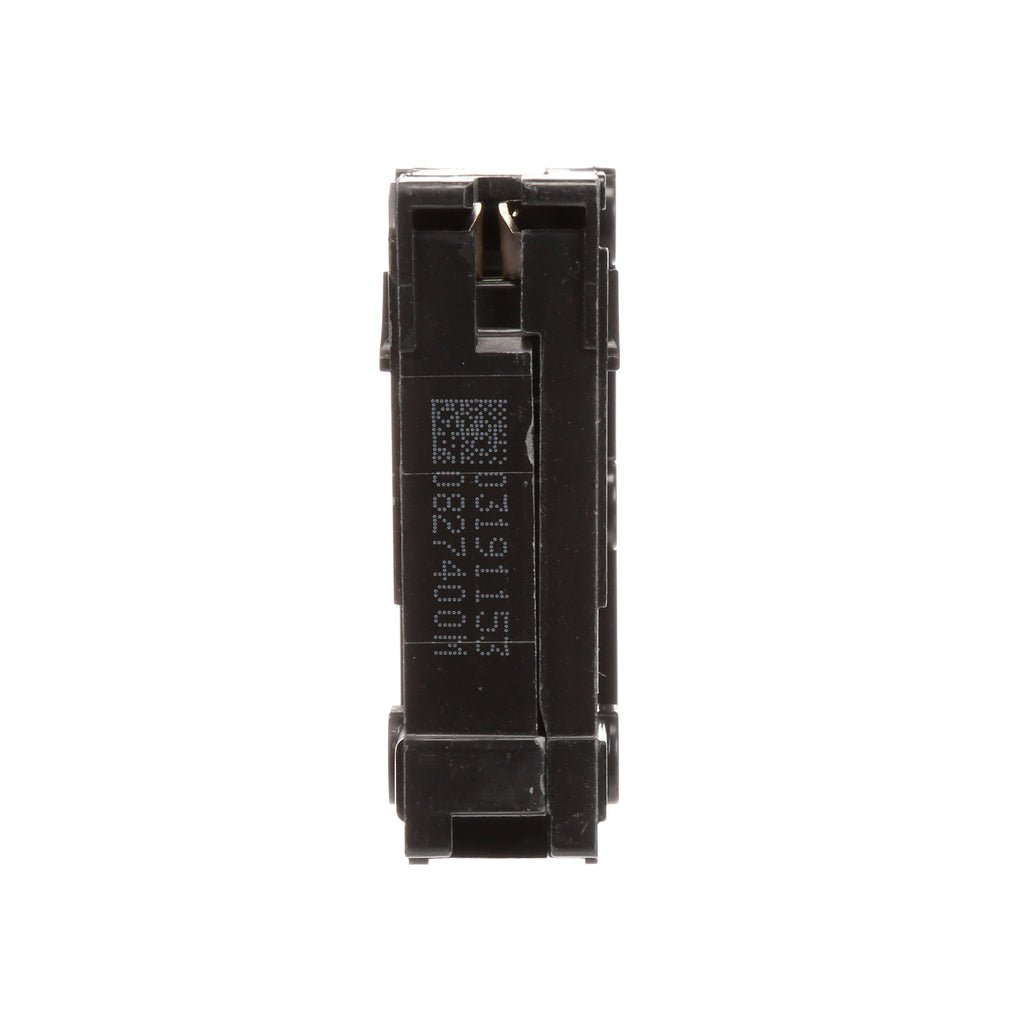

Q120 is a Siemens 1-pole, 20A, 120V plug-in circuit breaker designed for residential and light commercial applications. This QP series breaker features a 10kA interrupt rating and is UL listed for safety and reliability. The Siemens Q120 is a thermal magnetic molded case circuit breaker with plug-on mounting for easy installation in compatible load centers. It provides long time and instantaneous trip protection for branch circuits, making it ideal for general-purpose electrical distribution.

• Part Number: Q120
• Manufacturer: Siemens
• Series/Frame: QP
• Amperage: 20A
• Voltage: 120VAC
• Poles: 1
• Mounting Type: Plug-On
• Interrupt Rating: 10kAIC
• Protection Type: Thermal Magnetic
• Approvals: UL Listed
• Wire Size: 14-8 AWG
• Application: Residential, Light Commercial

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: Q120
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Q Series
• Type : QP
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@120V
• Connection : Plug-In
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/QP
• MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643148192
• GTIN : 00783643148192
• Country of Origin : Mexico
• Dimensions : 12.598 x 3.543 x 3.15 inch
• Weight : 0.265 lb
• Panel Type : Siemens EQ Load Centers
• Standards : UL Listed
• Certification : UL Listed
