Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q115DFN

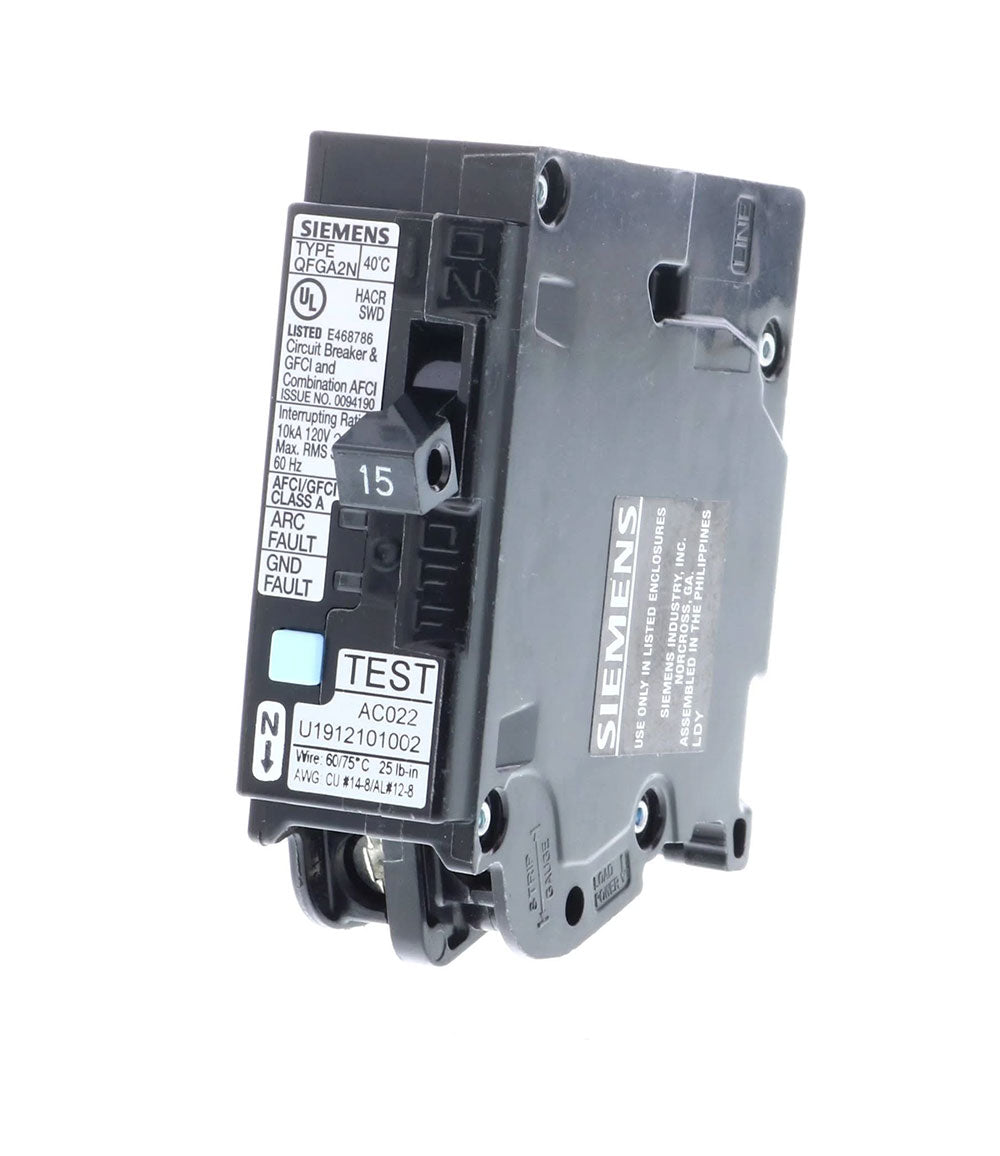

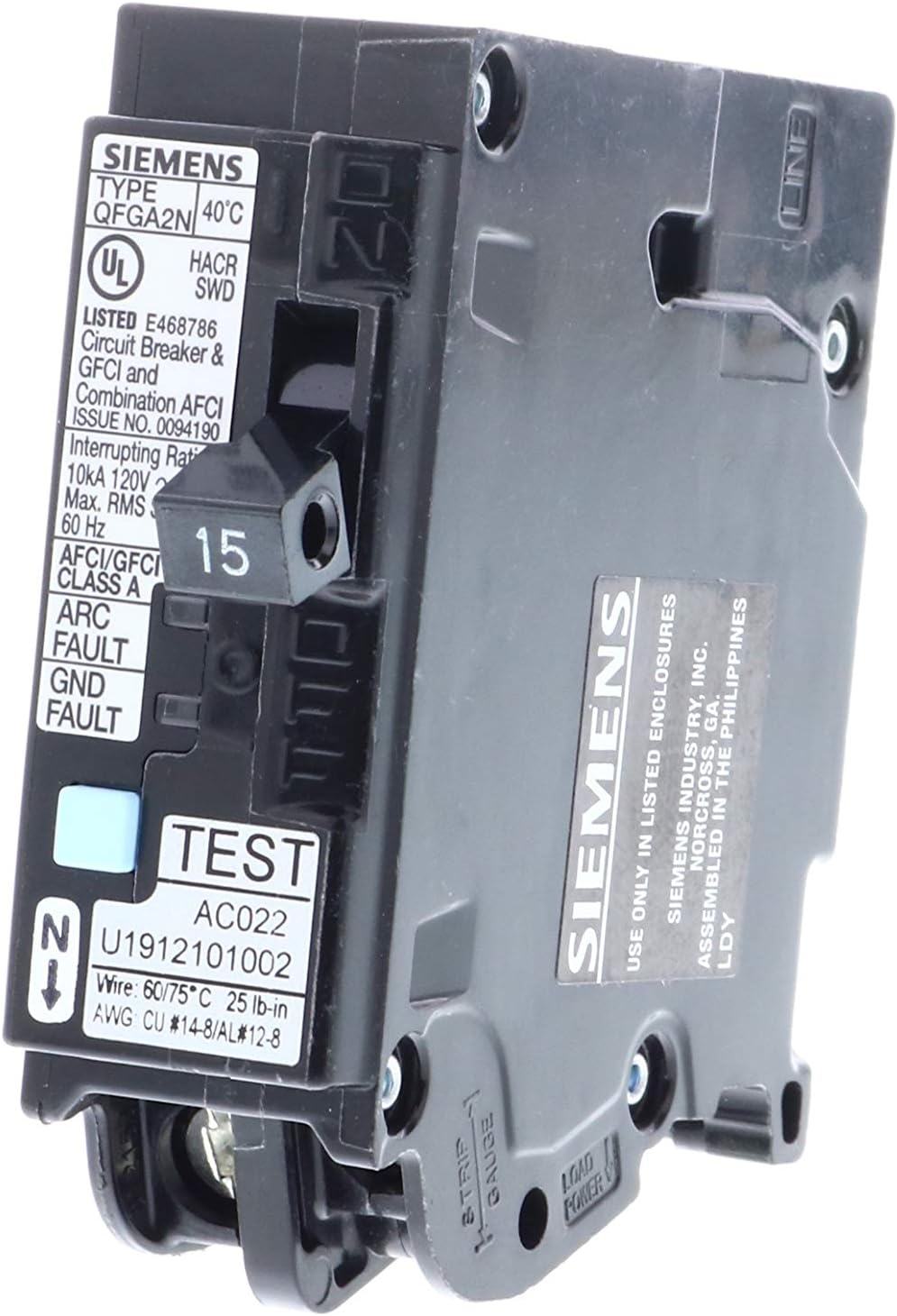

Q115DFN is a Siemens 1-pole dual function circuit breaker rated for 15 amps and 120/240 volts AC with plug-on mounting.This Siemens Q series circuit breaker features thermal magnetic protection with long time and instantaneous trip functions. It provides dual function arc-fault and ground-fault protection (AFCI/GFCI) with a 10kA interrupting rating at 120V. The breaker is UL listed and designed for low voltage applications with a Q frame type.
- Key Specifications
- Amperage: 15A
- Voltage: 120/240VAC
- Poles: 1
- Mounting Type: Plug-On
- Interrupting Rating: 10kA at 120V
- Series/Frame: Q
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- Protection: Dual Function AFCI/GFCI
- Certifications: UL Listed
- Circuit Breaker Type: Molded Case
Specifications
- Part Number: Q115DFN
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : Q
- Voltage : 120/240
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
- Trip Type : AFCI/GFCI
Product Data
- UPC : 804766906572
- GTIN : 00804766906572
- Country of Origin : Philippines
- Dimensions : 3.15 x 0.787 x 5.118 inch
- Weight : 0.331 lb
- Certification : UL Listed
