Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
Q115

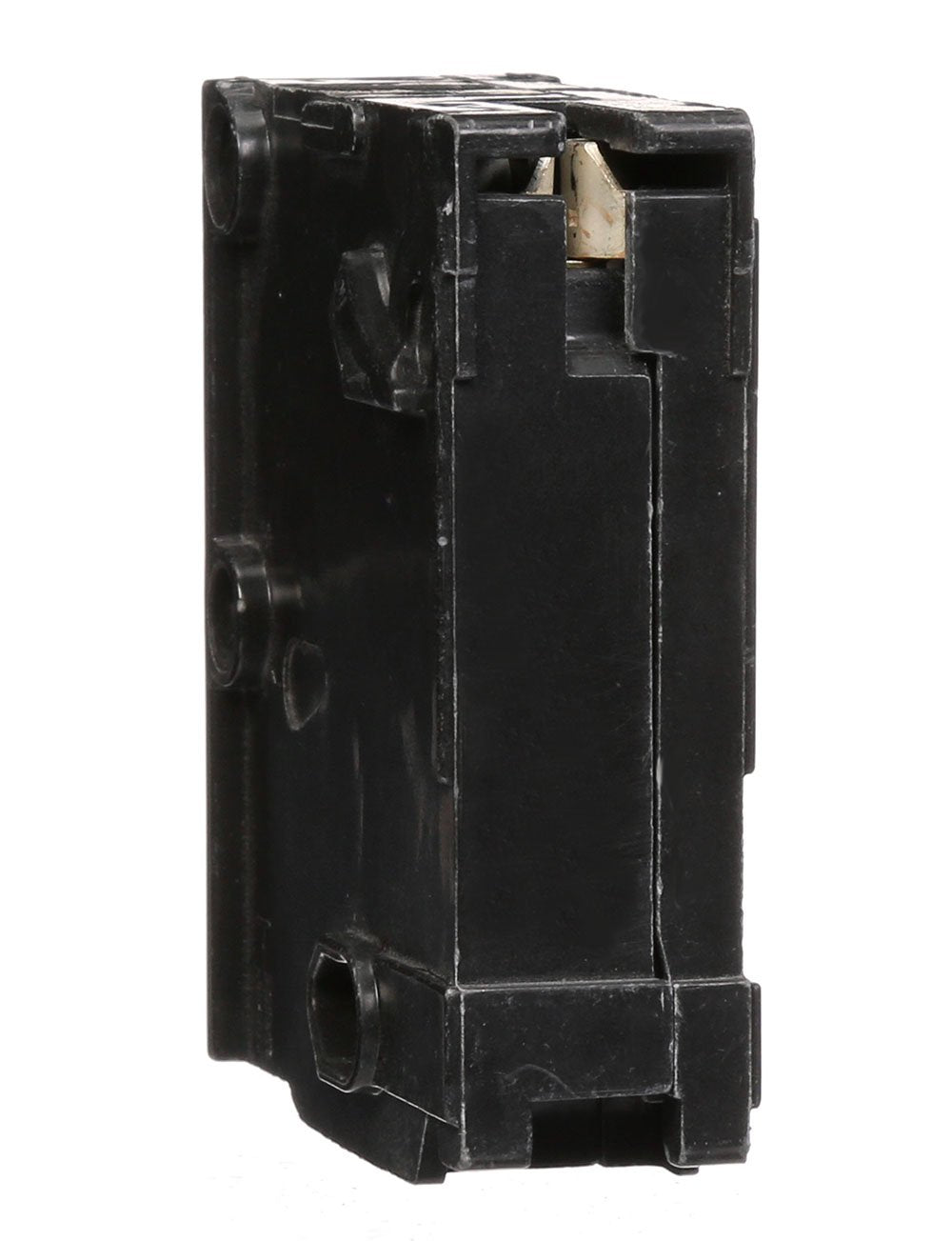

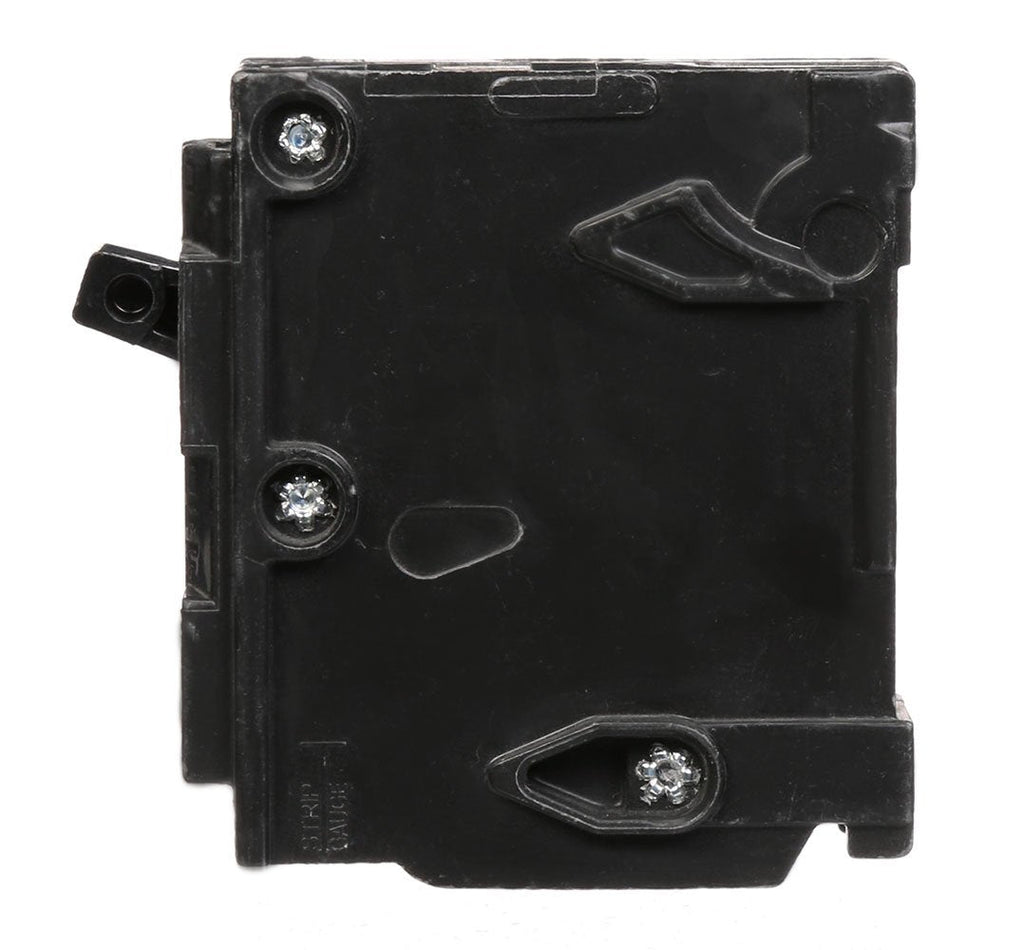

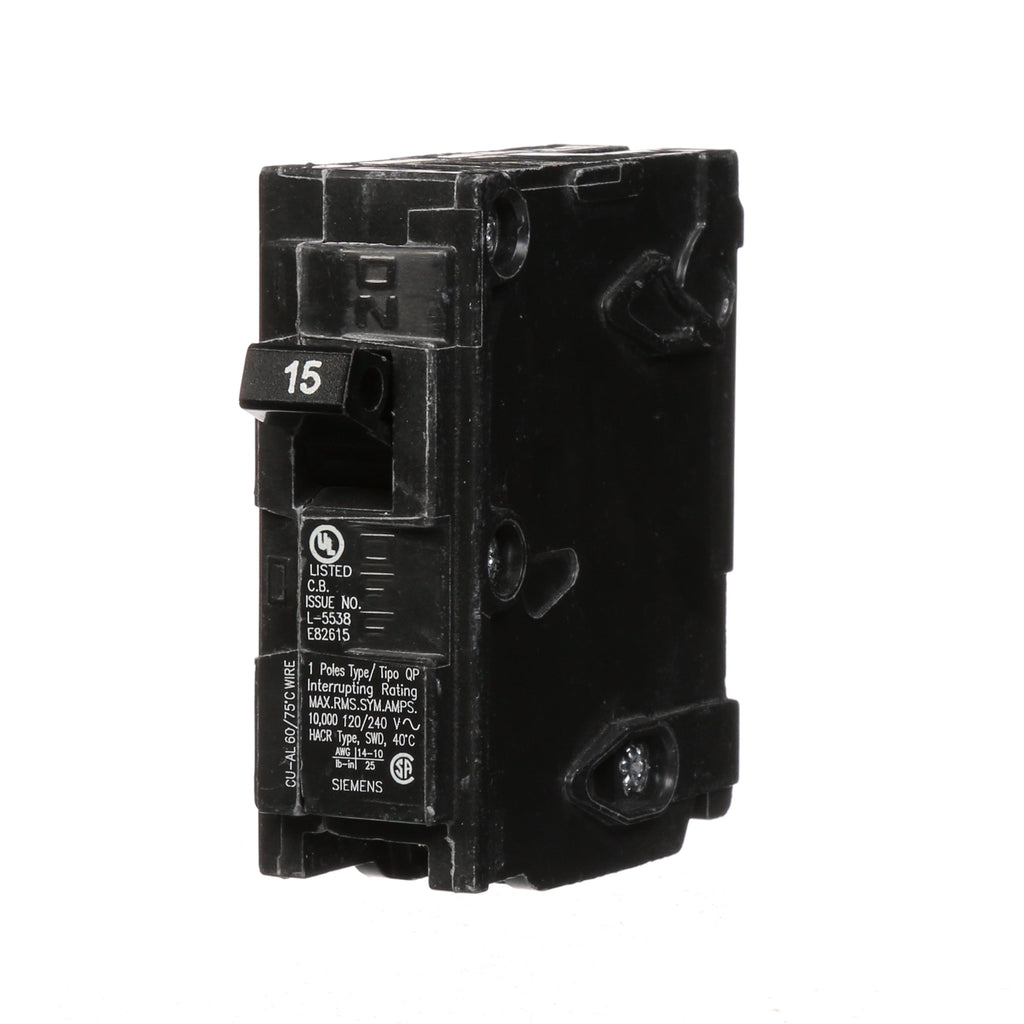

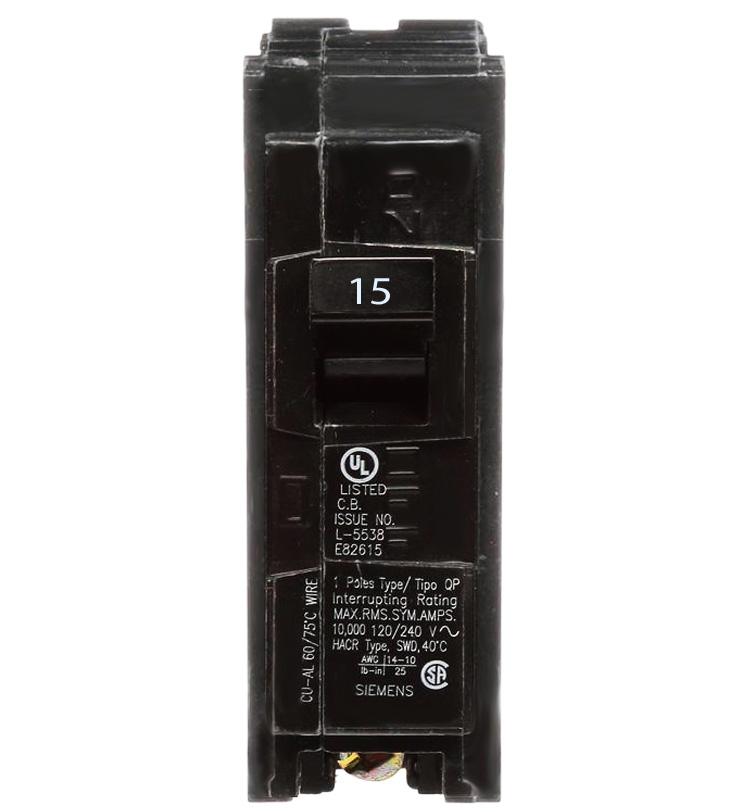

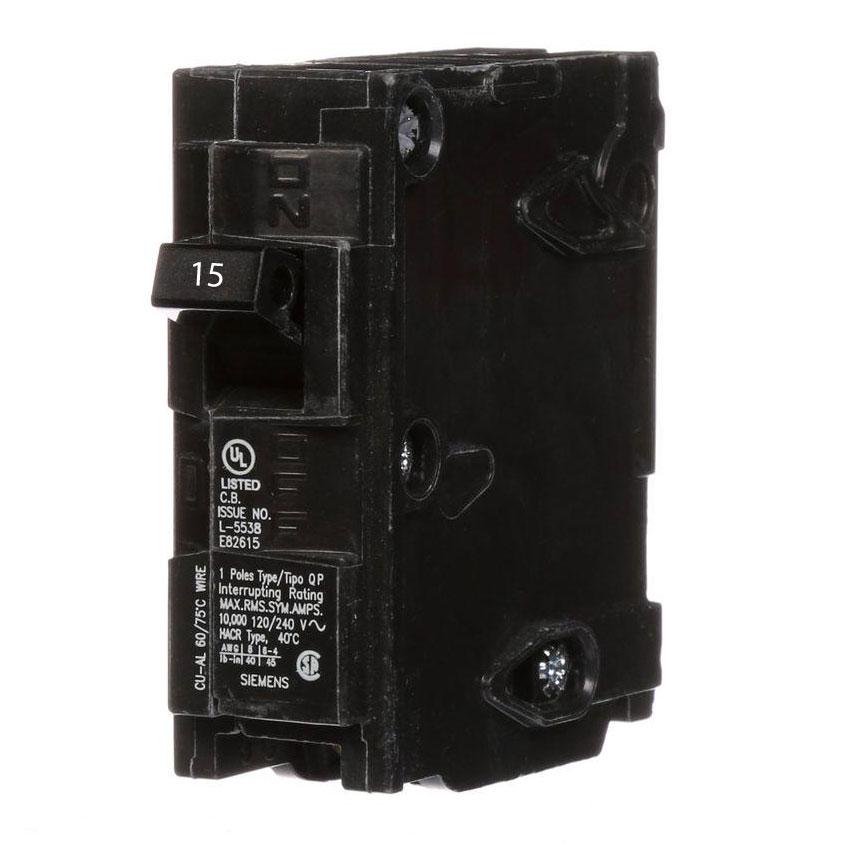

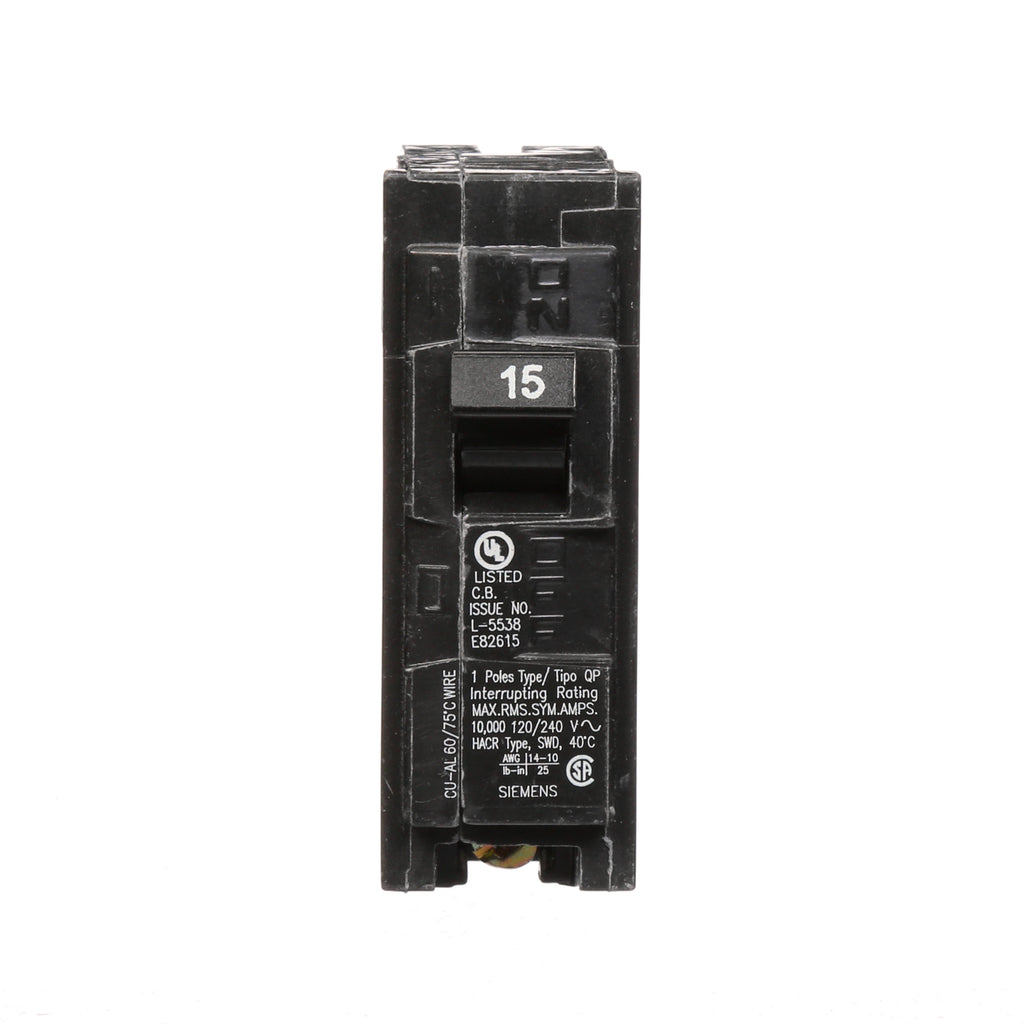

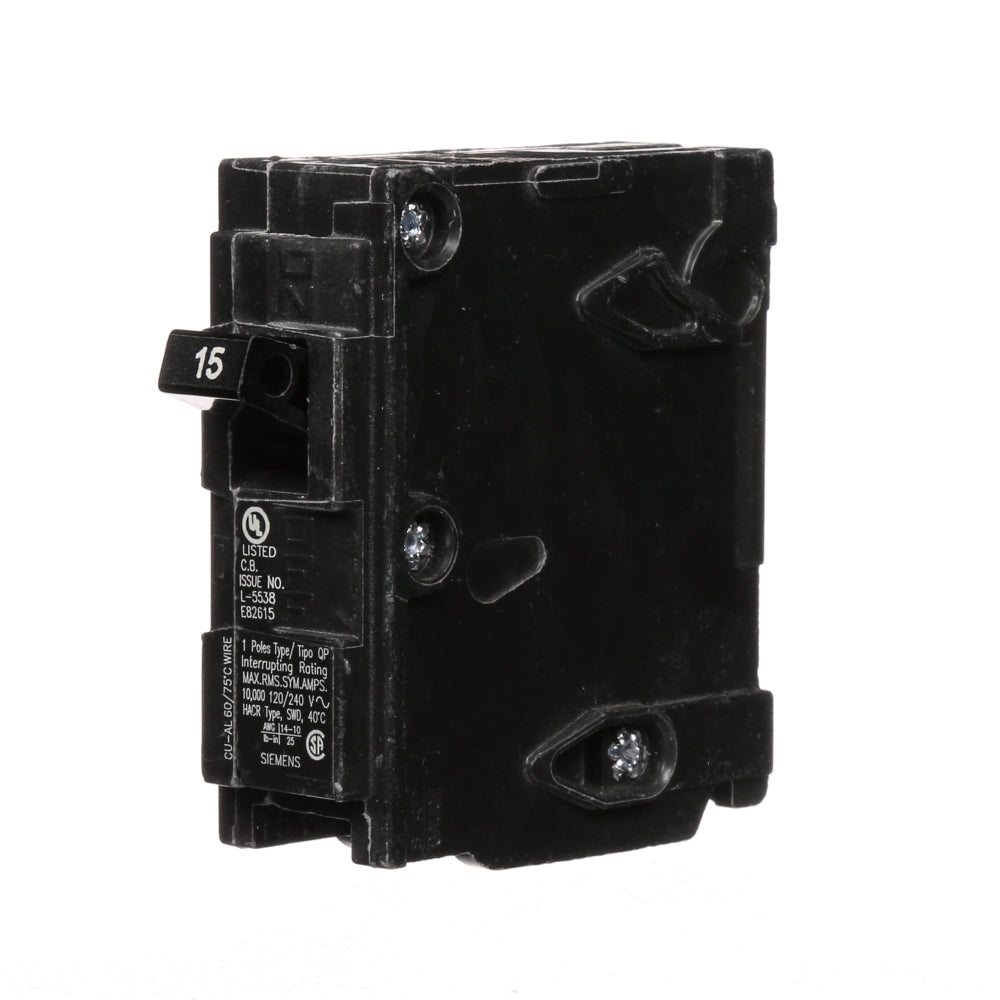

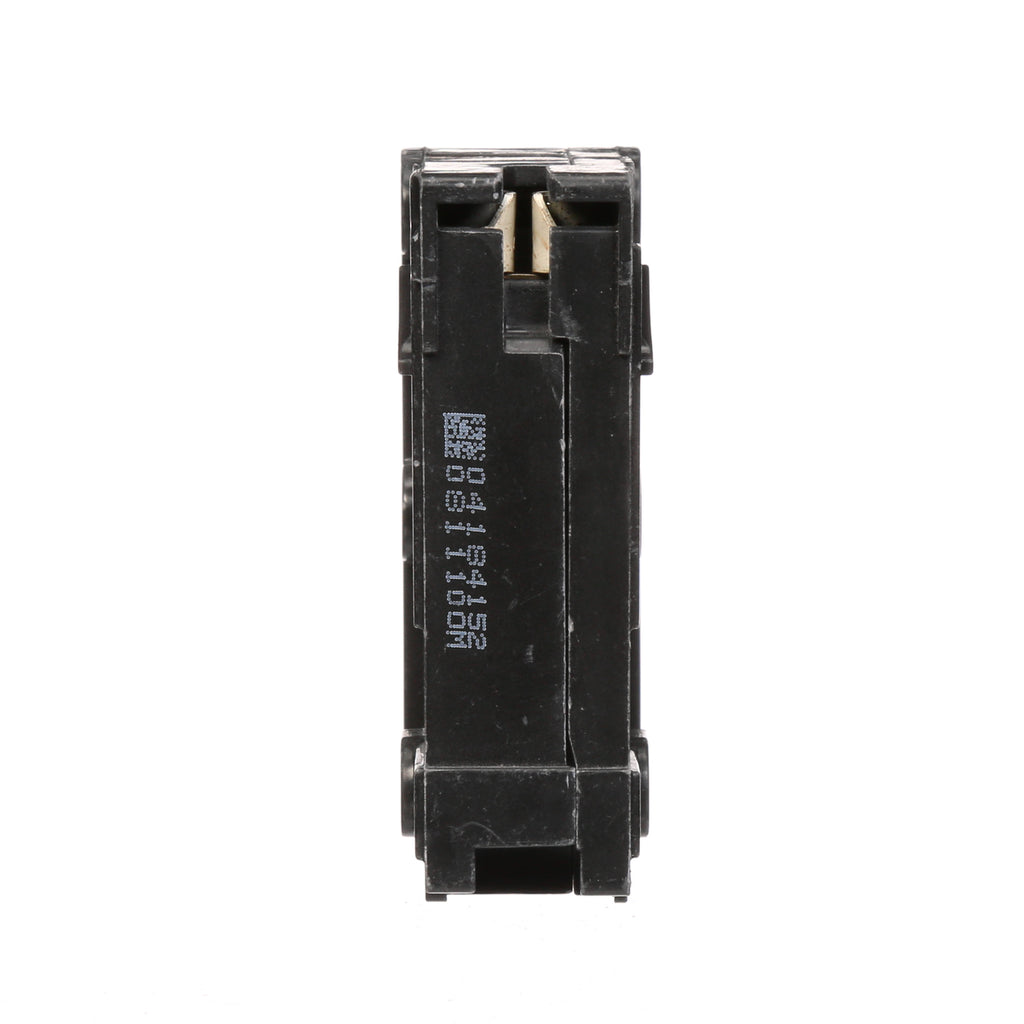

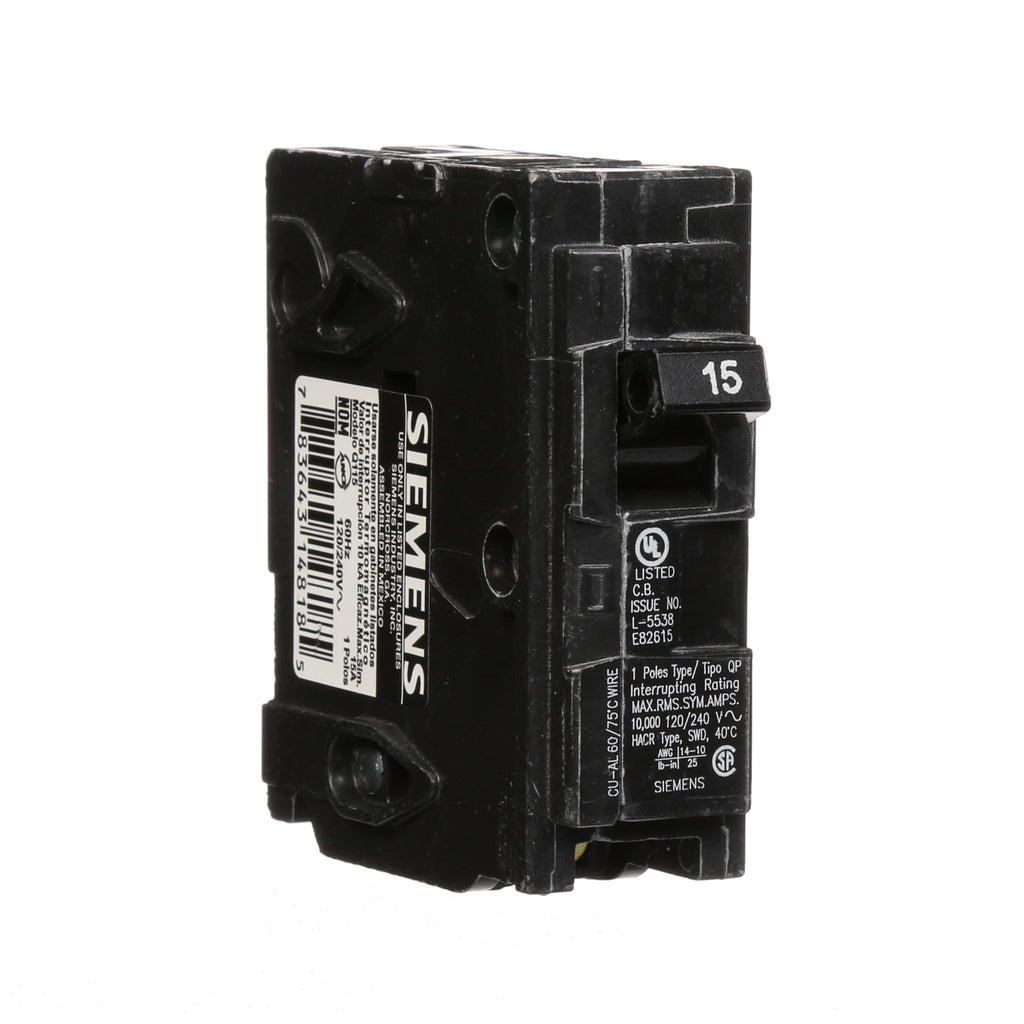

Q115 is a Siemens 15 Amp 1 Pole thermal magnetic circuit breaker designed for 120VAC applications.This Siemens Q115 circuit breaker features a plug-on mounting type with a 10kA interrupting rating at 120 volts. It includes long-time and instantaneous trip functions for reliable overload and short circuit protection. The breaker is UL approved and compatible with EQ load centers.
- Amperage: 15 Amp
- Voltage: 120VAC
- Poles: 1
- Mounting Type: Plug-On
- Interrupt Rating: 10kA at 120V
- Series/Frame: Q
- Trip Unit: Thermal Magnetic
- Approval: UL Listed
- Connection Type: Plug-In
- Functions: Long-Time and Instantaneous Trip
- Compatible with EQ Load Centers
- Actuator Type: Toggle
Specifications
- Part Number: Q115
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Q Series
- Type : QP
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 1
- AIC rating : 10kA@120V
- Connection : Plug-In
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/QP
- MCM Size : Min. Wire Size 14 AWG Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643148185
- GTIN : 00783643148185
- Country of Origin : Mexico
- Dimensions : 12.598 x 3.15 x 3.543 inch
- Weight : 0.265 lb
- Panel Type : Siemens EQ Load Centers
- Standards : UL Listed
- Certification : UL Listed
