Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PXF36900LSZ

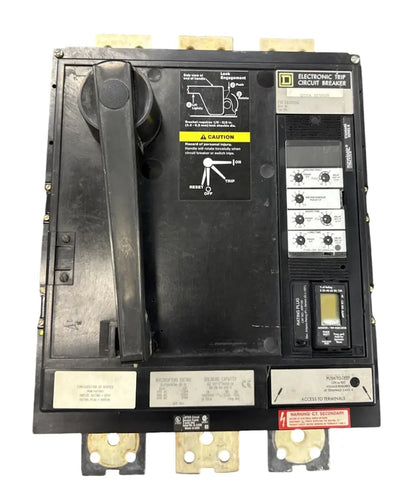

PXF36900LSZ is a high-performance molded case circuit breaker designed for demanding electrical protection applications. This Square D PXF frame breaker features a 900A current rating, 600V voltage rating, and 3-pole configuration for reliable three-phase circuit protection. The PXF36900LSZ utilizes an electronic non-interchangeable trip unit with LSI trip functions, providing precise long time, short time, and instantaneous protection. Its feed-thru connection design allows for direct conductor termination, and the breaker is panel mountable for easy integration into electrical panels. The PXF frame is engineered for durability and high interrupting capacity, making it suitable for industrial and commercial power distribution systems.
- 900A current rating
- 600V voltage rating
- 3-pole design
- PXF frame style
- Electronic non-interchangeable trip unit
- LSI trip functions (Long Time, Short Time, Instantaneous)
- Feed-thru connection
- Panel mountable
- Interrupting rating: 100kA at 480V
- UL listed
- CSA certified
Specifications
- Part Number: PXF36900LSZ
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : PXF
- Voltage : 600
- Amperage : 900
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LS - Long-Time and Short-Time
- Frame Size : PX Frame
- Protection : Solid State
Product Data
- Weight : 90
