2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PXF36800Z

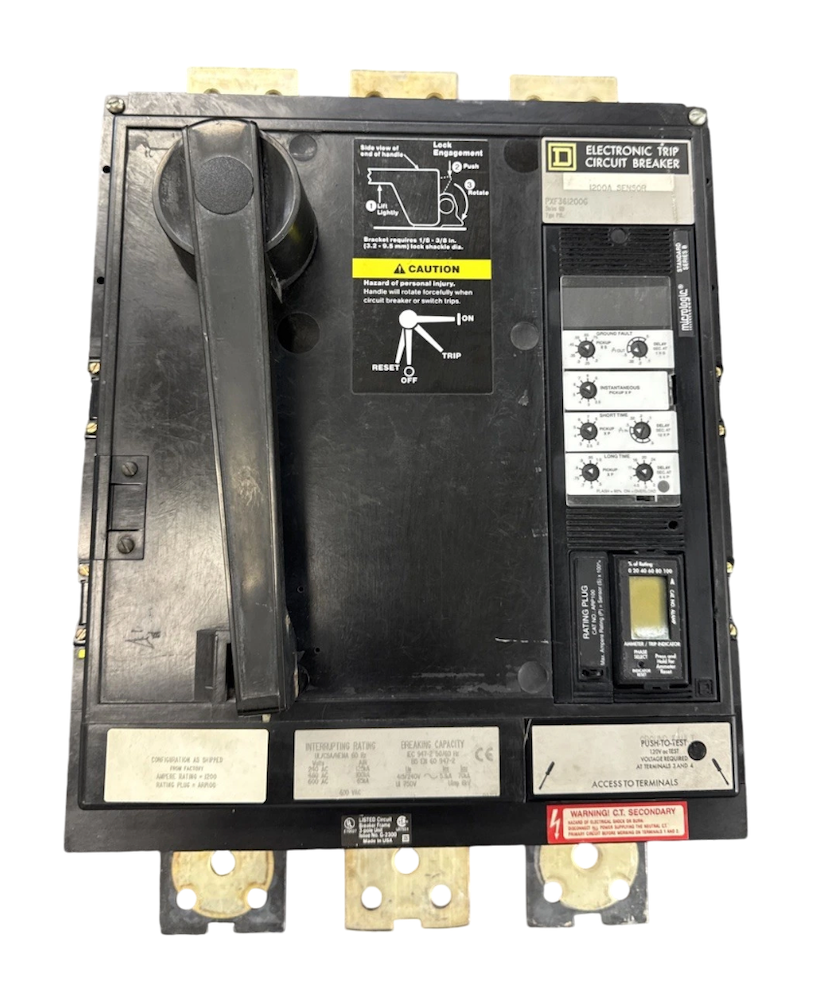

PXF36800Z is a Square D molded case circuit breaker designed for 800 ampere, 600 volt applications with 3 poles in the PXF series.This circuit breaker features a 3-pole configuration suitable for three-phase power systems, with a trip unit based on Micrologic technology. It supports unit mount lug connections and is engineered for reliable protection with a high interrupt rating suitable for industrial and commercial electrical distribution. The breaker is designed to meet UL and other relevant certifications for safety and performance.
- Key Specifications
- Amperage: 800 Amps
- Voltage Rating: 600 Volts
- Poles: 3
- Series/Frame: PXF
- Mounting Type: Unit Mount Lug
- Trip Unit: Micrologic electronic trip
- Interrupt Rating: High interrupt capacity (specific kA rating not confirmed)
- Certifications: UL Listed
- Part Number: PXF36800Z
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : PXF
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LSI - Long-Time, Short-Time and Instantaneous
- Frame Size : PX Frame
- Protection : Solid State
- Weight : 90
