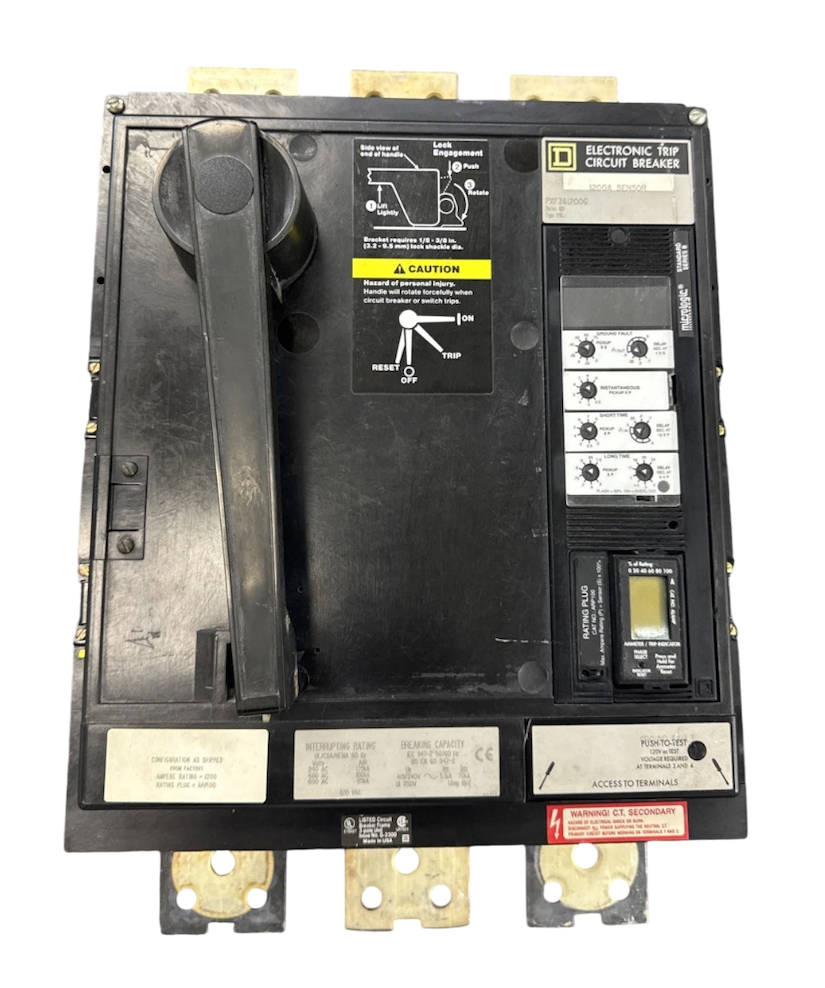

PXF36700LS - Square D PXF Frame 3 Pole 700A 600V Molded Case Circuit Breaker with Micrologic LS Trip

PXF36700LS

PXF36700LS is a Square D PXF frame molded case circuit breaker designed for reliable protection in industrial and commercial power distribution systems. This breaker features a 3-pole configuration, 700A trip rating, and is rated for 600V AC systems. It utilizes a Micrologic LS trip unit for long-time and short-time protection, providing precise and adjustable trip characteristics. The PXF36700LS is a bolt-on style breaker, suitable for high fault current applications with a 100kA interrupt rating at 480V. It is part of the Square D Micrologic series, known for durability and advanced electronic trip technology. This circuit breaker is engineered for demanding environments and offers solid-state electronic trip functionality, ensuring accurate and dependable operation. The breaker is supplied with a padlock handle and non-interchangeable trip unit, enhancing safety and control. Lugs are not included with this unit.

• Part Number: PXF36700LS
• Manufacturer: Square D
• Series/Frame: PXF Frame
• Type: Molded Case Circuit Breaker
• Poles: 3
• Amperage: 700A
• Voltage: 600V AC
• Interrupt Rating: 100kA @ 480V
• Mounting Type: Bolt-On
• Frame Amps: 1200
• Series: Micrologic
• Standard Trip Functions: LS (Long-Time and Short-Time)
• Features: Solid State Electronic Trip, Padlock Handle, Non-Interchangeable Trip Unit

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: PXF36700LS
• Manufacturer : Square D
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : Micrologic
• Type : PXF
• Voltage : 600
• Amperage : 700
• Phase : 3
• Poles : 3
• AIC rating : 100kA@480V
• Connection : Bolt-On
• Functions : LS - Long-Time and Short-Time
• Frame Size : PX Frame
• Protection : Solid State

Product Data

• UPC : 762179037149
• Weight : 90
