Product Info
- Manufacturer:Square D
- Sub-Category:Molded Case
Description
PXF361600LS

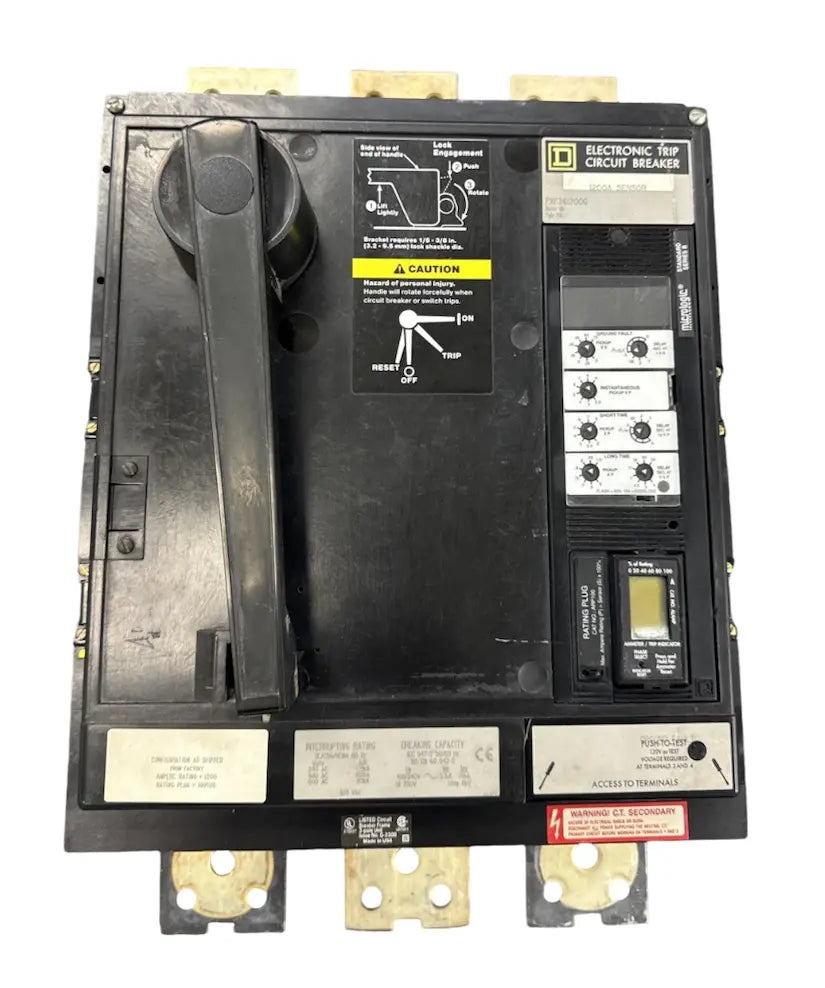

PXF361600LS is a Square D 3 pole, 1600 amp, 600 volt bolt-on circuit breaker designed for high interrupting capacity applications.This molded case circuit breaker features a 100kA interrupting rating at 480 volts and is engineered for reliable protection in commercial and industrial electrical systems. It includes solid state trip functions with long time, short time, and instantaneous trip capabilities.
- Key Specifications
- Amperage: 1600A
- Voltage Rating: 600V
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 100kA at 480V
- Trip Unit: Solid State (Long Time, Short Time, Instantaneous)
- Manufacturer: Square D
- Part Number: PXF361600LS
- Manufacturer : Square D
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : Micrologic
- Type : PXF
- Voltage : 600
- Amperage : 1600
- Phase : 3
- Poles : 3
- AIC rating : 100kA@480V
- Connection : Bolt-On
- Functions : LS - Long-Time and Short-Time
- Frame Size : PX Frame
- Protection : Solid State
- UPC : 762179036951
- Weight : 90
